Lab-Scale 3 in 1 Fluid Bead Processor for Powder Granulation, Coating & Drying - QFN-BY-300
  • Lab-Scale 3 in 1 Fluid Bead Processor for Powder Granulation, Coating & Drying - QFN-BY-300
  • Lab-Scale 3 in 1 Fluid Bead Processor for Powder Granulation, Coating & Drying - QFN-BY-300
  • Lab-Scale 3 in 1 Fluid Bead Processor for Powder Granulation, Coating & Drying - QFN-BY-300
Lab-Scale 3 in 1 Fluid Bead Processor for Powder Granulation, Coating & Drying - QFN-BY-300

Lab-Scale 3 in 1 Fluid Bead Processor for Powder Granulation, Coating & Drying - QFN-BY-300

SKU: qfn-by-300

Price: RFQ

Specifications

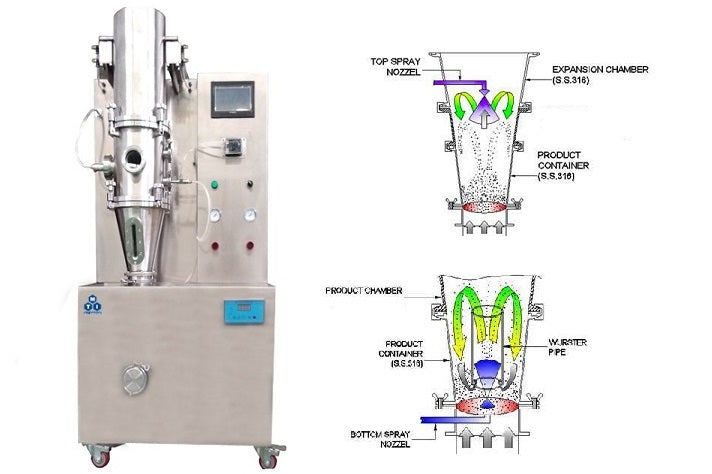

 The MTI compact Fluid Bed Processor offers an effective and efficient method for the drying, granulating & coating of various powder. By using modular construction and simplified design we provide flexible installation either the bottom spraying for granulation or the top spraying for powder coating or drying without spraying. The Machine is the vertical type with the conical pot body and the internal diversion tubes, which ensures particle flow uniformly inside the chamber up to 350C. SPECIFICATIONS Features Contact parts in SS 316 and non-contact parts SS 304 Single Pot Technology for mixing, granulating, drying & coating Shorter cycle time Highest Degree of Safety Spaying system with the precise flow control peristaltic pump Spraying flow rate controlled by the Peristaltic pump manually Spraying nozzle 0.7 mm size that can be installed in either top or bottom Inlet Air system with filter and electric heater Airflow control by AC Frequency Drive for Exhaust Blower Sight Glass for process visualization Air pressure controls switch for safety All rubber seal made from silicon food grade Easy mechanism to change from process of granulation to coating Power Supply AC 208V 50/60Hz, Three Phases 3.5 KW The power plug is not included. Please click here to order the plug according to your lab requirement Control Panel 7" Touch Screen Panel to display and set all parameters USB port built-in Container Chamber Volume 5 Liter made of SS 304 ( SS 316 is available upon request at the extra cost ) The one spray gun port on top and one in the bottom Spare spray port on the top of the container is available upon request at the extra cost Batch Capacity 25g Min. and 300g Max. Drying Temperature 40 - 150C with accuracy +/- 2C Spraying Gun & Nozzle One spray gun included, which can be installed either on top or bottom according to your application Nozzle hole 0.7mm diameter The spare spray gun is available at the extra cost Optional: Temperature controlled nozzle up to 450ºC is available upon request at the extra cost. Free Air Flow for inlet air ±10% Pressure: 7 bar Airflow: 0-150 m/h Peristaltic pump Max. 1000ml/h Noise Level < 60db Supporting Utility Required: Electrical Supply 3 Ph Model with Max. 20KW Air pressure: 7 Bar


Features
  • Contact parts in SS 316 and non-contact parts SS 304
  • Single Pot Technology for mixing, granulating, drying & coating
  • Shorter cycle time
  • Highest Degree of Safety
  • Spaying system with the precise flow control peristaltic pump
  • Spraying flow rate controlled by the Peristaltic pump manually
  • Spraying nozzle 0.7 mm size that can be installed in either top or bottom
  • Inlet Air system with filter and electric heater
  • Airflow control by AC Frequency Drive for Exhaust Blower
  • Sight Glass for process visualization
  • Air pressure controls switch for safety
  • All rubber seal made from silicon food grade
  • Easy mechanism to change from process of granulation to coating
Power Supply
Control Panel
  • 7" Touch Screen Panel to display and set all parameters
  • USB port built-in
Container Chamber Volume
  • 5 Liter made of SS 304 ( SS 316 is available upon request at the extra cost )
  • The one spray gun port on top and one in the bottom
  • Spare spray port on the top of the container is available upon request at the extra cost
Batch Capacity
  • 25g Min. and 300g Max.
Drying Temperature
  • 40 - 150C with accuracy +/- 2C
Spraying Gun & Nozzle
  • One spray gun included, which can be installed either on top or bottom according to your application
  • Nozzle hole 0.7mm diameter
  • The spare spray gun is available at the extra cost
  • Optional: Temperature controlled nozzle up to 450ºC is available upon request at the extra cost.
Free Air Flow for inlet air ±10%
  • Pressure: 7 bar
  • Airflow: 0-150 m/h

Peristaltic pump
  • Max. 1000ml/h
Noise Level
  • < 60db
Supporting Utility Required:
  • Electrical Supply 3 Ph Model with Max. 20KW
  • Air pressure: 7 Bar
