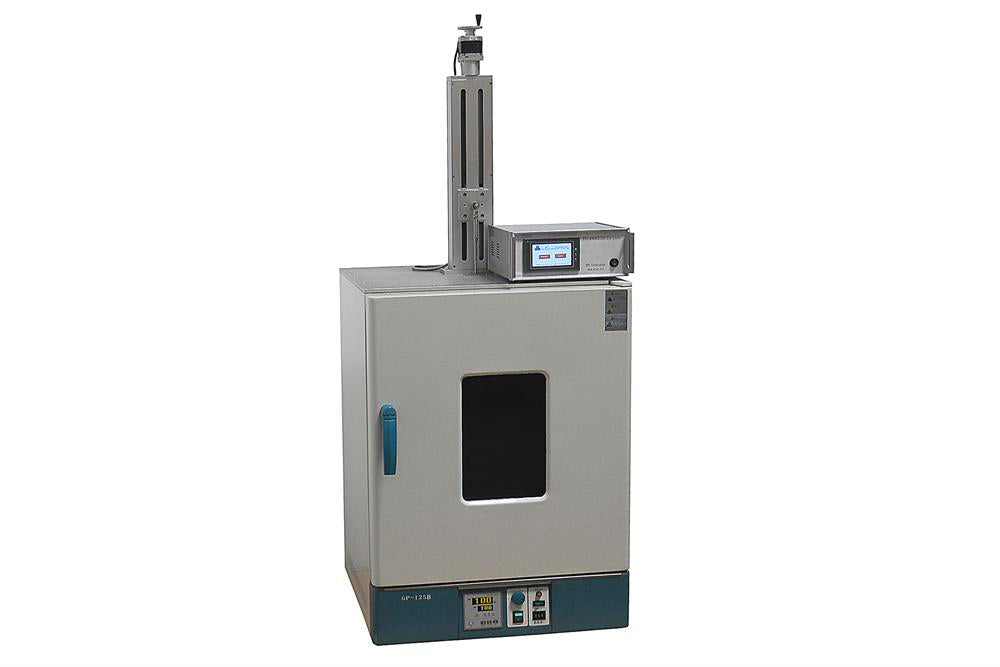

Dip Coater (1-200 mm/min) with 124 L Temperature Chamber for Substrate up to 16"x 9" - PTL-MMB02-200

PTL-MMB02-200 is a CE Certified Millimeter Grade Desktop Programmable Dip Coater (1 - 200mm/min) with a 124L drying oven. It is designed to accommodate the substrates up to 16"x 9" with fully programmable dipping/pulling speed, dwell time, and amount of cycles. The ball screw pulling system offers smooth vibration-free traveling in both directions. A standard polypropylene dip tank is included within the temperature-controlled drying oven to hold the liquid solution up to 100°C.

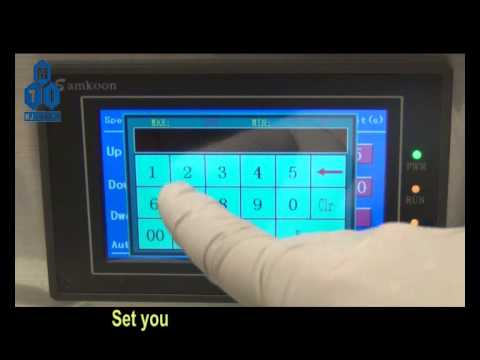

Control Panel	Working Voltage: 110-240V AC Max. Power Consumption: 50W Detachable Digital Controller offers flexibility Programmable temperature controller, Forced air fan power adjustor, Temperature limit & alarm indicator, Incubate and dry function switch are included. (Please see the second picture below for details)
Traveling Distance	0-250 mm Adjustable
Dipping/Pulling Speed	1-200 mm/min Adjustable
Max. Working Temperature	100°C (+/- 1.5°C accuracy)
Solution Container	One stainless steel trough is included with inner dimensions of 17.5''(W) x 2''(D) x 9.75"(H) Optional: temperature-controlled recirculating pump for the coating slurry can be fed through the chamber at an extra cost.
Max. Sample Size	16" x 9"
Max. Sample Weight	5 kg
Dipping/Pulling Motor	Stepping Motor
Oven	Working Voltage: 120 VAC or 208-240 VAC Max. Power Consumption: 2300W Chamber Dimensions: 500mm(L) x 450mm(W) x 550mm(H)-- 124 Liter  Inner Material: Stainless Steel
Compliance	CE Certified NRTL or CSA certification is available upon request at the extra cost
Application Notes	In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information) Use an ultrasonic processor to disperse nano powder or homogenize solution to get better coating (Please click on the second picture below for more information)
