Specifications

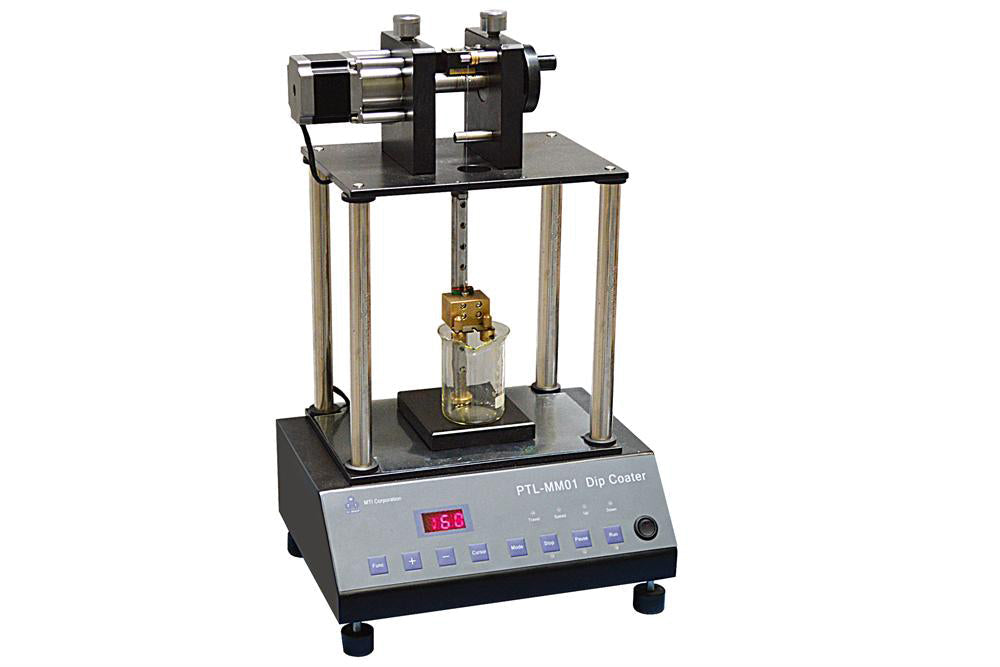

PTL-MM01 is a CE certified Desktop Dip Coater designed for R&D Lab to prepare various optical or epitaxial films from a liquid solution.
Dipping/Pulling
|

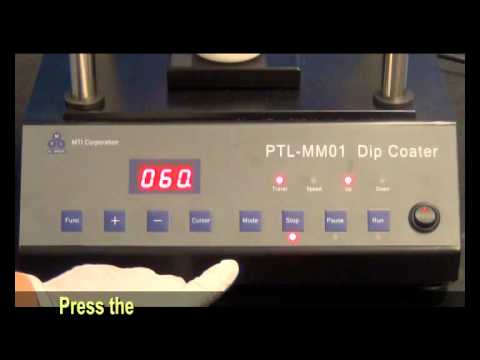

- Dipping/Pulling Speed: 1-200 mm/minute Adjustable via a digital panel
- Travel Distance: 0-200mm Adjustable via a digital panel
|
| Voltage |
- DC 24V
- A 110 - 220V AC (50/60 Hz) to 24VDC NRTL certified power adapter is included.
|
Sample holder
|
- Two screw sample clips are installed in the sample holder to carry the samples sliding up and down through one precision ball bear guide rod
- (ball bear guide rod updated from Sep. 6, 2014)
|
| Beaker Holder |
The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder |
| Solution container |
One 150ml beaker is included
|
| Max. Sample size |
50mm(L) x 25mm(W) x 2.5mm(T) |
| Sample weight |
Less than 250g |
Dipping/Pulling Motor
|
DC Stepping motor
|
| Certificate |
CE Certified |
Application Notes |
- In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on picture 1 below for more information)
- Use an ultrasonic processor to disperse nanopowder or homogenize solution to get better coating (Please click on the second picture below for more information) Pic. 2
- Extension frame will support coating for a larger sample (Please click on the third picture 3)
- Click to learn about the Fabrication of colloidal self-assembled monolayer (SAM) using monodisperse silica and its use as a lithographic mask.
- You put the coater into a vacuum glove box for coating under vacuum ( Click Pic. 4 to order )
 Pic.1  Pic. 2  Pic. 3
|
,
| Item # |
Description
|
Qty |
| 1 |
PTL-MM01 Desktop Dip Coater |
1 |
| 2 |
Screw Sample Holder |
1 |
| 3 |
Beaker Holder with Guide Pillar |
1 |
| 4 |
150mL Beaker |
1 |
