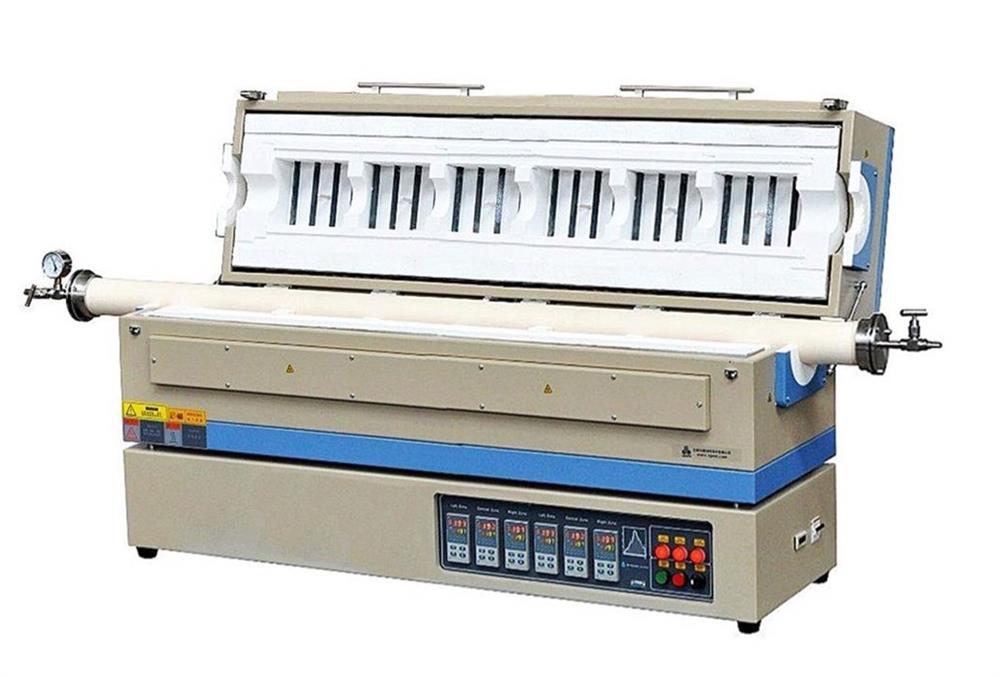

OTF 1700X 6Z is a six-zone split tube furnace with an alumina tube and air-tight flange up to 1700°C.

Features

  1. Temperature up to 1700°C
  2. Heating length 1400 mm

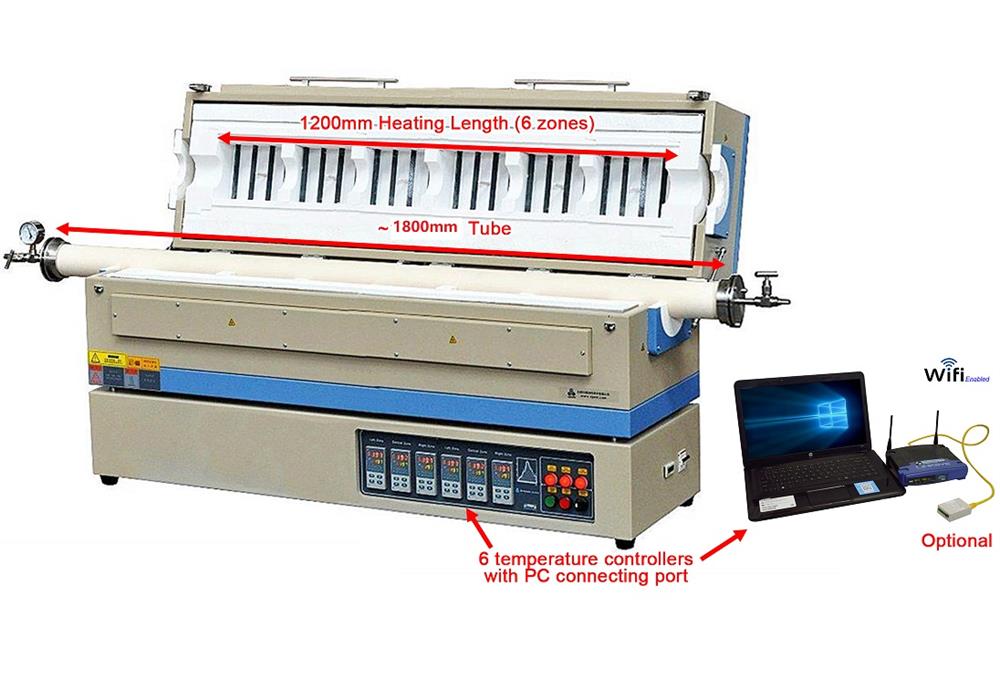

  3. 6 heating zones, 6 individual PID temperature controllers.
  4. Ø60 mm × 1800 mm alumina tube

SPECIFICATIONS:

Power Input 30 KW
Working Voltage  AC220+/- 10% VAC three-phase 50/60Hz
( 100 A breaker required)
380V, 3 phase is available via a transform upon request at extra cost
Working Temperature Max.                1700°C 30 minutes
Continuous:      800 -1600°C
Recommend Heating rate 5°C/min.
Processing Tube flange

Material:  Alumina
Size:   60 O.D x 51 I.D x 1800mm L
One set of vacuum flange is included for atmosphere control
Vacuum level10E-2 torr by a quality mechanical vacuum pump and 10-5 torr by turbo-pump
Heat Zone Length
  • Six heating zones:     12" +8" + 8" + 8" + 8" + 12"
  • Total heating zone length:  1422 mm  ( ~ 56")
  • Constant Temperature Zone:   800 mm  +/- 5ºC. ( If set 6 zones at the same temperature, without zone spacer. If you don't need the zone spacer, you shall inform us in advance)
  • The Built-in heating zone space creates a thermal gradient up to 100ºC/ cm
Temperature Controllers

6 digital temperature controllers for controlling each heating zonePID automatic control with 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.Built-in overheating & broken thermocouple protection. 6 pcs B type thermal are included.+/- 1 ºC temperature accuracy.RS485 Communications Port.Optional:
  • The furnace may be operated by PC by installing a control module. Please order an MTS-02 control module at extra cost.
  • If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you order a computer laptop from us to avoid software installation problems. For more information please click here.

     Temperature Control System for Controlling MTI Furnaces with Laptop - MTS02
Laptop & software (Optional)


  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
  • Labview-Based Temperature Control System (MTS01) enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.

Thermal Block Placement
  • Two thermal blacks are included. Please click the picture below to learn how to place them inside tube
  • You may order flange support to avoid tube rotating ( click Pic below right )


Heating Elements
  • 48 pcs  1800ºC grade MoSi2 rod
  • The heating element is consumable, Please click the picture below to order a spare and replacement.
  • Six S-type thermocouples (one for each zone).

Application Notes
  • The tube furnaces with mullite tubes are designed for use under vacuum and low pressure < 0.02 Mpa
  • Never use graphite crucible and the alumina tube.
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation.
  • The flow rate for gases should be limited to < 200 SCCM ( or 200ml/min )
  • Vacuum pressures may only be safely used up to 1300°C for all mullite tube furnaces:
  • Customized long heating zone up to 1200 mm L  with 700 mm uniform temperature zone ( +/- 5°C) 1800mm mullite tube is available upon request; ( click the picture below to see sketch)
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.
