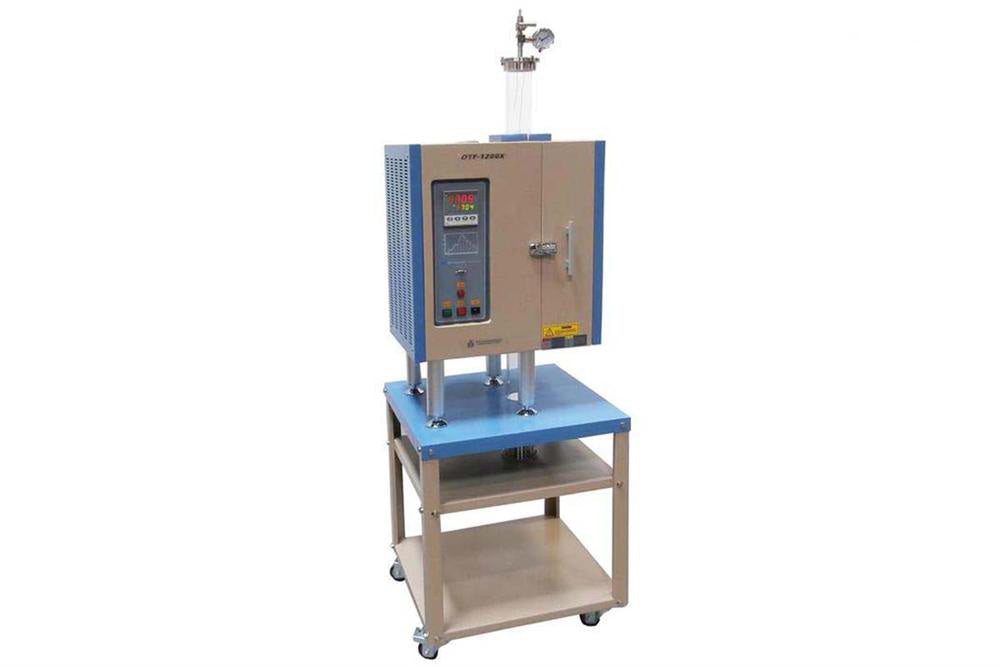

Furnace Structure |
- Double layer steel structure with air cooling to keep case temperature <65°C
- High purity fibrous alumina insulation with the Special coating to ensure max. energy saving
|
|
Power
|
6KW
|
|
Voltage
|
AC 208-240V Single Phase, 50/60 Hz
|
|
Max. Temperature
|
1100°C(<1 hr)
|
|
Continuous Temperature
|
1000°C for each zone
|
|
Max. Heating Rate
|
<= 20°C/min.
|
|
Processing Tube
|
- High purity quartz tube with 1200oC max. working temperature
- Size: OD: 80 mm,x ID. 72 mm x 1000mm Length
- Upgrade note:( Processing tube can be replaced by mullite tube from 60 mm OD to 100 mm OD at extra cost, then furnace can be used up to 1250°C )
|
|
Heating Zone length
|
440mm (single zone)
|
|
Constant Temperature Zone
|
150mm (+/-1°C)
|
|
Temperature Accuracy
|
+/- 1°C
|
|
Temperature Controller

|
- MET certified 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
- Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection.
- Over temperature protection and alarm allows for operation without attendant(s).
- +/- 1 ºC temperature accuracy.
- RS485 Communication Port.
- Advanced Temperature Control (Optional)
- MTS01 Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at an extra cost. Click for detailed information about the MTS01 software kit.
- You may upgrade the temperature controller to the EurothermTemperature Controller which is fully compatible with Eurotherm iTools software. This package includes a Eurotherm 3004 programmer, a communication cable (RS485 - USB), and a software USB. Click the pic below to view the full spec of the Eurotherm 3004 temperature controller.
|
Vacuum & Fitting Ports
|
|
|
Vacuum Level
|
-
10E-2 Torr by a mechanical vacuum pump.
-
10E-5 Torr by the molecular pump.
-
Leak rate < 5 mTorr / min.
|
|
Heating Element
|
1300°C Fe-Cr-Al Alloy doped by Mo
|
|
Dimensions
|
550mm(L) x 380mm(W) x 520mm(H) exclude mobile cart
600mm(L) x 600mm(W) x 1200(H) install with mobile cart
|
|
Net Weight
|
About 80kg (excluding mobile cart)
|
|
Shipping size
|
48"(L) x 40" (W) x 72''(H)
|
|
Shipping weight
|
400lbs
|
|
Warranty
|
One-year limited warranty with lifetime support (Consumable parts such as processing tubes and o-rings are not covered by the warranty, please order the replacement at related products below.)
|
|
Laptop, software (Optional)

|
- Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
-
Labview-Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
|
Compliance |
- CE Certified
- NRTL (UL61010) or CSA certification is available at extra cost.
|
Application Notes
( We may help you to build a customized flange to meet your application at extra cost )
|
-
-
Please click the picture below to learn how to quench samples in gas flow and vacuum
The furnace ca be modified into an HPCVD ( hybrid physical-chemical vapor deposition ) furnace via DIY a sample susceptor ( click picture below-right to see how )
- Approach#1: Traditional wire cut and free-falling
- Approach#2: Electromagnetic release and free-falling. Please contact us for the customization of this feature.

|
|
Warning
Click here to learn the installation of a gas regulator
|
- The tube furnaces with quartz tubes are designed for use under vacuum and low pressure <0.2 bars / 3 psi / 0.02 MPa
- Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
- Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C
|
