Description

 OTF-1200X-V is a Five -zone split tube furnace that can create a smooth thermal gradient or one uniform constant temperature zone by adjusting the four-zone temperature up to 1200 o C and 870 mm long heating zone. The furnace includes one quartz tube with optional OD of 80, 100, or 130 mm OD, and one pair of vacuum sealing flanges with pressure gauge & ball valve for immediate use. Touch Screen temperature controller is installed for easy programming with 30 segments and +/- 1 o C accuracy. It is an excellent furnace for annealing, diffusing, and sintering samples in various atmospheres.

Furnace structure
  • Double-layer steel case with two cooling fans, which ensures low surface temperature.
  • Energy-saving high-purity fibrous alumina insulation.
Power
  • AC 208-240V Single Phase, 50/60 Hz (50A breaker required)
  • Power consumption 8 KW Max.
  • A power cord is included without the plug
Working Temperature
  •  Max. 1200 oC < 1 hr.
  • Continuous : 1100 oC
  •  Max. Heating Rate: <= 20 oC /min
Processing Tube
  • Three Types of quartz tubes are available as in the product option
    • OD 80 x ID 74 x L 1400 ( mm)
    • OD100 x ID 94 x L 1400 ( mm)
    • OD 130 x ID 124 x L 1400 ( mm)
  • Two fibrous ceramic tube blocks are included to block heat radiation from inside the tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
  • Quartz block (Optional) is ideal for more cleanness and a higher achievable vacuum.

Vacuum -Tight Flange

  • One pair of the vacuum-sealed flange is included for matched tube
  • The needle valve is installed on the right-side flange with a 1/4" tube fitting
  • The mechanical gauge and valve are installed in the left-side flange
  • Vacuum level: 10-4 torr by turbopump and 10-2 torr by a mechanical pump
  • A digital vacuum gauge (Pic. 1) and KF25 port are available upon request at extra cost

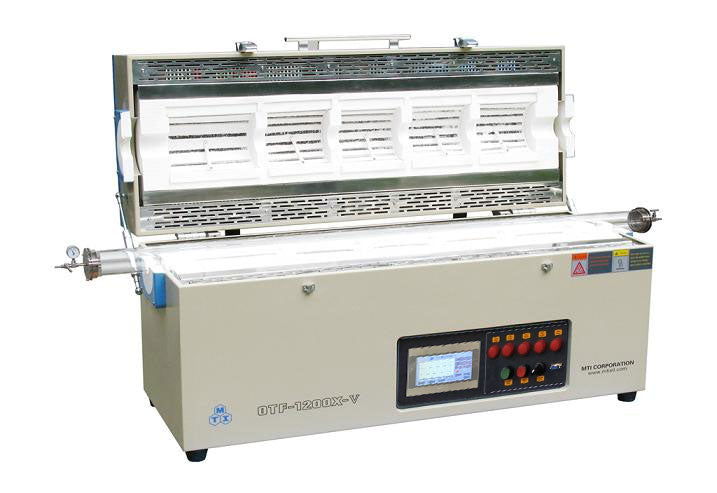

Pic. 1 Pic. 2


Heating Zone Length

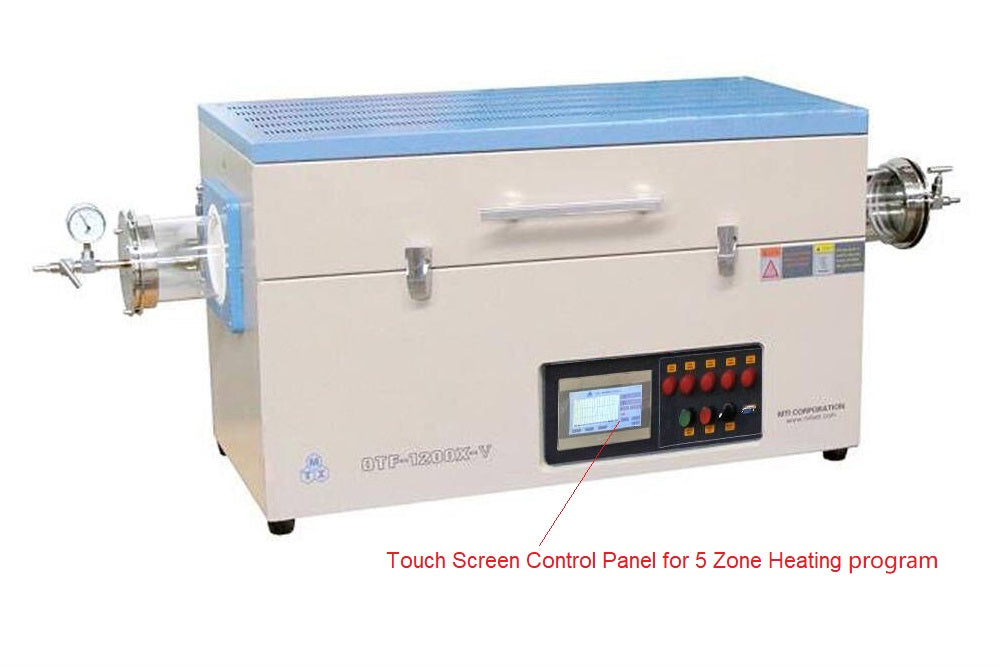

    • Four temperature controllers are integrated into a touchscreen control panel to set temperature profiles easily, which can control each heating zone independently or heating 4 zones at the same temperature
    • PID automatic control for heating rate, cooling rate, and dwell time up to 30 segments
    • Built-in overheating & broken thermocouple protection.
    • +/- 1 ºC temperature accuracy.
    • Four K-type thermocouples (one for each zone).
    • RS485 Communications Port and soft are available for PC connection
     Five heating zones: Each Zone length: 152 mm x 5
  •  Total heating zone length: 870 mm, 34" in total)
    Constant temperature zone: ~500 mm within +/- 2oC
Temperature Control
  • Five temperature controllers are integrated into a touch screen control panel to set temperature profiles easily, which can control each heating zone independently or heating 4 zones at the same temperature
  • PID automatic control for heating rate, cooling rate, and dwell time up to 30 segments
  • Built-in overheating & broken thermocouple protection.
  • +/- 1 ºC temperature accuracy.
  • Five K-type thermocouples (one for each zone).
  • RS485 Communications Port and soft are available for PC connection
Compliance
  • CE Certified
  • NRTL or CSA Certification is available upon request, additional charges will apply
  • Patten Number: ZL-2011-2-0355777.1
