Description

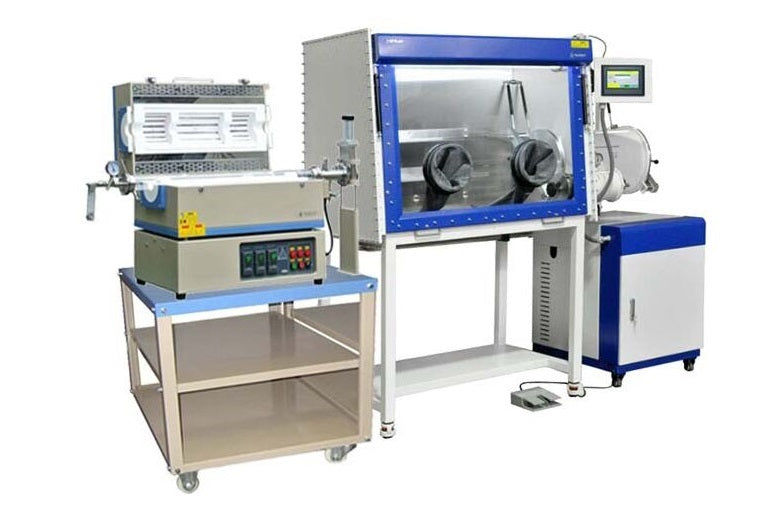

OTF-1200X-III-GB is a three-zone tube furnace connected to the glovebox with the purification system, which allows the processing of air-sensitive material in the environment of oxygen and humidity less than 1 ppm. The sample after heat treatment can be taken out from the tube furnace to the glovebox for further processing.
SPECIFICATIONS
Glovebox with Purification
|
- Chamber dimensions: 1200 mm L x 740 mm W x 900 mm H, made of stainless steel.
- Hinged-type front door for loading devices and samples easily
- Automic purging function for quickly removing O2 and H2O before recirculating purification
- An automatic regeneration function is built into the control panel
- A high-quality purification system ensures O2 and H2O below 1 PPM
- Two Antechambers for large and small sample delivery
- One 80mm Dia. air-tight flange is installed on the left side of the glovebox to connect with the tube furnace.
- Please click the picture at the left-column for detailed specifications of the glovebox
|
Three Zones Tube Furnace
|
|
Power
|
- Single-phase 208 - 240VAC, 50 / 60 Hz
- The glovebox: 2500 W (including a vacuum pump)
- Furnace: 5000 W
|
|
Compliance
|
- CE approval
- NRTL Certification (UL 1450) is available upon request at extra cost
|
