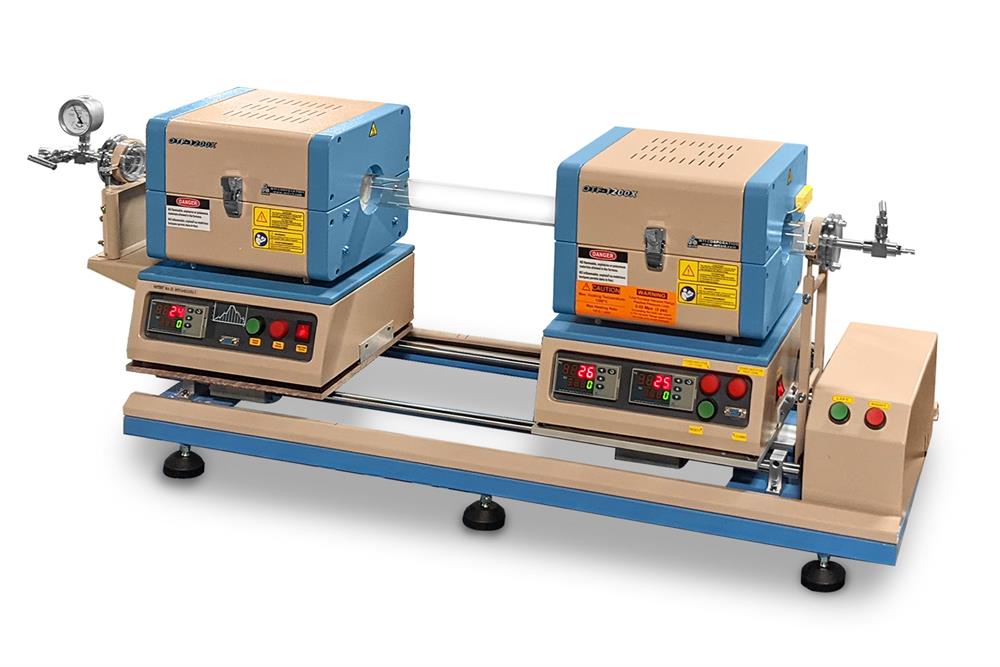

1200°C Max. Automatic Sliding Dual Furnace (Ø50mm) for TMDs Growth - OTF-1200X-50-DFSL

Power

• OTF-1200X-S-II (sliding): AC 110-120V Single Phase, 50/60 Hz, 1.5 kW
• OTF-1200X-S (stationary): AC 110-120V Single Phase, 50/60 Hz, 1.2 kW
• Sliding Motor: AC 110-120V Single Phase, 50/60 Hz, 0.2 kW
• Power cables with NEMA 5-15P are included.
• The system working under 208-240 VAC 50/60 Hz is also available upon request.

Sliding Furnace (Right)

• Dual-zone furnace OTF-1200X-S-II
• Sliding distance: 300 mm
• Heating elements: Mo doped Fe-Cr-Al alloys
• Heating zone: 200 + 200 mm
• Constant temperature zone: 70mm (±2°C)
• Max temperature: 1200 °C (<1 hour)
• 1100 °C (continuous)
• 1000°C (under vacuum)
• Max heating rate: 20 °C/min
• K type thermocouple

• Stationary single Furnace: OTF-1200X-S
• Heating zones: 200 mm
• Constant Temperature Zone: 60 mm (±1°C)
• Heating elements: Mo doped Fe-Cr-Al alloys
• Max temperature: 1200 °C (<1 hour)
• 1100 °C (continuous)
• 1000°C (under vacuum)
• Max heating rate: 20 °C/min
• K type thermocouple

Processing Tube

• High purity fused quartz tube
• Size: 50 OD x 44 ID x 1200 L (mm)
• Max Pressure: 0.2 bar (3 psig)
• Max flow rate: 1000 sccm
• Workflow: stationary to sliding.

Temperature Controller

• The FA-YD518P-AG temperature controller is included.
• Proportional–integral–derivative control (PID control) and auto-tune function
• 30 segments programmed with ramping, cooling and dwelling steps
• Built-in over-temperature alarm and thermocouple failure alarm
• +/- 1 ºC temperature control accuracy
• Default DB9 PC communication port
• Optional PC control and software:
• The furnace may be operated by a PC with free software.
• We recommend you order a computer (laptop) from us to avoid software installation problems. For more information please click here

Temperature Controller (optional)

• All temperature controllers can be graded to the Eurotherm 3000 Temperature Controller with +/- 0.1°C accuracies.
• This package includes:
• One (1) Eurotherm 32H8 controller for single-zone furnace
• Two (3) Eurotherm 32H8 controllers for dual-zone furnace
• Communication cables (RS485 - USB) and software

 Vacuum Flanges

• Double Linear Sliding Rails made of Cr-plated steel
• 24VDC motor with manual and auto modes.
• The automatic programmable sliding function is integrated with the temperature controller.
• Sliding length: 300 mm

 Vacuum Level

• Limited by pump (pump is not included, click on pictures to order)
• 10E-5 torr can be achieved via molecular pump
• 10E-2 torr can be achieved via a mechanical pump.



Optional for upgrade

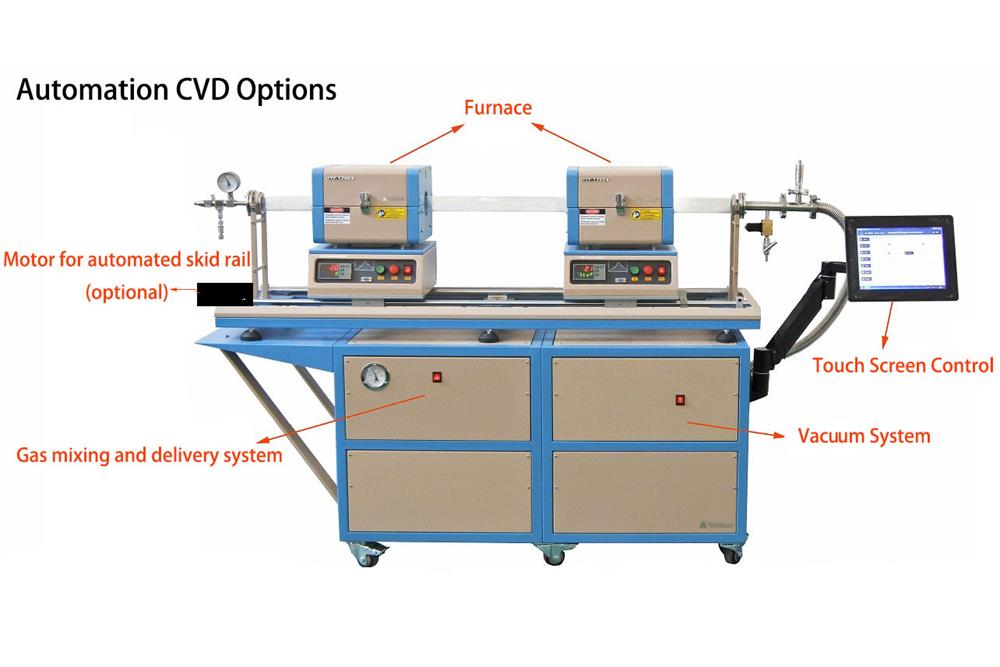

• 1-9 channel gas mixing and delivery module is optional (Pic.1)
• A cold trap is also available to condense volatile vapor. (Pic. 2)

Pic. 1 Pic. 2

Compliance

• CE Certified
• NRTL or CSA certification is available at extra cost.


Application Notes

Click here to learn the installation of a gas regulator

• Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.4 bar / 5.8 psi / 0.04 MPa
• Attention: A two-stage pressure regulator must be installed on gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
• The flow rate for gasses should be limited to < 1000 SCCM (or 1000 ml/min) for best thermal uniformity.
• Click here to learn How to set up quartz/ ceramic tube and vacuum flange for MTI Tube furnace.

Warning

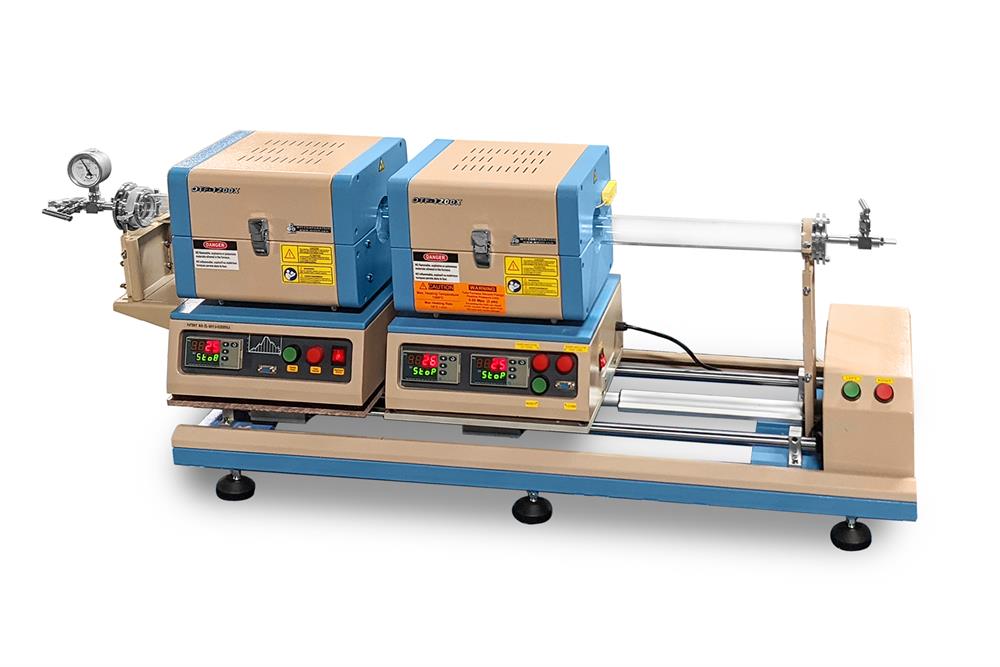

• Fast sample cooling can be achieved by sliding the heating chamber away. Please wear protective gear such as heat resistant suit & gloves if you intend to do so. DO NOT TOUCH THE TUBE SURFACE WHEN IT IS HOT!
