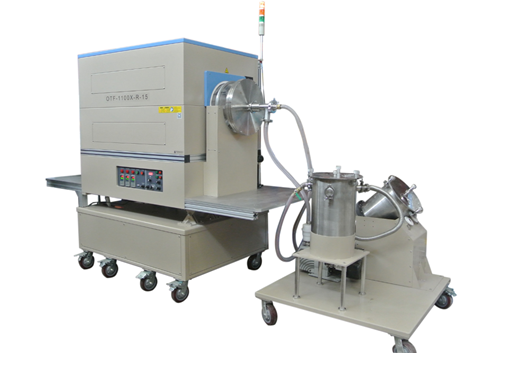

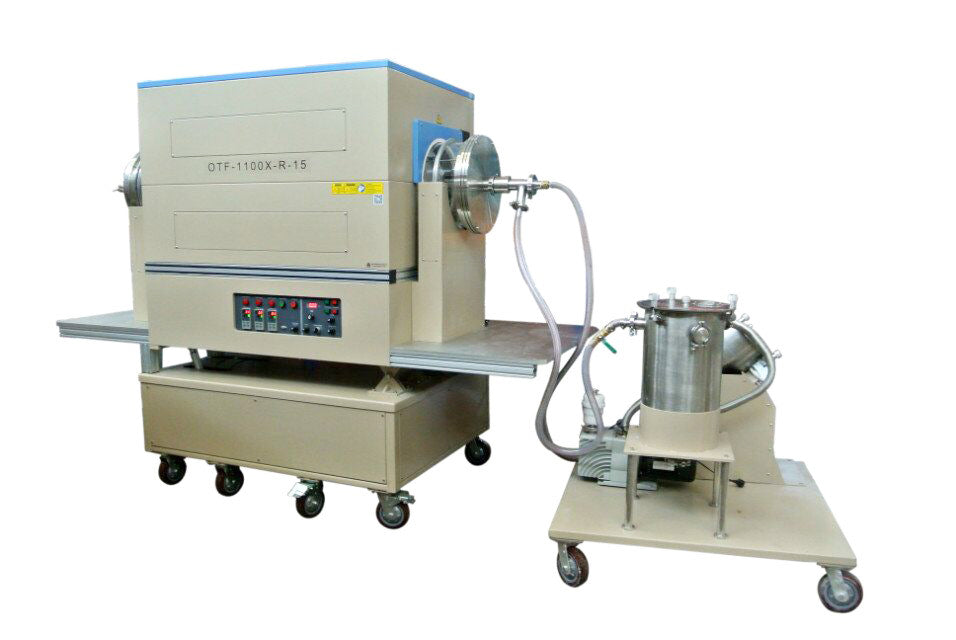

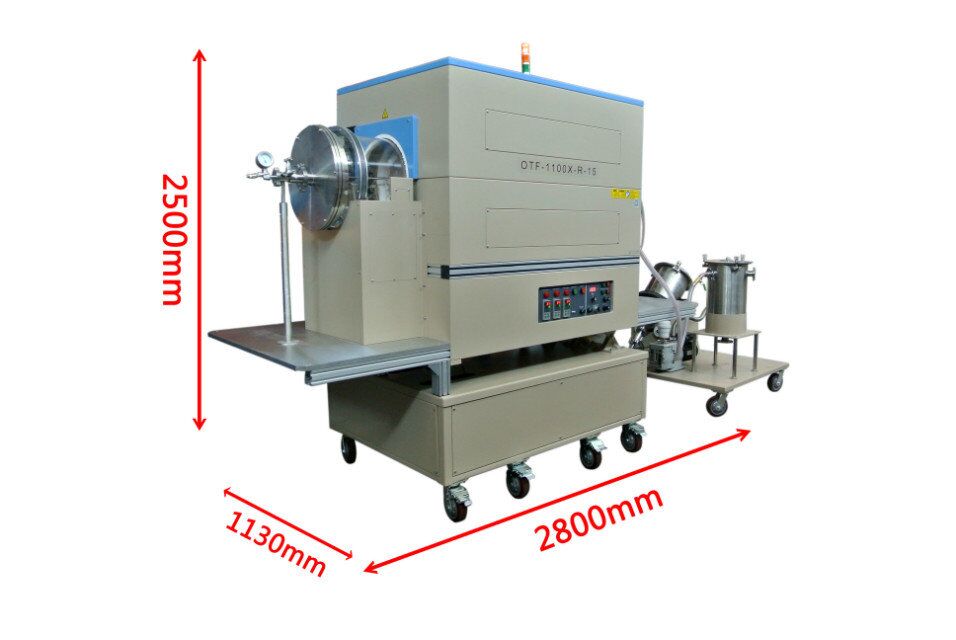

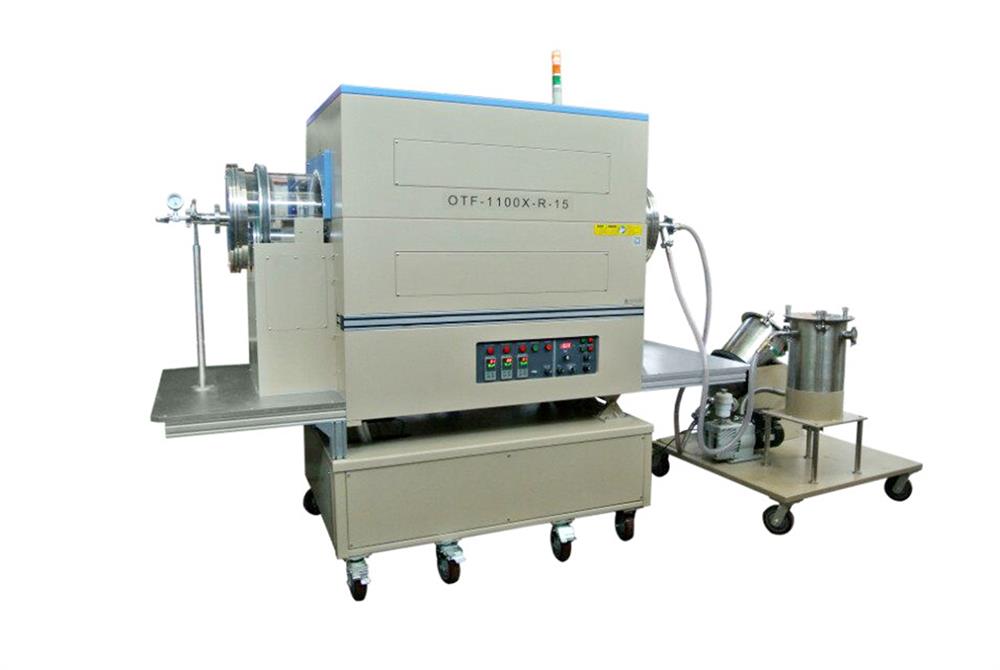

1100C 15 Rotary Furnace w/ 3 Zones and Powder Feeding For Powder CVD - OTF-1100X-R-15-AF

Furnace Construction

• Splittable Tube furnace with electric opening/closing function
• SiC heating element for easy repair and replacing
• Three heating Zone with total 1000mm(40") heating zone length
• High-purity alumina fibrous insulation structure for maximum energy-saving
• Gear-driven tube rotation allows "blending" type processing for powders to achieve the best processing uniformity.
• Automatic powder feeding and receiving systems are included
• 15" I.D quartz tube selectable for larger-scale production.

• Three heating zones, each zone 330mm ( 13" ) long
• Total heating zone length: 1000mm (40'')
• constant temperature zone: 600mm at the center (with +/-5°C) ( if setting all three zones have the same heating temperature )
• Two foam ceramic blocks with alumina coating are included which are connected to flanges and rotate together with the tube.

• 208 - 240V AC three phases, 50/60 Hz
• 45KW Max

• The processing tube is evacuated to create a vacuum and thus the powder inside the feeder (under atmospheric pressure) will be sucked into the tube due to the pressure difference. A vacuum pump is necessary for such an operation. Please click the image below to order.

• The furnace can be tilted at a certain degree to allow the powder collection on one side.

• The sealing flanges are provided with the processing tube. The standard configuration is:
• Both flanges are the quick-connect type.
• One mechanical pressure gauge (range: -0.1Mpa - 0 Std atm - 0.15Mpa)
• The rotating seal is a magnetic fluid seal to guarantee that the front end of the flange does not move when the tube rotates under a controlled atmosphere.

• Three 30 segments programmable PID digital temperature controller (click the left pic to see details specs )
• The RS485 communication port is built-in
• Note: To achieve full temperature computerization please order a set of MTS-02 control modules. If you order the control module with the furnace we will install and test it before we ship out the product. We recommend you order the computer (laptop) from us. For more information please click here

• Max. working temperature: 1100oC for less than 30 minutes
• Continuous Working Temperature: 400 -1000°C
• Max. Heating/Cooling rate: 10°C/min
• Temperature accuracy: +/- 5°C in heating Zone

• 3 - 10 RPM variable

• 0 - 15° adjustable by electric-driven motor

• For Powder CVD coating, you will need to order an optional gas delivery system.
• 4 Channels gas mixer: GSL-4Z (Optional. Customers can order in different multiple channels gas mixer with extra cost, please click on the picture for more detailed specs.)
• Accuracy: ±1.5% FS
• Liner: ±0.5-1.5%F.S.
• Accuracy: ±0.2%F.S.
• Controlling Range:
• Controller 1: 0~100 SCCM
• Controller 2: 1~199 SCCM
• Controller 3: 1~199 SCCM
• Controller 4: 1~499 SCCM

• CE Certified
• NRTL certification is available upon request at extra cost


• Ref Article Scalable synthesis of silicon-nanolayer-embedded graphite for high-energy lithium-ion batteries
