SKU: mtca5

Price: RFQ

Description

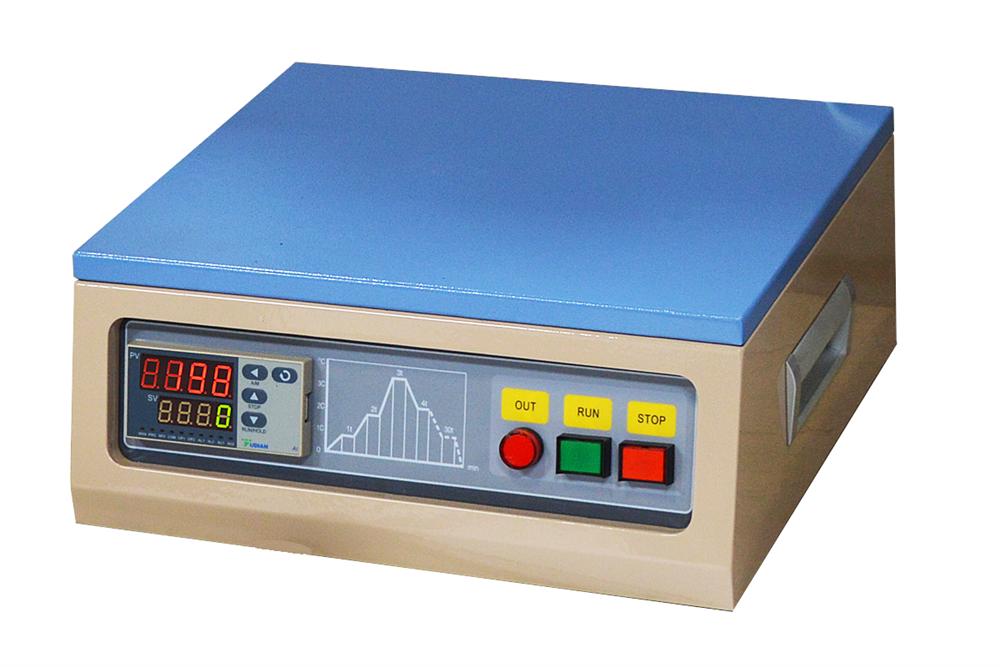

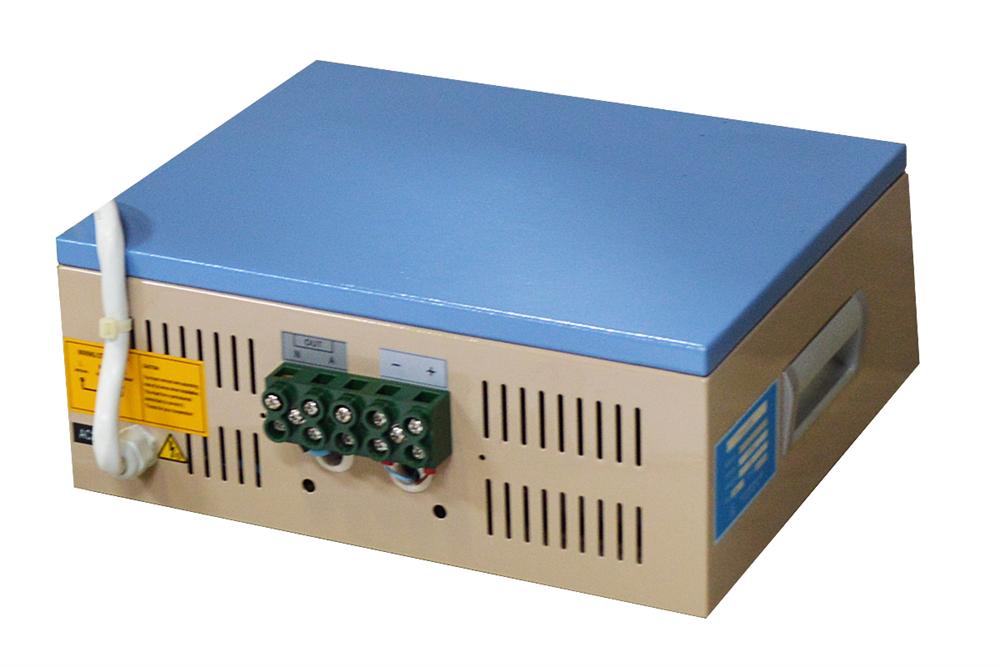

 EQ-MTC-A5 temperature control unit is designed for precision control of high-temperature furnaces from 1000 - 1500 o C with heating elements of resistant wire or SiC. Just connect the power cord and thermocouple with the unit for PID temperature control. The unit is installed in a heavy-duty steel case with a precision digital temperature controller and voltage & current meters. The controller uses PID automatic control via SCR ( Silicon Controlled Rectifier , phase angle fired) power control which provides more accurate temperature control than "solid relay". The Built-in "auto-tune" function allows you to adjust furnace temperature with minimum over-shooting. 30 segments programmable with digital display.

Model EQ-MTC-A5-220
Input Voltage AC 208 - 240 single phase
Max. Power 5000 W ( 5KW)








Thermo Couple accepted
  • K, S, R, J, B, C (W/Re-5/26) and D (W/Re-3/25) type selectable by setting Sn value of controller
    • J range: -310 to 1832 oF (-190 to 1000 oC)
    • K range: -328 to 2502 oF (-200 to 1372 oC)
    • T range: -328 to 752  oF (-200 to 400 oC)
    • E range: -328 to 1832 oF (-200 to 1000 oC)
    • N range: -328 to 2372 oF (-200 to 1300 oC)
    • B range: 392 to 3272 oF oF (200 to 1800 oC)
    • R range: 32 to 3214  oF (0 to 1768 oC)
    • S range: 32 to 3214  oF (0 to 1768 oC)
    • C ( W/Re-6/25): 32 to 4172 oF (0- 2300 oC)
    • D; (W/R-3/25): 32- 4172 oF (0- 2300 oC)
    • Sn ( K=0, S=1, B=6, D=8 C=9 )
    • thermal-couple is not included)

Temperature control		 The controller uses PID automatic control via SRC (Silicon Controlled Rectifier) power control with 30 steps programmable, which can control 1-5 KW furnace from 1000 - 1500 ºC with the accuracy of +/- 1.0 ºC


Overall Dimension (mm)		 360 L x 340W x 150 H mm
Weight (kg/lbs) 10 kg / 22 lbs
Note This controller is for DIY utility, MTI will not be responsible for the cabling and wire connection, please ask a certified electrician to do the connection between your own furnace and the controller; otherwise, you may contact our customer service and let us do the plug-and-play function per your situation at certain service/customization fee.
