X-Y Axis CNC Stage with Head Mount for DIY an Ultrasonic Spray or Electro-Spinning - MSKUSPST1
  • X-Y Axis CNC Stage with Head Mount for DIY an Ultrasonic Spray or Electro-Spinning - MSKUSPST1
  • X-Y Axis CNC Stage with Head Mount for DIY an Ultrasonic Spray or Electro-Spinning - MSKUSPST1
  • X-Y Axis CNC Stage with Head Mount for DIY an Ultrasonic Spray or Electro-Spinning - MSKUSPST1
X-Y Axis CNC Stage with Head Mount for DIY an Ultrasonic Spray or Electro-Spinning - MSKUSPST1

X-Y Axis CNC Stage with Head Mount for DIY an Ultrasonic Spray or Electro-Spinning - MSKUSPST1

SKU: mskuspst1

Price: RFQ

Specifications

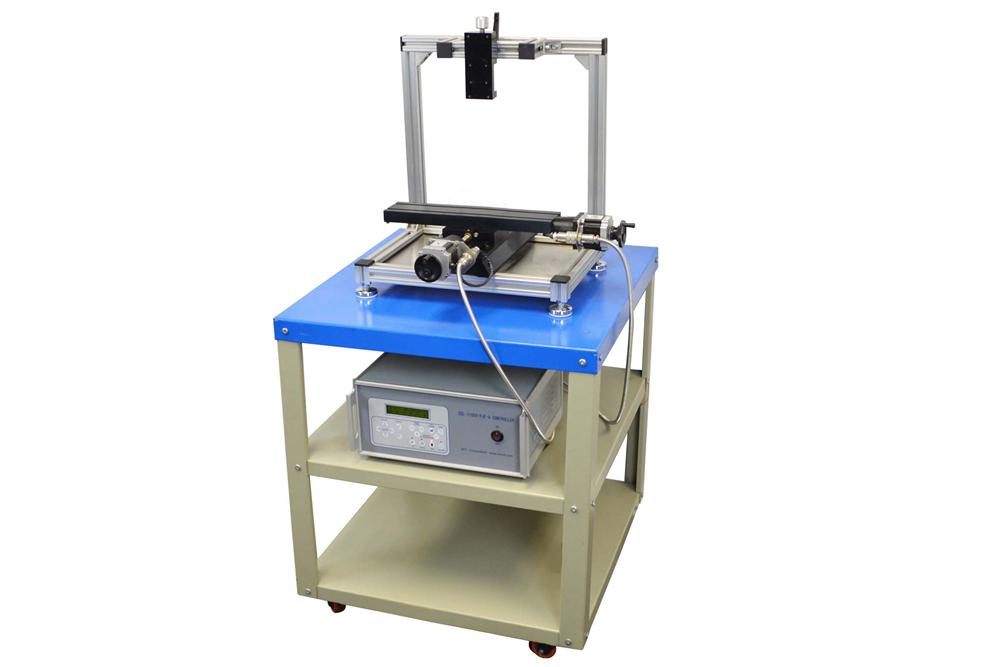

 The MSK-USP-ST1 is a precise CNC sample stage. By using the CNC control system user can manipulate the movement of X and Y-axis. Speed adjustment is from 0.01mm/min to 40mm/min. The travel area is 8" (X-axis) x 4" (Y-axis). It is designed for DIY a low-cost Ultrasonic spray or electrospray coating system.

Voltage
  • 110/220V  50/60Hz  <100W
Minimum Pressure
  • 0.275MPa
Working Environment
  • Temperature <42; Humidity ≤40%RH
Working Stage
  • Electrical control: X&Y Axis
  • Manual control: Z-Axis
Ranges
  • X-Axis: 200mm    (CNC-controlled )
  • Y-Axis: 100mm  (CNC Controlled )
  • Z-Axis: 50mm ( Manually )
MAX. Weight Carry
  • 10 lbs.
Control Box
  • Digital Display and touch button to program
Optional Sample stage
  • Please email us to order the Optional glass plate as a sample stage.
Optional

( click pic.to order)

Add a Digital Syringe Pump and Ultrasonic Spray Nozzle with Power Controller

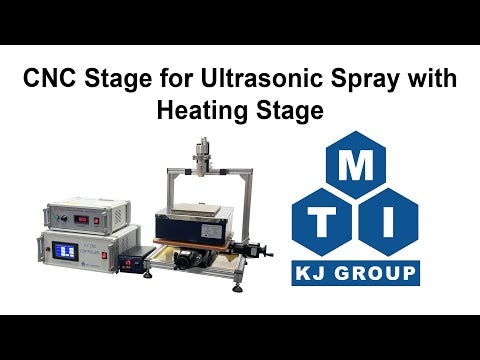

Add a Heating plate with a Syringe Pump and Ultrasonic Spray Nozzle
Add a Heating Syringe Pump and Hi-Voltage Power supply ( click picture to order )
Application Notes

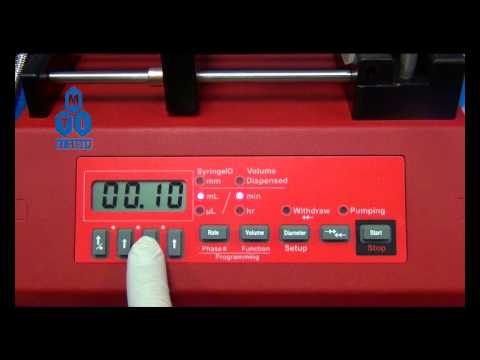

  • Please be aware of the syringe pump and other accessories in the video are not included in the stand package.
  • Please be aware that the DIY page is for showing DIY ideas. The equipment listed on the DIY page is NOT naturally compatible with each other. Please email us first to order a customized adaptor, the separate order would not fit.

Compliance
  • CE certified
