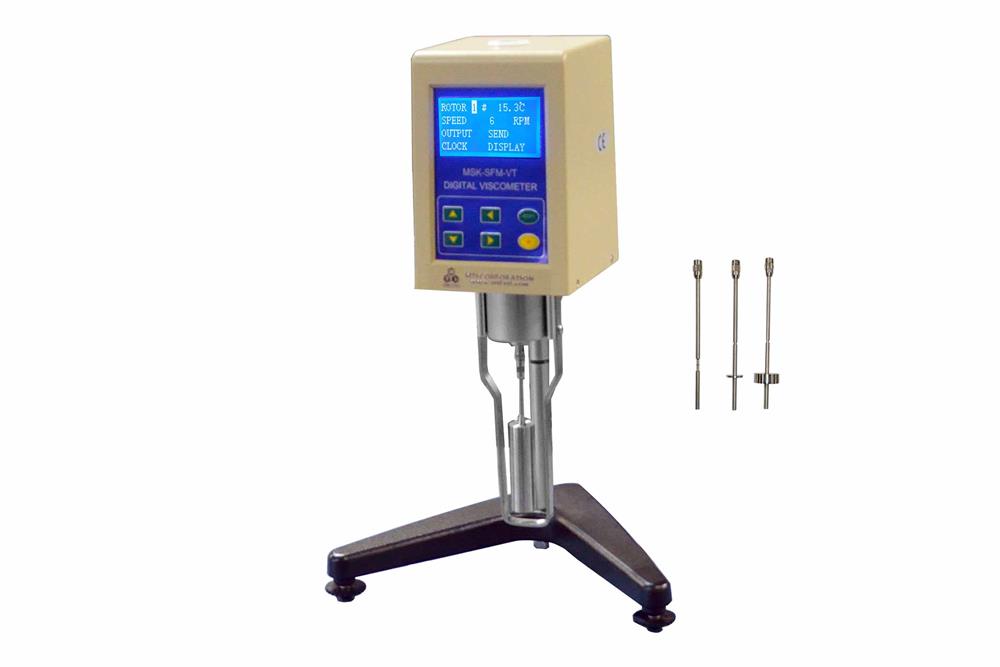

Digital Battery Slurry Viscosity Tester (10-10^5 cP) With Temp Monitor - MSK-SFM-VT2
  • Digital Battery Slurry Viscosity Tester (10-10^5 cP) With Temp Monitor - MSK-SFM-VT2
  • Digital Battery Slurry Viscosity Tester (10-10^5 cP) With Temp Monitor - MSK-SFM-VT2
  • Digital Battery Slurry Viscosity Tester (10-10^5 cP) With Temp Monitor - MSK-SFM-VT2
Digital Battery Slurry Viscosity Tester (10-10^5 cP) With Temp Monitor - MSK-SFM-VT2

Digital Battery Slurry Viscosity Tester (10-10^5 cP) With Temp Monitor - MSK-SFM-VT2

SKU: msksfmvt2

Price: RFQ

Specifications

 The viscosity of battery electrode paste/slurry plays an important role during the electrode coating on a current collector, it is necessary to use a tester to monitor and then adjust the viscosity when mixing. This tester can also be used for other fluid or paste viscosity testing if within the range 10mPa·s10^5 mPa·s. SPECIFICATIONS: Features Speed Adjustable 4 Types of Testing Spindles 10mPa·s ~ 10^5 mPa·s by digital display Power 12VDC A 100 - 240VAC to 12VDC power adapter is included in the standard package. Accuracy ±5%Newtonian fluid) Requirement for Experiment The red arrows show the minimum height of the sample's needs. There are also marks on all the testing spindles. The Minimum Requirement for the Beaker's size: Diameter > 70mm, Height >125mm Temperature Sensor An immersion probe is included for temperature measuring. Compliance CE Certified Standard Package Control Panel 4 Types of Testing Spindles Stand support Base/Pool Temperature Probe Case


Features
  • Speed Adjustable
  • 4 Types of Testing Spindles
  • 10mPa·s ~ 10^5 mPa·s by digital display



Power
  • 12VDC
  • A 100 - 240VAC to 12VDC power adapter is included in the standard package.
Accuracy
  • ±5%Newtonian fluid)
Requirement for Experiment
  • The red arrows show the minimum height of the sample's needs. There are also marks on all the testing spindles.
  • The Minimum Requirement for the Beaker's size: Diameter > 70mm, Height >125mm
Temperature Sensor
  • An immersion probe is included for temperature measuring.
Compliance
  • CE Certified
Standard Package
  • Control Panel
  • 4 Types of Testing Spindles
  • Stand support Base/Pool
  • Temperature Probe
  • Case
