120°C Max. Film Coater w/ Vacuum Bed (12"Wx24"L) and Rapid Infrared Heating Cover & 250mm Doctor Blade-MSK-AFA-IIVCIR

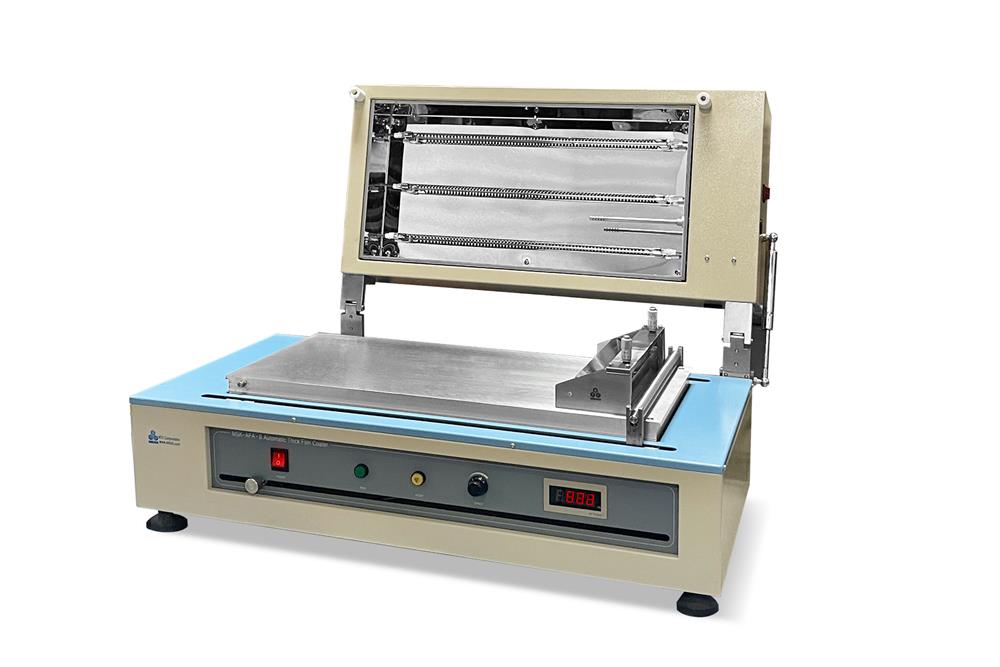

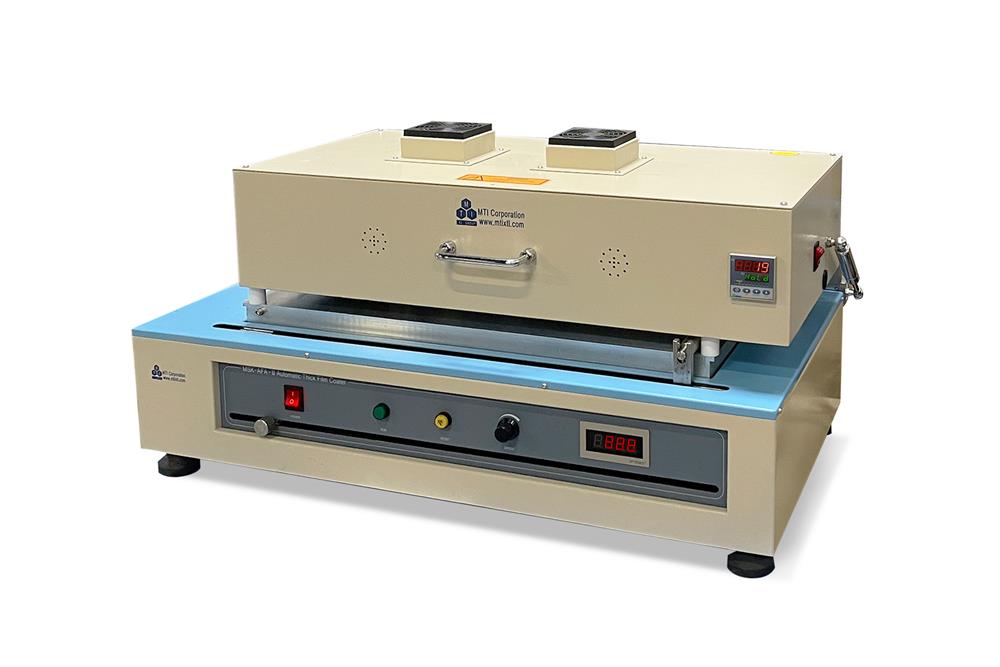

MSKAFAIIVCIR is a CE Certified larger size automatic film coater with a vacuum bed and a rapid heating cover that heats up to 120ºC. It is designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed-thickness applicators. It has a stable driving system to promote a smooth coating with all types of materials. The pin holes on the bed can hold the substrate sheet on the bed via a vacuum. This is very helpful when performing coating on a thin substrate. It is an ideal tool for ceramic tape casting and Li-Ion battery electrode coating.

SPECIFICATIONS

Power	110V version, two separated power cables.  IR cover, 120VAC, 10A, 1200 W, 50/60Hz, NEMA 5-15P Coater, 120VAC, 18 A, 2160 W, 50/60Hz, NEMA 5-20P 208-240V version, one power cable 208-240VAC, 3400 W, 50/60 Hz, without plug.
Traverse Speed	10 - 100 mm/sec variable [Without any load, the actual traverse speed is around 90 mm/s as the nomial speed is set as 100 mm/s. Therefore, the real speed for coating should be calibrated by customer themselves by using a ruler and stop watch] Accuracy: 10mm/sec Controlled by a 24 VDC motor.

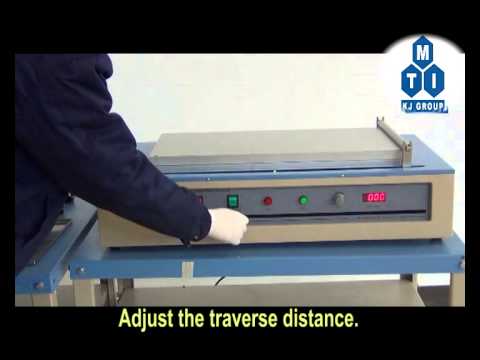

Stroke Length	10 - 530 mm adjustable by using the Adjustable Position Switch

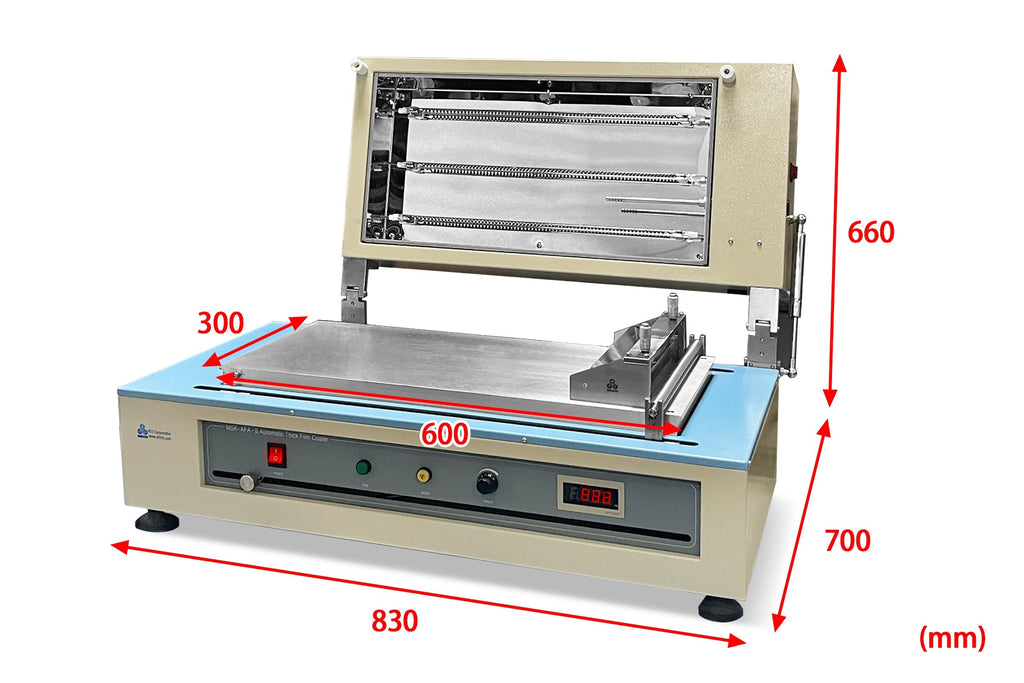

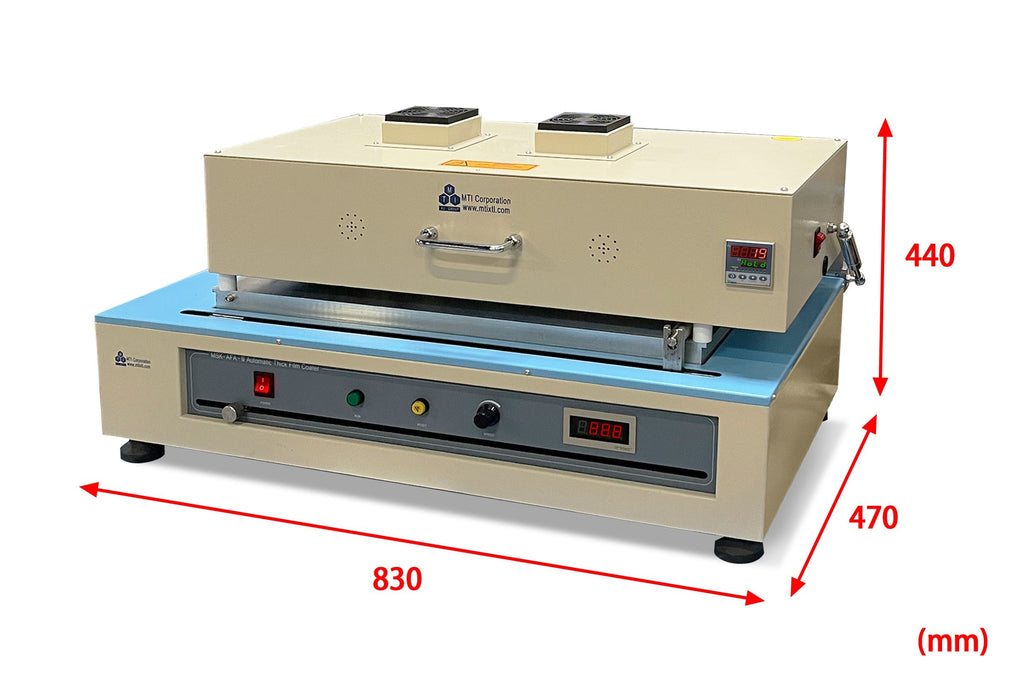

Heating Vacuum Bed	A vacuum bed is made of aluminum alloy with a micro-size hole Vacuum Chuck Dimensions: 600mm(L) x 300mm(W) Heating elements are built inside the vacuum bed for uniform heating up to 100ºC Max.  Precision digital temperature controller with +/- 1ºC accuracy Type K thermocouple
Rapid Heating Cover	3 Electric Infrared Tubular heater Element is installed on the heating cover for rapid heating. 1 thermocouple is installed for temperature reading. Max Temperature: 120°C Temperature accuracy: +/- 2°C Heating Rate: approximately 1.2°C/s
Film Applicator Pic. 1 Pic. 2	250 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 mm - 5 mm (Pic. 1) Note: Thinnest film can be achieved is > 10 microns Optional hybrid film applicator of Blade and Slot die is available at the extra cost ( Click Pic 2 to see specs)
Vacuum Pump (Optional)	Please click the checkbox to order CE Compliance 120L/min Oilless Vacuum Pump
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost
Application Notes	Pic.1 and 2 show coated cathode and anode for Li-Ion batteries. Please click here to see how to  It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail.) May need a vacuum mixer to remove air bubbles inside slurry to make uniform coatings (Click Pic.4 ) You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.) Pic.1    Pic.2    Pic.3   Pic. 4    Pic.5
DIY ideas or options	Ultrasonic Coater            Roll-to-Roll Ultrasonic Coater                  Electrospinning Coater     Roll-to-Roll Electrospinning Coater
