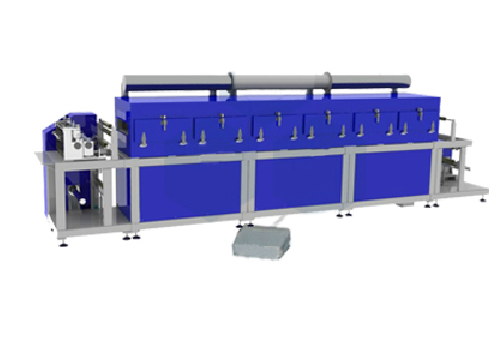

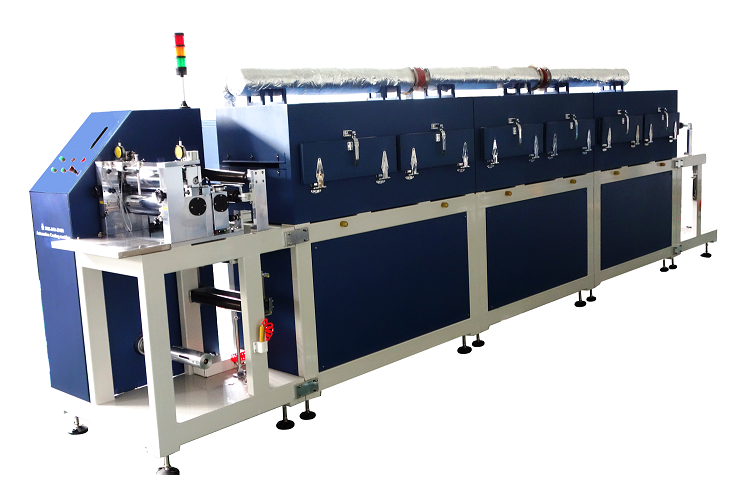

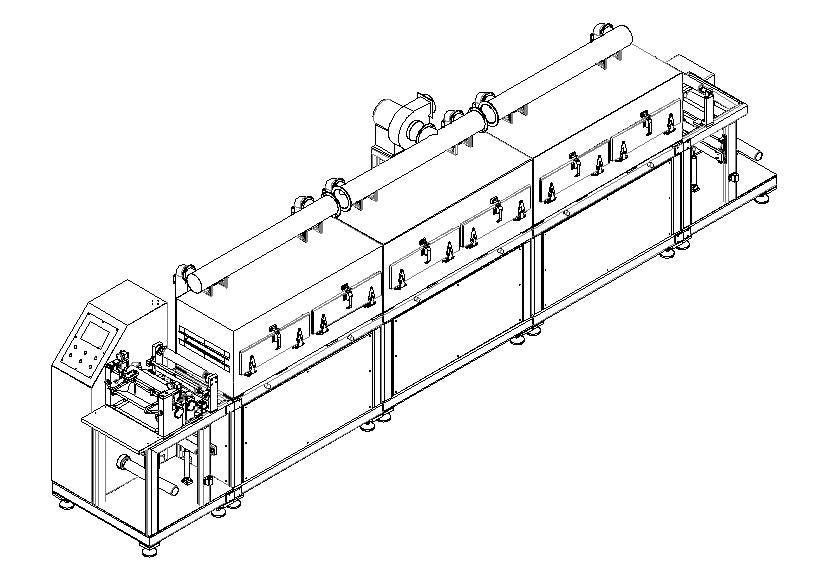

Faster Roll to Roll Transfer Coating System (400mm Width) for Pilot Scale of Battery Electrode - MSK-AFA-EI400

Faster Roll to Roll Transfer Coating System (400mm Width) for Pilot Scale of Battery Electrode - MSK-AFA-EI400

SKU: mskafae400

Price: RFQ

Specifications

 MSK-AFA-E400-UL is a CE Certified and UL inspection ready automatic and faster roll to roll coating system for battery electrode with 4 meters/minute max. coating speed ) It is perfect for prototypes of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's utmost convenience. For Roll to Roll Coater Service, please fill in the Roll to Roll Request Form. SPECIFICATIONS: Working Voltage AC220V±10%, 50/60 Hz, three-phase AC380±10%, 50/60Hz, three-phase is available upon request Max. Power Consumption 30 KW, the power for each heating chamber with 1.5 meter is around 9 kW. Each heating chamber is suggested to connect separate power input. Coating Method Transfer coating method for better density and uniformity ( Pls click Pic below to see detail ) Max. Coating Width 400mm Coating Speed Max. 4 meter / minute Thickness Precision ± 3µm (± 5µm at edges) Max. Drying Temperature 150°C Temperature Accuracy ±1°C Heating Zone Length 4.5 Meter 3 zones 1.5 meters per zone ) Reeling/Unreeling Shaft 75mm (ID) Max. Reeling/Unreeling Diameter 250mm (OD) Max. Coating Length Depending on coating and substrate thickness. Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run Slurry Stirring SS316 Moving Rod Compressed Air 0.5-0.8 MPa (Air compressor not included. Please click here to order ) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator. pic1 pic2 Optional You may order Dual-Filtration System for NMP Vapor and connect it to the coating system for keeping environmentally healthy. Compliance CE Certified All electric components ( >24V) are UL / MET / CSA certified NRTL or CSA certification is available upon request at te extra cost

Working Voltage
  • AC220V±10%, 50/60 Hz, three-phase
  • AC380±10%, 50/60Hz, three-phase is available upon request

Max. Power Consumption
  • 30 KW, the power for each heating chamber with 1.5 meter is around 9 kW.
  • Each heating chamber is suggested to connect separate power input.

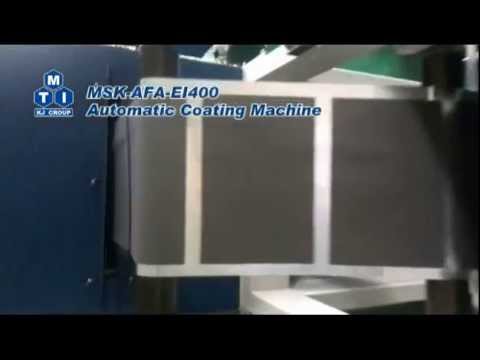

Coating Method
  • Transfer coating method for better density and uniformity ( Pls click Pic below to see detail )

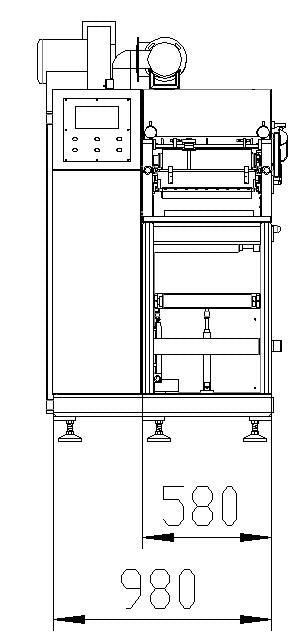

Max. Coating Width
  • 400mm

Coating Speed
  • Max. 4 meter / minute

Thickness Precision
  • ± 3µm (± 5µm at edges)

Max. Drying Temperature
  • 150°C

Temperature Accuracy
  • ±1°C

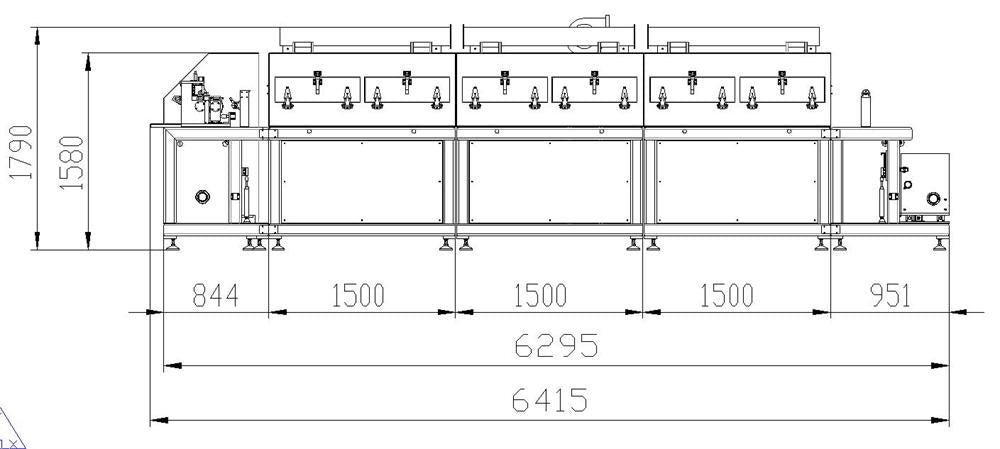

Heating Zone Length
  • 4.5 Meter 3 zones 1.5 meters per zone )

Reeling/Unreeling Shaft
  • 75mm (ID)

Max. Reeling/Unreeling Diameter
  • 250mm (OD)

Max. Coating Length
  • Depending on coating and substrate thickness.
  • Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run

Slurry Stirring
  • SS316 Moving Rod

Compressed Air

Optional

Compliance
  • CE Certified All electric components ( >24V) are UL / MET / CSA certified
  • NRTL or CSA certification is available upon request at te extra cost
