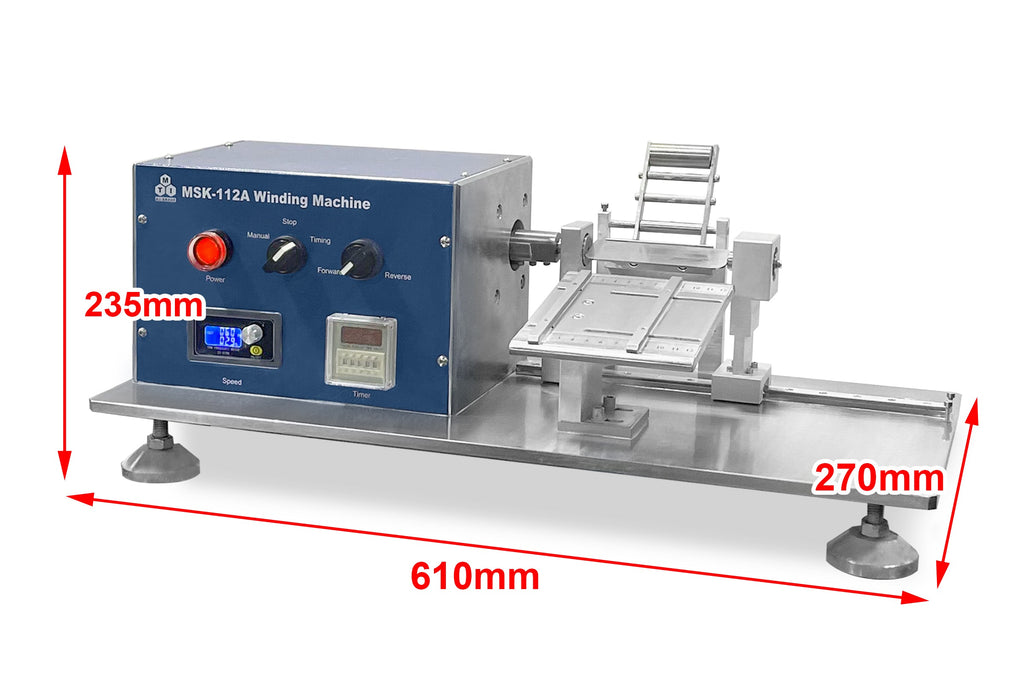

Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P
  • Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P
  • Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P
  • Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P
  • Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P
  • Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P
Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P

Manual Winding Machine for Electrodes of Pouch Cell - MSK112A-P

SKU: msk112a-p

Price: RFQ

Specifications

 MSK-112A-P is a CE Certified semi-automatic winder for winding electrodes and separators together in the research of Li-ion pouch batteries. SPECIFICATIONS: Winding Speed 0-250 RPM Adjustable Winding Blade Dimensions: 110 mm(L) x 43mm(W), specially designed for winding pouch cells The winding width depends on the width of the winding blade. Customized width and length is available upon request at the extra cost Voltage Power input for the winding machine: 24VDC 100 - 240VAC (50/60Hz) to 24VDC NRTL certified power adapter is included for worldwide use Power 25W Winding mode Switchable between clockwise and counterclockwise Compliance CE Certified NRTL or CSA certification is available upon request at the extra cost Application Notes 1. If you need a machine for pouch cells only, please choose option 1 from the Personalization above 2. If you need a machine for both cylinder cells and pouch cells, please choose option 2 from Personalization above. (Please click the pictures below for cylinder cell winding blade) 3. You may also choose MSK-112A-C for cylindrical battery core winding STANDARD PACKAGE: Item Description Qty 1 Winding machine (main machine) with two control pedals and power cord 1 2 43mm width winding flat center plate 1 sets

Winding Speed
  • 0-250 RPM Adjustable
Winding Blade
  • Dimensions: 110 mm(L) x 43mm(W), specially designed for winding pouch cells
  • The winding width depends on the width of the winding blade. Customized width and length is available upon request at the extra cost
  •
Voltage
  • Power input for the winding machine: 24VDC
  • 100 - 240VAC (50/60Hz) to 24VDC NRTL certified power adapter is included for worldwide use
Power
  • 25W
Winding mode
  • Switchable between clockwise and counterclockwise
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost
Application Notes

1. If you need a machine for pouch cells only, please choose option 1 from the Personalization above
2. If you need a machine for both cylinder cells and pouch cells, please choose option 2 from Personalization above. (Please click the pictures below for cylinder cell winding blade)
3. You may also choose MSK-112A-C for cylindrical battery core winding
,
Item Description Qty

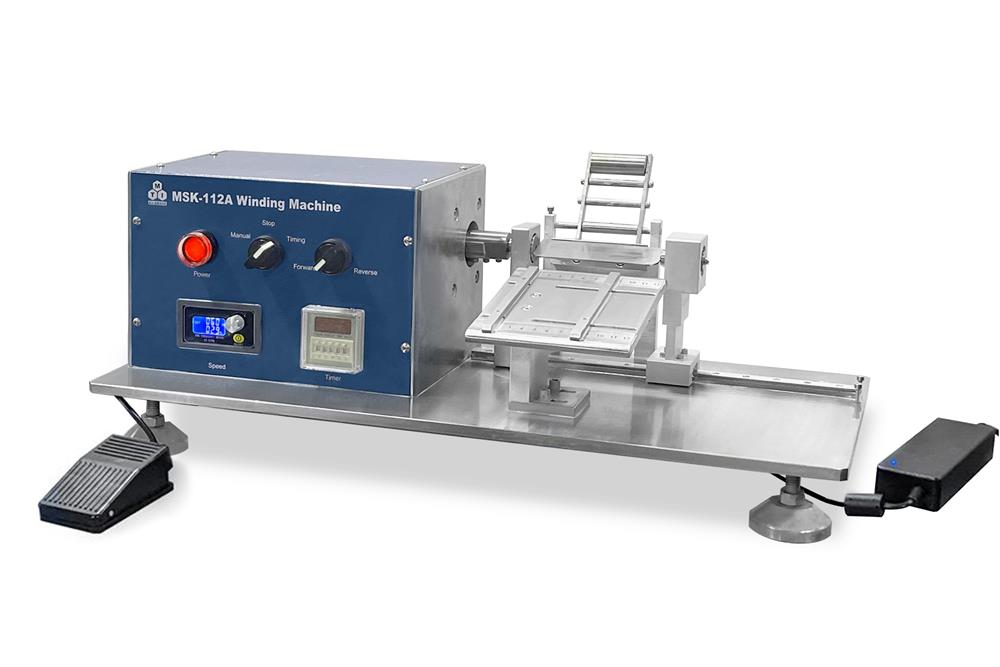

1 Winding machine (main machine) with two control pedals and power cord 1
2 43mm width winding flat center plate 1 sets
