300W Ultrasonic Processor for Dispersing, Homogenizing and Mixing Liquid Chemicals - MSK-USP-3N-LD
  • 300W Ultrasonic Processor for Dispersing, Homogenizing and Mixing Liquid Chemicals - MSK-USP-3N-LD
  • 300W Ultrasonic Processor for Dispersing, Homogenizing and Mixing Liquid Chemicals - MSK-USP-3N-LD
300W Ultrasonic Processor for Dispersing, Homogenizing and Mixing Liquid Chemicals - MSK-USP-3N-LD

300W Ultrasonic Processor for Dispersing, Homogenizing and Mixing Liquid Chemicals - MSK-USP-3N-LD

SKU: msk-usp-3n-ld

Price: RFQ

Specifications

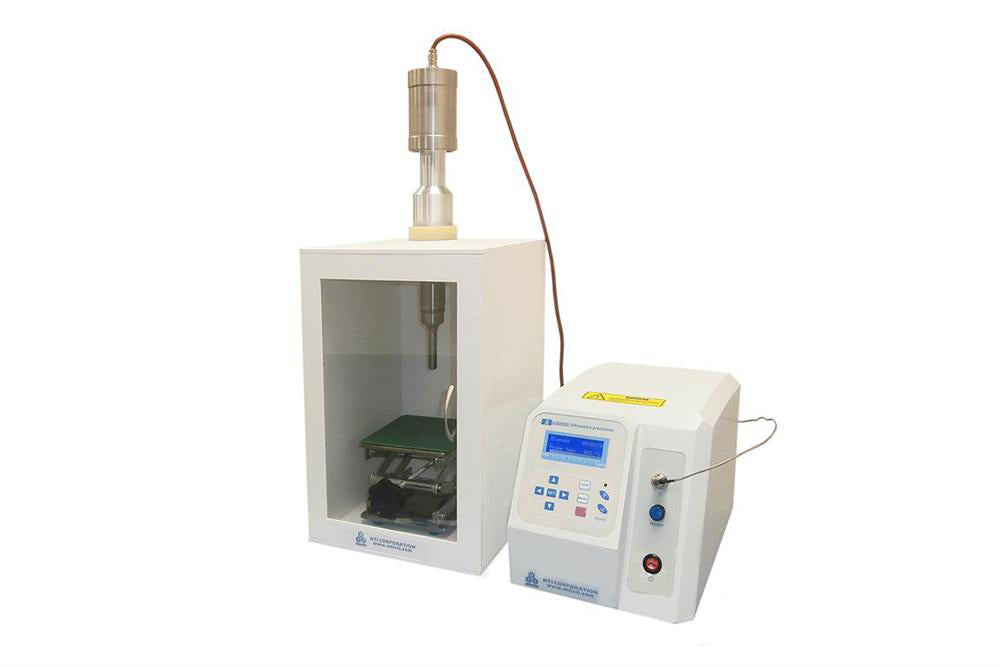

 MSK-USP-3N is a desktop 300W ultrasonic processor with a quality sound-proof chamber and stainless steel elevating platform. It is designed for disperses nano-powder in liquid with a small quantity, homogenize liquid phase from co-precipitation and mix multi-chemical in one solution more efficiently than any other method, and is an ideal tool for preparation new generation of LED phosphor, Li-ion battery slurry and quality thin film by sol-gel method. Update on 3/6/15: The processor head/probe is upgraded to be made of ceramic alumina which has excellent corrosion resistivity. Working Voltage Single Phase 110VAC, 50-60Hz If need using at 220V , please order > 300W transformer Output Power in ultrasonic processor 300 W Max, 20 kHz Max. Dipping depth of ultrasonic processor rod: 30 mm Processor Head Made of Ceramic Alumina 8 mm diameter (standard) Weight: 400g Liquid handling: 5mL - 200mL Timer & Temperature control Digital Timer is displayed by LC panel Adjustable from 1 second to 99 hours The temperature sensor is included to protect the sample from over-heated Chamber One sound-proof box is included to put the ultrasonic processor into the chamber One stainless steel lift platform is included to support the liquid container at a suitable height The temperature sensor is installed inside the chamber to touch with the container to protect the sample from over-heated Compliance CE Certified Application Notice Processor Head should be dip into sample liquid around 10mm. The Maximum dip in depth is 30mm, over dip may cause power board malfunction. Sample Liquid handling volume: 5 mL - 200 mL Please clean all residuals from the probe head and wipe dry after each use to preventing corrosion Continuous working time should limit to less than 5-10 mins, for using in high Power Mode of Ultrasonic Proces(Over 50% power). Can build Up to 400C Ultrasonic Liquid Mixing System inside the vacuum chamber.

Working Voltage
Output Power in ultrasonic processor
  • 300 W Max, 20 kHz
  • Max. Dipping depth of ultrasonic processor rod: 30 mm
Processor Head
  • Made of Ceramic Alumina
  • 8 mm diameter (standard)
  • Weight: 400g
  • Liquid handling: 5mL - 200mL
Timer & Temperature control
  • Digital Timer is displayed by LC panel
  • Adjustable from 1 second to 99 hours
  • The temperature sensor is included to protect the sample from over-heated
Chamber
  • One sound-proof box is included to put the ultrasonic processor into the chamber
  • One stainless steel lift platform is included to support the liquid container at a suitable height
  • The temperature sensor is installed inside the chamber to touch with the container to protect the sample from over-heated

Compliance  CE Certified
Application Notice
  • Processor Head should be dip into sample liquid around 10mm.
  • The Maximum dip in depth is 30mm, over dip may cause power board malfunction.
  • Sample Liquid handling volume: 5 mL - 200 mL
  • Please clean all residuals from the probe head and wipe dry after each use to preventing corrosion
  • Continuous working time should limit to less than 5-10 mins, for using in high Power Mode of Ultrasonic Proces(Over 50% power).
  • Can build Up to 400C Ultrasonic Liquid Mixing System inside the vacuum chamber.
