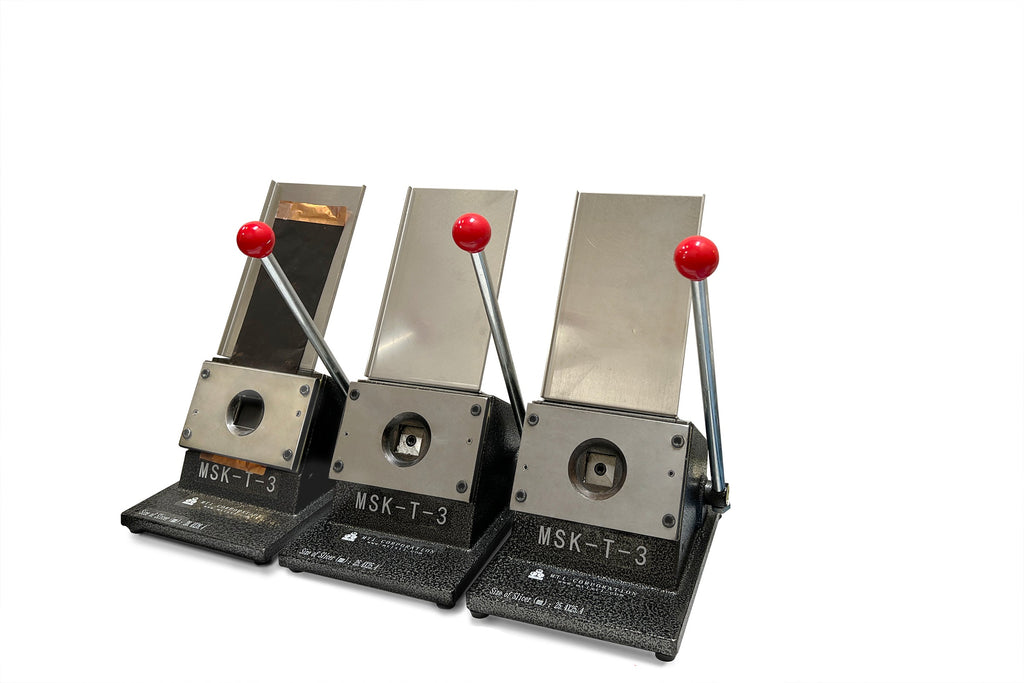

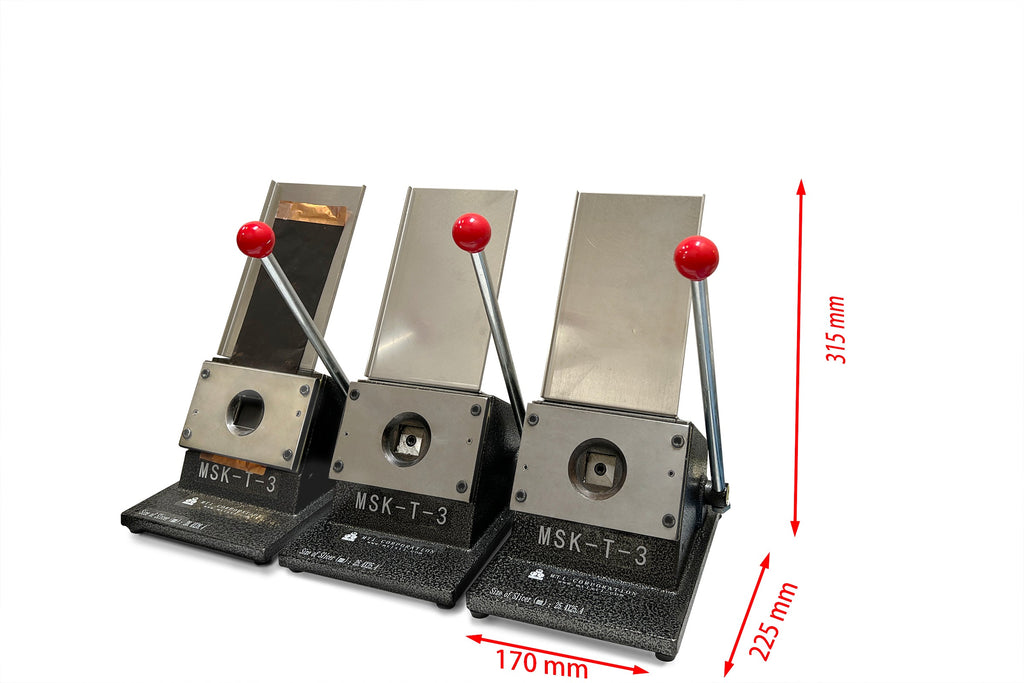

Three Manual Die Cutters for 1"x1" Split Pouch Cell - MSK-T-3
  • Three Manual Die Cutters for 1"x1" Split Pouch Cell - MSK-T-3
  • Three Manual Die Cutters for 1"x1" Split Pouch Cell - MSK-T-3
  • Three Manual Die Cutters for 1"x1" Split Pouch Cell - MSK-T-3
Three Manual Die Cutters for 1"x1" Split Pouch Cell - MSK-T-3

Three Manual Die Cutters for 1"x1" Split Pouch Cell - MSK-T-3

SKU: msk-t-3

Price: RFQ

Specifications

 MSK-T-3 is one set of manual die cutters (Three cutters per set) to prepare the electrodes and separator for MTI 1“x1" Split Pouch Cel l . it is perfectly suitable for t he single-layer pouch cell battery R&D at a low cost and gets more consistent results than a coin cell SPECIFICATIONS Cutting Dies Dimension Three dies are preinstalled in the cutters separately to match MTI 1“x1" Split Pouch Cel l Anode cutting die (mm): L25.4 mm x W 25.4 mm ( no tab ) Separator cutting die: L28.4 mm x W 28.4 mm ( Must cut thin separator with paper ) Cathode Die (mm): L25.4 mm x W 25.4 mm ( Pls use an independent cutter to avoid cross-contamination, no tab ) Please click Picture left to order the MTI 1“x1" Split Pouch Cell separately Cutting Depth Max. 0.2 mm (tested with aluminum laminated film) Cutting Accuracy ±0.1mm Glove Box Compatibility It is easy to load and unload to the glove box through the anti-chamber Neither gas nor electricity required Compliance CE Certified No UL is required because of no electricity

Cutting Dies Dimension
  • Three dies are preinstalled in the cutters separately to match MTI 1“x1" Split Pouch Cell
    • Anode cutting die (mm): L25.4 mm x W 25.4 mm (no tab)
    • Separator cutting die: L28.4 mm x W 28.4 mm ( Must cut thin separator with paper )
    • Cathode Die (mm): L25.4 mm x W 25.4 mm ( Pls use an independent cutter to avoid cross-contamination, no tab)
  • Please click Picture left to order the MTI 1“x1" Split Pouch Cell separately
Cutting Depth
  • Max. 0.2 mm (tested with aluminum laminated film)
Cutting Accuracy
  • ±0.1mm
Glove Box Compatibility
  • It is easy to load and unload to the glove box through the anti-chamber
  • Neither gas nor electricity required
Compliance
  • CE Certified
  • No UL is required because of no electricity
