Steady-State AAA Solar Simulator with Source Meter and I-V Software - MSK-SS-50
  • Steady-State AAA Solar Simulator with Source Meter and I-V Software - MSK-SS-50
  • Steady-State AAA Solar Simulator with Source Meter and I-V Software - MSK-SS-50
Steady-State AAA Solar Simulator with Source Meter and I-V Software - MSK-SS-50

Steady-State AAA Solar Simulator with Source Meter and I-V Software - MSK-SS-50

SKU: msk-ss-50

Price: RFQ

Specifications

 MSK-SS-50 steady-state AAA Solar simulator is designed in accordance with the international standards of IEC 60904-9 and ASTM E927. It is a complete AAA solar simulator with a beam size of 50mm by 50 mm. Except for high-quality AAA light source, MTI also provides testing accessories includi ng reference cell, IV tracer, IV tracer software, testing stage, and fixtures. The main purpose is to help our customers easily carry out complex device characterizations and toward the highest conversion efficiency. MTI also provides a total solution in the research of perovskite solar cells. SPECIFICATIONS: Power 208-240 VAC, 500W Solar Source 300 W Xe lamp with optical reflector Beam size: 50 mm × 50 mm Compliance to IEC 60904-9 and ASTM standards Spectrum: A+; AM1.5G, typical < 12.5% Non-uniformity: Grade A, < 2% Stability grade: A+; < 1% Irradiance intensity: up to 1500 W/m2 @ AM1.5G Irradiance mode: horizontal or vertical Divergent half-angle: <= 2 degrees Power supply with stability better than 2% Active fan cooling system with power-off-delay function Mechanical Shutter 6-channel Sample Stage (Optional) Standard outboard sample stage with one IC clip 4-wire measurement with banana connector Six channels switch for measuring up to 6 sub cells Please contact MTI for a customized sample stage for special patterns. Reference Cell (Optional) Dimension: 90 × 70 × 17 mm Material: mono-Si Active area: 20 × 20 mm Window: KG2 Sensor: Pt100 (4 wire) Current: < 200 mA (4 wire) Lemon connector × 2 (female) Cable with 4C and male lemon connectors × 2 ISO 17025 certified NREL-traceable calibration report Source Meter Keithley 2450  graphical source meter is included for immediate use of I-V characteristic measurements. V-range: 20 mV - 200 V I-range: 10 nA - 1A 0.012% basic accuracy Wideband Noise: 2 mV Typ. Sweep types: Linear, Log, Dual Linear, Dual Log, Custom >250,000 point reading buffer >3000 readings/second Connections: GPIB, USB, Ethernet (LXI) Software Analysis software is included for remote control and programmable I-V tests Compliance CE Certified MET, TUV, CSA, UL certification are available upon request at extra cost Warranty One Year limited warranty with lifetime support for the solar simulator. (Note: MTI does not carry a warranty for the Laptops. In case service is needed for the laptops, please contact the laptop manufacturer directly for warranty and service.) Application Notes We recommend using Keithley 2400 series or Keysight B2901 for the best compatablity and performance. If you have your own source meter, please contact MTI for compatablity. Please contact MTI if solar cell is operated inside the glove box. Dimension Light source: 865 mm (L) × 429 mm (W) × 665 mm (H) Controller: 480 mm (L) × 430 mm (W) × 97 mm (H) Standard Package: Item Description Qty 1 Light source 1 pc 2 Brand new laptop with MS Window 10 system and battery analyzer operation software installed 1 pc 3 Analysis software KA-6000 1 pc 4 Keithley 2450 source meter 1 pc OPTIONAL : Item Description Qty 1 6-channel Sample Stage Optional 2 Reference Cell Optional

Power
  • 208-240 VAC, 500W

Solar Source
  • 300 W Xe lamp with optical reflector
  • Beam size: 50 mm × 50 mm
  • Compliance to IEC 60904-9 and ASTM standards
    • Spectrum: A+; AM1.5G, typical < 12.5%
    • Non-uniformity: Grade A, < 2%
    • Stability grade: A+; < 1%
  • Irradiance intensity: up to 1500 W/m2 @ AM1.5G
  • Irradiance mode: horizontal or vertical
  • Divergent half-angle: <= 2 degrees
  • Power supply with stability better than 2%
  • Active fan cooling system with power-off-delay function
  • Mechanical Shutter

6-channel Sample Stage

(Optional)
  • Standard outboard sample stage with one IC clip
  • 4-wire measurement with banana connector
  • Six channels switch for measuring up to 6 sub cells
  • Please contact MTI for a customized sample stage for special patterns.

Reference Cell
(Optional)
  • Dimension: 90 × 70 × 17 mm
  • Material: mono-Si
  • Active area: 20 × 20 mm
  • Window: KG2
  • Sensor: Pt100 (4 wire)
  • Current: < 200 mA (4 wire)
  • Lemon connector × 2 (female)
  • Cable with 4C and male lemon connectors × 2
  • ISO 17025 certified NREL-traceable calibration report

Source Meter
  • Keithley 2450  graphical source meter is included for immediate use of I-V characteristic measurements.
  • V-range: 20 mV - 200 V
  • I-range: 10 nA - 1A
  • 0.012% basic accuracy
  • Wideband Noise: 2 mV Typ.
  • Sweep types: Linear, Log, Dual Linear, Dual Log, Custom
  • >250,000 point reading buffer
  • >3000 readings/second
  • Connections: GPIB, USB, Ethernet (LXI)

Software
  • Analysis software is included for remote control and programmable I-V tests


Compliance
  • CE Certified
  • MET, TUV, CSA, UL certification are available upon request at extra cost

Warranty
  • One Year limited warranty with lifetime support for the solar simulator. (Note: MTI does not carry a warranty for the Laptops. In case service is needed for the laptops, please contact the laptop manufacturer directly for warranty and service.)
Application Notes
  • We recommend using Keithley 2400 series or Keysight B2901 for the best compatablity and performance.
  • If you have your own source meter, please contact MTI for compatablity.
  • Please contact MTI if solar cell is operated inside the glove box.
Dimension
  • Light source: 865 mm (L) × 429 mm (W) × 665 mm (H)
  • Controller:  480 mm (L) × 430 mm (W) × 97 mm (H)
,
Item Description Qty

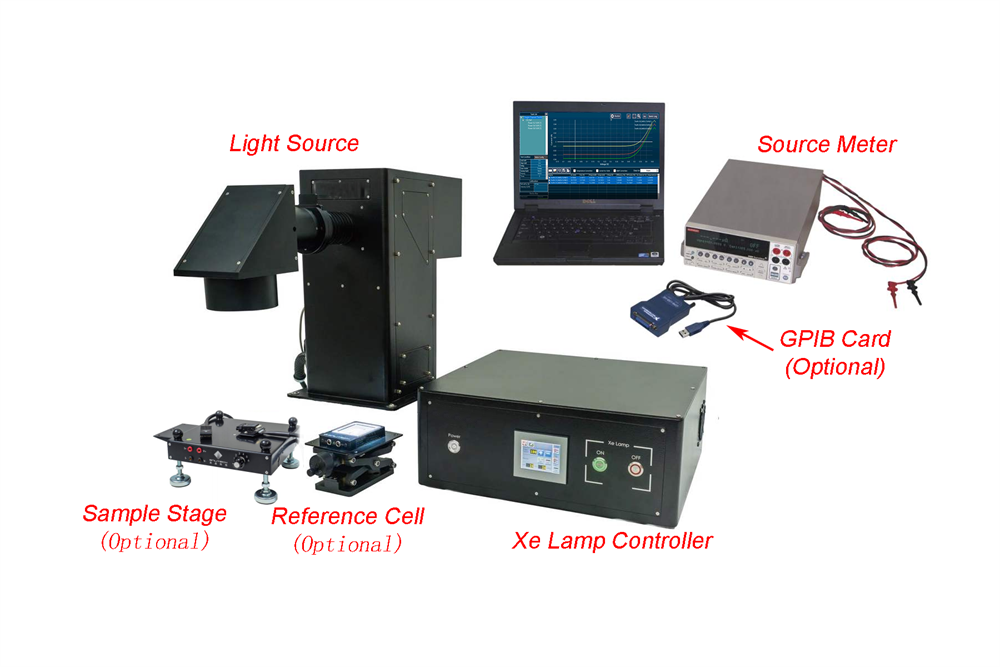

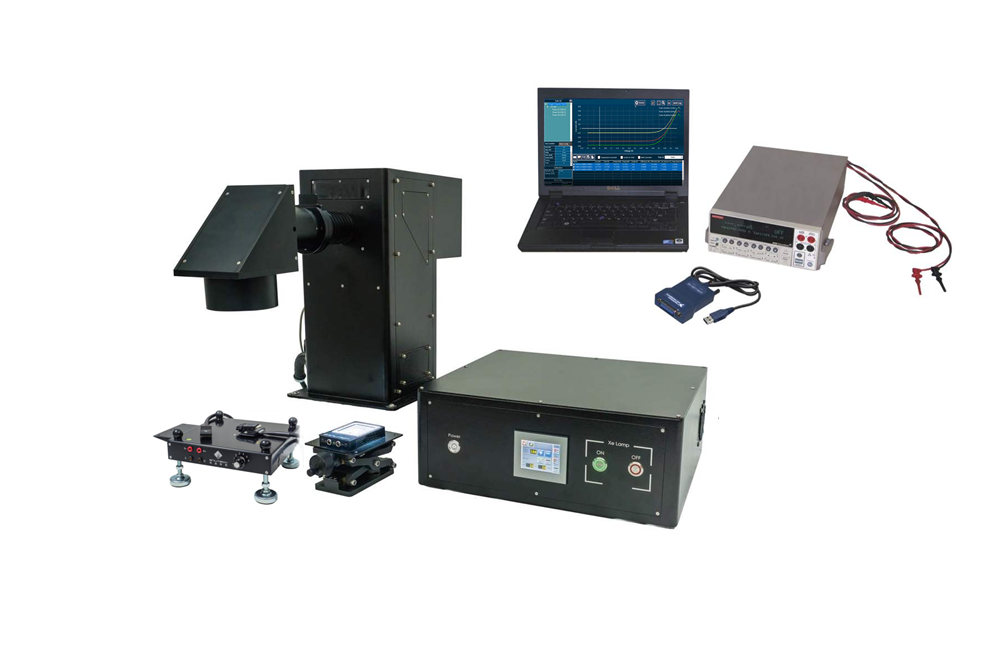

1 Light source 1 pc
2 Brand new laptop with MS Window 10 system and battery analyzer operation software installed 1 pc
3 Analysis software KA-6000  1 pc
4 Keithley 2450 source meter 1 pc
,
Item Description Qty
1 6-channel Sample Stage Optional
2 Reference Cell Optional
