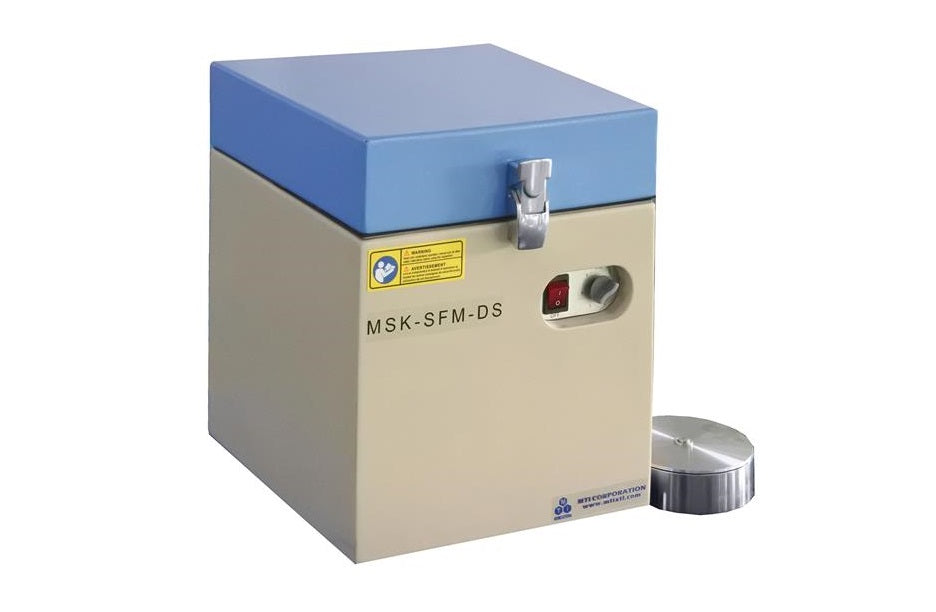

Compact Disc Crusher / Grinder - MSK-SFM-DS
  • Compact Disc Crusher / Grinder - MSK-SFM-DS
  • Compact Disc Crusher / Grinder - MSK-SFM-DS
  • Compact Disc Crusher / Grinder - MSK-SFM-DS
Compact Disc Crusher / Grinder - MSK-SFM-DS

Compact Disc Crusher / Grinder - MSK-SFM-DS

SKU: msk-sfm-ds

Price: RFQ

Specifications

 MSK-SFM-DS is a compact disk mill with a steel grinding jar. It is an ideal tool to quickly prepares the sample for finer milling after sintering. It features fast crushing and grinding to prepare the sample for finer milling. An ideal miller for coal, ore, rock, or ceramic compounds. Note: The appearance of the crusher was updated on 08/25/21. SPECIFICATIONS Features Fast crushing and grinding the sample of ceramic and steel to 80-200 mesh before milling Interlock protection is included to cut the power if the lid is open during the crushing process. With Four secure fixtures, MSK-SFM-DS can be fastened on the platform. Click the video left to see how it work for crushing Working Voltage 220 - 240V AC 50/60 Hz, 200W AC motor For operation at 110V AC, please order a transformer. Timer 0 to 5 minutes adjustable Crushing & Grinding Capability Grinding Jar Jar Dimension The grinding parts are Manganese steel 100 mL capacity for about 50g of material Grinding Jar: 120mm I.D. x 37.5mm Depth (See Fig.4) Material hardness must be lower than Mohs 8 Space between grinding disc and jar can contain materials under 20mm in diameter. and 35mm in height. Please click the picture left to order spare jar set Product options Product size: 80 - 200 mesh according to operating time. Please use our 3'' Dia. Sieve Set No.200&450 Mesh or Compact Ultrasonic Sieving System - MSK-SYU-3 to filter the powder (See Pic..1 and 2) pic 1                     pic 2 Certification CE Certified NRTL certifications are available upon request Application Note Place the grinder on a firm platform and isolated room to avoid noise, it is suggested to fasten the grinder on the platform. Please clean the grinding ring before each use.

Features
  • Fast crushing and grinding the sample of ceramic and steel to 80-200 mesh before milling
  • Interlock protection is included to cut the power if the lid is open during the crushing process.
  • With Four secure fixtures, MSK-SFM-DS can be fastened on the platform.
  • Click the video left to see how it work for crushing

Working Voltage
  • 220 - 240V AC 50/60 Hz, 200W AC motor
  • For operation at 110V AC, please order a transformer.
Timer
  • 0 to 5 minutes adjustable
Crushing & Grinding Capability
Grinding Jar
Jar Dimension
  • The grinding parts are Manganese steel
  • 100 mL capacity for about 50g of material

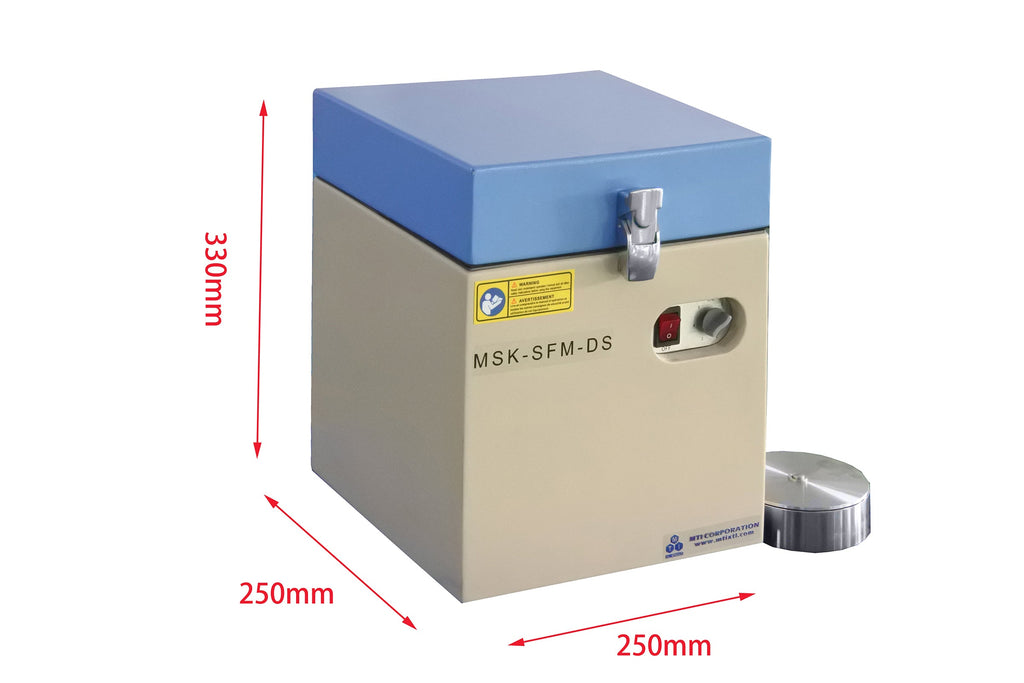

  • Grinding Jar: 120mm I.D. x 37.5mm Depth (See Fig.4)
  • Material hardness must be lower than Mohs 8
  • Space between grinding disc and jar can contain materials under 20mm in diameter. and 35mm in height.
  • Please click the picture left to order spare jar set
Product options

          pic 1                     pic 2
Certification
  • CE Certified
  • NRTL certifications are available upon request
Application Note
  • Place the grinder on a firm platform and isolated room to avoid noise, it is suggested to fasten the grinder on the platform.
  • Please clean the grinding ring before each use.
