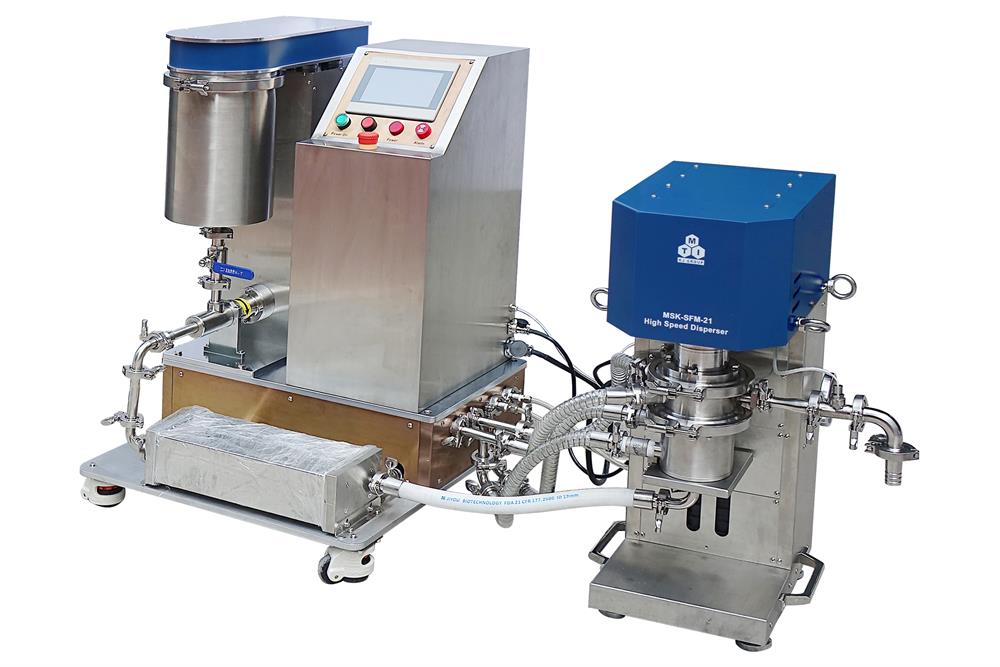

High Speed Dispenser of Slurry for High Quality Roll to Roll Coating - MSK-SFM-21
  • High Speed Dispenser of Slurry for High Quality Roll to Roll Coating - MSK-SFM-21
  • High Speed Dispenser of Slurry for High Quality Roll to Roll Coating - MSK-SFM-21
  • High Speed Dispenser of Slurry for High Quality Roll to Roll Coating - MSK-SFM-21
High Speed Dispenser of Slurry for High Quality Roll to Roll Coating - MSK-SFM-21

High Speed Dispenser of Slurry for High Quality Roll to Roll Coating - MSK-SFM-21

SKU: msk-sfm-21

Price: RFQ

Specifications

 MSK-SFM-21 is a high-speed slurry dispenser, which is designed for further homogenizing and dispersing of the mixed slurry for high-quality R2R coating, especially for coating nanoscale material by slot die method or larger Roll to Roll web coater. . It can be widely used to prepare Li-ion battery electrode or many ceramic coating SPECIFICATIONS Features Controllable feeding and dispensing speed and time. Optional water cooling system and temperature control system. PLC touch screen operation system. Can dispense the slurry continuously or recirculating. Working Voltage 380V AC, 50 Hz, three phase. 208VC three phase is available upon request Input Power 5 kW. Feeding Speed 0 - 10 Liter/h adjustable Dispersing Speed 0 - 50 m/s. adjustable Feed In/Out Temperature <40 °C. Slurry Feeder 4 L Capacity Pneumatic airtight slurry reservoir. 5.2 to 3699 mL/min, adjustable Stirring Speed: 27RPM Max 0.5~0.8MPa compress gas is required , but included Dispensing Chamber Capacity: 80 mL (other sizes of chambers are also available). Chamber material: SUS316,PTFE,EPDM. Material Requirement 0 ~ 50000 mpa.s (or lower the mixing speed for more viscous slurry). Optional The water chiller (> 200L/minute ) is required at extra cost. You may order two water chiller by click picture below Working Environment Stationed on a hard and leveled surface, no electromagnetic interference. Compliance CE Certified MET, UL or CSA certification is available upon request at extra cost

Features
  • Controllable feeding and dispensing speed and time.
  • Optional water cooling system and temperature control system.
  • PLC touch screen operation system.
  • Can dispense the slurry continuously or recirculating.
Working Voltage 380V AC, 50 Hz, three phase.
208VC three phase is available upon request
Input Power  5 kW.
Feeding Speed 0 - 10 Liter/h adjustable
Dispersing Speed 0 - 50 m/s. adjustable
Feed In/Out Temperature  <40 °C.

Slurry Feeder
  • 4 L Capacity
  • Pneumatic airtight slurry reservoir.
  • 5.2 to 3699 mL/min, adjustable
  • Stirring Speed: 27RPM Max
  • 0.5~0.8MPa compress gas is required , but included
Dispensing Chamber
  • Capacity: 80 mL (other sizes of chambers are also available).
  • Chamber material: SUS316,PTFE,EPDM.
Material Requirement 0 ~ 50000 mpa.s (or lower the mixing speed for more viscous slurry).
Optional The water chiller (> 200L/minute ) is required at extra cost. You may order two water chiller by click picture below
Working Environment
Stationed on a hard and leveled surface, no electromagnetic interference.
