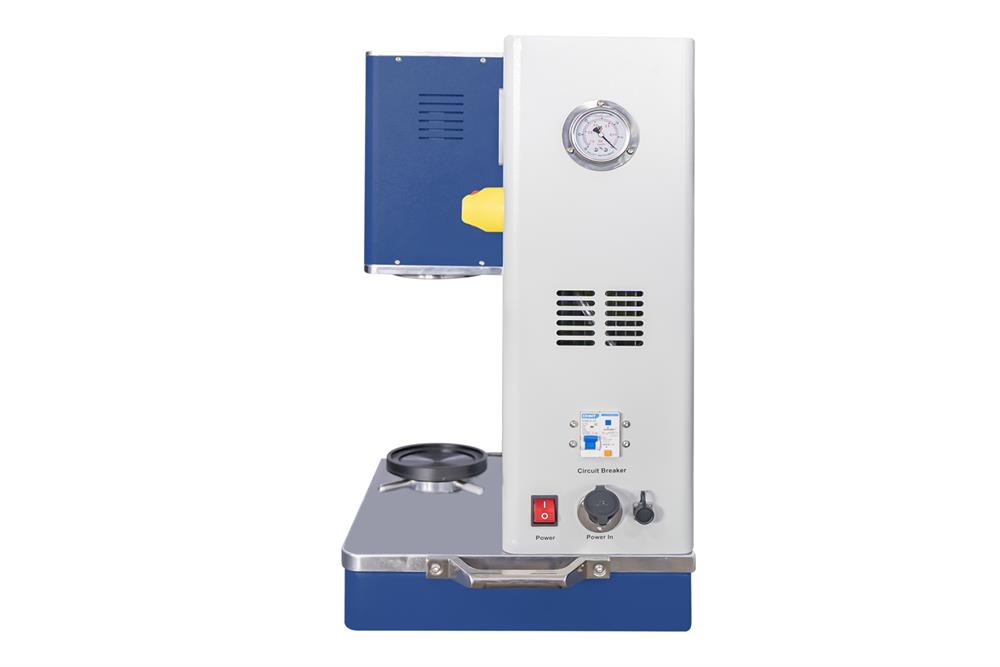

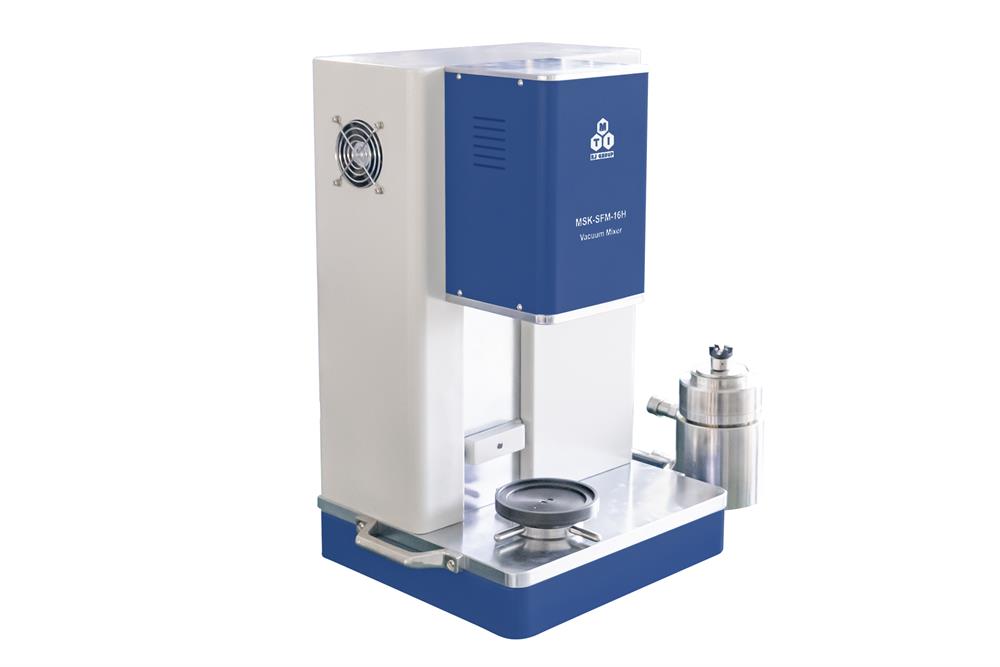

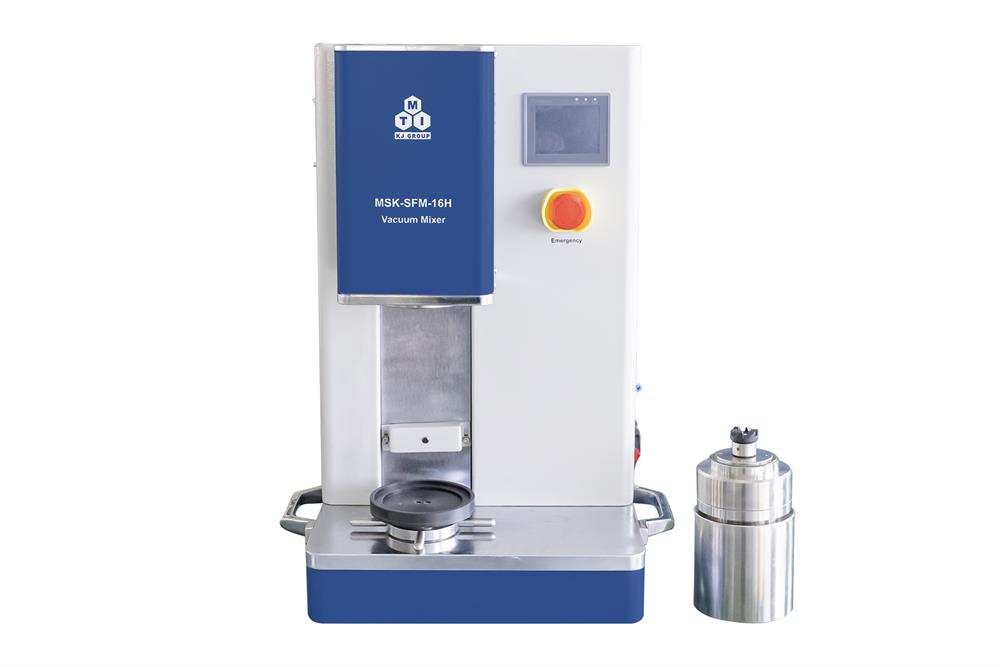

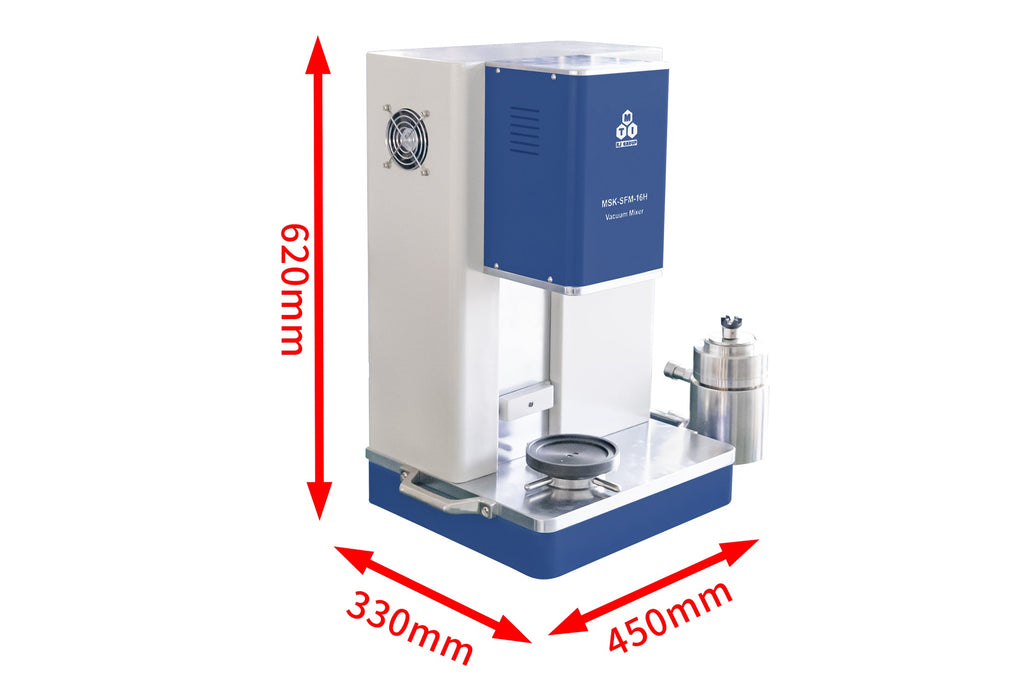

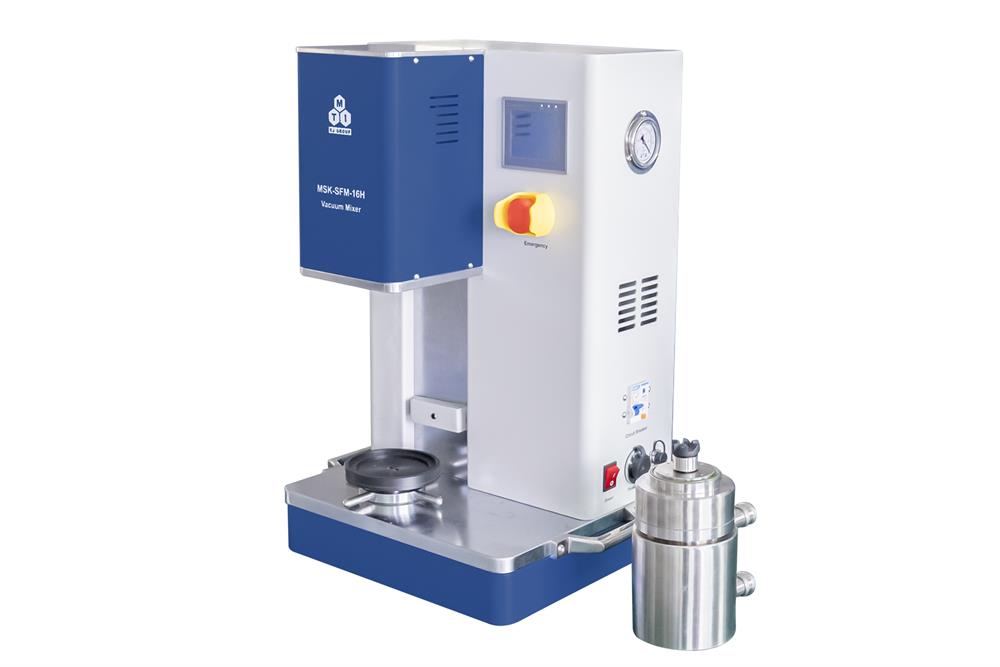

Dual-Shaft Planetary Vacuum Mixer with High Speed (300-1500RPM, 50-1000ml) - MSK-SFM-16HS
  • Dual-Shaft Planetary Vacuum Mixer with High Speed (300-1500RPM, 50-1000ml) - MSK-SFM-16HS
  • Dual-Shaft Planetary Vacuum Mixer with High Speed (300-1500RPM, 50-1000ml) - MSK-SFM-16HS
  • Dual-Shaft Planetary Vacuum Mixer with High Speed (300-1500RPM, 50-1000ml) - MSK-SFM-16HS
  • Dual-Shaft Planetary Vacuum Mixer with High Speed (300-1500RPM, 50-1000ml) - MSK-SFM-16HS
  • Dual-Shaft Planetary Vacuum Mixer with High Speed (300-1500RPM, 50-1000ml) - MSK-SFM-16HS
Dual-Shaft Planetary Vacuum Mixer with High Speed (300-1500RPM, 50-1000ml) - MSK-SFM-16HS

Dual-Shaft Planetary Vacuum Mixer with High Speed (300-1500RPM, 50-1000ml) - MSK-SFM-16HS

SKU: msk-sfm-16hs

Price: RFQ

Specifications

 MSK-SFM-16H is a compact dual-shaft planetary vacuum mixer. Compared to single-shaft models, the dual-shaft mixer comes with three segments of programmable mixing speed from 300 - 1500 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing the gas bubble, which can vacuum the mixing container to - 75 KPa. SPECIFICATIONS Voltage Input & Power Single Phase AC 208 - 240V, 50/60 Hz, 1300W 110VAC is available via a 2000W transformer Rotary Speed 300-1500RPM, 3 segments programmable Mixing Time 1-600min, adjustable Slurry Viscosity Max. 10000 mPa·s (cps) @ 1500 rpm Mixing Containers A 200 mL container is included in the standard package. Container with other volumes, such as 50ml, 500ml, and 1000 mL stainless steel 304 vacuum-sealed containers are also available upon request with additional cost. Please click here ( MJ16HS ) for more details. SS Container 50ml 200ml 500ml 1000 mL Effective Processing Capacity 15 - 50 ml 30 - 200 ml 60 - 400 ml 100 - 800 mL Max. Rotation Speed 1500 rpm 1500 rpm 1500 rpm 1500 rpm Max. Revolution Speed - 500 rpm 500 rpm 500 rpm Dual helical ribbon mixing blades are built on the lid of the container. Cooling or heating unit for the slurry tank is available upon request . The customized temperature range is -20 to 200 °C. Slurry volume is suggested to be in the range of 20%-80% total tank volume. If your slurry amount is too small, please contact MTI before making a purchase. Vacuum Pump Built-in single-stage vacuum pump Vacuum Level: -0.08 ~ -0.09 MPa Control Panel Touch Screen Control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off Note: Max. mixing speed depends on slurry viscosity. Max.10000 mPa.s is allowed at 1500 rpm. Lower speed will be required for more sticky slurry. Compliance CE certified CSA, UL, TUV, and MET certification is available upon request at extra cost Application Notes For the best result, please order a filter to remove larger particles in the slurry ( click the left picture to order ) Please click the picture to the right to see the quality of the slurry after mixing.

Voltage Input & Power
  • Single Phase AC 208 - 240V, 50/60 Hz, 1300W
  • 110VAC is available via a 2000W transformer
Rotary Speed
  • 300-1500RPM, 3 segments programmable
Mixing Time
  • 1-600min, adjustable
Slurry Viscosity
  • A 200 mL container is included in the standard package.
  • Container with other volumes, such as 50ml, 500ml, and 1000 mL stainless steel 304 vacuum-sealed containers are also available upon request with additional cost. Please click here (MJ16HS) for more details.
  • SS Container 50ml 200ml 500ml 1000 mL
    Effective Processing Capacity 15 - 50 ml 30 - 200 ml 60 - 400 ml 100 - 800 mL
     Max. Rotation Speed 1500 rpm 1500 rpm 1500 rpm 1500 rpm
    Max. Revolution Speed - 500 rpm 500 rpm 500 rpm
  • Dual helical ribbon mixing blades are built on the lid of the container.

  • Cooling or heating unit for the slurry tank is available upon request. The customized temperature range is -20 to 200 °C.

  • Slurry volume is suggested to be in the range of 20%-80% total tank volume. If your slurry amount is too small, please contact MTI before making a purchase.
Vacuum Pump
  • Built-in single-stage vacuum pump
  • Vacuum Level: -0.08 ~ -0.09 MPa
Control Panel
  • Touch Screen Control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off
  • Note: Max. mixing speed depends on slurry viscosity. Max.10000 mPa.s is allowed at 1500 rpm. Lower speed will be required for more sticky slurry.
Compliance
  • CE certified
  • CSA, UL, TUV, and MET certification is available upon request at extra cost
Application Notes
  • For the best result, please order a filter to remove larger particles in the slurry ( click the left picture to order )
  • Please click the picture to the right to see the quality of the slurry after mixing.

,
SS Container 50ml 200ml 500ml 1000 mL
Effective Processing Capacity 15 - 50 ml 30 - 200 ml 60 - 400 ml 100 - 800 mL
 Max. Rotation Speed 1500 rpm 1500 rpm 1500 rpm 1500 rpm
Max. Revolution Speed - 500 rpm 500 rpm 500 rpm
