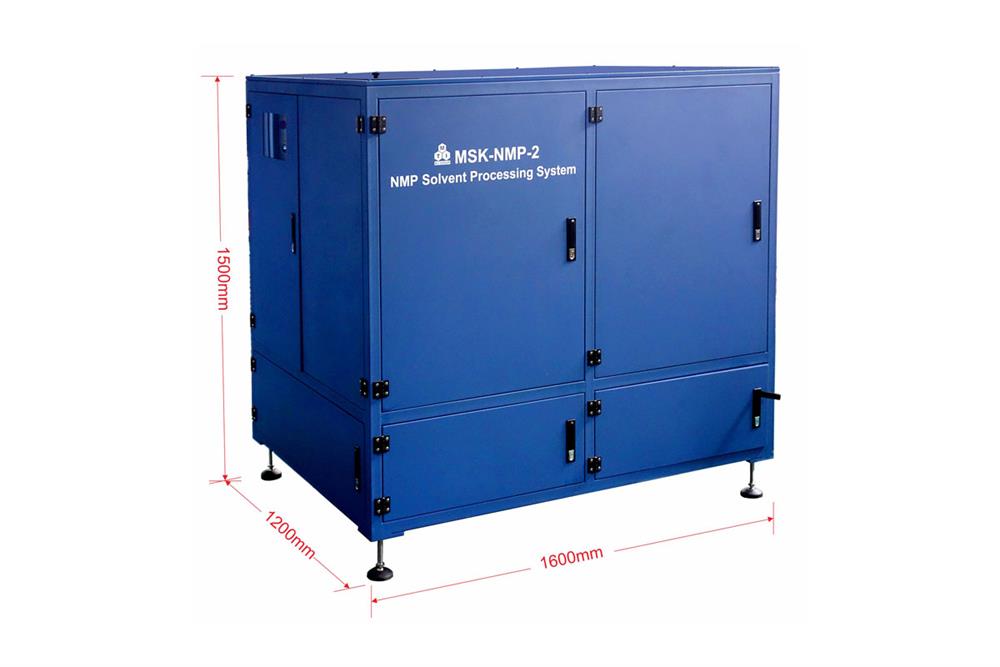

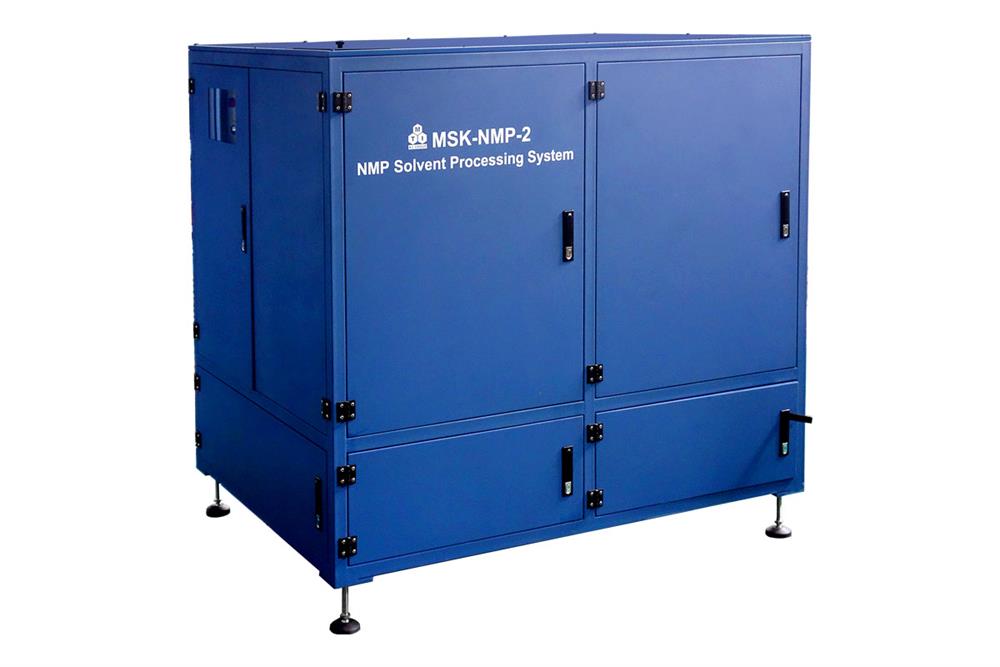

Large Dual-Filtration System for NMP Vapor Recycling of Battery Cathode Coating - MSK-NMP-2
  • Large Dual-Filtration System for NMP Vapor Recycling of Battery Cathode Coating - MSK-NMP-2
  • Large Dual-Filtration System for NMP Vapor Recycling of Battery Cathode Coating - MSK-NMP-2
Large Dual-Filtration System for NMP Vapor Recycling of Battery Cathode Coating - MSK-NMP-2

Large Dual-Filtration System for NMP Vapor Recycling of Battery Cathode Coating - MSK-NMP-2

SKU: msk-nmp-2

Price: RFQ

Specifications

 MSK-NMP-2 is a CE Certified Dual-Filtration System for NMP( N-Methyl-2-pyrrolidone ) Vapor of Li-ion Battery coating. It can be used to filter the vapor formed from the process of coating and drying with the dual-filtration level in Li-ion battery R&D. Water-filter design provides dedusting, NMP filtering, and vapor purification methods with the roll to roll coating MSK-AFA-E400-UL. For Roll to Roll Coater Service, please fill in the Roll to Roll Request Form. SPECIFICATIONS Construction Material SS 304 Features Dual-filtration mechanism: The fan takes the NMP vapor to the first upper water bath and part of NMP vapor was absorbed and dissolved in the water bath. Then the NMP vapor go through the down chamber and enter into the second water bath for further absorption. Working Voltage AC220V, single phase, 50/60 Hz (AC380V, three phases is available upon request) Power 3 KW Processing Method Water bath type absorption Processing Capacity 2200 m³/h Gas Inlet Temperature ≤ 150℃ Water Bath Volume Max. 230 L Water Fall Area ≤ 5900 mm2 Water Pump Rate 60 L/min Centrifuge Fan Volume: 2600 m3//h, Pressure: 1400 Pa, Power: 1.5 kW Connection Ports Inlet and outlet connection port size: Ф 150 mm, externally connect with 5" aluminum tubing. Compliance CE Certified

Construction Material SS 304

Features
  • Dual-filtration mechanism: The fan takes the NMP vapor to the first upper water bath and part of NMP vapor was absorbed and dissolved in the water bath. Then the NMP vapor go through the down chamber and enter into the second water bath for further absorption.
Working Voltage AC220V, single phase, 50/60 Hz (AC380V, three phases is available upon request)
Power 3 KW
Processing Method
 Water bath type absorption
Processing Capacity 2200 m³/h
Gas Inlet Temperature ≤ 150℃
Water Bath Volume Max. 230 L
Water Fall Area ≤ 5900 mm2
Water Pump Rate 60 L/min
Centrifuge Fan Volume: 2600 m3//h, Pressure: 1400 Pa, Power: 1.5 kW
Connection Ports Inlet and outlet connection port size: Ф 150 mm, externally connect with 5" aluminum tubing.
Compliance CE Certified
