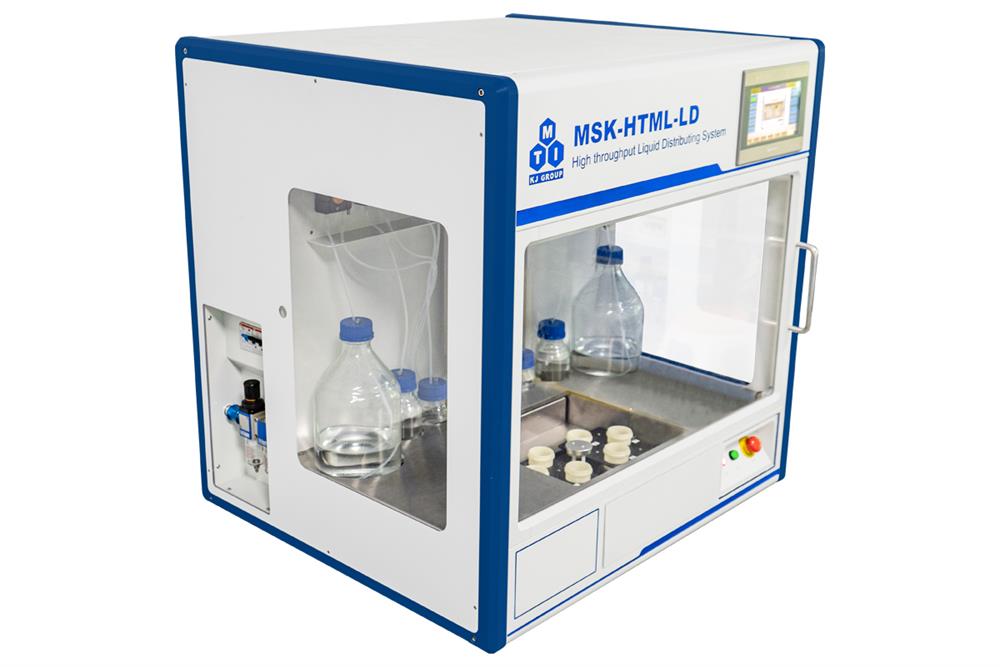

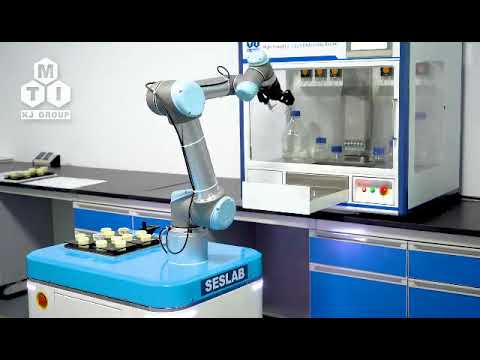

 MSK-HTML-LD is a compact automatic liquid dispensing system that can be applied to high throughput distributing of multi-channel liquids. The PLC control system with PC-Base data management allows the user to easily configure a set of programming steps and record the data. A three-axis platform with a precise metering pump can transfer different liquid sources from source to sample accurately and automatically according to the preset dosing scheme. The desktop design enclosure can accommodate 6 dosing tubes(Standard, the sample number could be customized up to 64). Once programmed, the workflow is non-stop and does not need any manual supervision. It is an excellent tool for high-throughput applications (such as LiB electrolyte pipetting workflow), without dedicated labor. MTI has granted the patent 2019SR0892401 for the High Throughput Automatic Liquid Dispensing System MSK-HTML-L since July 2019. SPECIFICATIONS Features 6 Channel precise Stream Metering Pump with standard 6 sample stations. The sample number could be customized up to 64 The sample container/tube is mounted on the platform fixture/rack for program positioning The source liquid container features liquid level detection; Auto washing function for the liquid transfer pipeline help avoid cross-contamination; The type and quantity of the required ingredients and the amount of each liquid added can be edit as recipes and programmed in the software. Working Voltage 220VAC, single phase, 50Hz Power: 1 kW Work Station XYZ triaxial module platform station X-axis: single guide slider module, the working distance is 420mm, built-in Servo motor; Y-axis: double guide slider module, the working distance is 270mm, built-in Servo motor; Z-axis: rail slider module, the working distance is 140mm, built-in Servo motor. 6 channel Metering Pump with Pipetting Tips Mounting fixture/rack can accommodate 6 source containers/tubes 6 channels liquid pipetting heads work individually in sequence, each channel can deliver 0.1mL-20mL for each move. 0.1 mL liquid injection/delivery Accuracy: ±7 uL; Delivery Reproducibility (C.V.%): ± 7% 1 mL liquid injection/delivery Accuracy: ± 14 uL Delivery Reproducibility (C.V.%): ± 1.5% 10 mL liquid injection/delivery Accuracy: ± 0.1 mL Delivery Reproducibility (C.V.%): ± 1% Pipetting Tips is easily replaceable The metering pump with a PTFE liner can resist most of the acidic and alkaline-based solutions. 6 liquid source tanks: 2 source tanks are 100 mL; 2 source tanks are 250 mL; 2 source tanks are 2,000 mL Sample Container Standard: 6 sample containers, each of a capacity 30 mL Customized capacities 2mL - 500mL Optional Hot Bath: Total Six 10 W heating sources; Maximum temperature: 80°C Sample Collection Stage 283 mm L x 130 mm W x 20 mm H Up to 64 sample containers could be customized by request at an extra cost Distribution Speed ~400 samples/ 8 hours Temperature 25±3 (environmental temperature) Humidity 30-90%RH or lower Cleanroom classification 1,000,000 Gas Source Inert Gas Tank or Air Compressor (0.5~0.8Mpa) is needed for the machine operation, please purchase separately. Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation . Click here to learn the installation of a gas regulator. pic1 pic2 Programming & Softwire PC-based data analysis software can save the dosing data of each sample tube automatically. Data can be exported in Excel format. HMI programming. Each step allows the user to set the pipette movement of each source and calibrate the positioning of the sample tube racks. The recipe maker allows the user to easily edit, store, and upload a protocol.

Features
  • 6 Channel precise Stream Metering Pump with standard 6 sample stations. The sample number could be customized up to 64
  • The sample container/tube is mounted on the platform fixture/rack for program positioning
  • The source liquid container features liquid level detection;
  • Auto washing function for the liquid transfer pipeline help avoid cross-contamination;
  • The type and quantity of the required ingredients and the amount of each liquid added can be edit as recipes and programmed in the software.
Working Voltage
  • 220VAC, single phase, 50Hz
  • Power: 1 kW

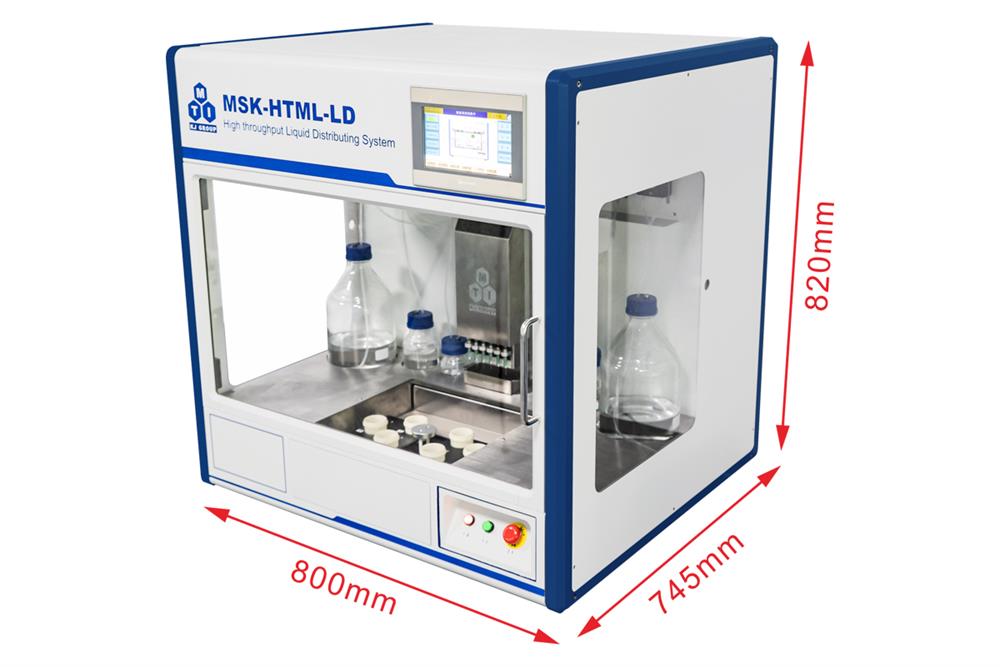

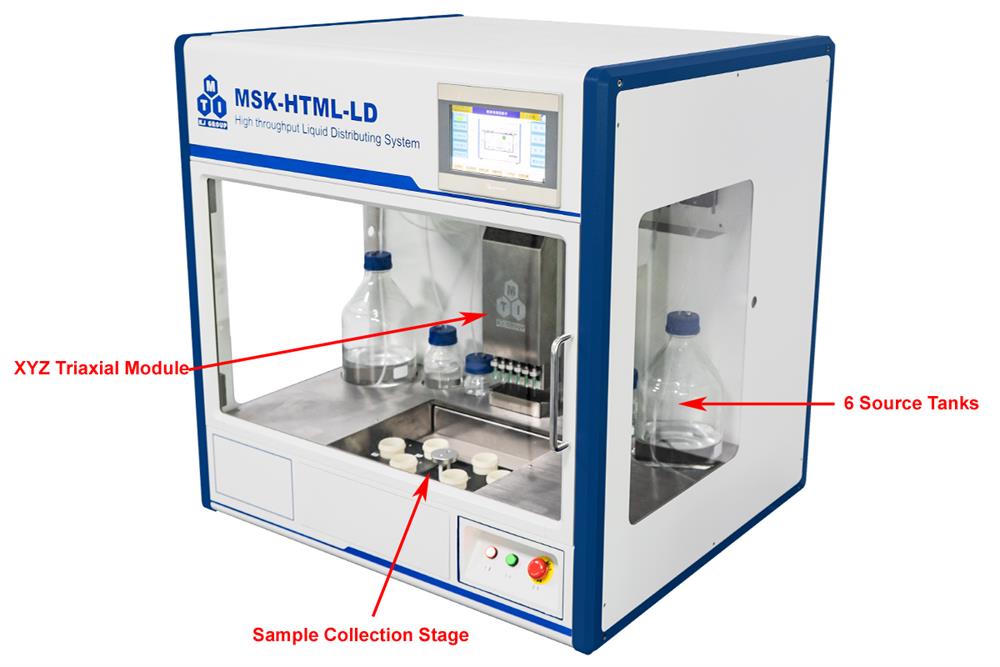

Work Station XYZ triaxial module platform station
  • X-axis: single guide slider module, the working distance is 420mm, built-in Servo motor;
  • Y-axis: double guide slider module, the working distance is 270mm, built-in Servo motor;
  • Z-axis: rail slider module, the working distance is 140mm, built-in Servo motor.

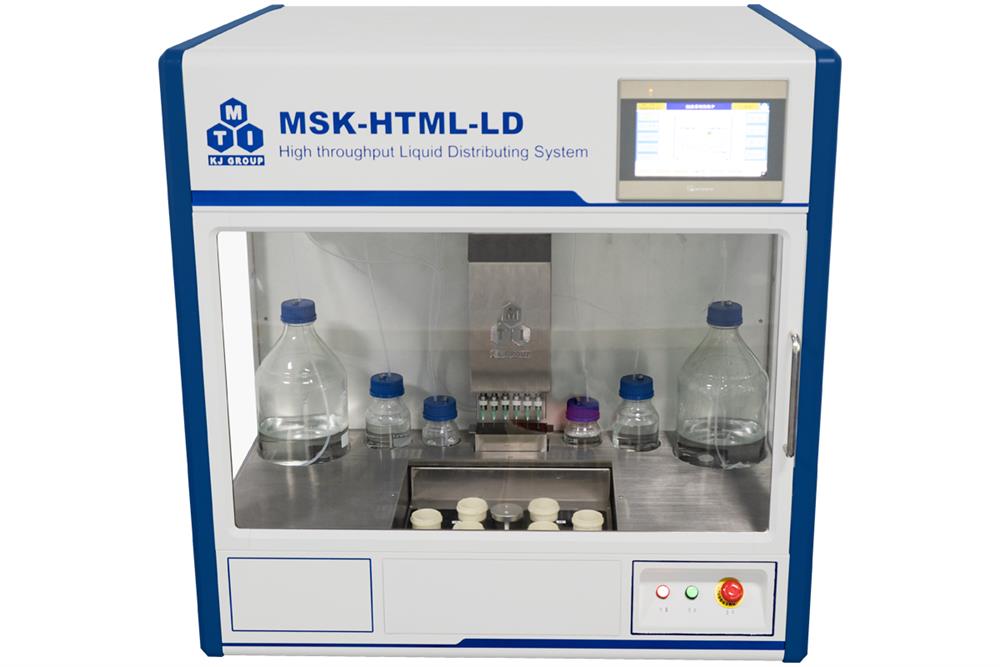

6 channel Metering Pump with Pipetting Tips
  • Mounting fixture/rack can accommodate 6 source containers/tubes
  • 6 channels liquid pipetting heads work individually in sequence, each channel can deliver 0.1mL-20mL for each move.
    • 0.1 mL liquid injection/delivery
      • Accuracy: ±7 uL;
      • Delivery Reproducibility (C.V.%): ± 7%
    • 1 mL liquid injection/delivery
      • Accuracy: ± 14 uL
      • Delivery Reproducibility (C.V.%): ± 1.5%
    • 10 mL liquid injection/delivery
      • Accuracy: ± 0.1 mL
      • Delivery Reproducibility (C.V.%): ± 1%
  • Pipetting Tips is easily replaceable
  • The metering pump with a PTFE liner can resist most of the acidic and alkaline-based solutions.
  • 6 liquid source tanks: 2 source tanks are 100 mL; 2 source tanks are 250 mL; 2 source tanks are 2,000 mL
Sample Container
  • Standard: 6 sample containers, each of a capacity 30 mL
  • Customized capacities 2mL - 500mL
  • Optional Hot Bath: Total Six 10 W heating sources; Maximum temperature: 80°C
Sample Collection Stage
  • 283 mm L x 130 mm W x 20 mm H
  • Up to 64 sample containers could be customized by request at an extra cost
Distribution Speed
  • ~400 samples/ 8 hours
Temperature
  • 25±3 (environmental temperature)
Humidity
  • 30-90%RH or lower
Cleanroom classification
  • 1,000,000
Gas Source
  • Inert Gas Tank or Air Compressor (0.5~0.8Mpa) is needed for the machine operation, please purchase separately.
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
 pic1  pic2
Programming & Softwire
  • PC-based data analysis software can save the dosing data of each sample tube automatically. Data can be exported in Excel format.
  • HMI programming. Each step allows the user to set the pipette movement of each source and calibrate the positioning of the sample tube racks.
  • The recipe maker allows the user to easily edit, store, and upload a protocol.
