200°C Max Electric Roll to Plate Hot Press (220 mm Width, Ar Gas Compatible) - MSK-HRP-300
  • 200°C Max Electric Roll to Plate Hot Press (220 mm Width, Ar Gas Compatible) - MSK-HRP-300
  • 200°C Max Electric Roll to Plate Hot Press (220 mm Width, Ar Gas Compatible) - MSK-HRP-300
  • 200°C Max Electric Roll to Plate Hot Press (220 mm Width, Ar Gas Compatible) - MSK-HRP-300
200°C Max Electric Roll to Plate Hot Press (220 mm Width, Ar Gas Compatible) - MSK-HRP-300

200°C Max Electric Roll to Plate Hot Press (220 mm Width, Ar Gas Compatible) - MSK-HRP-300

SKU: msk-hrp-300

Price: RFQ

Specifications

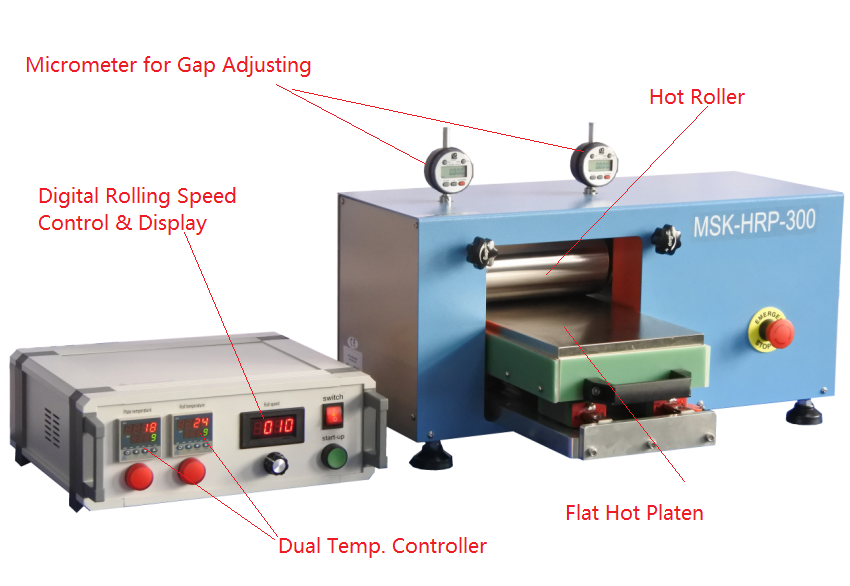

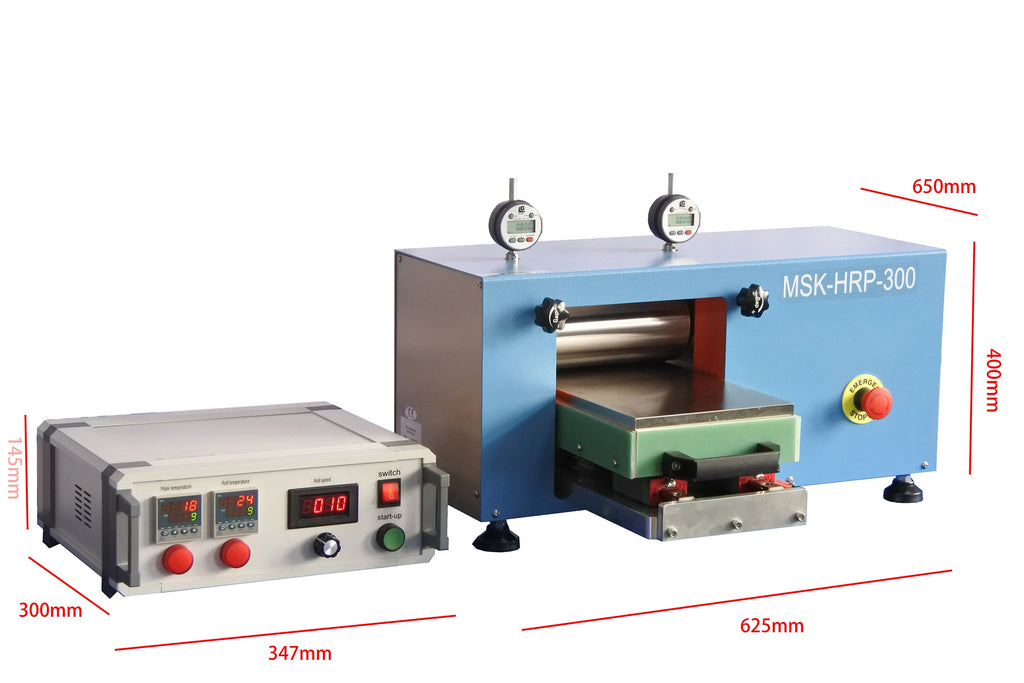

 MSK-HRP-300 (updated from MSK-H2150-RP300) is a special Roll-to-Plate hot press with a working temperature of up to 200C. The hot roll drives hot pate via DC motor to achieve flat pressing, which is designed for better laminating multilayer material, also making dry electrodes for the rechargeable batteries. SPECIFICATIONS: Power 220VAC±10%, 50/60 Hz, Single Phase 2500W Roller Material & Size High strength refractory steel with hardness RC > 58 The Roller surface is plated with Cr for anti-corrosive Roller Size: 96 mm Dia. x 220mm W (4" D x 8"W) Suggested rolling width: 150 mm Roll line speed: 0~ 50 mm/s adjustable Heating power: 1200W Max. the temperature for the roller: 200°C Driving by DC motor and Ar gas compatible Roller Gap ( Thickness ) 0~ 1.8 mm adjustable Dial Gauge Accuracy (Thickness Indicating ) Dual digital micrometer heads Accuracy: +/- 0.005mm Movable Hot Plate The hot plate is made of High strength refractory steel with hardness RC > 58 Dimension: 220 mm W x 300 mm L The Hot plate is movable by the hot roller via friction force Max. working temperature: 300 oC Max. Rolling width on the plate: 150mm Heating Temperature Two digital temperature controllers for control hot roller and hot plate separately 200°C suggested, and 300°C maximum Max Heating Rate: 4°C/minute Power of Heating Elements: 2500W in total Temperature Control Accuracy: +/-3°C Power AC 208 - 240V single phase, 50/60Hz Notice: 220V AC Power plug is not included. Please click here to order the plug (You may order a transformer 3000W to use it at 110V, click here to order) 2200W max. in total Motor (Ar Gas Glove Box Compatible) High torque 24VDC motor with reducing gear (1:75) Motor power: 40W Rolling speed adjustable: 5~45 r/min Digital controlled with c onstant output power Output Thickness Depending on the electrode's material and thickness, typically: A 0.16mm thick electrode coated on copper can be pressed into a minimum thickness of 0.1 mm A 0.06mm thick electrode coated on copper can be pressed into a minimum thickness of 0.04 mm A 0.33mm thick silver/gold can be pressed into a minimum thickness of 0.03 mm Thickness uniformity: +/- 2 microns if coating electrode thickness +/- 5 micron and each rolling increased < 10 microns Compliance CE Certified NRTL or CSA certification is available upon request at extra cost Warnings Do not touch the surface of the rolling part of the machine when the rollers are heated up or running You may calibrate the temperature by TC-calibrator-LD , and refer to the instruction here from time to time to ensure heating temperature accuracy Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendaring decrement of 0.02mm compared with the sheet's original thickness

Power
  • 220VAC±10%, 50/60 Hz, Single Phase
  • 2500W
Roller Material & Size
  • High strength refractory steel with hardness RC > 58
  • The Roller surface is plated with Cr for anti-corrosive
  • Roller Size: 96 mm Dia. x 220mm W (4" D x 8"W)
  • Suggested rolling width: 150 mm
  • Roll line speed: 0~ 50 mm/s adjustable
  • Heating power: 1200W
  • Max. the temperature for the roller: 200°C
  • Driving by DC motor and Ar gas compatible

Roller Gap ( Thickness )
  • 0~ 1.8 mm adjustable

Dial Gauge Accuracy
(Thickness Indicating )
  • Dual digital micrometer heads
  • Accuracy: +/- 0.005mm


Movable Hot Plate
  • The hot plate is made of High strength refractory steel with hardness RC > 58
  • Dimension: 220 mm W x 300 mm L
  • The Hot plate is movable by the hot roller via friction force
  • Max. working temperature: 300 oC
  • Max. Rolling width on the plate: 150mm
Heating Temperature
  • Two digital temperature controllers for control hot roller and hot plate separately
  • 200°C suggested, and 300°C maximum
  • Max Heating Rate: 4°C/minute
  • Power of Heating Elements: 2500W in total
  • Temperature Control Accuracy: +/-3°C

Power

Motor (Ar Gas Glove Box Compatible)
  • High torque 24VDC motor with reducing gear (1:75)
  • Motor power: 40W
  • Rolling speed adjustable: 5~45 r/min
  • Digital controlled with constant output power

Output Thickness
  • Depending on the electrode's material and thickness, typically:
    • A 0.16mm thick electrode coated on copper can be pressed into a minimum thickness of 0.1 mm
    • A 0.06mm thick electrode coated on copper can be pressed into a minimum thickness of 0.04 mm
    • A 0.33mm thick silver/gold can be pressed into a minimum thickness of 0.03 mm
  • Thickness uniformity: +/- 2 microns if coating electrode thickness +/- 5 micron and each rolling increased < 10 microns

Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at extra cost
Warnings
  • Do not touch the surface of the rolling part of the machine when the rollers are heated up or running
  • You may calibrate the temperature by TC-calibrator-LD, and refer to the instruction here from time to time to ensure heating temperature accuracy
  • Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendaring decrement of 0.02mm compared with the sheet's original thickness
