Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E

Hot Rolling Press (8"D x10"W, 230 °C Max) w/ Adjustable Pressure up to 10 T - MSK-HRP-3-E

SKU: msk-hrp-3-e

Price: RFQ

Specifications

 MSK-HRP-3-E is a hot rolling press with an adjustable gap from 0 - 6 mm. MSK-HRP-3-E is equipped with adjustable pressure of up to 10 metric tons , accommodating to wide variety of applications. Besides, two single set point temperature controllers up to 230°C provide the independent control for two rollers which increases the control accuracy and uniformity of temperature. The hot rolling machine is an ideal tool for calendaring and lamination for battery electrodes. SPECIFICATIONS Features Dual programmable temperature controllers for two rollers, up to 230°C independently Apply pressure up to 10 metric tones via a manual hydraulic pump Adjustable gap between rollers (0~6 mm) with micrometer thickness indication Rollers are made of high-quality tool steel with Cr plated Rolling direction selectable (back and forth), easy-to-return material Power AC 208 - 240 V single phase, 50/60 Hz Total: 4200 W 6 feet power cable is included, but the power plug is not included. Please click here to order the plug Rollers Size & Surface Hardness Diameter: 200 mm (8") Width: 250 mm ( 10") Linear Speed: 5 - 58 mm/sec adjustable Speed Display: 0 - 40 mm/sec (Actual Speed = Displayed Speed x 1.5) HRC 60-62 (Cr plated) Never roll materials with hardness > 50HRC Temperature Controllers Two temperature controllers enable control of the temperature for the two rollers independently 230°C maximum for less than one hour (<200°C continuously) Recommended Heating Rate: ~3°C/minute Precision temperature controller with +/- 2°C Accuracy Roller gap accuracy 0.01 mm by two digital micrometers Rolling Thickness 0~ 6 mm adjustable Compliance CE Certified UL, TUV or CSA certification is available upon request at extra cost Optional You may order an electric hydraulic pump to keep constant pressure (Pic. 1-2) Please consider the R2R rolling and laminating device below for Roll to Roll pressing. (Click pic 3 - 5 to order .) Pic. 2 Pic. 3 Pc. 4 Pic. 5 Application Notes Never roll materials with hardness > 50HRC Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendaring decrement of 0.02mm compared to the sheet's original thickness. Clean the roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion

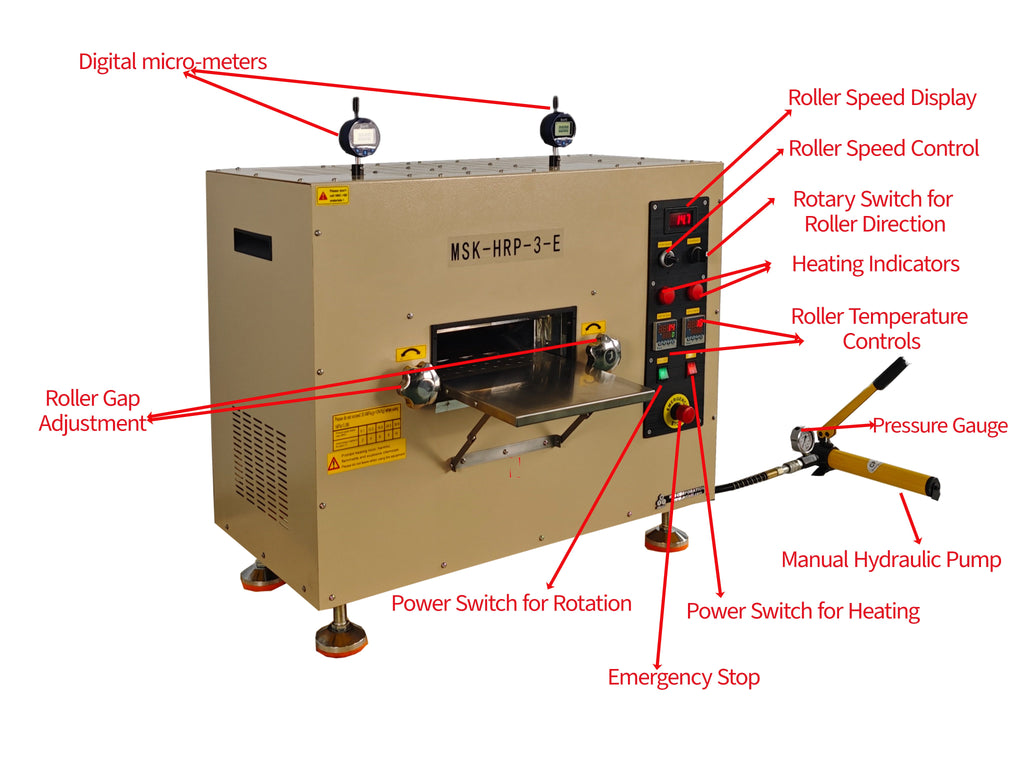

Features
  • Dual programmable temperature controllers for two rollers, up to 230°C independently
  • Apply pressure up to 10 metric tones via a manual hydraulic pump
  • Adjustable gap between rollers (0~6 mm) with micrometer thickness indication
  • Rollers are made of high-quality tool steel with Cr plated
  • Rolling direction selectable (back and forth), easy-to-return material
Power

Rollers Size & Surface Hardness
  • Diameter: 200 mm (8")
  • Width: 250 mm ( 10")
  • Linear Speed: 5 - 58 mm/sec adjustable
  • Speed Display: 0 - 40 mm/sec (Actual Speed = Displayed Speed x 1.5)
  • HRC 60-62 (Cr plated)
  • Never roll materials with hardness > 50HRC

Temperature Controllers


  • Two temperature controllers enable control of the temperature for the two rollers independently
  • 230°C maximum for less than one hour (<200°C continuously)
  • Recommended Heating Rate: ~3°C/minute
  • Precision temperature controller with +/- 2°C Accuracy

Roller gap accuracy
  • 0.01 mm by two digital micrometers

Rolling Thickness
  • 0~ 6 mm adjustable
Compliance
  • CE Certified
  • UL, TUV or CSA certification is available upon request at extra cost
Optional


You may order an electric hydraulic pump to keep constant pressure (Pic. 1-2)

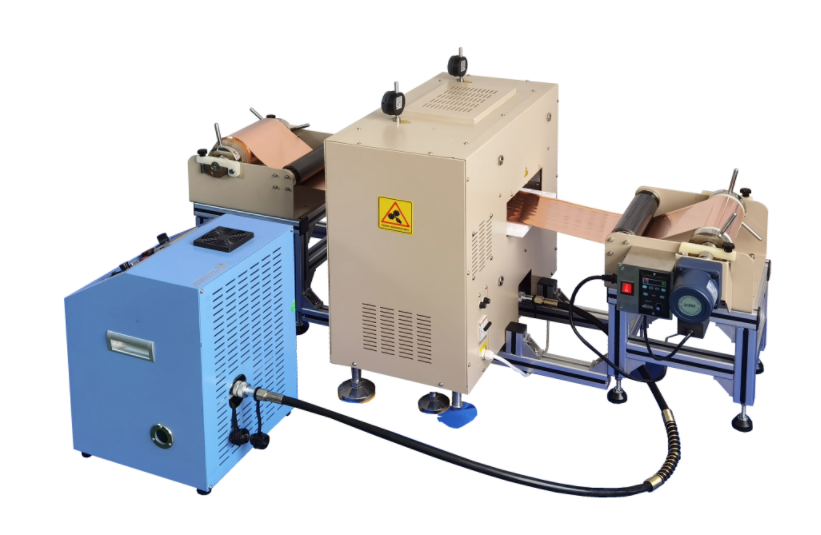

Please consider the R2R rolling and laminating device below for Roll to Roll pressing. (Click pic 3 - 5 to order.)

    Pic. 2    Pic. 3      Pc. 4 Pic. 5
Application Notes
  • Never roll materials with hardness > 50HRC
  • Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendaring decrement of 0.02mm compared to the sheet's original thickness.
  • Clean the roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion
