SKU: msk-hrp-04-rd

Price: RFQ

Specifications

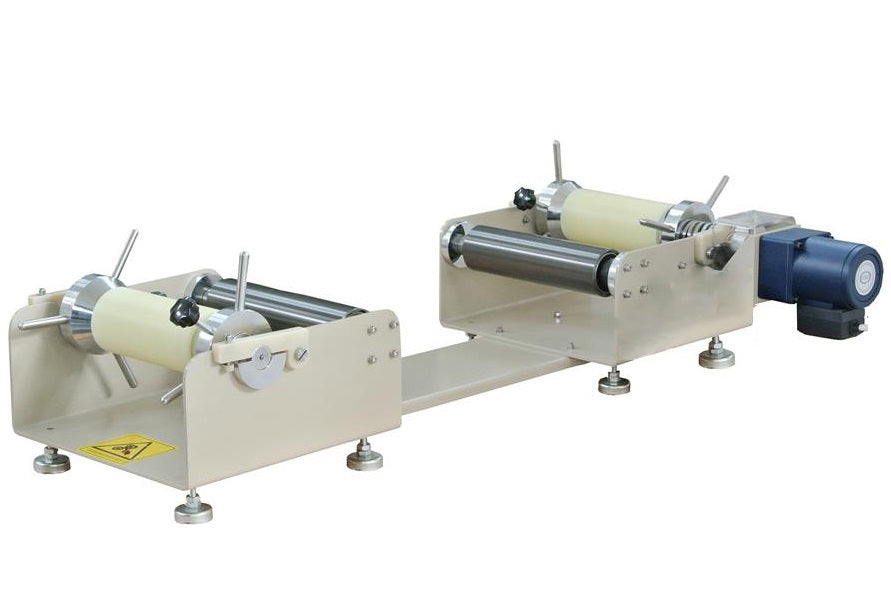

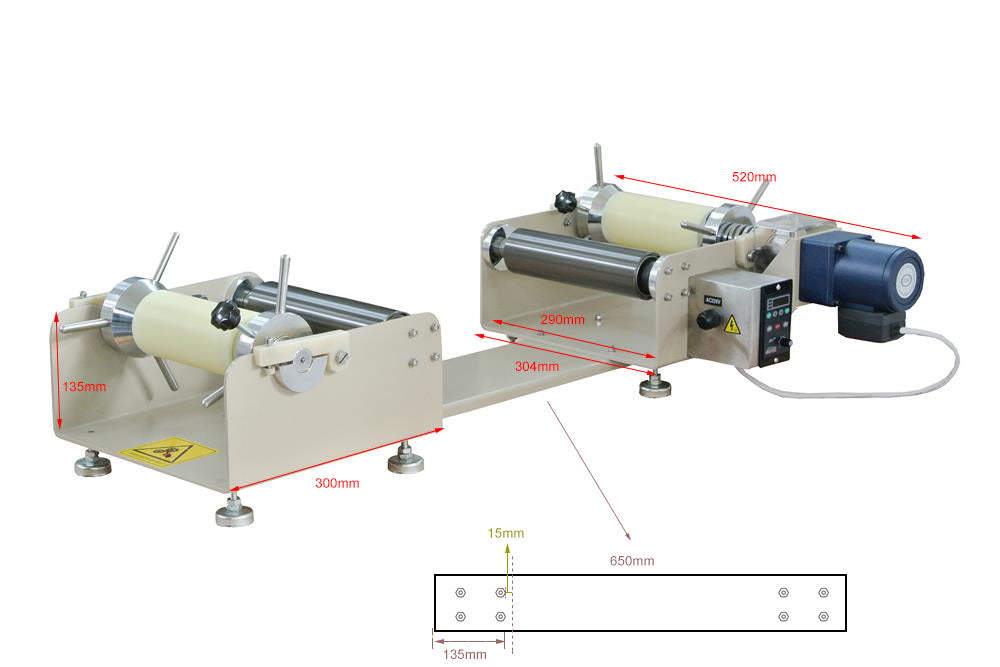

 MSK-HRP-04-RD is an automatic Roll to Roll system designed for continuous handling of flexible substrate materials less than 200mm wide. It enables the automatic R2R film calendaring on MTI tabletop calendaring machines ( MSK-HRP series). Tension adjustable torque motor for active reeling to maintain a constant tension force on the substrate. SPECIFICATIONS: Working Voltage Tension Control Version: 220 VAC, +/- 10%, 50/60Hz, single phase 220VAC Power plug is not included ( Please click here to order the plug ) You may use a 100W transformer to operate at 110V Speed Control Version: 24V DC A 110 - 240 VAC to 24 VDC power adapter is included for immediate use. Max. Power Consumption 20W Front Panel & Speed Control There are two types of speed control, and please choose from the product option Torque sensor control for R2R rolling press, 200g - 1000g adjustable via current Speed control without torque sensor for R2R coating machine Reeling Width Width is adjustable from 2" - 8" for the flexible substrate material Traverse Speed The film traverse speed is dependent on its calendering speed, normally <1.5 meters/min For speed control mode, the maxium linear speed (under empty load) can be up to 16 m/min. Roller's O.D Plastic roll (Min. roller ID 40 mm) is included for winding Customized winding roller with 41mm ID x 50 - 80 mm OD is available upon request at an extra cost Reeling/Unreeling Roll Diameter Max. 230mm Sample Roll Traveling Route ( click picture to see details) Optional Two directions winding R2R device with dual tension adjustable is available upon request Compliance CE certified Protective Cover is Optional and at an extra cost Application Notes It is not allowed to use any MTI product in any hazardous location, especially prohibited from using in Class I environments (flammable gasses & vapor ) This R2R device can be upgraded with two unwinding rollers which allow you to feed two types of materials into the hot press simultaneously for lamination purposes, which can be DIY R2R coaters Optional Accessories < 150mm width Compatible Roll (Aluminum Foil or Copper Foil) can be found on our website. Please click the picture below to order


Working Voltage

 Tension Control Version:
Speed Control Version:
  • 24V DC
  • A 110 - 240 VAC to 24 VDC power adapter is included for immediate use.

Max. Power Consumption
  • 20W

Front Panel & Speed Control

 There are two types of speed control, and please choose from the product option
  • Torque sensor control for R2R rolling press, 200g - 1000g adjustable via current
  • Speed control without torque sensor for R2R coating machine







Reeling Width
  • Width is adjustable from 2" - 8" for the flexible substrate material

Traverse Speed

 The film traverse speed is dependent on its calendering speed, normally <1.5 meters/min
For speed control mode, the maxium linear speed (under empty load) can be up to 16 m/min.

Roller's O.D

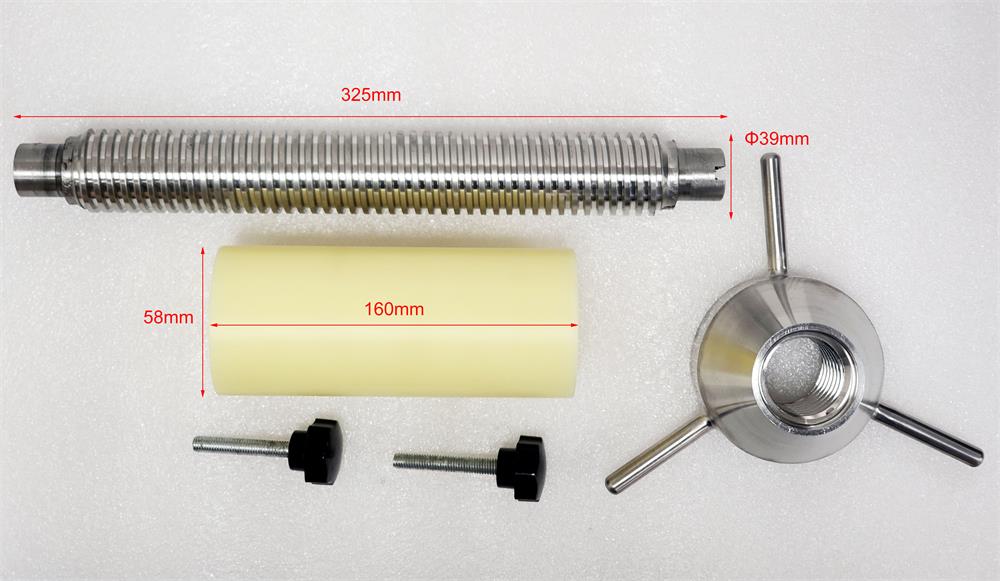

  • Plastic roll (Min. roller ID 40 mm) is included for winding
  • Customized winding roller with 41mm ID x 50 - 80 mm OD is available upon request at an extra cost

Reeling/Unreeling Roll Diameter

 Max. 230mm

Sample Roll Traveling Route


( click picture to see details)


Optional

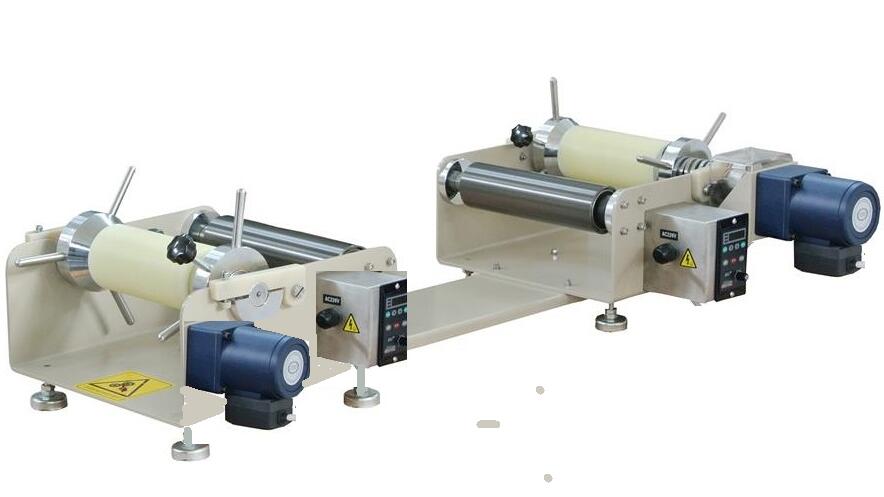

 Two directions winding R2R device with dual tension adjustable is available upon request

Compliance
  • CE certified
  • Protective Cover is Optional and at an extra cost

Application Notes
  • It is not allowed to use any MTI product in any hazardous location, especially prohibited from using in Class I environments (flammable gasses & vapor)
  • This R2R device can be upgraded with two unwinding rollers which allow you to feed two types of materials into the hot press simultaneously for lamination purposes, which can be DIY R2R coaters
