Description

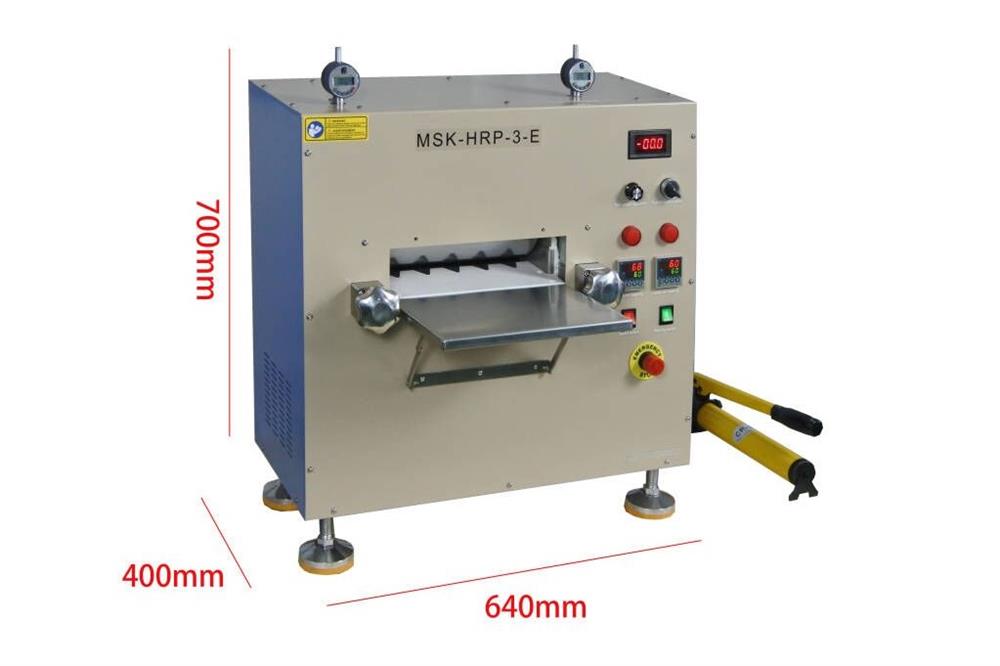

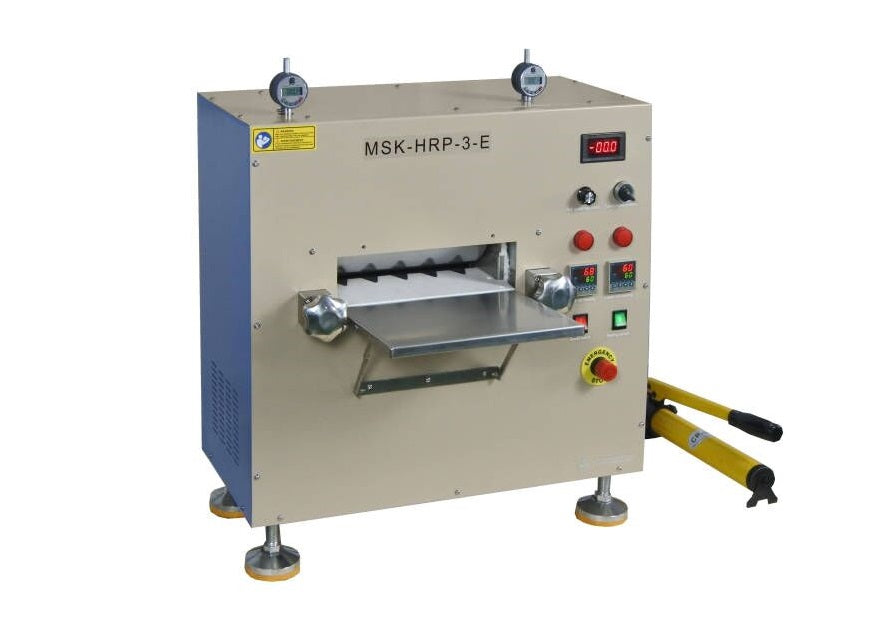

MSK-HRP-3-C is a cold rolling press with rollers of 250 mm width ( 10") and manual hydraulic cylinders that can apply pressing force up to 10 metric tons. An automatic hydraulic press is optional.
| Features |
- Apply pressure up to 10 metric tones via a manual hydraulic pump
- An electric hydraulic pump is optional to keep constant pressure up to 10 metric tons
- Adjustable gap between rollers (0~6 mm) with micrometer thickness indication
- Rollers are made of high-quality tool steel with cr-plated
- Rolling direction selectable (back and forth), easy-to-return material
|
| Power |
|
|
Rollers Size & Surface Hardness
|
- Diameter: 200 mm (8")
- Width: 250 mm ( 10")
- Effective rolling width: 200 mm Max.
- Linear Speed: 5 - 58 mm/sec adjustable
- Speed Display: 0 - 40 mm/sec (Actual Speed = Displayed Speed x 1.5)
- HRC 60-62 (Cr plated)
- Never roll materials with hardness > 50HRC
|
|
Roller gap accuracy
|
- 0.01 mm by two digital micrometers
|
|
Rolling Thickness
|
|
| Compliance |
- CE Certified
- UL, TUV or CSA certification is available upon request at extra cost
|
| Optional |

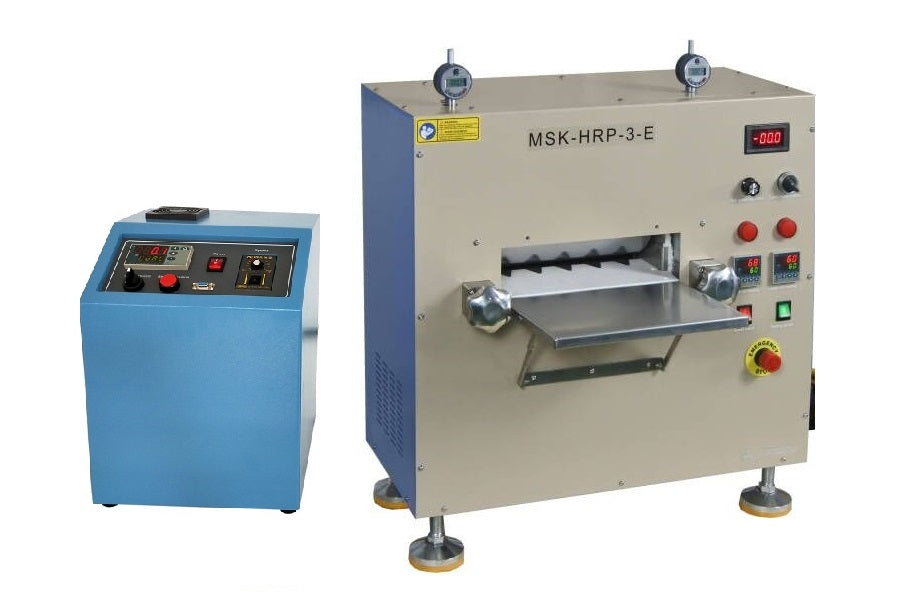

- You may order an electric hydraulic pump to keep constant pressure (Pic. 1-2)

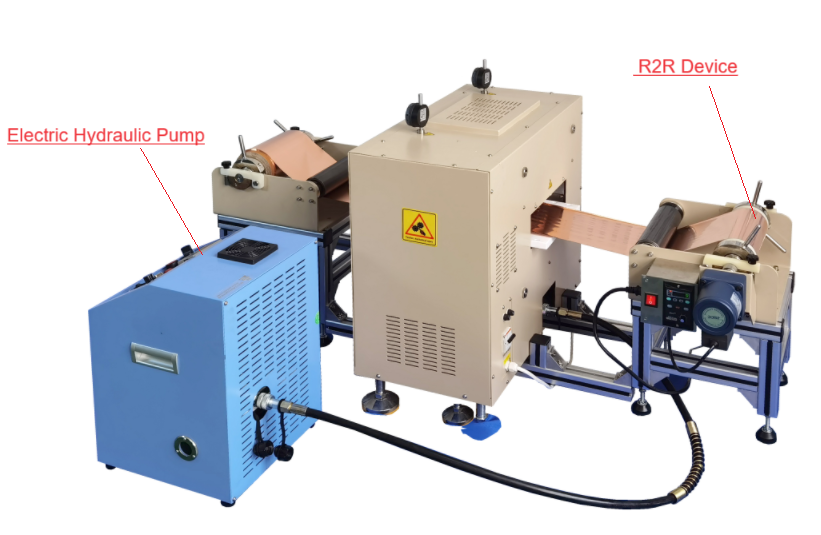

- Please consider the R2R rolling and laminating device below for Roll to Roll pressing. (Click pic 3 - 4 to order)
 Pic. 1  Pic. 2  Pic. 3  Pc. 4 |
| Application Notes |
- Never roll materials with hardness > 50HRC
- Multi-step thickness calendering needed: While calendering the sample sheet, make each calendering decrement of 0.02mm compared to the sheet's original thickness.
- Clean the roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion
|
