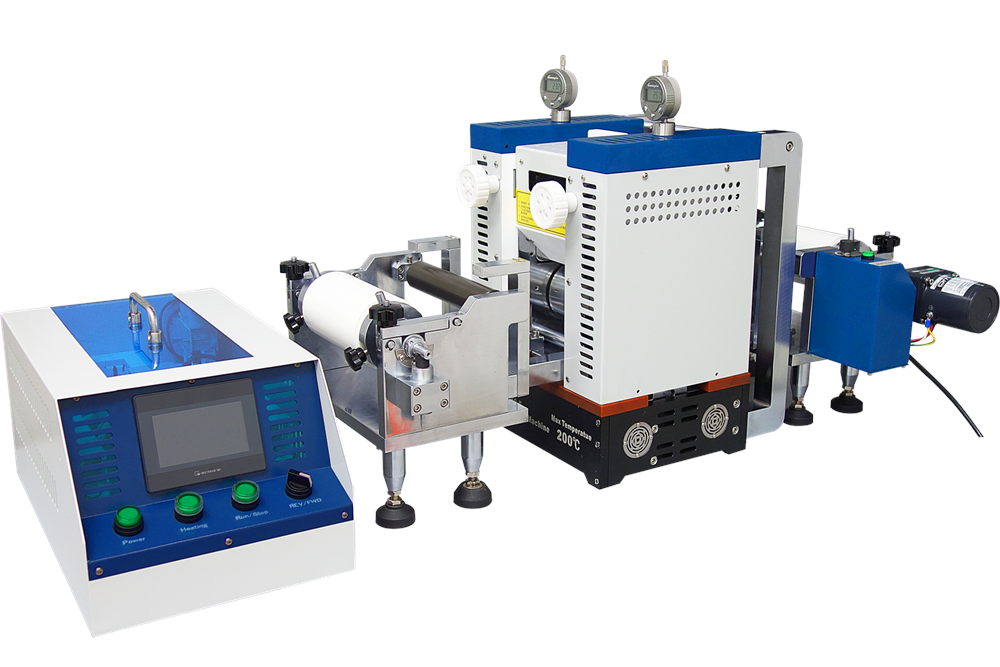

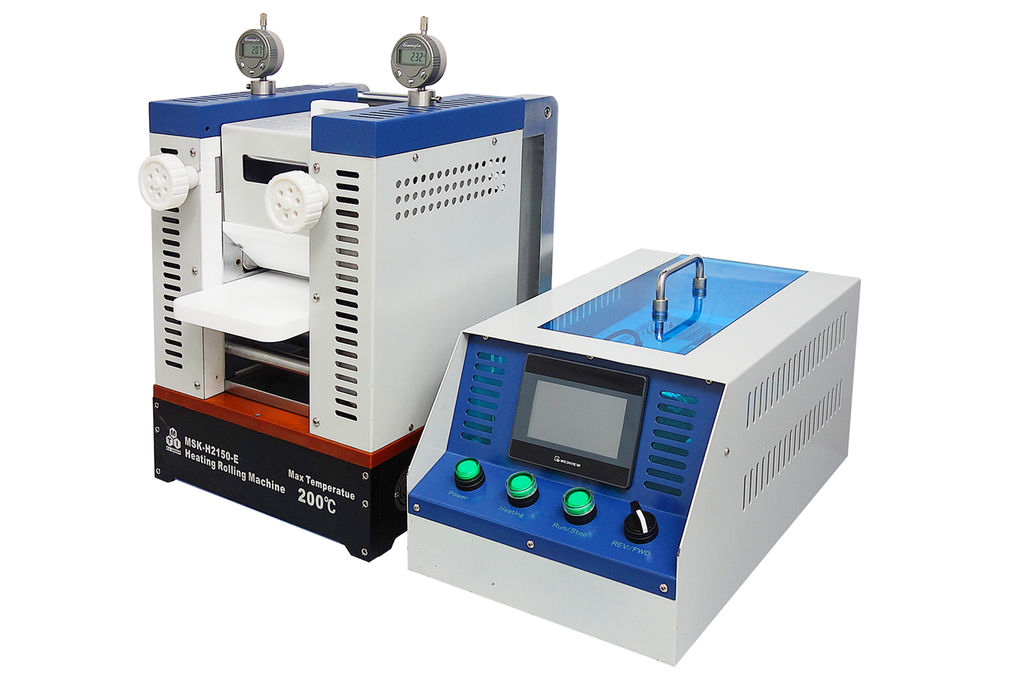

Gap-Controlled Hot Rolling Press (6" W x 4"Dia., Max. 200℃) for Dry Electrode Battery, Glovebox Compatible - MSK-H2150-E

MSK-H2150-E is a 150mm width (6") pressure-control electric rolling press with roll-to-roll unit. It is an ideal roll-to-roll cold calendar with adjustable pressure for battery electrode calendaring and improving electrode compaction density.

Features	Loading force up to 2-3 T (cannot be adjusted on screen)  Adjustable rolling gap: 0-3 mm Adjustable rolling speed up to 50 mm/s Roller size: 150mm width x 100 mm Dia, made of hardened steel (RC: 58 - 60) with Cr electroplated coating Special brushless motor is compatible with Ar gas in glovebox
Touchscreen Controller	Rolling speed, pressure, and real pressure display are shown on main page. Rolling direction can be changed in forward or reverse. Rolling start or stop button for easy operation Alarm alert and details will be displayed
Working Voltage	AC110 or 220V, single phase, 50/60Hz, 1.7 kW
Rolling Temperature	Max:200℃, surface temperature uniformity ≤ ±2℃
Rolling Accuracy	± 2 μm
Roller Feature	HRC 58 - 60 Never roll materials with hardness > 50 HRC Sample width max 140 mm (roller width could be customized to 200 mm and then the maximum sample width is 180 mm) Note: The benchtop rolling press is not suitable for calendaring thick metals. For applications with such needs, please consult with MTI engineers
Digital Micrometer	Range: 0 - 10mm Resolution: 0.01mm (or 0.001in) Unit interchangeable (mm / in) Power supply: CR2032 3V Li-ion battery

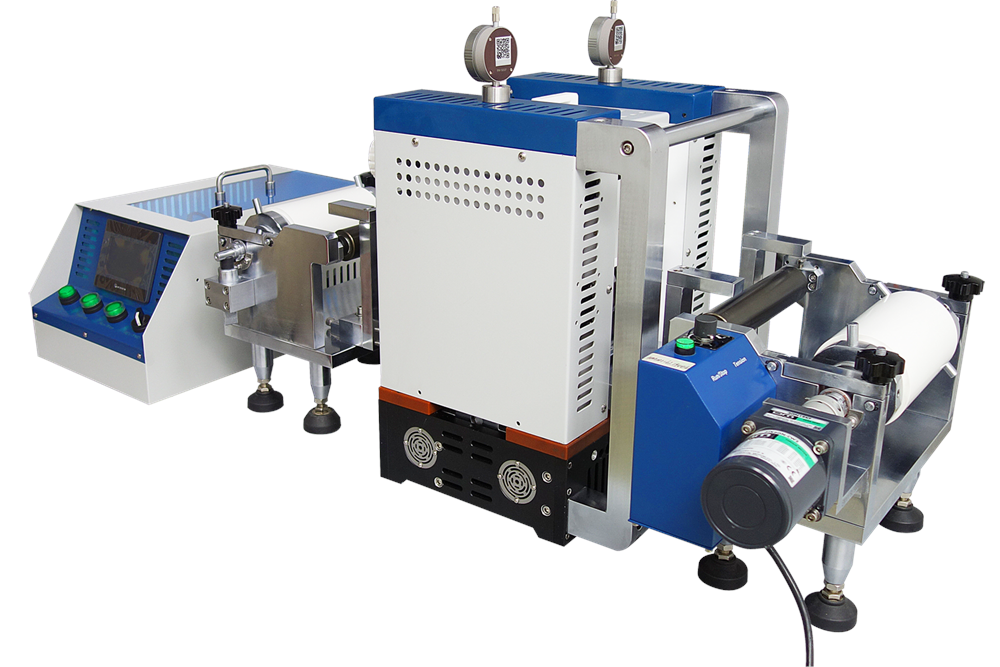

Roll to Roll Unit	208 - 240 VAC, 50/60Hz, Single Phase, 100W 220V AC Power plug is not included (Please click here to order the plug) You may use 200W transformer to operate at 110V The brushless motor ensures no sparking in the Ar gas environment The film traverse speed is dependent on its calendaring speed, normally <1.5 meters/min Cardboard diameter on the rollers.: 3 inches  Maximum diameter of the roller diameter is up to 200 mm. Roller width is up to 150 mm
Compliance	CE Certified NRTL or CSA certification is available upon request at an extra cost
Application Notes	The MSK-H2150-E-R2R are specially designed for electrode hot calendaring of battery R&D in terms of its advantages as affordable, compact, and precise. Please strictly follow the instructions to operate: Must use acetone to clean rollers' surface after each use If the machine will be idle for a long period of time, please apply anti-rust lubricant on the rollers The minimum thickness of the rolled sheet should depend on the physical property of the material. If you have other materials to process. Please mail us your samples and we are willing to do the test for you
Warnings	Never roll materials with hardness > 50HRC Multi-step thickness calendaring needed: while calendaring the sample sheet, make each calendering decrement of 0.02mm comparing with sheet original thickness Never calendering decrement over 0.02mm comparing with original sheet thickness each calendering Must clean the roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
