100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320
  • 100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320
  • 100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320
  • 100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320
  • 100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320
100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320

SKU: msk-dpc-b320

Price: RFQ

Specifications

 MSK-DPC-B320 is an automatic roll-to-roll calendering press system with precision digital pressure control for battery electrode production. It has 370 mm width and 320 diameter high strength alloy rollers and can produce electrodes up to 350 mm width at 6 m/min max speed and the rolling force of 100 metric tons. SPECIFICATIONS: Working Voltage AC 220V or 380V 50/60 Hz Three Phase Max. Power Consumption: 6 KW Rollers (one pair) Dimensions: 320mm Diameter x 370mm Width Material: Hardening Tool Steel 9Cr3Mo with HRC 65 -70 Hardening material layer thickness: 10 mm Effective Rolling Width: <= 350 mm Max. Diameter of delivering and winding: 320 mm Max. Force: 100 T Press gap 0 - 2 mm adjustable Tolerance: 0.001 mm Rolling Speed 0.3 - 6 Meter / Minute adjustable by Touch Screen Control Panel Press Flatness Thickness Accuracy: ± 0.0025mm Surface Roughness: < Ra 0.4 Pressure Control Pressure load: 1 - 100 Tons adjustable by Touch Screen Control Panel Real-time pressure display with data saved function Accessories Included Rolling to Roller cleaning function is built-in Edge cutting device included Dust Removing device installed Roller installation and unload cart included Roll to Roll Device (Optional) Roll to Roll Feeding and Collecting is available as option Maximum Roller Width: 350 mm Feeding and Collecting Roller Diameter: 250 mm Tension Control: Maximum 50 N Utility and Environment Compressed air: 0.5~0.8 Mpa (Air compressor is not included) Environment Temperature: 25 ± 3 Environment Humidity: 0~90RH Compliance CE certified NRTL or CSA certification is available upon request at the extra cost Application Notes It is not allowed to use any MTI product in any hazardous location, especially prohibit from using in Class I environments (flammable gasses & vapor).

Working Voltage
  • AC 220V or 380V 50/60 Hz Three Phase
  • Max. Power Consumption: 6 KW

Rollers (one pair)
  • Dimensions: 320mm Diameter x 370mm Width
  • Material: Hardening Tool Steel 9Cr3Mo with HRC 65 -70
  • Hardening material layer thickness: 10 mm
  • Effective Rolling Width: <= 350 mm
  • Max. Diameter of delivering and winding: 320 mm
  • Max. Force: 100 T
Press gap
  • 0 - 2 mm adjustable
  • Tolerance: 0.001 mm
Rolling Speed
  • 0.3 - 6 Meter / Minute adjustable by Touch Screen Control Panel

Press Flatness
  • Thickness Accuracy: ± 0.0025mm
  • Surface Roughness: < Ra 0.4

Pressure Control
  • Pressure load: 1 - 100 Tons adjustable by Touch Screen Control Panel
  • Real-time pressure display with data saved function

Accessories Included
  • Rolling to Roller cleaning function is built-in
  • Edge cutting device included
  • Dust Removing device installed
  • Roller installation and unload cart included

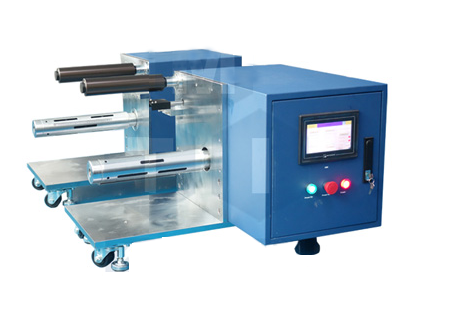

Roll to Roll Device (Optional)
  • Roll to Roll Feeding and Collecting is available as option
  • Maximum Roller Width: 350 mm
  • Feeding and Collecting Roller Diameter: 250 mm
  • Tension Control: Maximum 50 N

Utility and Environment
  • Compressed air: 0.5~0.8 Mpa (Air compressor is not included)
  • Environment Temperature: 25 ± 3
  • Environment Humidity: 0~90RH

Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost

Application Notes
  • It is not allowed to use any MTI product in any hazardous location, especially prohibit from using in Class I environments (flammable gasses & vapor).
