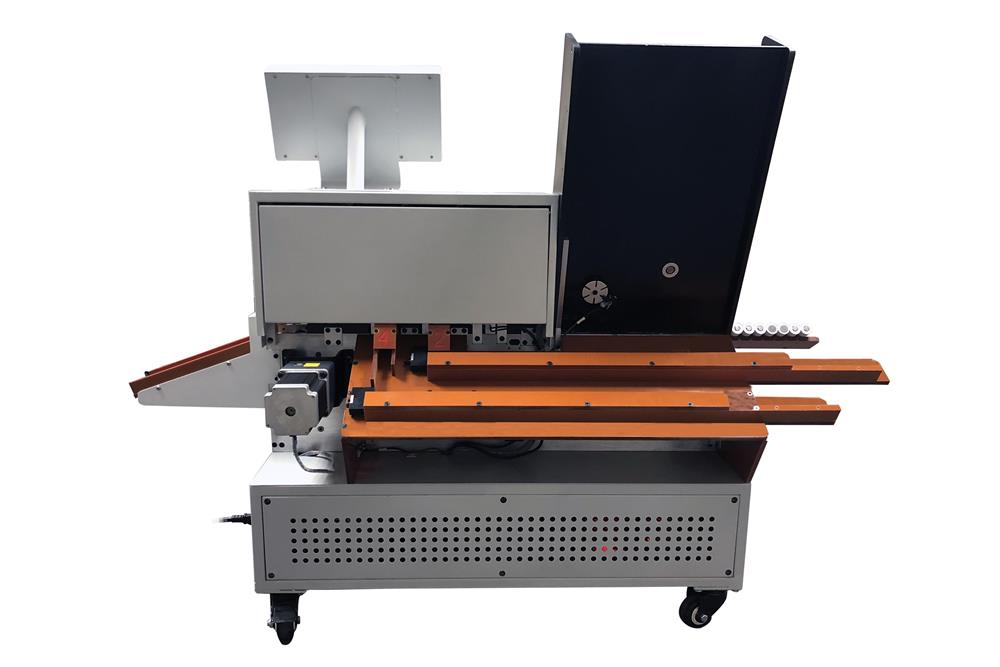

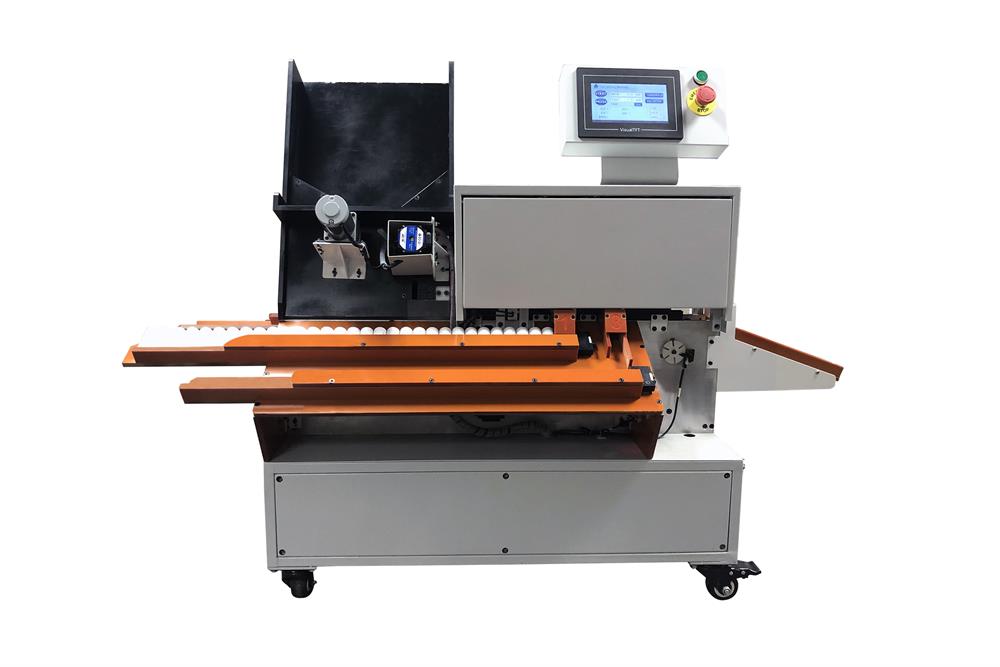

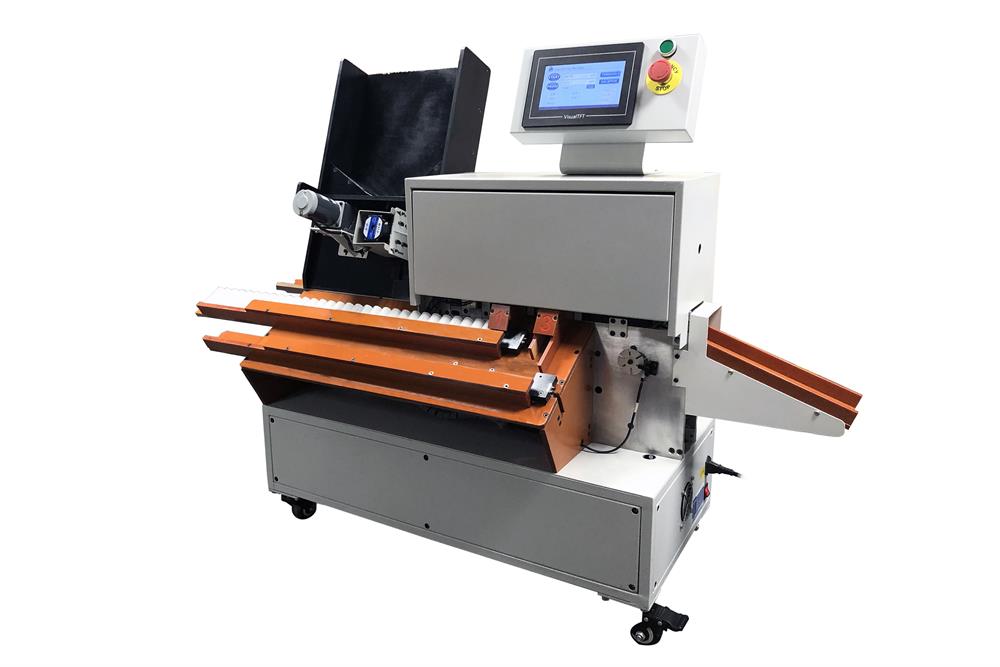

5 Channel Automatic Battery Sorter/ Battery Selector for 18650, 26650 or 21700 Cell - MSK-BS-LD

5 Channel Automatic Battery Sorter/ Battery Selector for 18650, 26650 or 21700 Cell - MSK-BS-LD

SKU: msk-bs-ld

Price: RFQ

Specifications

MSK-BS-LD is a high throughput automatic Battery Sorter/Selector for sorting cylindrical 18650, 26650 and 21700 battery cells by voltage and impedance up to 5 groups. SPECIFICATIONS: Feature Must-have equipment for Battery Pack Manufacturer! 5 Channel automatic cell sorter is designed to sort cylindrical 18650, 26650 and 21700 cells Sort by cell's voltage and impedance up to 5 groups Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale) Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale) via ACIR 1khz tester Automatic sorting control Fast sorting speed (3000 batteries/hr) Easy to refill cells during the process Long post-test cell trail 4 wheels design, easy to move the machine to any operating place. Input Power Voltage: 220 VAC (50Hz/60Hz) Power ≤ 150W LCD Control Panel Screen 5.7" Operation Temperature 0-50 Compliance MET, UL or TUV certificate is available at extra cost Warning Avoid putting objects other than 18650 batteries in pretest battery space Be careful not to pinch fingers in operating conveyor Do not open the machine when it is operating Remove bracelets or any other jewelry before operation Always check the quantity of the batteries before and after the test in order to prevent blocking the conveyor inside the machine. Operation Manual Warranty One-year limited warranty with lifetime support

Feature
  • Must-have equipment for Battery Pack Manufacturer!
  • 5 Channel automatic cell sorter is designed to sort cylindrical 18650, 26650 and 21700 cells
  • Sort by cell's voltage and impedance up to 5 groups
  • Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale)
  • Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale) via ACIR 1khz tester
  • Automatic sorting control
  • Fast sorting speed (3000 batteries/hr)
  • Easy to refill cells during the process
  • Long post-test cell trail
  • 4 wheels design, easy to move the machine to any operating place.
Input Power
  • Voltage: 220 VAC (50Hz/60Hz)
  • Power ≤ 150W
LCD Control Panel Screen
  • 5.7"
Operation Temperature
  • 0-50
Compliance
  • MET, UL or TUV certificate is available at extra cost
Warning
  • Avoid putting objects other than 18650 batteries in pretest battery space
  • Be careful not to pinch fingers in operating conveyor
  • Do not open the machine when it is operating
  • Remove bracelets or any other jewelry before operation
  • Always check the quantity of the batteries before and after the test in order to prevent blocking the conveyor inside the machine.
Operation Manual

Warranty
  • One-year limited warranty with lifetime support
