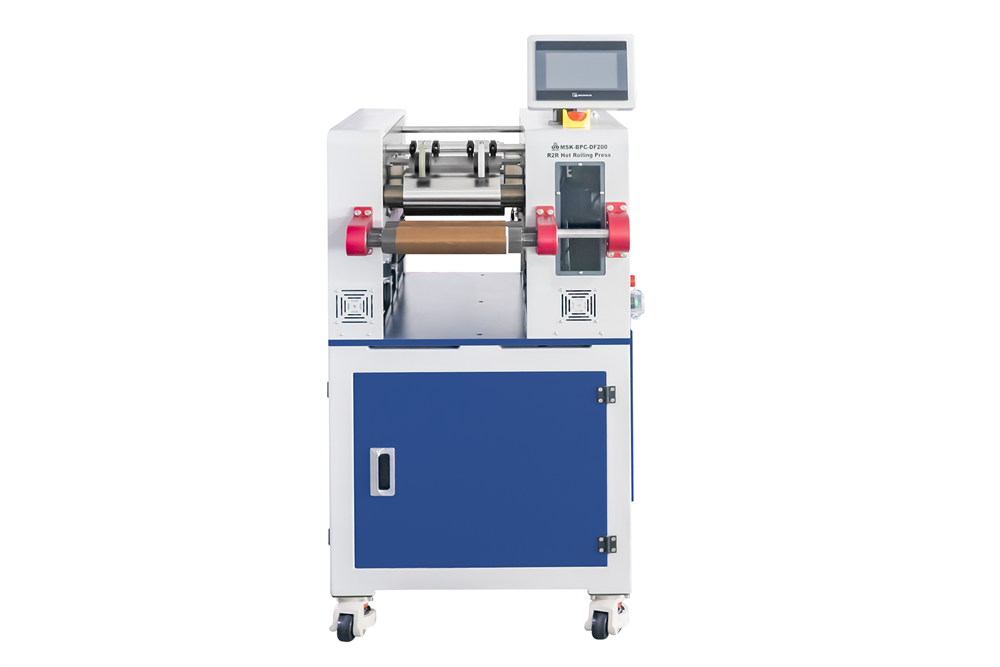

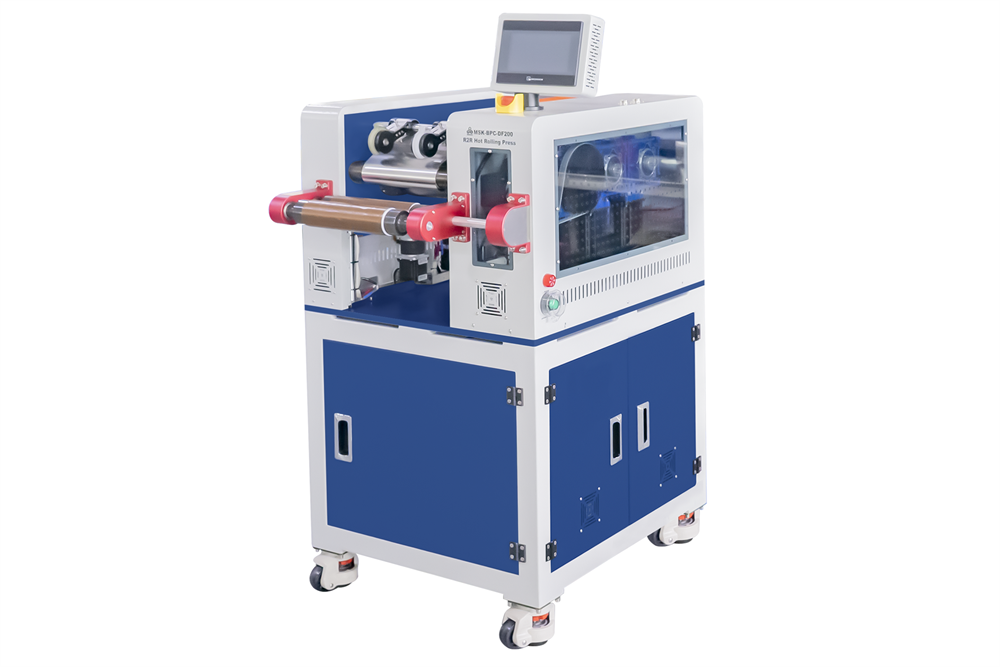

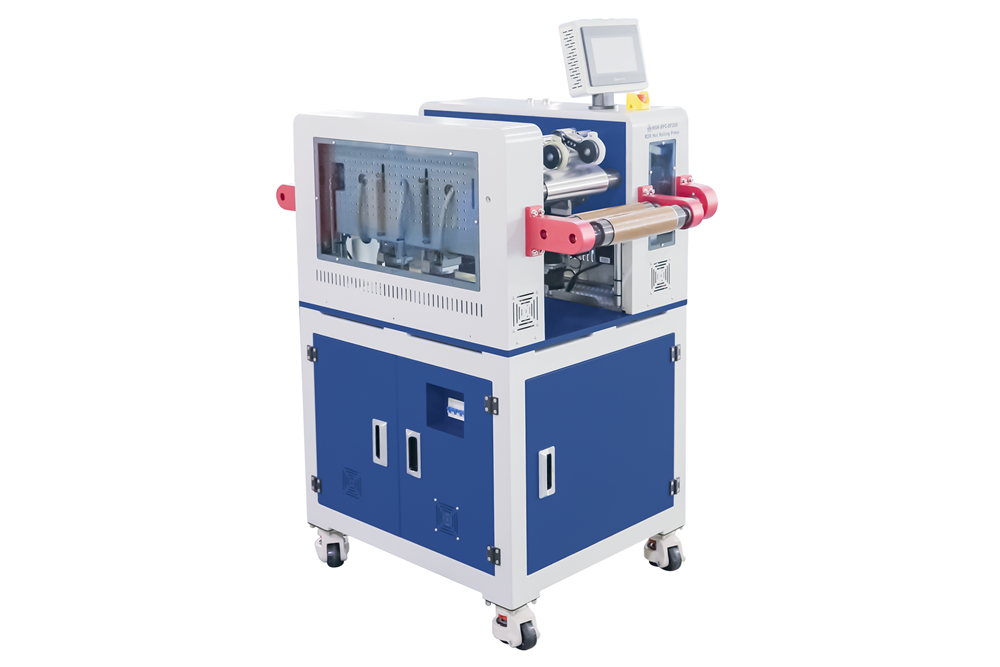

Hot Rolling Press with Asynchronous Speed for Dry Electrode / Solid State Electrolyte Fabrication (Max. 200mm W, 15T, 200 °C) - MSK-BPC-DF200
  • Hot Rolling Press with Asynchronous Speed for Dry Electrode / Solid State Electrolyte Fabrication (Max. 200mm W, 15T, 200 °C) - MSK-BPC-DF200
  • Hot Rolling Press with Asynchronous Speed for Dry Electrode / Solid State Electrolyte Fabrication (Max. 200mm W, 15T, 200 °C) - MSK-BPC-DF200
  • Hot Rolling Press with Asynchronous Speed for Dry Electrode / Solid State Electrolyte Fabrication (Max. 200mm W, 15T, 200 °C) - MSK-BPC-DF200
  • Hot Rolling Press with Asynchronous Speed for Dry Electrode / Solid State Electrolyte Fabrication (Max. 200mm W, 15T, 200 °C) - MSK-BPC-DF200
  • Hot Rolling Press with Asynchronous Speed for Dry Electrode / Solid State Electrolyte Fabrication (Max. 200mm W, 15T, 200 °C) - MSK-BPC-DF200
  • Hot Rolling Press with Asynchronous Speed for Dry Electrode / Solid State Electrolyte Fabrication (Max. 200mm W, 15T, 200 °C) - MSK-BPC-DF200
Hot Rolling Press with Asynchronous Speed for Dry Electrode / Solid State Electrolyte Fabrication (Max. 200mm W, 15T, 200 °C) - MSK-BPC-DF200

Hot Rolling Press with Asynchronous Speed for Dry Electrode / Solid State Electrolyte Fabrication (Max. 200mm W, 15T, 200 °C) - MSK-BPC-DF200

SKU: msk-bpc-df200

Price: RFQ

Specifications

 MSK-BPC-DF200 is a three-roller continuous rolling press with various speeds to prepare a lithium-ion battery's dry electrode and solid-state electrolyte sheet. Three pairs of rolls can be independently controlled under a pressure of 8T Max. SPECIFICATIONS: Power AC220±10%, single phase, 50/60Hz 5KW Rollers Roller materials: Hardening Cr12MoV Roller size: Ø150 mm x 220 mm Hardness: HRC 58-62 Roller Gap: 0 - 1.5 mm Gap accuracy: +/- 2.5 um Working Mechanism Roller Temperature 200°C Max.., each roller temperature can be adjusted independently. Maximum Electrode Width 180mm Max. Rolling Pressure 15T Max., each roller pressure can be adjusted independently. Applied force resolution: ±0.30Kg. Rolling Speed 0.3- 2 m/min, each roller speed can be adjusted independently. Recommended Working Environment 25 ± 3°C, no vibration or electromagnetic interference Compliance CE Certified NRTL certification is available upon request at the extra cost Application Note

Power
  •  AC220±10%, single phase, 50/60Hz
  • 5KW
Rollers
  • Roller materials: Hardening Cr12MoV
  • Roller size: Ø150 mm x 220 mm
  • Hardness: HRC 58-62
  • Roller Gap: 0 - 1.5 mm
  • Gap accuracy: +/- 2.5 um
Working Mechanism
Roller Temperature
  • 200°C Max.., each roller temperature can be adjusted independently.
Maximum Electrode Width
  •  180mm Max.
Rolling Pressure
  • 15T Max., each roller pressure can be adjusted independently. Applied force resolution: ±0.30Kg.
Rolling Speed
  • 0.3- 2 m/min, each roller speed can be adjusted independently.
Recommended Working Environment
  • 25 ± 3°C, no vibration or electromagnetic interference
Compliance
  • CE Certified
  • NRTL certification is available upon request at the extra cost
Application Note
