120°C Max. Film Coater w/ Heatable Vacuum Bed (12"Wx24"L) & 250mm Doctor Blade - MSK-AFA-II-VC-FH
  • 120°C Max. Film Coater w/ Heatable Vacuum Bed (12"Wx24"L) & 250mm Doctor Blade - MSK-AFA-II-VC-FH
  • 120°C Max. Film Coater w/ Heatable Vacuum Bed (12"Wx24"L) & 250mm Doctor Blade - MSK-AFA-II-VC-FH
  • 120°C Max. Film Coater w/ Heatable Vacuum Bed (12"Wx24"L) & 250mm Doctor Blade - MSK-AFA-II-VC-FH
  • 120°C Max. Film Coater w/ Heatable Vacuum Bed (12"Wx24"L) & 250mm Doctor Blade - MSK-AFA-II-VC-FH
  • 120°C Max. Film Coater w/ Heatable Vacuum Bed (12"Wx24"L) & 250mm Doctor Blade - MSK-AFA-II-VC-FH
  • 120°C Max. Film Coater w/ Heatable Vacuum Bed (12"Wx24"L) & 250mm Doctor Blade - MSK-AFA-II-VC-FH
120°C Max. Film Coater w/ Heatable Vacuum Bed (12"Wx24"L) & 250mm Doctor Blade - MSK-AFA-II-VC-FH

120°C Max. Film Coater w/ Heatable Vacuum Bed (12"Wx24"L) & 250mm Doctor Blade - MSK-AFA-II-VC-FH

SKU: msk-afa-ii-vc-fh

Price: RFQ

Specifications

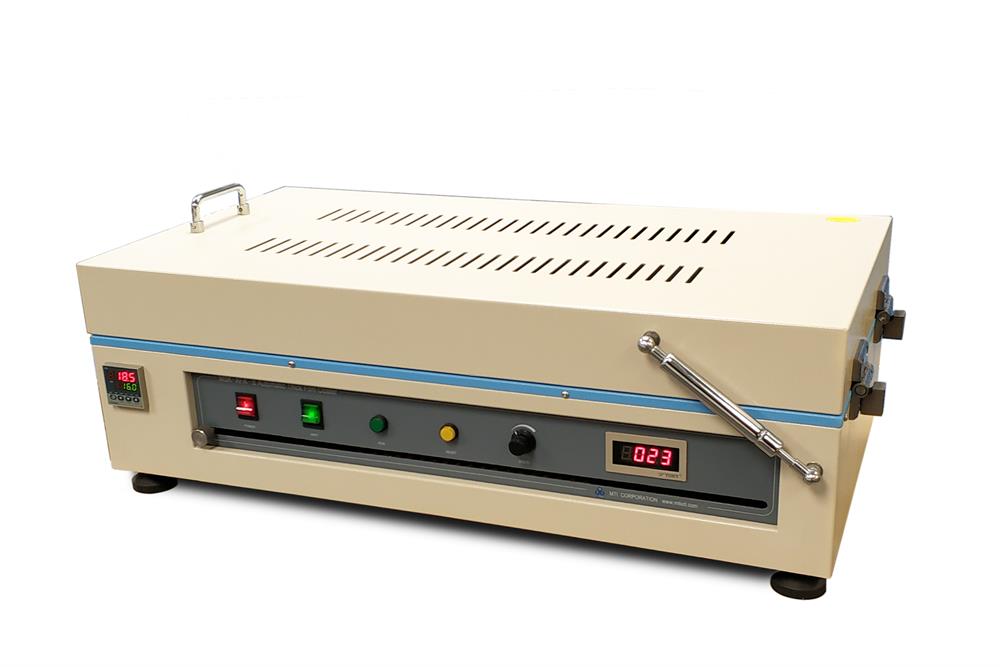

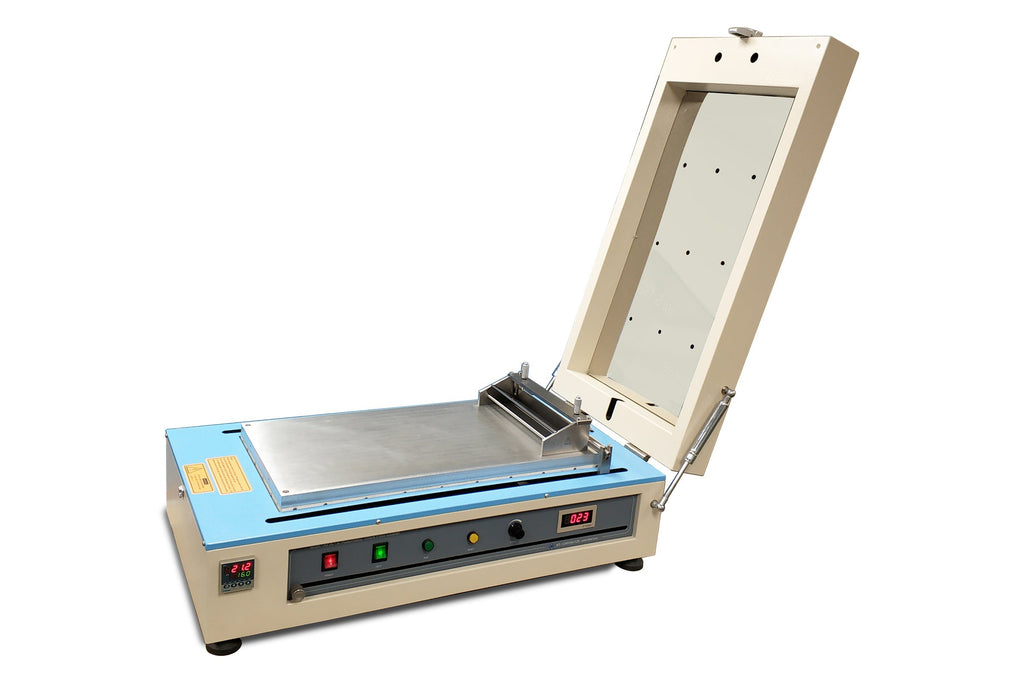

 MSK-AFA-II-VC-FH is a CE Certified larger size automatic film coater with a Heat able vacuum bed up to 120ºC. It is designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has a stable driving system to promote a smooth coating with all types of materials. The pin holes on the bed can hold the substrate sheet on the bed via a vacuum. This is very helpful when performing coating on the thin substrate. It is an ideal tool for ceramic tape casting and Li-Ion battery electrode coating. SPECIFICATIONS Working Voltage 110VAC or 208~240VAC, 50/60Hz (please select one in the voltage option bar) Max. Power Consumption 2050W Traverse Speed 10 - 100 mm/sec variable [ Without any load, the read traverse speed is around 90 mm/s when the speed is set as 100 mm/s. Therefore the real speed for coating should be calibrated by customer themselves by using a ruler and stop watch ] Accuracy: 10mm/sec Controlled by 24 VDC motor. Stroke Length 10 - 530 mm adjustable by using Adjustable Position Switch Heated Vacuum Bed A heated vacuum bed is made of aluminum alloy with a micro-size hole Vacuum Chuck Dimensions: 600mm(L) x 300mm(W) Heating elements are built inside the vacuum bed for a uniform heating up to 100ºC Max. Precision digital temperature controller with +/- 1ºC accuracy Film Applicator Pic. 1 Pic. 2 One 250 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 mm - 5 mm (Pic. 1) Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating Note: Thinnest film can be achieved is > 10 micron Optional hybrid film applicator of Blade and Slot die is available at the extra cost ( Click Pic 2 to see specs) Vacuum Pump (Optional) Please click the checkbox to order CE Compliance 120L/min Oilless Vacuum Pump Compliance CE certified NRTL or CSA certification is available upon request at the extra cost Application Notes Pic.1 and 2 show coated cathode and anode for Li-Ion batteries. Please click here to see how to It is recommended to operate the coater under a fume hood . (Click Pic.3 for detail.) May need a vacuum mixer to remove air bubbles inside slurry to make uniform coatings (Click Pic.4 ) You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.) Pic.1 Pic.2 Pic.3 Pic. 4 Pic.5 DIY ideas or options Ultrasonic Coater            Roll-to-Roll Ultrasonic Coater STANDARD PACKAGE Item Description Qty 1 Large Automatic Film Coater 1 2 Traverse Pusher 1 3 Micrometer Adjustable Film Applicator - 250 mm (film casting doctor blade) EQ-Se-KTQ-250 1 4 Power Cable (Note: 220V Power plug is not included. Please click here to order ) 1 5 Waste Plate 1 6 120L/min Oilless Vacuum Pump optional

Working Voltage
  • 110VAC or 208~240VAC, 50/60Hz (please select one in the voltage option bar)
Max. Power Consumption
  • 2050W

Traverse Speed
  • 10 - 100 mm/sec variable [Without any load, the read traverse speed is around 90 mm/s when the speed is set as 100 mm/s. Therefore the real speed for coating should be calibrated by customer themselves by using a ruler and stop watch]
  • Accuracy: 10mm/sec
  • Controlled by 24 VDC motor.
Stroke Length

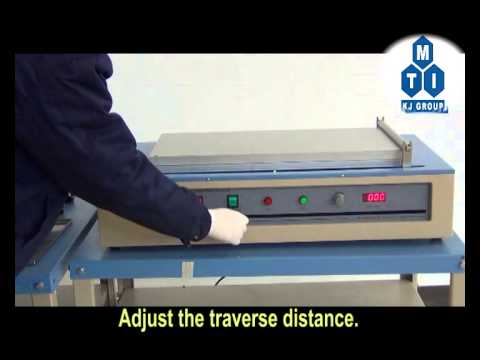

  • 10 - 530 mm adjustable by using Adjustable Position Switch
Heated Vacuum Bed
  • A heated vacuum bed is made of aluminum alloy with a micro-size hole

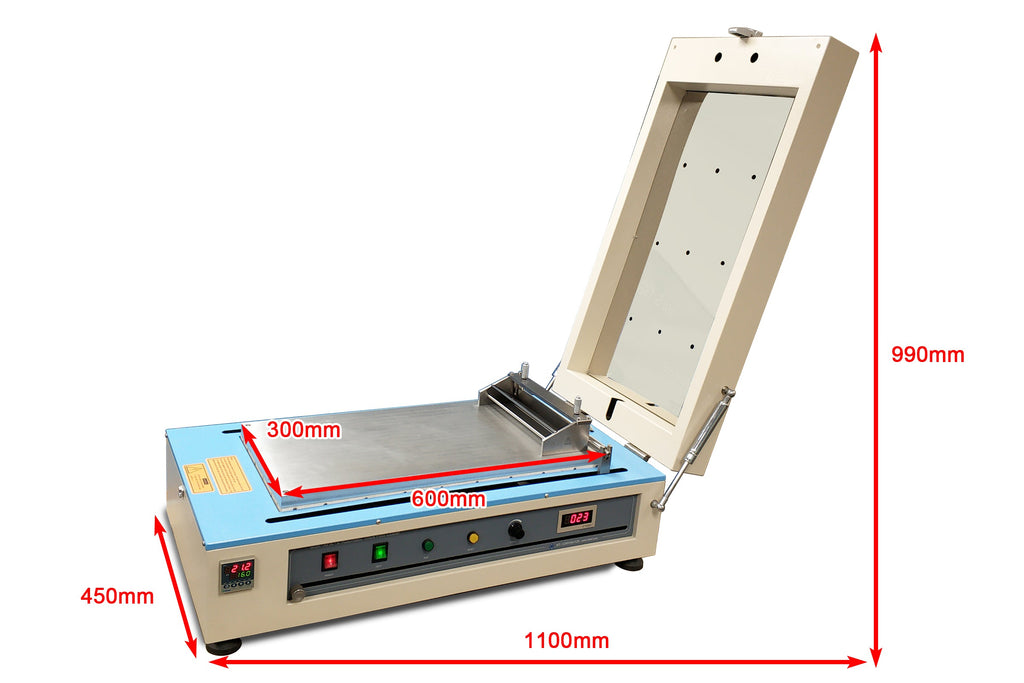

  • Vacuum Chuck Dimensions: 600mm(L) x 300mm(W)
  • Heating elements are built inside the vacuum bed for a uniform heating up to 100ºC Max.
  • Precision digital temperature controller with +/- 1ºC accuracy

Film Applicator

Pic. 1


 Pic. 2
  • One 250 mm width Micrometer Adjustable Film Applicator is included, with adjustable thickness from 0.01 mm - 5 mm (Pic. 1)
  • Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating
  • Note: Thinnest film can be achieved is > 10 micron
  • Optional hybrid film applicator of Blade and Slot die is available at the extra cost ( Click Pic 2 to see specs)
Vacuum Pump (Optional)

Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost




Application Notes
  • Pic.1 and 2 show coated cathode and anode for Li-Ion batteries. Please click here to see how to
  • It is recommended to operate the coater under a fume hood. (Click Pic.3 for detail.)
  • May need a vacuum mixer to remove air bubbles inside slurry to make uniform coatings (Click Pic.4 )
  • You may need a Slurry Viscosity Tester to make coatings consistent (Click Pic.5 for detail.)
Pic.1    Pic.2    Pic.3



Pic. 4    Pic.5

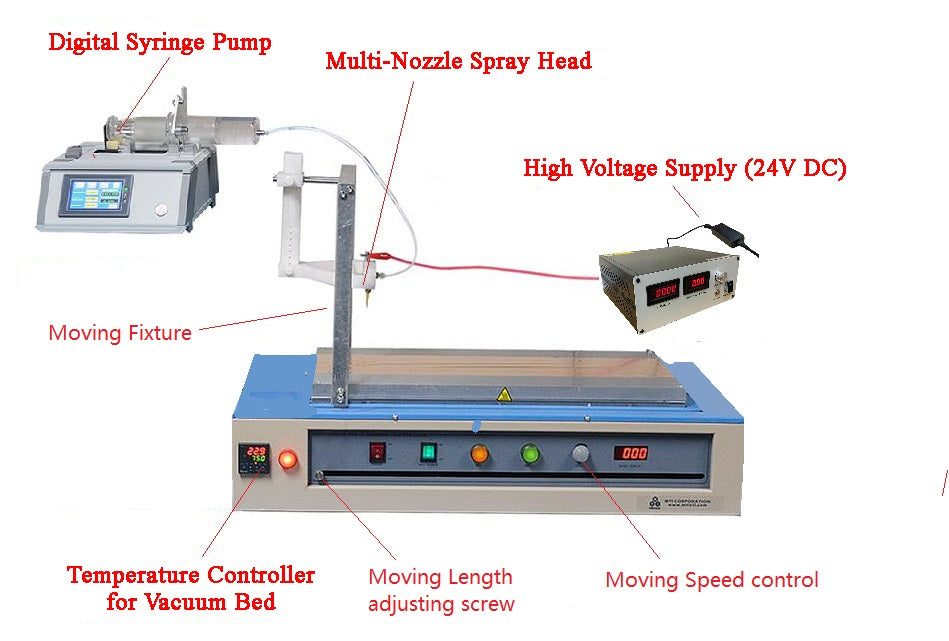

DIY ideas or options

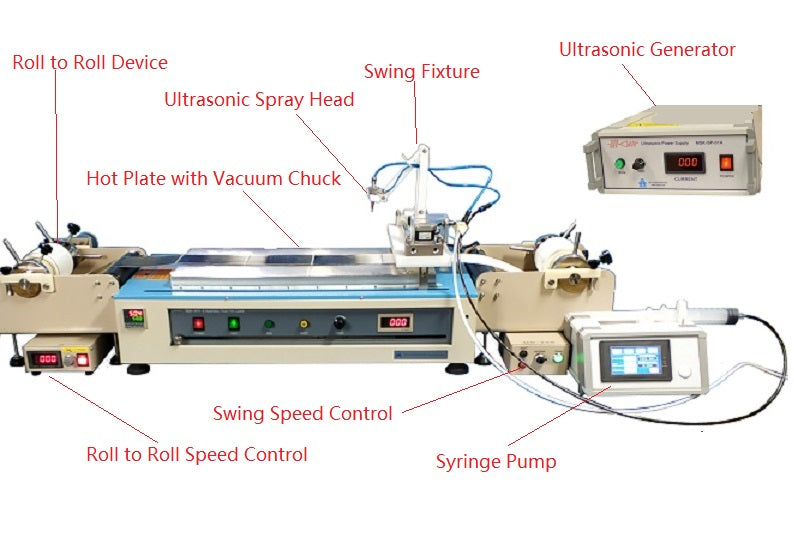

Ultrasonic Coater            Roll-to-Roll Ultrasonic Coater


,
Item Description Qty
1 Large Automatic Film Coater 1
2 Traverse Pusher 1
3 Micrometer Adjustable Film Applicator - 250 mm (film casting doctor blade) EQ-Se-KTQ-250 1
4 Power Cable (Note: 220V Power plug is not included. Please click here to order) 1
5 Waste Plate 1
6 120L/min Oilless Vacuum Pump  optional
