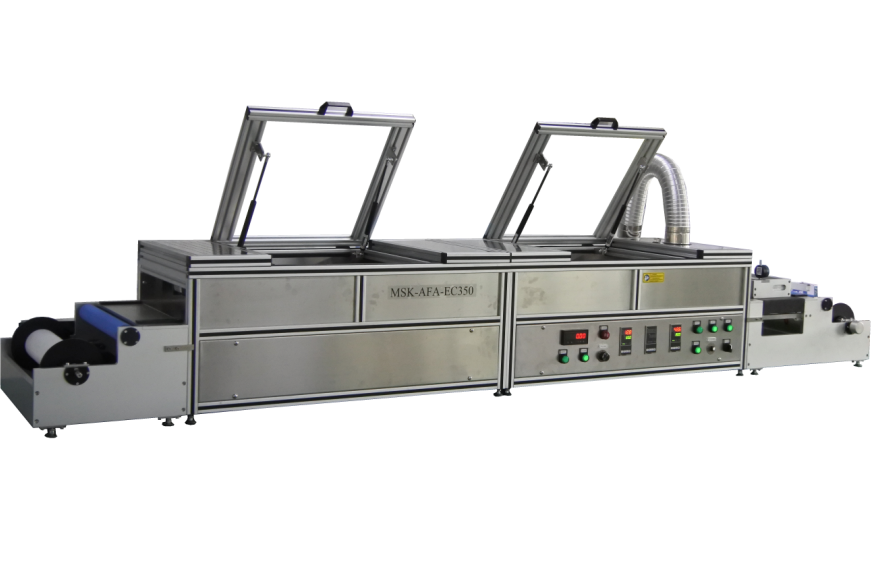

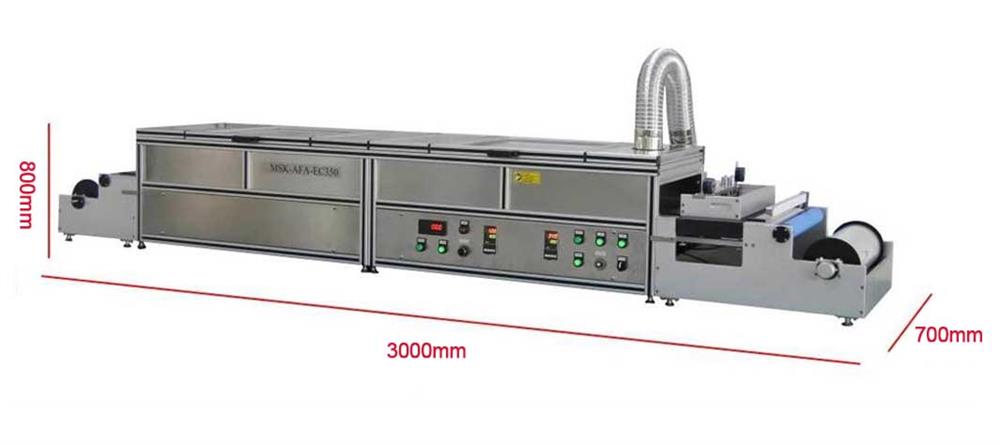

Lab Scale Roll-to-Roll Flat Tape Casting System (Max. W350 x L 4000 mm) w/ Drying Heater - MSK-AFA-EC350

Power

• 208 – 240VAC, 50/60Hz, Single phase
• 110VAC is available via a 3000W transformer.
• Max. Power Consumption: 2.2 KW

Coating Method & Precision

• Tape casting is done with a doctor blade ( Film applicator) on a flat plate: Substrate reeling out -> blade coating-> Bottom heating -convection drying-> and final electrode winding
• Coating Thickness Precision: 10 microns.
• Optional: slot-die is available at an extra cost. (Pic. 1 and Pic.2)

Pic. 1         Pic. 2

Coating Width

• Max. Coating Width: 350mm
• Max. substrate width: 400mm

Coating Speed

• 0~800mm / minute

Coating Thickness

• 0~ 5mm adjustable

• Depending on the coating and substrate thickness. (Typically, you can get 4 meters of an electrode coated with 10um thick foil, 100um thick coating per run)

Rolling Diameter

• 160mm Max. (roller O.D is 63.5mm)

• The bottom bed is made of Aluminium alloy, which enables up to 100°C Max via a digital temperature controller with +/-1ºC accuracy.
• The Heating bed dimension: 2000mm Length x 400 mm Width
• The top cover has transparent glass with a venting fan

Compliance

• CE Certified
• NRTL (UL61010) or CSA certification is available upon request at extra cost.

• Peristaltic Slurry Pump（Pic.1) can be used for delivery of slurry delivery during the coating process.
• One set of ultrasonic spray heads can be added to the coater to achieve spraying coating (Pic. 2)
• The R2R coater may connect with the heated rolling machine with a pressure display (Pic. 3)
• Pic 1       Pic2     Pic 3
