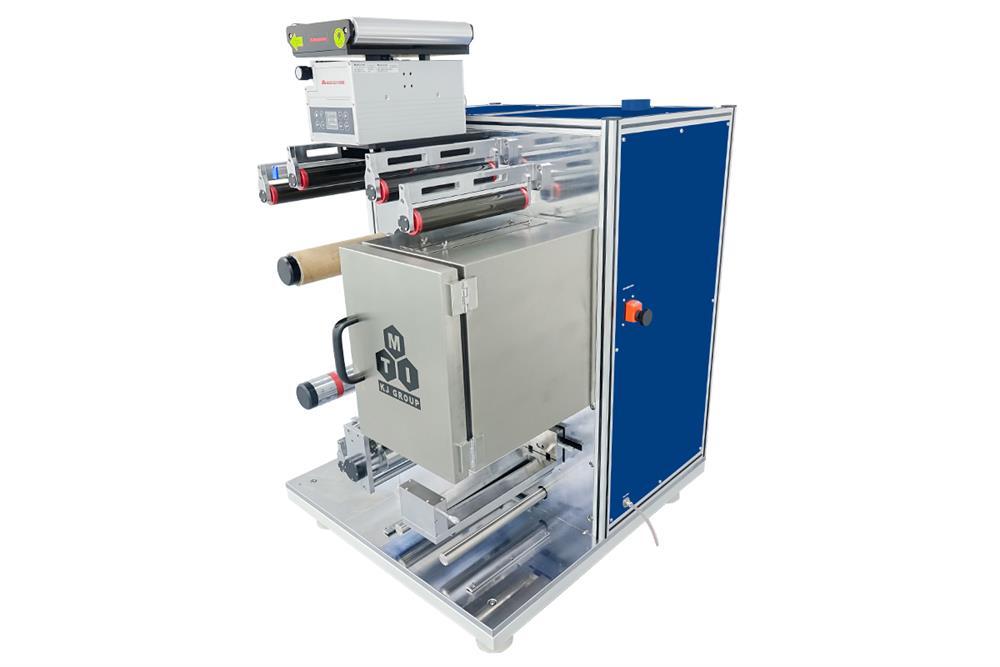

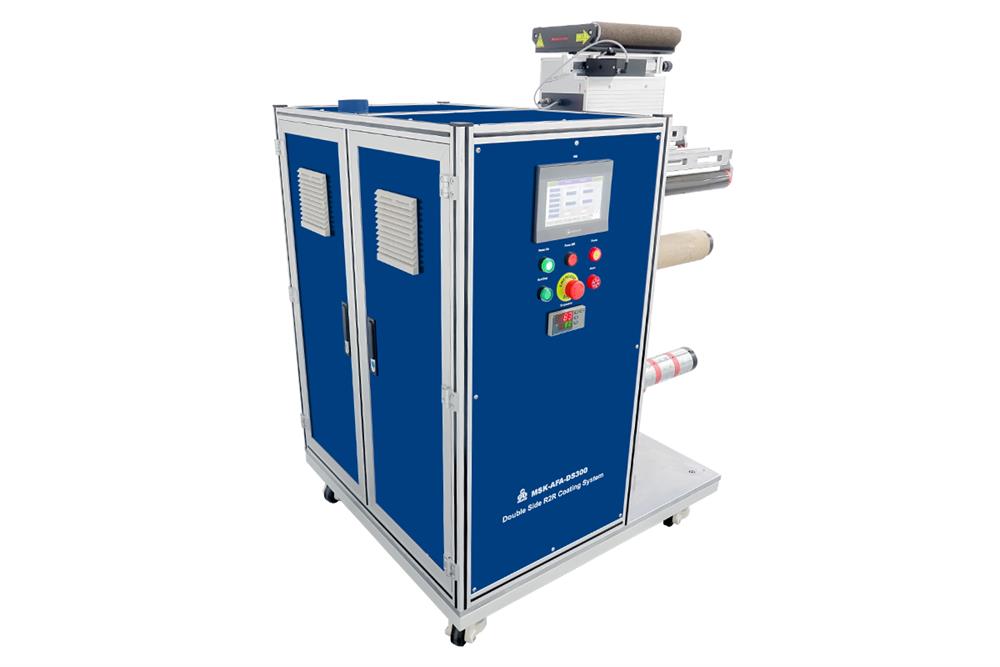

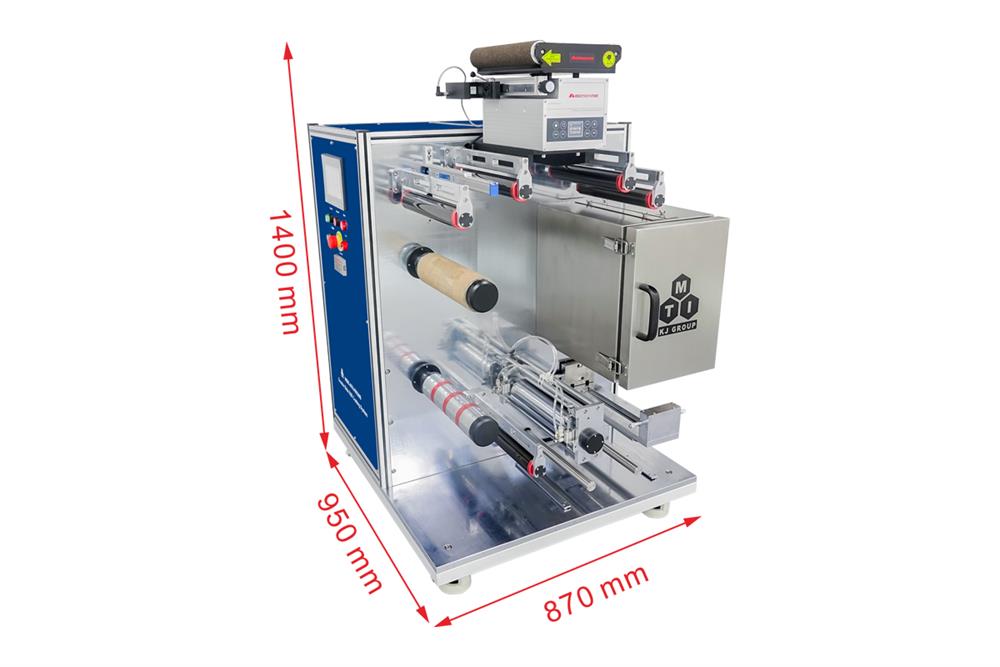

Vertical Double Side R2R Coater w/ Max. 260mm Width For Battery Electrodes-MSK-AFA-DS300-LD

Working Power

• AC 208 - 240 V ( 110VAC available via a 3KW transformer )
• 50/60Hz,Single Phase
• 2 KW (15A Air breaker required)

Coating Method

• Blade Coating technique
• Coating Thickness Precision: +/- 0.003 mm
• The coating thickness precision depends on the coating material.
•



Roller Width

• 300 mm (the maximum width for substrate is 280 mm)

Max. Coating Width

• 260 mm (leave certain empty space on each side for tab)

Max. Coating Speed

• 800 mm/min

Coating Thickness Range

• 3 - 50 um
• For most kinds of battery electrode coating materials
• It depends on the wire rod, the physical property of the coating material, substrates, and coating speed
• The automatic alignment device is included to keep the coating straight with +/- 0.2 mm

Coating Thickness Precision

• ± 5 µm
• The coating thickness precision also depends on the coating materials (Viscosity, Solid contents, surface tension, etc)

Wire rod dimensions

• Diameter: 10 mm;
• Length: 400 mm;
• Wet coating thickness references: 6 um, 8 um, 10 um, 12 um, 15 um, 20 um, 25 um, 30 um, 40 um, 50 um, 60 um, 70 um, 80 um, 100 um, 120 um, 150 um, 200 um

Drying

• IR; Infrared heating
• Adjustable Venting: Maximum 403 m^3/h
• Maximum heating temperature: 120°C
• Temperature Accuracy: ± 1°C
• Heating Zone Length: 425 mm

Reeling/Unreeling Shaft

• 75 mm (I.D.)

Max. Reeling/Unreeling Diameter

• 300 mm (O.D.)

Max. Coating Length

• Depending on the coating and substrate thickness.
• Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run
• Optional: You may need a slurry pump to feed slurry into the dipping container and to make a long coating

(optional: click the picture to order)

Exhaust Port Size

• 127mm O.D.

Compressed Air

0.5-0.8 MPa (Air compressor not included. Please click here to order)
Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.


 pic1           pic2

Compliance
