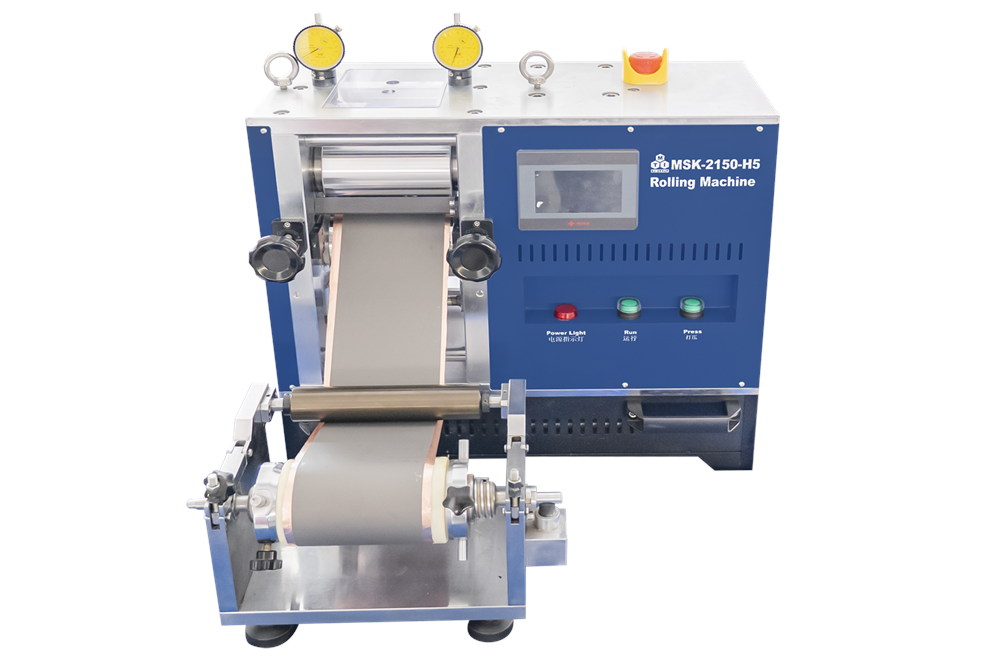

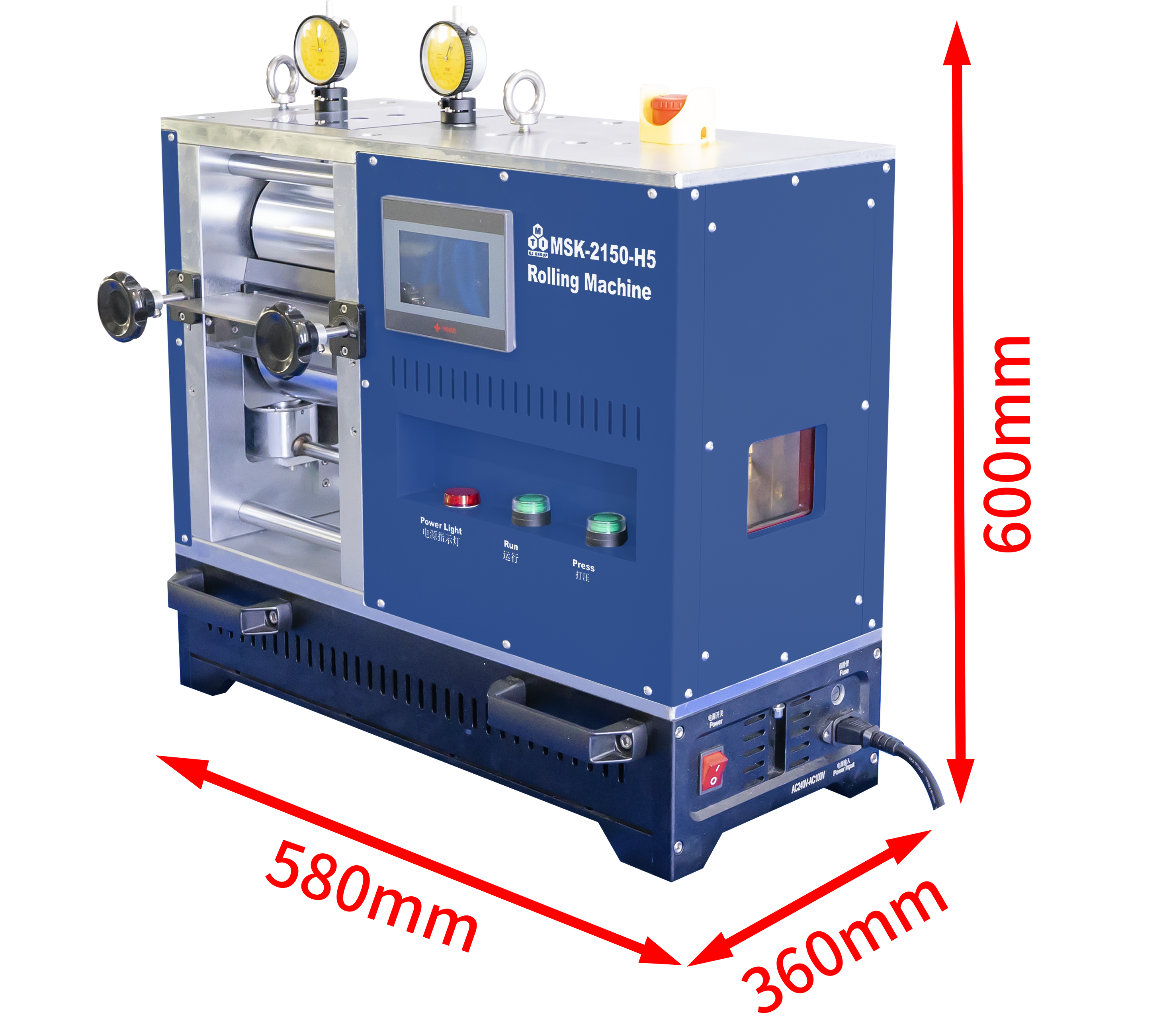

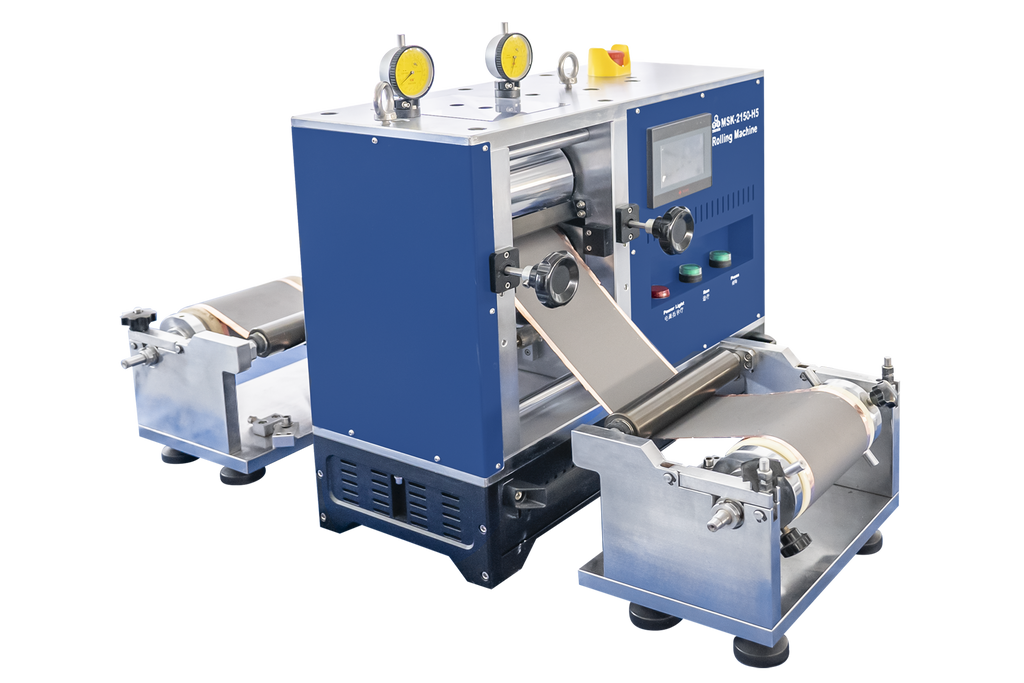

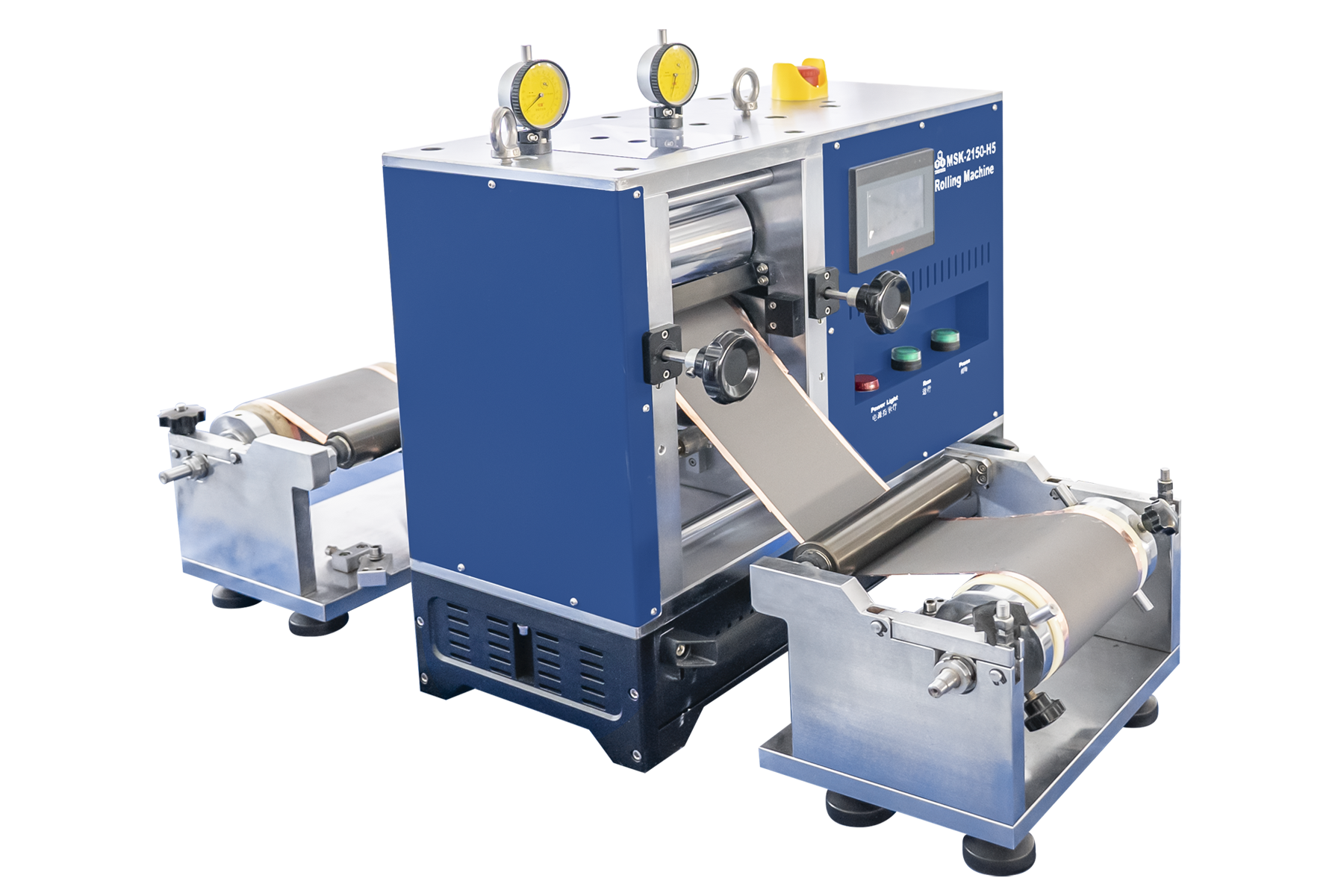

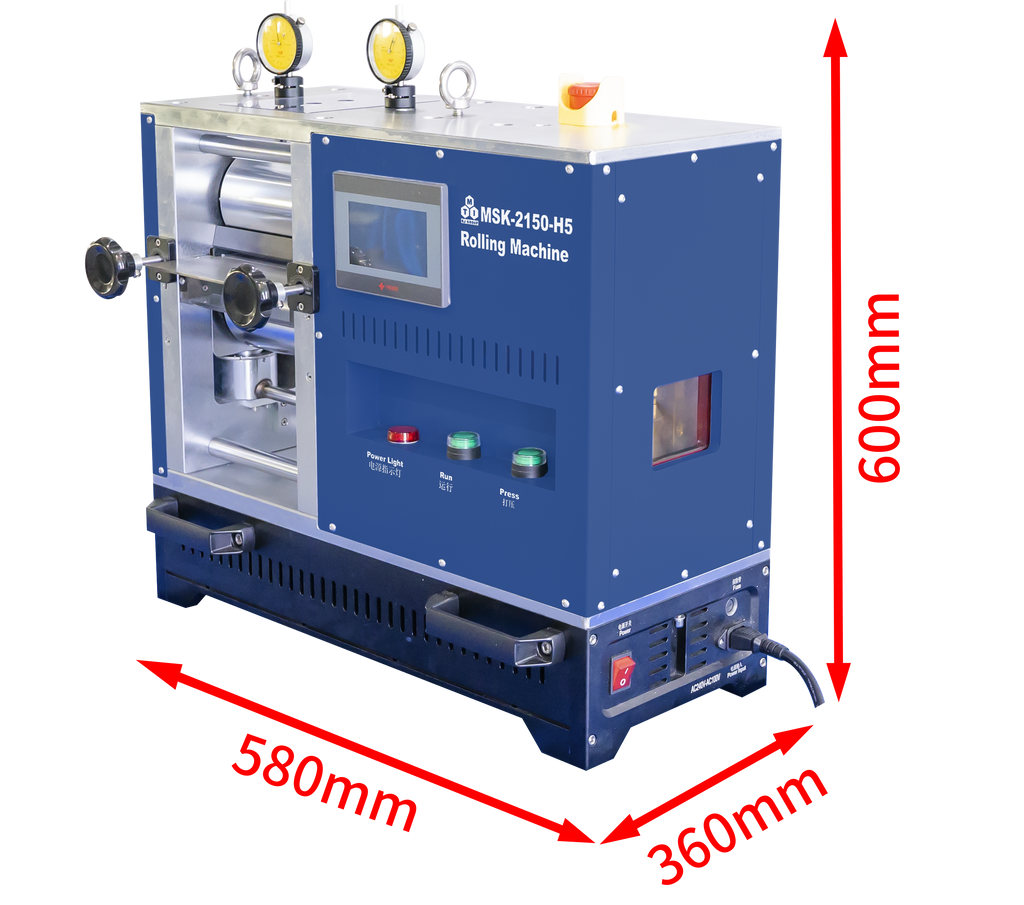

| Features |
- Loading force up to 5T adjustable by touchscreen control
- Rolling speed adjustable in the range of 0.1-2.5 m/min
- Roller size: 150mm width x 100 mm Dia, made of hardened steel (RC: 58 - 60) with Cr electroplated coating. (roller width of 200 mm can be customized upon request)
- Dual micrometer for accurate thickness adjustment in the range 0 - 2.5 mm
- Infinite switch for various tension control 0~20N
- Tension adjustable torque motor for active reeling
|
Touchscreen Controller
|
- Rolling speed, pressure, and real pressure display are sho2n on main page.
- Rolling direction can be changed in forward or reverse.
- Rolling start or stop button for easy operation
- Alarm alert and details will be displayed
|
|
Working Voltage
|
AC110-220V, single phase, 50/60Hz, 1000W |
| Rolling Accuracy |
± 1.5 μm |
| Rolling Motor |
750W reduced AC motor with frequency speed controller
Note: (This calendar machine can be used in a glove box with Ar gas )
|
| Surface Hardness of Rollers |
- HRC 58 - 60
- Never roll materials with hardness > 50 HRC
- Sample width max 140 mm (if customized roller width is 200 mm, then the maximum sample width could be 180 mm)
- Note: The benchtop rolling press is not suitable for calendaring thick metals. For applications with such needs, please consult with MTI engineers
|
| Digital Micrometer |
- Range: 0 - 10mm
- Resolution: 0.01mm (or 0.001in)
- Unit interchangeable (mm / in)
- Zeroing
- Power supply: CR2032 3V Li-ion battery
- Operating temperature: 0 ~ 40°C
|
|

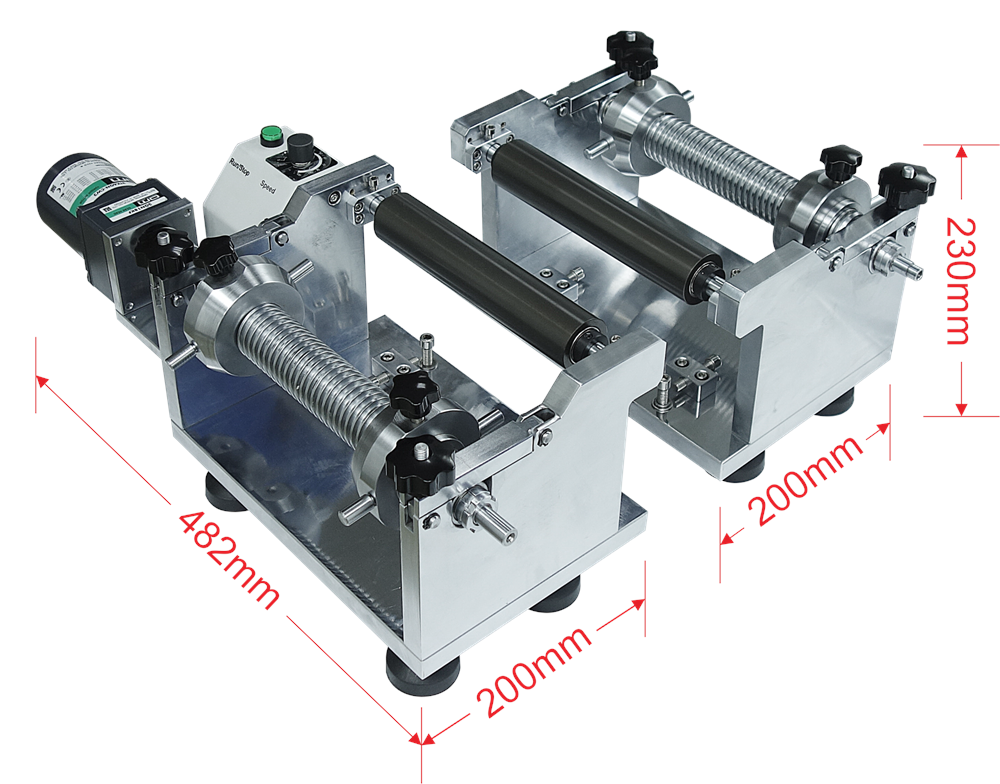

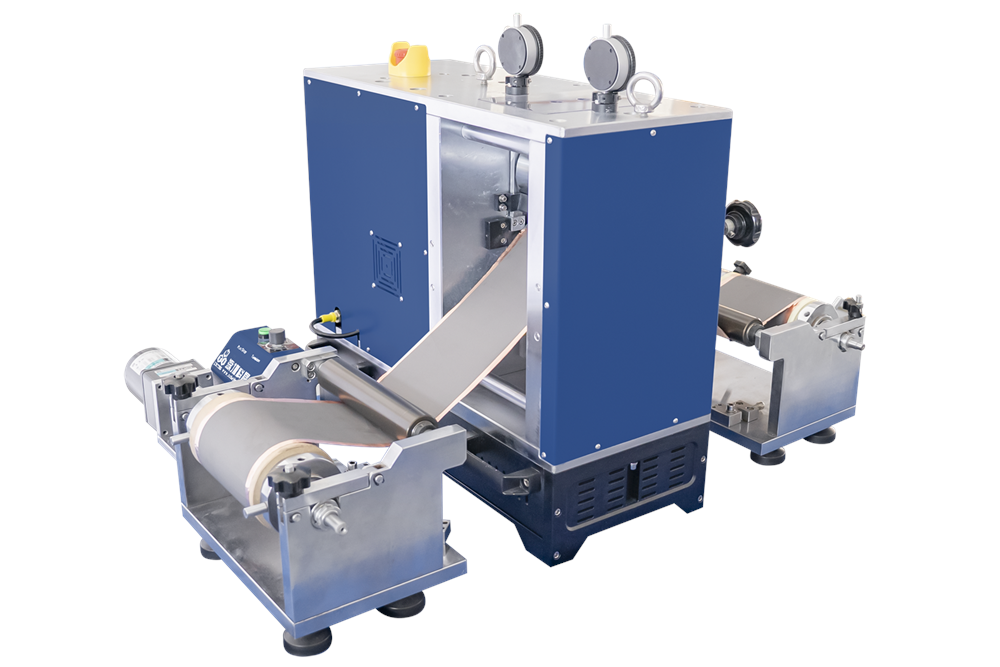

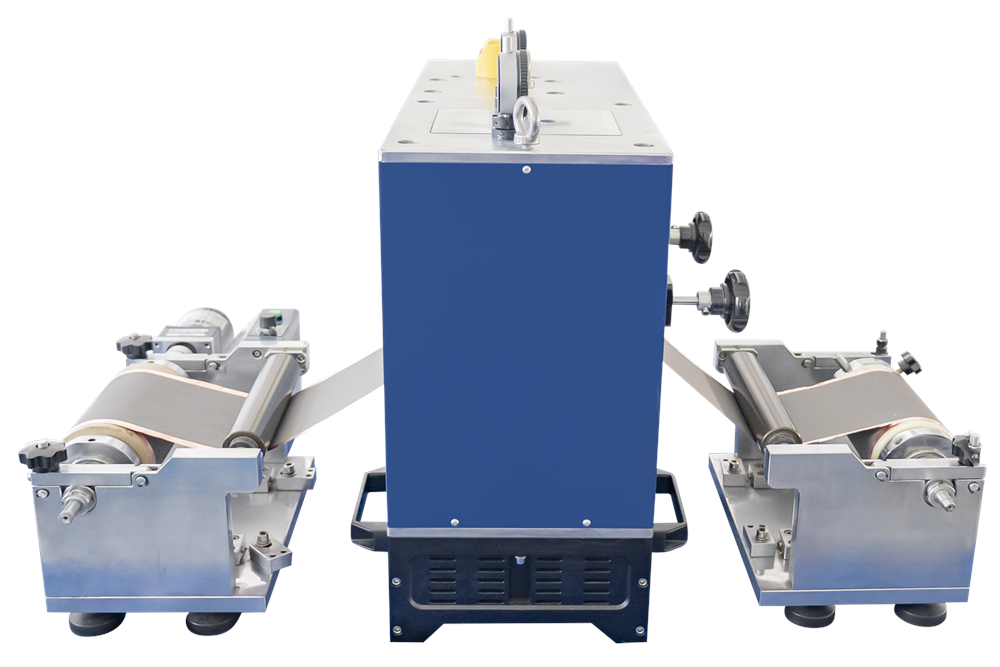

Roll to Roll System
|
- 208 - 240 VAC, 50/60Hz, Single Phase, 100W
- 220V AC Power plug is not included (Please click here to order the plug)
- You may use 200W transformer to operate at 110V
- The brushless motor ensures no sparking in the Ar gas environment
- The film traverse speed is dependent on its calendering speed, normally <1.5 meters/min
- Cardboard on the rollers.: 3 inches
- Maximum diameter of the roller diameter is up to 200 mm.
|
|
Compliance
|
- CE Certified
- NRTL or CSA certification is available upon request at an extra cost
|
|
Application Notes
|
The MSK-2150-H5-R2R are specially designed for electrode calendaring of battery R&D in terms of its advantages as affordable, compact, and precise. Please strictly follow the instructions to operate:
- Must use acetone to clean rollers' surface after each use
- If the machine will be idle for a long period of time, please apply anti-rust lubricant on the rollers
- The minimum thickness of the rolled sheet should depend on the physical property of the material. If you have other materials to process. Please mail us your samples and we are willing to do the test for you.
|
|
Warnings
|
- Never roll materials with hardness > 50HRC
- Multi-step thickness calendering needed: while calendering the sample sheet, make each calendering decrement of 0.02mm comparing with sheet original thickness
- Never calendering decrement over 0.02mm comparing with original sheet thickness each calendering
- Must clean the roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
|
