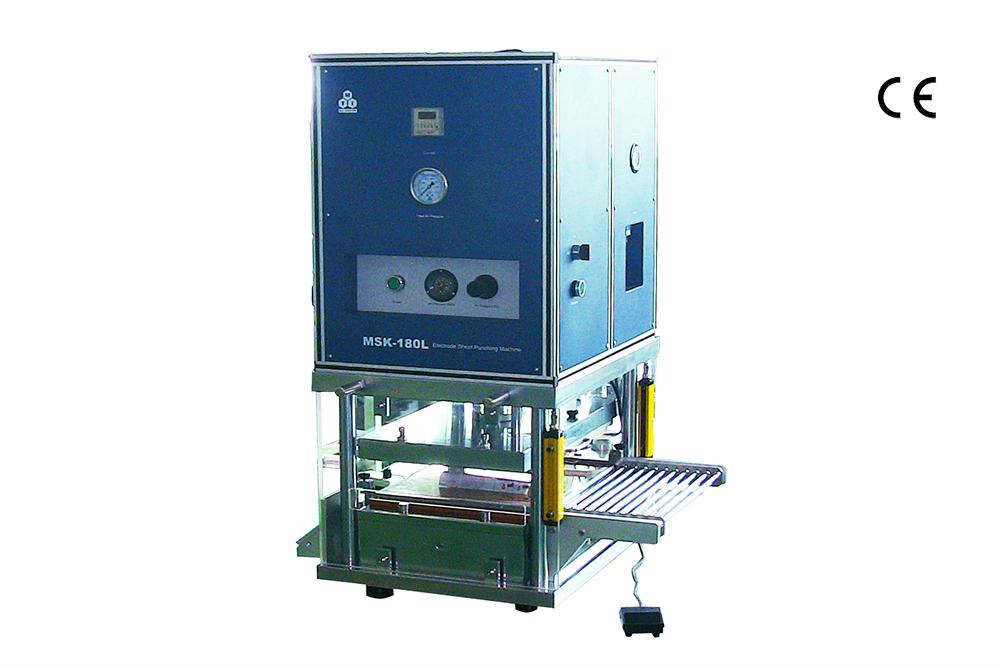

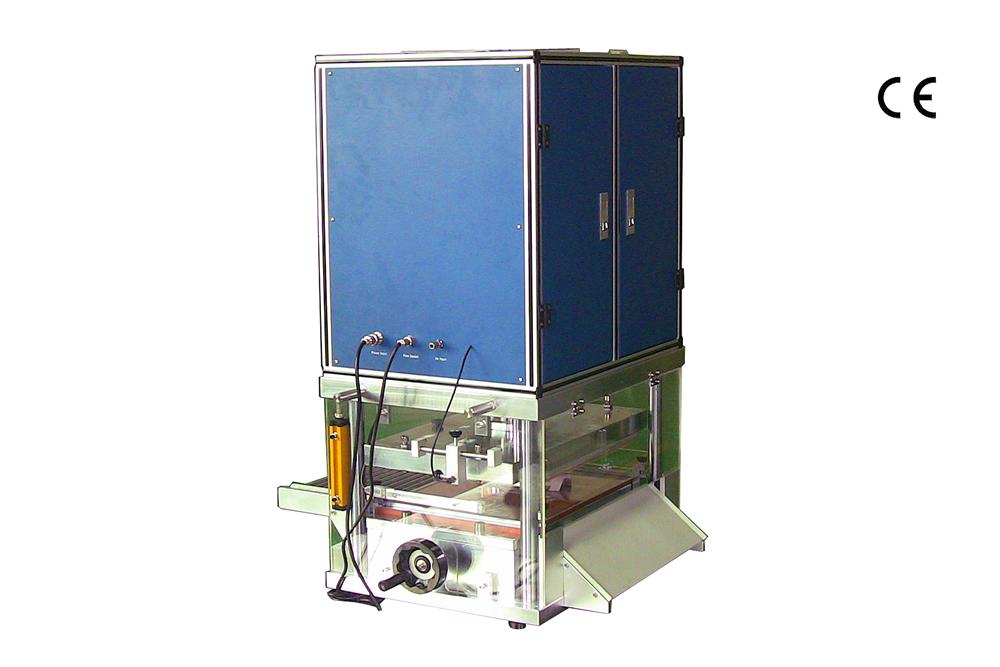

Semi-Automatic Die Cutter for pouch cell electrode sheet - MSK-180L
  • Semi-Automatic Die Cutter for pouch cell electrode sheet - MSK-180L
  • Semi-Automatic Die Cutter for pouch cell electrode sheet - MSK-180L
  • Semi-Automatic Die Cutter for pouch cell electrode sheet - MSK-180L
Semi-Automatic Die Cutter for pouch cell electrode sheet - MSK-180L

Semi-Automatic Die Cutter for pouch cell electrode sheet - MSK-180L

SKU: msk-180l

Price: RFQ

Specifications

 MSK-180L is a CE Certified semi-automatic electrode die cutter and a upgraded version of MSK-180. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs. The shape of the electrodes it produces is also handy for the latter processing steps of tab welding by MSK-800 and electrode stacking by MSK-111A . The IR sensor (Safety Curtain) built in the front of the machine ensures operation safety when electrode sheets are fed from the front. SPECIFICATIONS: Features High effective performance with 800~2000 pieces/hour High quality cutting without rough edge nor indentation Safety curtain protect operator at feeding inlet Working Voltage AC110V-220V, 50/60 Hz, single phase Max. Power Consumption 10W (DC24V adaptor is included) Air Pressure recommend 60-80 psi (Air compressor is not included. Please click here to order ) Safety Sensor Built in IR sensor (Safety Curtain) to protect against hand injury during electrode feeding Die Set (Customized) Available upon request with delivery time of 4 weeks (Please email us for details) Working Table Area 380mm(L) x 380mm(W) Cutting Accuracy ±0.1mm Air Cylinder 3 tons Max. pressure Tensile Cylinder 0.15 tons pressure Feeding Manually Production Yield 800 - 2000 pieces of electrodes per hour Product Dimensions 580mm(L) x 480mm(W) x 1120mm(H) Compliance CE Certified Warranty One Year limited warranty with lifetime support Operation Manual & Video Net Weight 140kg


Features
  • High effective performance with 800~2000 pieces/hour
  • High quality cutting without rough edge nor indentation

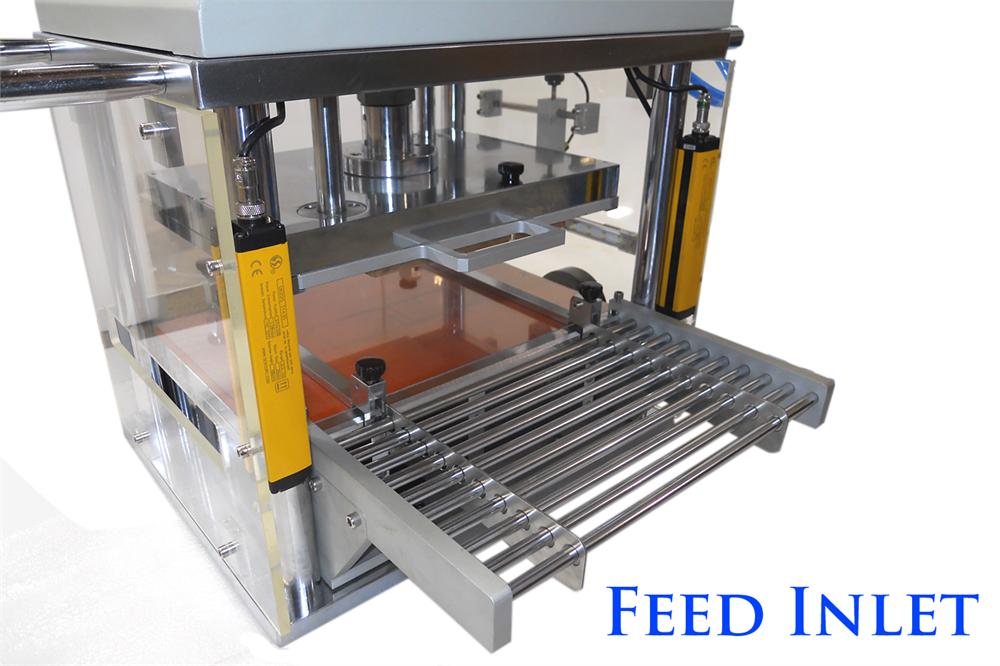

  • Safety curtain protect operator at feeding inlet
Working Voltage AC110V-220V, 50/60 Hz, single phase
Max. Power Consumption 10W (DC24V adaptor is included)
Air Pressure recommend 60-80 psi (Air compressor is not included. Please click here to order)
Safety Sensor
electrode die cutter

Built in IR sensor (Safety Curtain) to protect against hand injury during electrode feeding
Die Set (Customized) Available upon request with delivery time of 4 weeks (Please email us for details)
Working Table Area 380mm(L) x 380mm(W)
Cutting Accuracy ±0.1mm
Air Cylinder 3 tons Max. pressure
Tensile Cylinder 0.15 tons pressure
Feeding Manually
Production Yield 800 - 2000 pieces of electrodes per hour
Product Dimensions 580mm(L) x 480mm(W) x 1120mm(H)
Compliance CE Certified
Warranty One Year limited warranty with lifetime support
Operation Manual & Video
Net Weight 140kg
