Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films with Optional Die - MSK-120 / MSK-120L
  • Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films with Optional Die - MSK-120 / MSK-120L
  • Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films with Optional Die - MSK-120 / MSK-120L
  • Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films with Optional Die - MSK-120 / MSK-120L
  • Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films with Optional Die - MSK-120 / MSK-120L
  • Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films with Optional Die - MSK-120 / MSK-120L
Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films with Optional Die - MSK-120 / MSK-120L

Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films with Optional Die - MSK-120 / MSK-120L

SKU: msk-120-msk-120l

Price: RFQ

Specifications

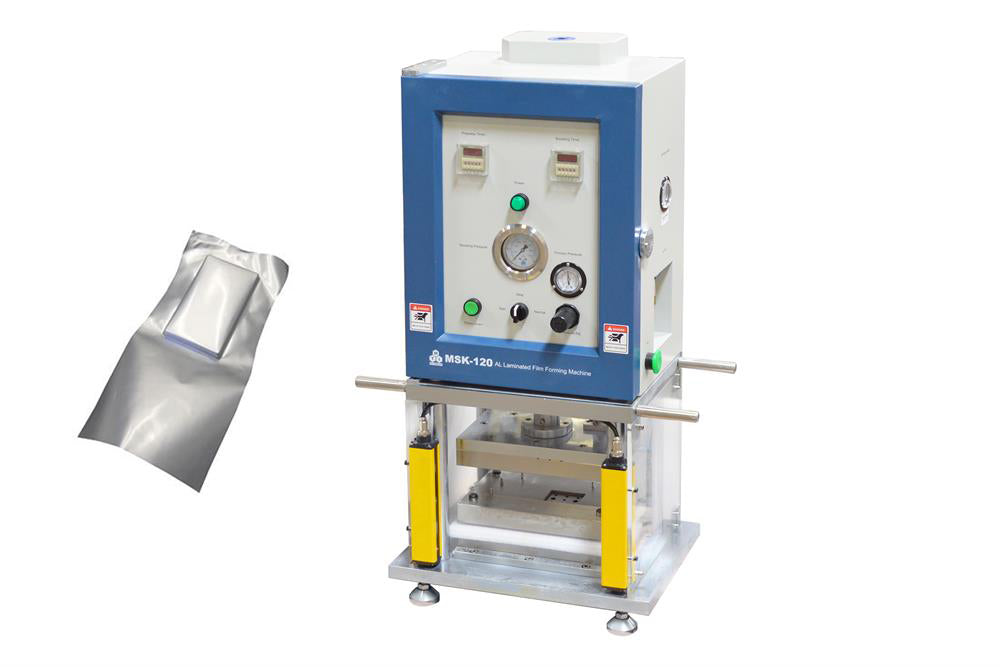

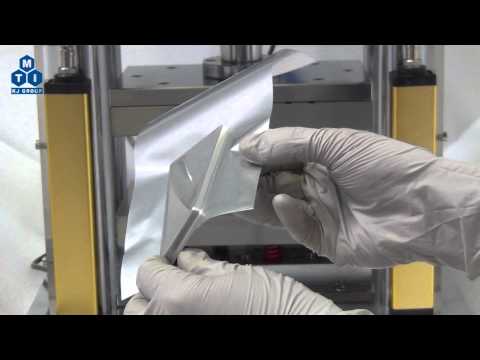

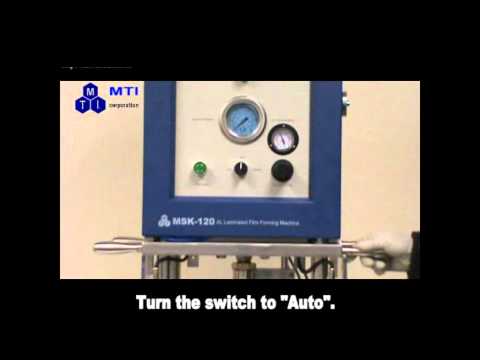

 MSK-120 is a CE Certified cup forming machine used in the production line of making pouch cell batteries with two optional size ranges ( small: Max. 150 L x 120 W x 6 H, mm) and ( larger: Max 350 Lx 280 W x 6 H, mm ). It is used to prepare polymer cases made of Aluminum Laminated Films . To ensure continuity and compatibility for customer research, adjustable depth (spacers are included in the standard package) to directly match the electrodes cut by the MSK-180 electrode cutting machine. SPECIFICATIONS: Model MSK-120 MSK-120L Standard Die Size Optional: The die of cylindrical type pouch case is available at an extra cost One standard die is included (NOTE: the standard die sizes have been updated from 85mm (L) x 60mm (W) x 3/4/5/6 mm(H) since July 2015.) 62mm (L) x 46mm (W) x 3/4/5/6 mm(H), which perfectly fits the electrodes cut by MSK-180SP and MSK-180-N The maximum sizes of cylindrical-type pouch cell is diameter of 18 mm and length of 150mm. One standard die is included 200mm (L) x 150mm (W) x 3/4/5/6 mm (H) Customized Die Size The customized die is available upon request Max die size: L75 x W90 mm (dual holes, fold, airbag) Max die size: L80 x W90 mm (single hole, fold, airbag) Max die size: L150 x W90 mm (single hole, four-side sealing, airbag) Max die size: L150 x W120 mm (single hole, four-side sealing, no airbag) The customized die is available upon request Max die size: L135 x W140 mm (dual holes, fold, airbag) Max die size: L150 x W140 mm (single hole, fold, airbag) Max die size: L270 x W140 mm (single hole, four-side sealing, airbag) Max die size: L270 x W170 mm (single hole, four-side sealing, no airbag) Air Pressure Requirement 0.4 - 0.6 MPa (Air Compressor is not included .) please click here to order or order from your local store. ≥0.6MPa Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator. pic1 pic2 Max. The distance between Top and Bottom Die 75mm N/A Working Voltage INPUT: 24VDC (Since 03/31/2017) UL/CSA listed 100 or 220VAC IN - 24VDC OUT power adapter is included. Max. Power Consumption 200 W Max. Cup Depth to Punch < 6.0 mm Max. Punching Pressure 5 metric tons Stroke Frequency < 8 seconds per trial AL Laminated Film The thickness of Aluminum Laminated Film : 0.11 - 0.20 mm acceptable Please click the picture below to order Aluminum Laminated Film Optional & Upgrade Roll to Roll automatic processing device is available upon request Accessories All necessary accessories are included for immediate use (see the standard package list at the bottom) Compliance CE certified NRTL or CSA certification is available per the customer's request at the extra cost Standard Package NO. Item Name Qty Picture 1 MSK-120 pouch cell case/cup forming machine 1 unit 2 Control pedal w/ cable 1 set click to enlarge 3 Ø8mm Polyurethane tube w/ connector 1 set 4 Power cord 1 set 5 Allen hex wrench M10, M6, M3 1 set 6 Cup depth control gauges - 3mm 4 pcs 7 Cup depth control gauges - 4mm 4 pcs 8 Cup depth control gauges - 5mm 4 pcs 9 Cup depth control gauges - 6mm 4 pcs

Model MSK-120

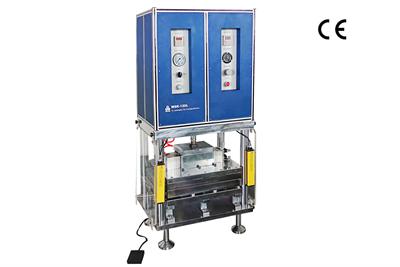

 MSK-120L
Standard Die Size
Optional:
The die of cylindrical type pouch case is available at an extra cost
  		One standard die is included
(NOTE: the standard die sizes have been updated from 85mm (L) x 60mm (W) x 3/4/5/6 mm(H) since July 2015.)
62mm (L) x 46mm (W) x 3/4/5/6 mm(H), which perfectly fits the electrodes cut by MSK-180SP and MSK-180-N

The maximum sizes of cylindrical-type pouch cell is diameter of 18 mm and length of 150mm. 		 One standard die is included
200mm (L) x 150mm (W) x 3/4/5/6 mm (H)
Customized Die Size The customized die is available upon request
Max die size: L75 x W90 mm (dual holes, fold, airbag)
Max die size: L80 x W90 mm (single hole, fold, airbag)
Max die size: L150 x W90 mm (single hole, four-side sealing, airbag)
Max die size: L150 x W120 mm (single hole, four-side sealing, no airbag)
The customized die is available upon request
Max die size: L135 x W140 mm (dual holes, fold, airbag)
Max die size: L150 x W140 mm (single hole, fold, airbag)
Max die size: L270 x W140 mm (single hole, four-side sealing, airbag)
Max die size: L270 x W170 mm (single hole, four-side sealing, no airbag)
Air Pressure Requirement 0.4 - 0.6 MPa (Air Compressor is not included.)
please click here to order or order from your local store.		 ≥0.6MPa
Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
 pic1  pic2

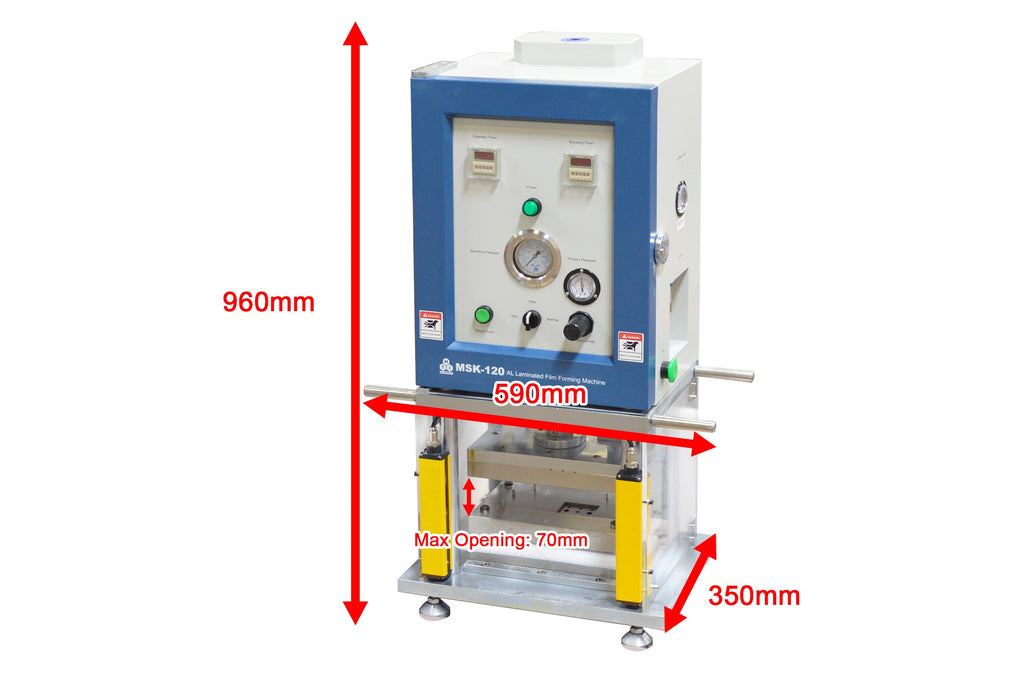

Max. The distance between Top and Bottom Die 75mm N/A
Working Voltage
 INPUT: 24VDC (Since 03/31/2017)
UL/CSA listed 100 or 220VAC IN - 24VDC OUT power adapter is included.
Max. Power Consumption
  • 200 W
Max. Cup Depth to Punch
  • < 6.0 mm
Max. Punching Pressure
  • 5 metric tons
Stroke Frequency
  • < 8 seconds per trial
AL Laminated Film
Optional & Upgrade
  • Roll to Roll automatic processing device is available upon request
Accessories
  • All necessary accessories are included for immediate use
(see the standard package list at the bottom)
Compliance
  • CE certified
  • NRTL or CSA certification is available per the customer's request at the extra cost
,
NO. Item Name Qty Picture
1 MSK-120 pouch cell case/cup forming machine 1 unit
2 Control pedal w/ cable 1 set
3 Ø8mm Polyurethane tube w/ connector 1 set
4 Power cord 1 set
5 Allen hex wrench M10, M6, M3 1 set
6 Cup depth control gauges - 3mm 4 pcs
7 Cup depth control gauges - 4mm 4 pcs
8 Cup depth control gauges - 5mm 4 pcs
9 Cup depth control gauges - 6mm 4 pcs
