Microwave Heater for MTI KSL-MW-XX Series Microwave Furnace
  • Microwave Heater for MTI KSL-MW-XX Series Microwave Furnace
  • Microwave Heater for MTI KSL-MW-XX Series Microwave Furnace
  • Microwave Heater for MTI KSL-MW-XX Series Microwave Furnace
  • Microwave Heater for MTI KSL-MW-XX Series Microwave Furnace
  • Microwave Heater for MTI KSL-MW-XX Series Microwave Furnace
  • Microwave Heater for MTI KSL-MW-XX Series Microwave Furnace
Microwave Heater for MTI KSL-MW-XX Series Microwave Furnace

Microwave Heater for MTI KSL-MW-XX Series Microwave Furnace

SKU: microwave-heater-for-ksl-mw-xx-series

Price: RFQ

Specifications

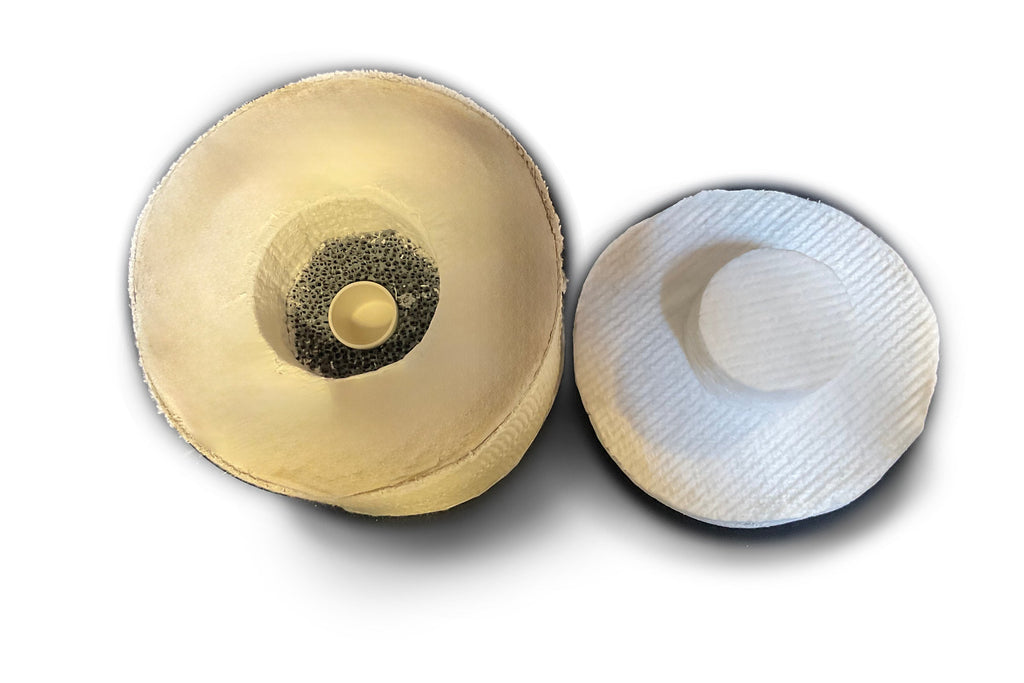

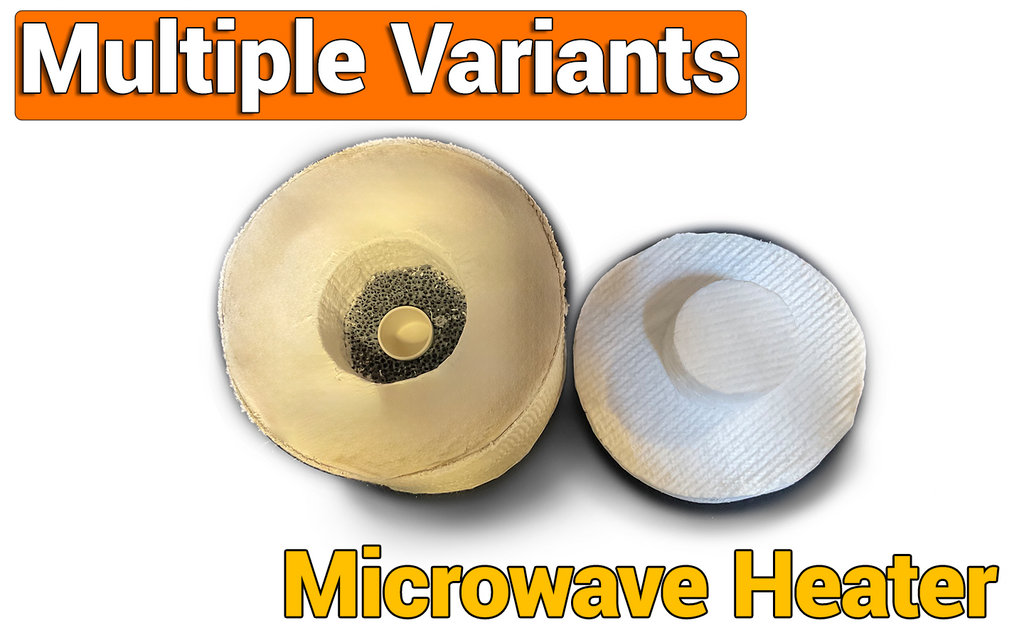

 This microwave heater is composed of high-temperature woven tape, polycrystalline mullite blanket fiber, and silicon carbide infrared foam. This microwave heater functions as the susceptor and heating element to enable the Max. working temperature to reach 1100 °C. The polycrystalline mullite blanket fiber serves as the thermal insulation layer to support the SiC foam structure, and the SiC foam is the susceptor infrared heater. The crucible is inserted at the center of the SiC foam to accommodate the thermal process. This heater is specially designed for use of the Economic Rapid Heating Microwave Heater: KSL-MW-XX Series . There are 4 types of microwave heater models with various dimensions and compatible working Hertz for different experimental purposes. Note: Crucible is not included in the purchase, please order compatible crucible independently. Specialization: Specialization: SKU MWHT75D MWHT40D MWHT10060 MWHT6045 MWHT35D Product Dimension Dia 180mm x 160mm H(with Lid) Dia 180mm x 100mm H(without Lid) Dia 220mm x 180mm H 240mm x 190mm x 150mm(L x W x H) 190mm x 190mm x 165mm (L x W x H) Dia 155mm x 155mm H Cavity for Crucible Dia 75mm x 50mm H Dia 40mm x 40mm H 100mm x 60mm x 82mm (L x W x H) 60mm x 45mm x 80mm (L x W x H) Dia 35mm x 35mm H Max. Working Temperature 1100 ºC 1400 ºC 1200 ºC 1400 ºC 1400 ºC Max. Input Power 1000W 2100W 2100W 1000W 2100W Application Standard model for KSL-1100-MW Standard model for KSL-1400-MW Optional model for KSL-1400-MW Optional model for KSL-1400-MW Optional model for KSL-1100-MW and KSL-1400-MW Inspect your delivery: Please check the package for any damages before accepting delivery. If damages are detected, retain all packing material, document the conditions with photos, and report the issue immediately to the carrier and MTI. No Warranty: Kindly notice that this item is a consumable part and is not covered under warranty. Please conduct a thorough inspection for any defects before use.

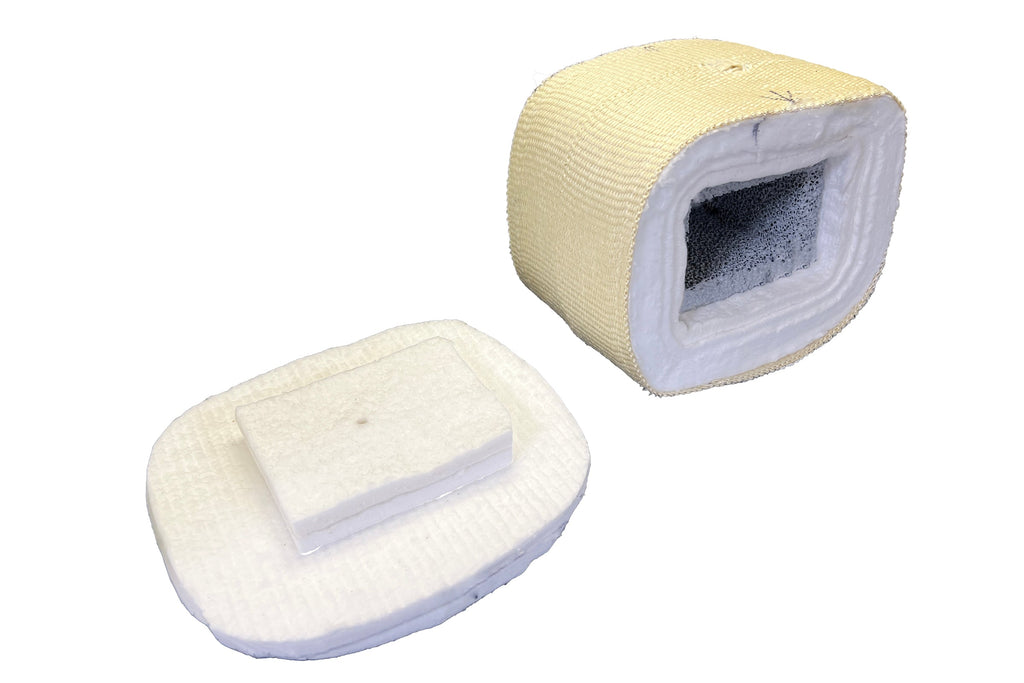

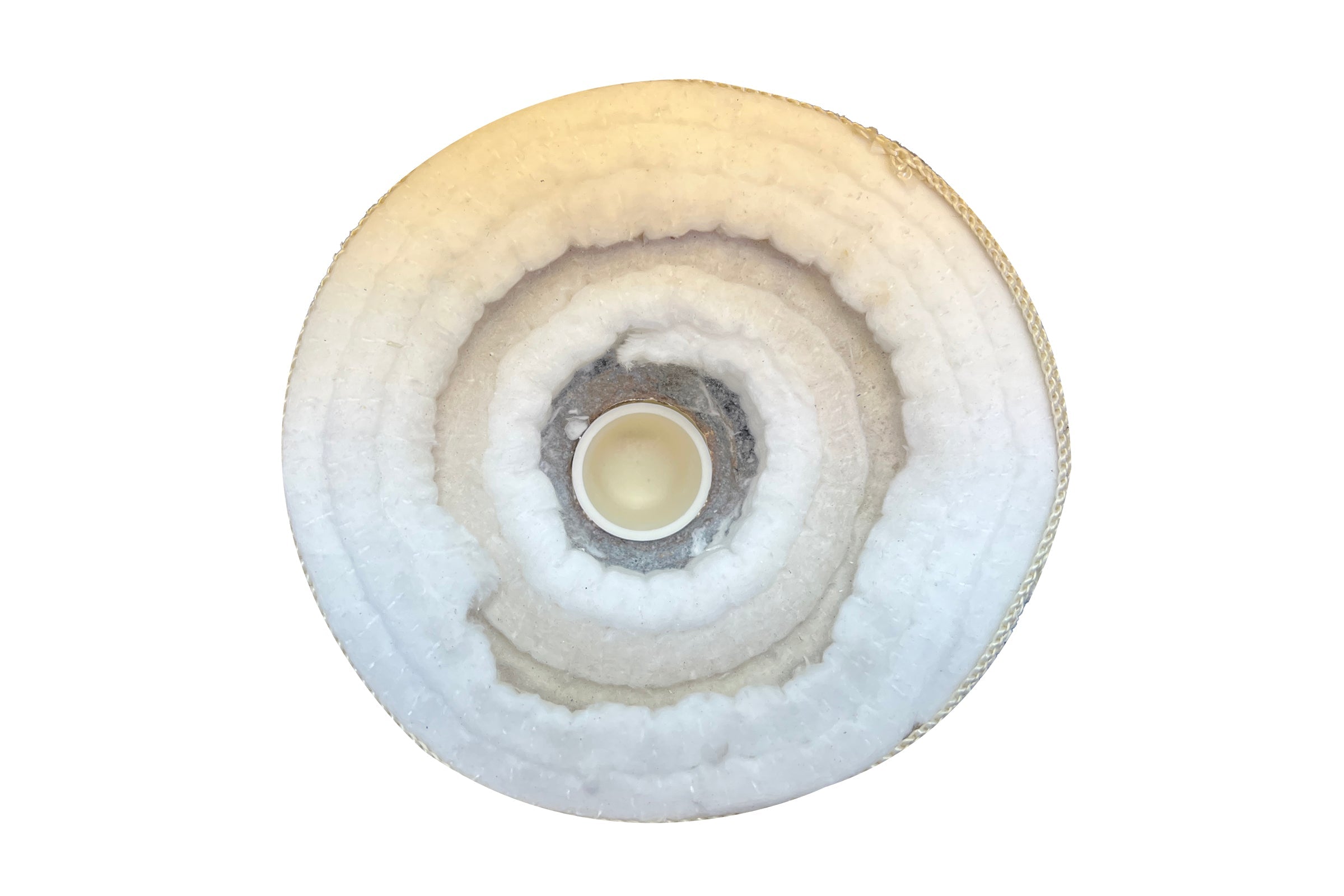

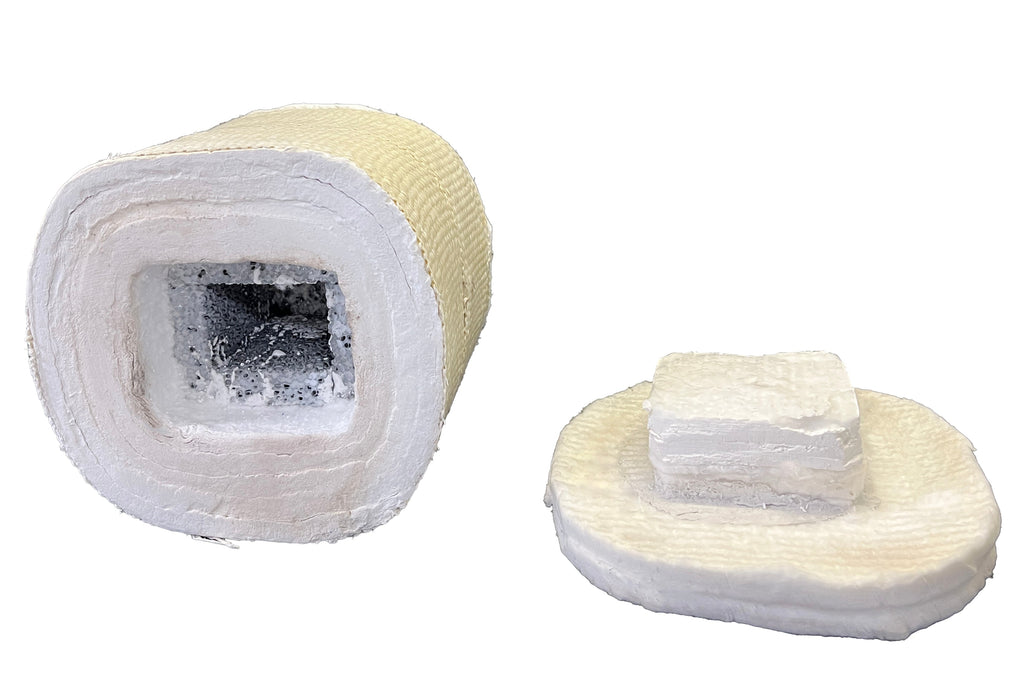

SKU  MWHT75D MWHT40D MWHT10060 MWHT6045 MWHT35D
Product Dimension

Dia 180mm x 160mm H(with Lid)

Dia 180mm x 100mm H(without Lid)

Dia 220mm x 180mm H

240mm x 190mm x 150mm(L x W x H)

190mm x 190mm x 165mm (L x W x H)

Dia 155mm x 155mm H
Cavity for Crucible Dia 75mm x 50mm H Dia 40mm x 40mm H 100mm x 60mm x 82mm (L x W x H) 60mm x 45mm x 80mm (L x W x H) Dia 35mm x 35mm H
Max. Working Temperature 1100 ºC 1400 ºC 1200 ºC 1400 ºC 1400 ºC
Max. Input Power 1000W 2100W 2100W 1000W 2100W
Application

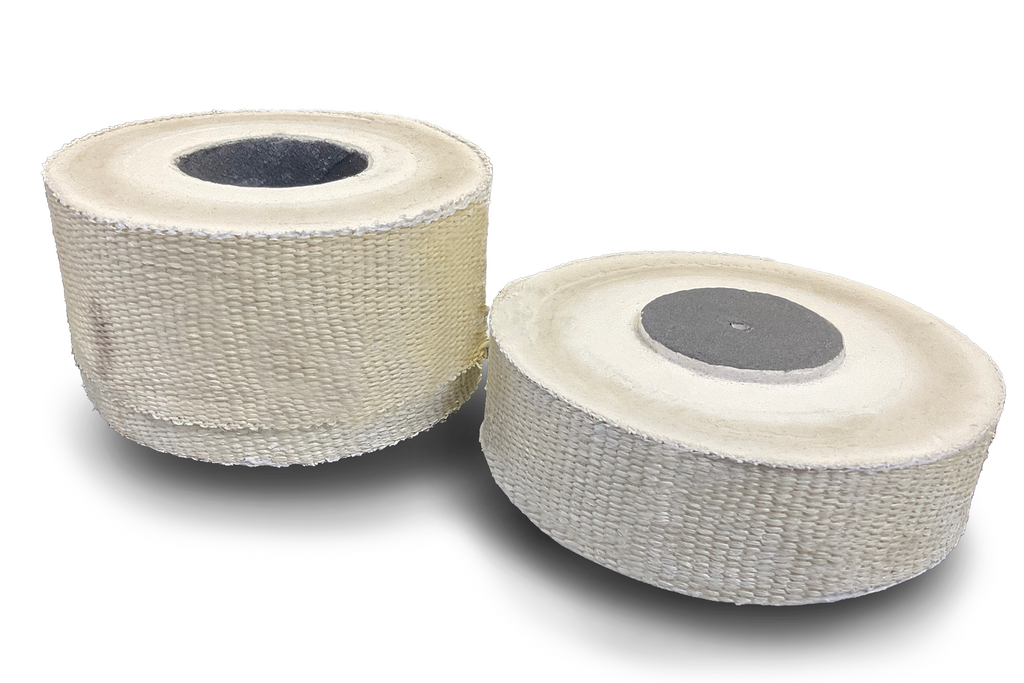

Standard model for KSL-1100-MW
Standard model for KSL-1400-MW
Optional model for KSL-1400-MW Optional model for KSL-1400-MW Optional model for KSL-1100-MW and KSL-1400-MW
