Max. 480C Band Heater and Programmable Temperature Controller without Die - EQ-HC-2
  • Max. 480C Band Heater and Programmable Temperature Controller without Die - EQ-HC-2
  • Max. 480C Band Heater and Programmable Temperature Controller without Die - EQ-HC-2
Max. 480C Band Heater and Programmable Temperature Controller without Die - EQ-HC-2

Max. 480C Band Heater and Programmable Temperature Controller without Die - EQ-HC-2

SKU: max-480c-band-heater-and-programmable-temperature-controller-without-die-eq-hc-2

Price: RFQ

Description

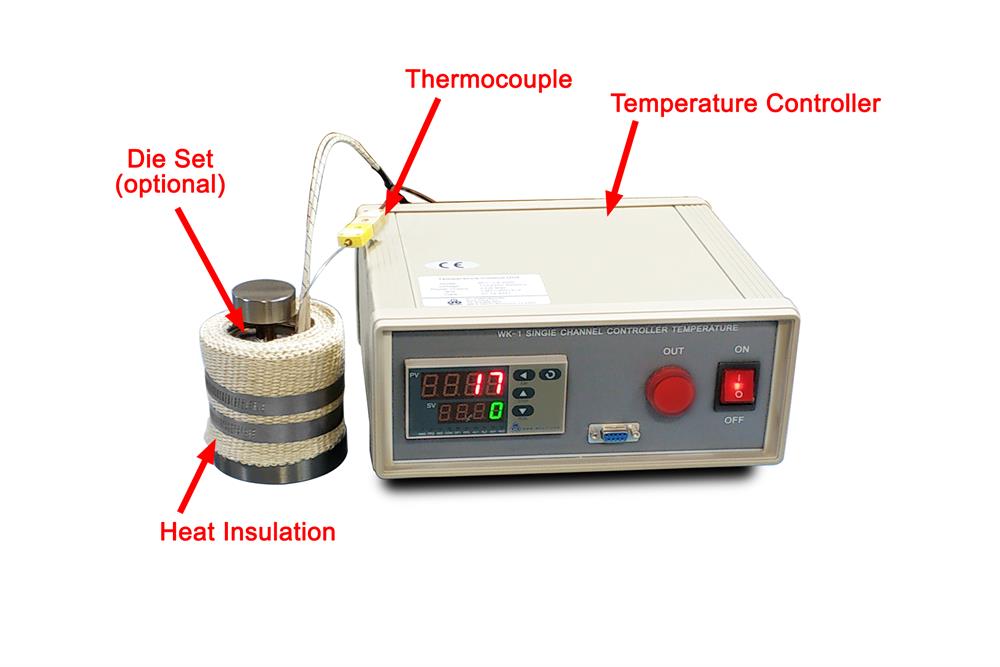

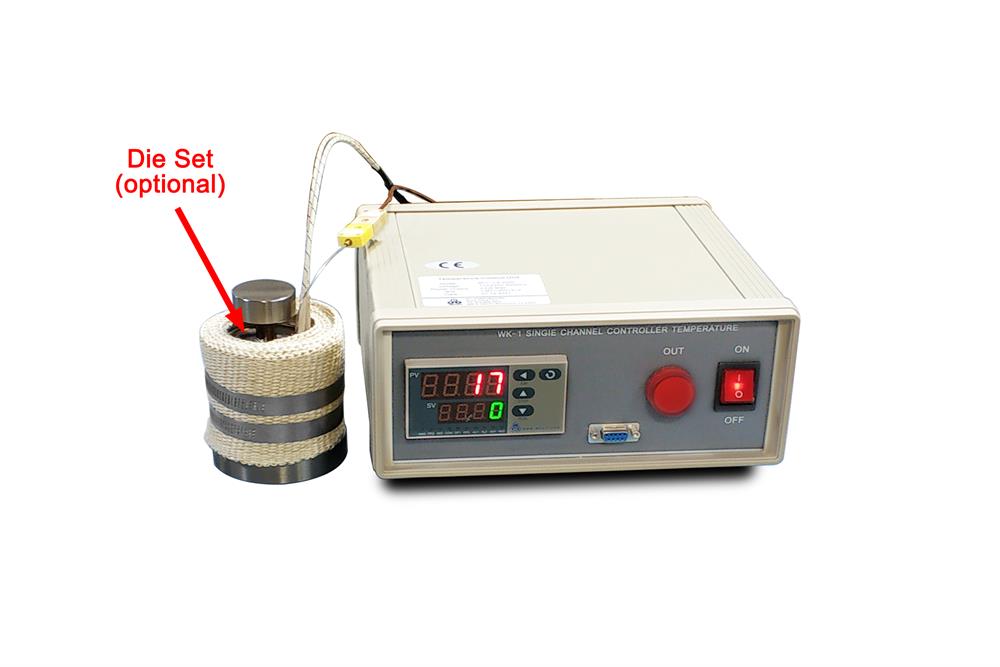

 EQ-HC-2 is designed for heating pressing dies with a Band Heater (480 ºC Max.) and a Temperature Controller. (Die is NOT included, please order accordingly) SPECIFICATIONS: Model EQ-HC-2-40 For use with 40 mm ID dies EQ-HC-2-50 For use with 50 mm ID dies EQ-HC-2-70 For use with 70 mm ID dies Band Heater Dimensions 38 mm ID × 50 mm H 50 mm ID × 50 mm H 70 mm ID × 38 mm H Voltage & Power 120VAC 50/60Hz, 350W max 220VAC available upon request 120VAC 50/60Hz, 500W max 220VAC available upon request 120V AC 50/60Hz, 500W max 220VAC available upon request Use with Dies (optional) For use with Dry Pellet Pressing Die at up to 200 °C: 10mm ID Pressing Die - EQ-Die-10D-B Specifically engineered to use with MTI's high temperature pressing dies : 400°C Max. Refractory Alloy Die, 1/2" I.D. Dry Pellet Pressing Die - EQ-Die-12DHT fig.1 fig.2 Also compatible wi/ below Pressing Dies (200°C max) 1/4" ID Pressing Die - EQ-Die-06D-B 1/2" ID Pressing Die - EQ-Die-12D-B 3/4" ID Pressing Die - EQ-Die-18D-B 20mm ID Pressing Die - EQ-Die-20D Compatible with the Dry Pressing Dies below at up to 200°C: 1" ID Pressing Die - EQ-Die-25D 28 mm ID Pressing Die - EQ-Die-28D-B 1.5" ID Pressing Die - EQ-Die-38D Working Temperature Band Heater: RT - 480 ºC The maximum working temperature depends on the both Band Heater and Pressing Die, whichever is lower. Higher temperature available upon request at extra cost, please contact MTI for details Temp. control method Programmable PID temperature controller with the type-K thermocouple. Application Notes More sizes of band heaters are available upon request. To avoid damaging the die core and sleeve, we strongly recommend you use the professional laboratory hydraulic pressers which ensure the most even pressing interface and uniform pressure force.

Model
  • EQ-HC-2-40
  • For use with 40 mm ID dies
  • EQ-HC-2-50
  • For use with 50 mm ID dies
  • EQ-HC-2-70
  • For use with 70 mm ID dies
Band Heater Dimensions
  • 38 mm ID × 50 mm H
  • 50 mm ID × 50 mm H
  • 70 mm ID × 38 mm H
Voltage & Power
  • 120VAC 50/60Hz, 350W max
  • 220VAC available upon request
  • 120VAC 50/60Hz, 500W max
  • 220VAC available upon request
  • 120VAC 50/60Hz, 500W max
  • 220VAC available upon request
Use with Dies
(optional)		 For use with Dry Pellet Pressing Die at up to 200 °C:
 Specifically engineered to use with MTI's high temperature pressing dies:
400°C Max. Refractory Alloy Die, 1/2" I.D. Dry Pellet Pressing Die - EQ-Die-12DHT
fig.1  fig.2

Also compatible wi/ below Pressing Dies (200°C max)
 Compatible with the Dry Pressing Dies below at up to 200°C:
Working Temperature
  • Band Heater: RT - 480 ºC
  • The maximum working temperature depends on the both Band Heater and Pressing Die, whichever is lower.
  • Higher temperature available upon request at extra cost, please contact MTI for details
Temp. control method
  • Programmable PID temperature controller with the type-K thermocouple.

Application Notes
  • More sizes of band heaters are available upon request.
  • To avoid damaging the die core and sleeve, we strongly recommend you use the professional laboratory hydraulic pressers which ensure the most even pressing interface and uniform pressure force.
