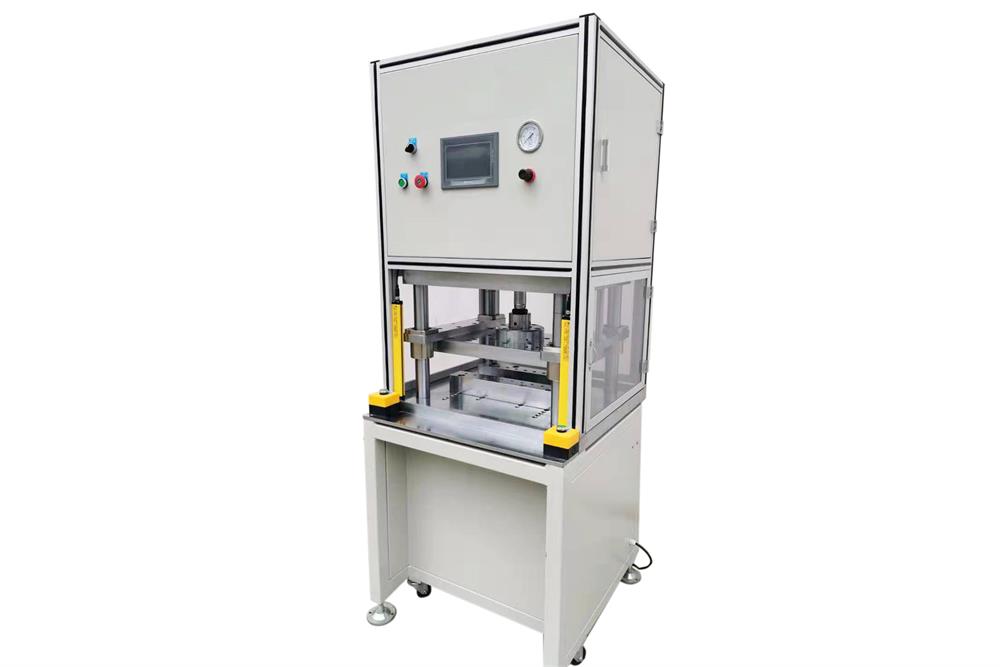

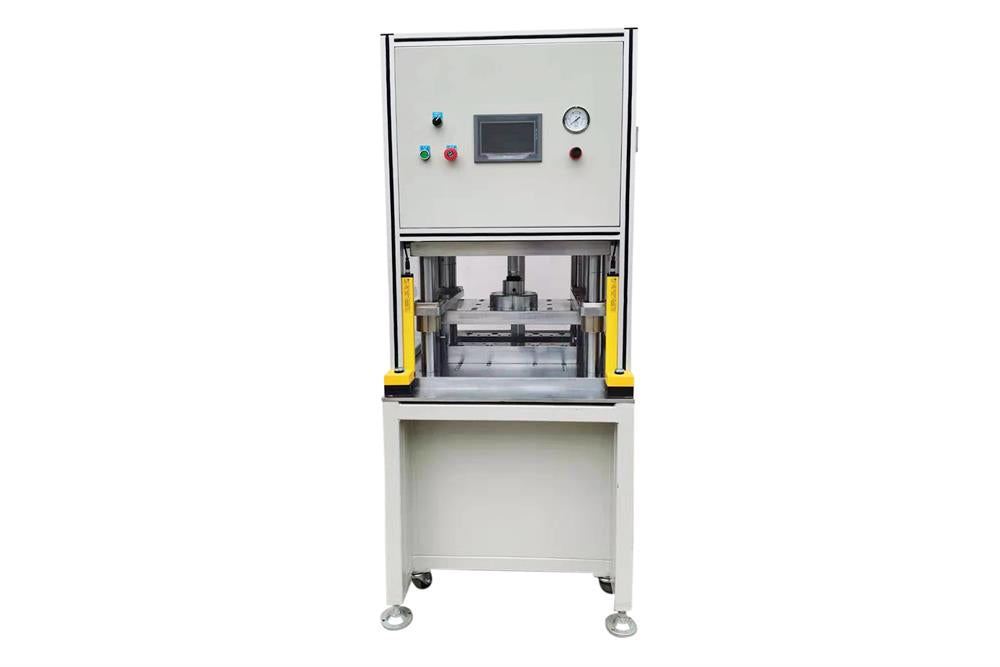

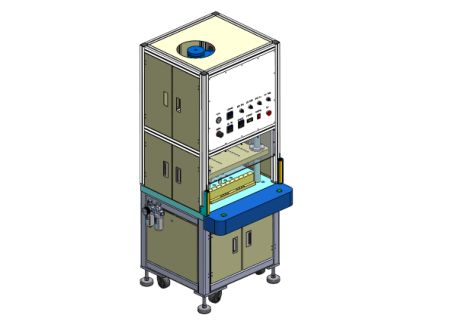

Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C
  • Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C
  • Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C
  • Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C
  • Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C
Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C

Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C

SKU: large-pouch-cup-forming-machine-for-aluminum-laminated-films-up-to-600x500-mm-msk-700c

Price: RFQ

Specifications

 EQ-MSK-700C is customized and manually operated large cup forming machine with Max/ 600 x 600 mm pouch die , which is designed for making large pouch cell in battery research lab. SPECIFICATIONS: Features Precision mechanism to ensure cup forming with resolution +/- 0.1 mm Manual operation with an optical sensor for full protection Product yield may reach 5 - 8 pcs /min Pressing Platen & Die Effective pressing Area: 750 L x 600 W Pressing Die: Not included, but available based on customer request. Please provide a engineering die drawing before purchase Power Requirement 208 - 220VAC, Single phase, 50/60Hz 2KW 110V Version is available upon request Air Requirement 100 PSI air compressor is required ( not included ) Max. Cup Depth to Punch < 8.0 mm within single cup 420 x 600mm Max. Punching Pressure 30 Metric Tons Production Yield 5 - 8 pcs/min dependent on operator experience AL Laminated Film Available upon request Optional & Upgrade Roll to Roll automatic processing device is available upon request at extra cost You may order a larger die cutter and vacuum seal to seal the large pouch cell. Compliance CE certified NRTL or CSA certification is available upon request at the extra cost


Features
  • Precision mechanism to ensure cup forming with resolution +/- 0.1 mm
  • Manual operation with an optical sensor for full protection
  • Product yield may reach 5 - 8 pcs /min

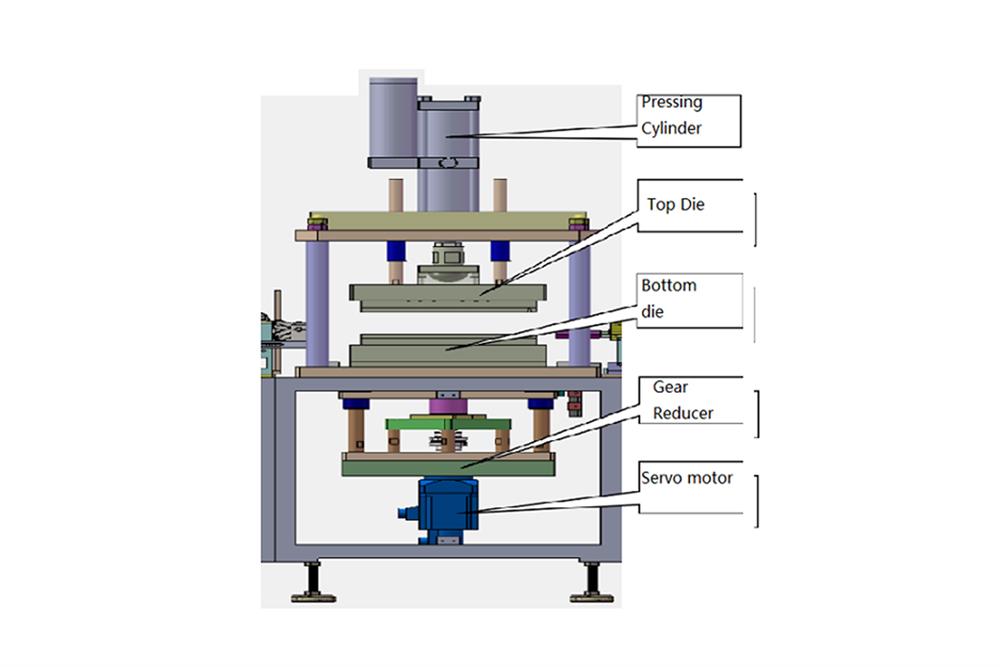

Pressing Platen & Die
  • Effective pressing Area: 750 L x 600 W
  • Pressing Die: Not included, but available based on customer request.
  • Please provide a engineering die drawing before purchase
Power Requirement
  • 208 - 220VAC, Single phase, 50/60Hz
  • 2KW
  • 110V Version is available upon request
Air Requirement
  • 100 PSI air compressor is required ( not included )
Max. Cup Depth to Punch
  • < 8.0 mm within single cup 420 x 600mm
Max. Punching Pressure
  • 30 Metric Tons
Production Yield
  • 5 - 8 pcs/min dependent on operator experience
AL Laminated Film
  • Available upon request
Optional & Upgrade
  • Roll to Roll automatic processing device is available upon request at extra cost
  • You may order a larger die cutter and vacuum seal to seal the large pouch cell.
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
