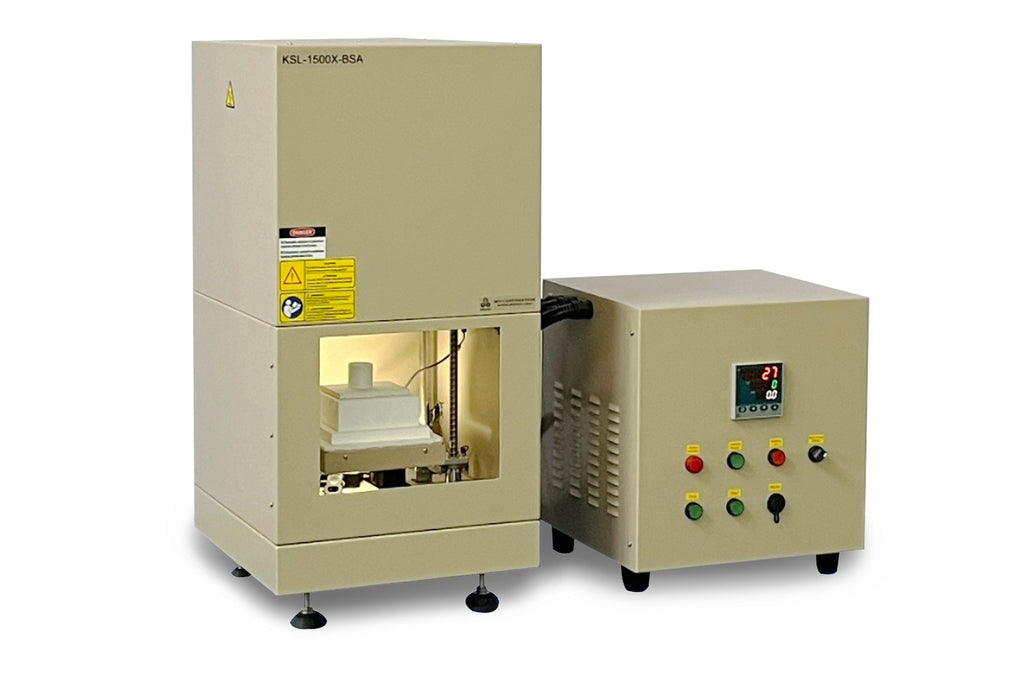

1500℃ Compact Automatic Bottom Loading Furnace (6 x 6 x 6", L x D x H) - KSL1500XBSA

• 208 - 240 VAC, 50/60 Hz, single phase
• Max. Power: 6 kW
• Note: Power cable is included without plugs. The power plug would need to be installed by the user according to the lab requirements.
• KF40 feedthrough with a power cord for gloveboxes is available upon request at extra cost.

Heating chamber

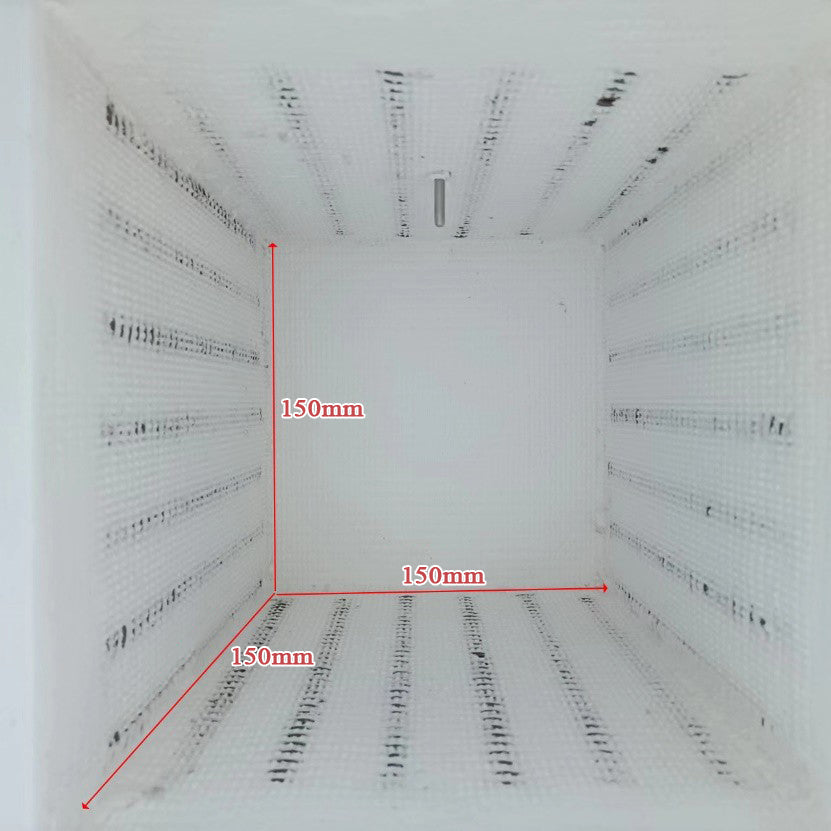

• 150mm(W) x 150mm(L) x 150mm(H), ( 6"x6"x6")
• 1500°C grade SiC heating elements
• Capacity： 3 Liters or 0.1 cubic ft
• Thermocouple: S-type

• 150mm Maximum

• 1400 °C, continuously
• 1500 °C, < 30 minutes
• Heating Rate: 10°C / minute

Temperature Controller

• PID automatic control and auto-tune function
• 50 programmable segments for precise control
• Built-in protection for overheating or a broken thermocouple
• Large digital control panel (48 x 96 mm) for easy operation
• Temperature accuracy: +/- 1 °C

• Temperature profile: heating, dwell time, and cooling up to 50 segments with accuracy +/- 1°C

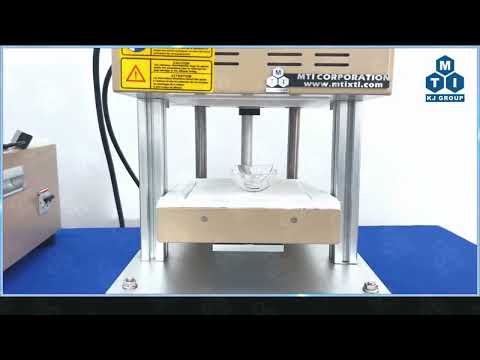

• The bottom door will be closed after sample loading and opened after the heating program is finished.
• RJ45 communication interface connects to a PC or a wireless router

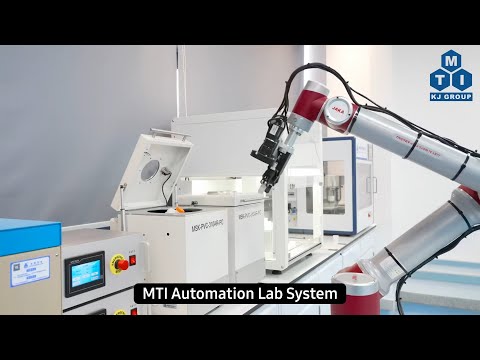

• The communication protocol is open to existing customers, allowing the connection of equipment with robots for unmanned operation.
• Computer operation software is ONLY sold and pre-installed on a tested computer as a kit
• Controls multiple units at the same time

Fast Cooling

• Cooling fans are installed in the lower chamber to cool off the sample when it is lowered from the heated chamber.
• Cooling rate may reach 20°C/Sec (1200°C/minute)

Compliance

• NRTL or CSA certification is available upon request at extra cost.
