Description

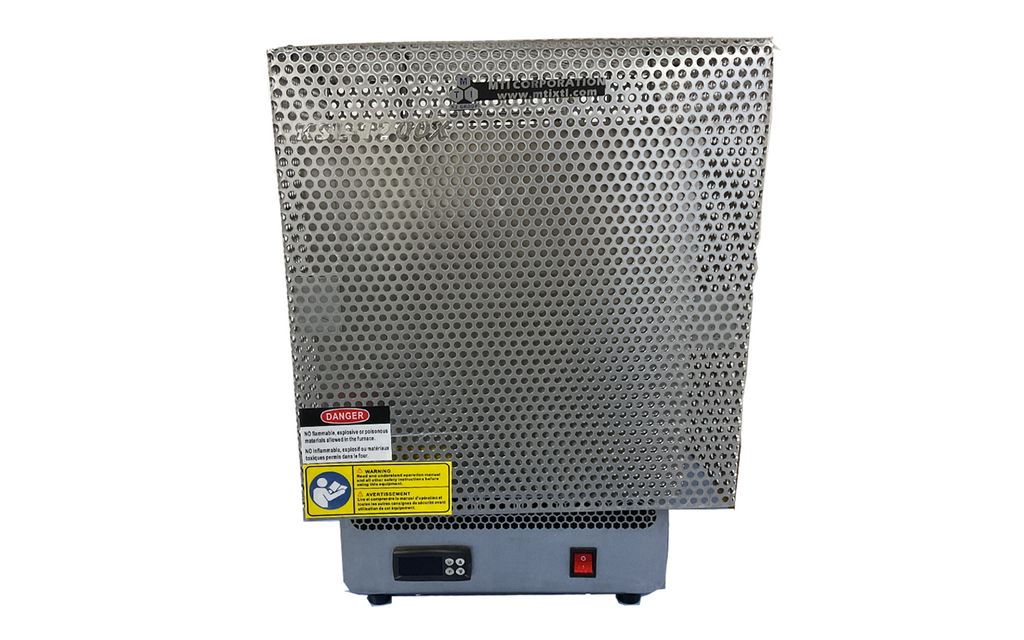

KSL-1200X-JS is a cost-effective box furnace with a maximum heating temperature of 1150°C. It offers rapid heating with approximately 25°C/min heating rate. The furnace is equipped with a digital PID controller for temperature control, monitoring and adjustment.
This furnace isn't available for UL certification.
SPECIFICATIONS:
Structure
|
- High-purity alumina fiber insulation around the heating chamber as insulation layer
- under the heating chamber, heat dissipation vents are equipped to rapid heat dissipate
- internal heat dissipation port is equipped on the top of the furnace
- SS 201 outside protective case
|
|

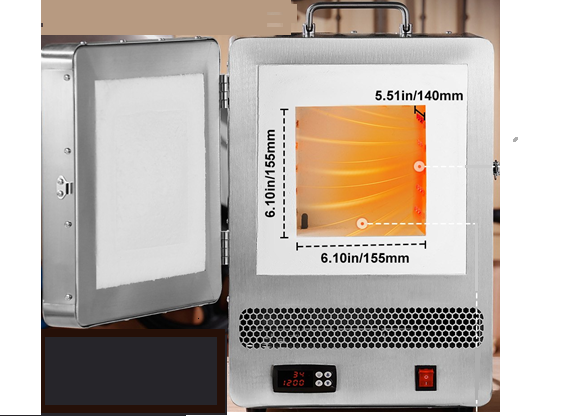

Chamber Dimensions
|
- 155mm x 130mm x 158mm (L x W x H)
- Capacity: 3.3 Liter
- Heating element: Ni-Cr-Al resistance wire
|
| Power |
- Working Voltage: 110 - 120VAC, Single Phase, 50/60 Hz
- Output Power: 1500 W, (15A breaker required)
- Power cable with NEMA 5-15 plug
|
| Operating Temp Range |
- Max Heating Temperature: 1150°C < 30 minutes
- Working Temperature: 0-1100°C < 2 hours
- Total working time < 3 hrs
|
| Stability at 1000 °C |
|
| Heating Rate |
|
| Thermocouple |
|
Temperature Controller
|
- A single-point digital temperature controller
- Proportional–integral–derivative control (PID control)
- ± 1 ºC resolution
|
