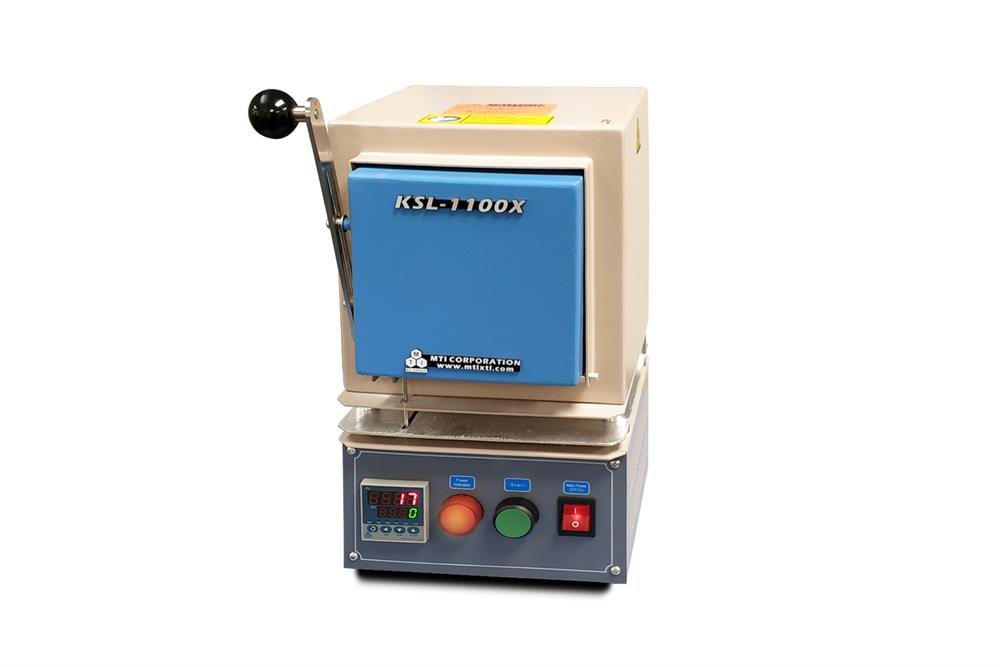

1100°C Max. Compact Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS
  • 1100°C Max. Compact Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS
  • 1100°C Max. Compact Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS
  • 1100°C Max. Compact Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS
  • 1100°C Max. Compact Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS
  • 1100°C Max. Compact Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS
  • 1100°C Max. Compact Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS
1100°C Max. Compact Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS

1100°C Max. Compact Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL1100XS

SKU: ksl1100xs

Price: RFQ

Specifications

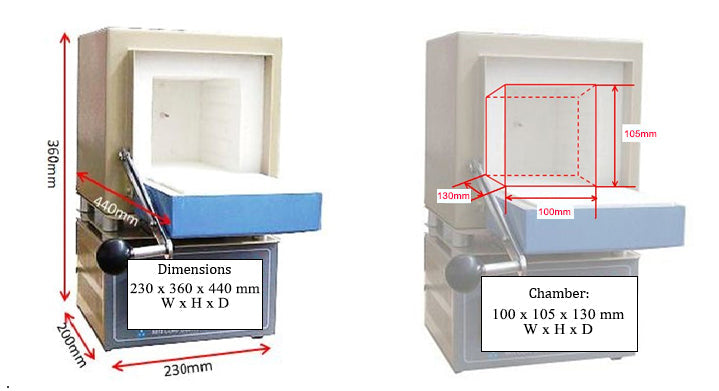

 KSL-1100X-S-UL-LD is a compact muffle furnace that offers 4"x4"x4" high-purity fibrous alumina chamber, gas inlet and outlet ports, and a programmable temperature controller, It is the ideal muffle furnace for preparing small-sized samples using temperatures up to 1100 o C in material research and dental labs with maximum energy saving (500 - 700W only).  the compact furnace can be placed into a glove box to sinter or dry samples in a vacuumed or controlled atmosphere. The promotion price is valid for online orders only and is subject to change without notice. SPECIFICATIONS: Furnace Construction High-purity fibrous alumina insulation for energy saving - 30% less power consumption than other brands. Drop-down design of the door for easy and safe sample loading with automatic power-off if the door is opened (Optional) Two 8 mm diameter hose barb connectors ( gas inlet and outlet) (see pic left) in the furnace back panel are available at extra cost ($99 for both connectors). Check the option box. Note: Self-installation is required. Optionals If the working temperature is> 800oC, suggest adding a protection cover as pic.. 1, at extra cost. Optional Top Opening port is available at extra cost ( Click Pic. 2-3 to order) Hybrid furnace ( Box & Tube) is available ( click Pic. 4 &5) to order Pic.1 Pic.2 Pic.3 Pic. 4 Pic.5 Sintered Mullite Plate One sintered Mullite plate is included for placing the sample in the chamber. (Pic.1) Extra sintered Mullite plates and alumina crucibles can be ordered for stacking the samples. (Pic.2) Pic.1 Pic.2 Power 110V version: 950 W (15A Fuse) ( power cord is included. Plug: NEMA 5-15P) 220V version: 1.2KW(10A Fuse) (power cord is included without a power plug.) Operating Temperature 200 °C - 1000°C max continuously 1100°C max for an hour Note: If you would like to use the furnace at 35 - 200 °C as a drying oven at extra cost, please let us know in advance to present another set of PID parameters. Max. Heating Rate 30 °C /min Temperature Controller PID automatic control and auto-tune function. 30 programmable segments for precise control. Built-in protection for the over-heating and broken thermocouple. Large digital control panel (48 x 48 mm) for easy operation. Temperature Accuracy +/- 1 °C from 200 °C to 1100 °C Heating Elements Fe-Cr-Al Alloy doped by Mo Thermocouple K type Compliance CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost. A protective cover and a fan will be installed on the furnace with NRTL Certification, please click the picture on the left for more detail. Application Notes With its small footprint, low weight, and low power requirement, it can be easily accommodated in a glove box and heated under inert gas. Please click pic.1~4 to see the different applications of this muffle furnace. Please click to order the Replacement Furnace Heating Chamber Module. Pic.1 Pic.2 Pic.3 Pic4 Warnings Toxic or explosive gasses are not recommended for use with this furnace without necessary safety controls and supervision. Please put furnace into fume hood for better safety (Click Pic.1) Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. You shall place the sample into a crucible as below. Never place the sample on the chamber bottom directly.

Furnace Construction

1100C Compact Muffle Furnace (4"x4"x5") w/ Programmable Temp. Controller - KSL-1100X-S-UL-LD
  • High-purity fibrous alumina insulation for energy saving - 30% less power consumption than other brands.

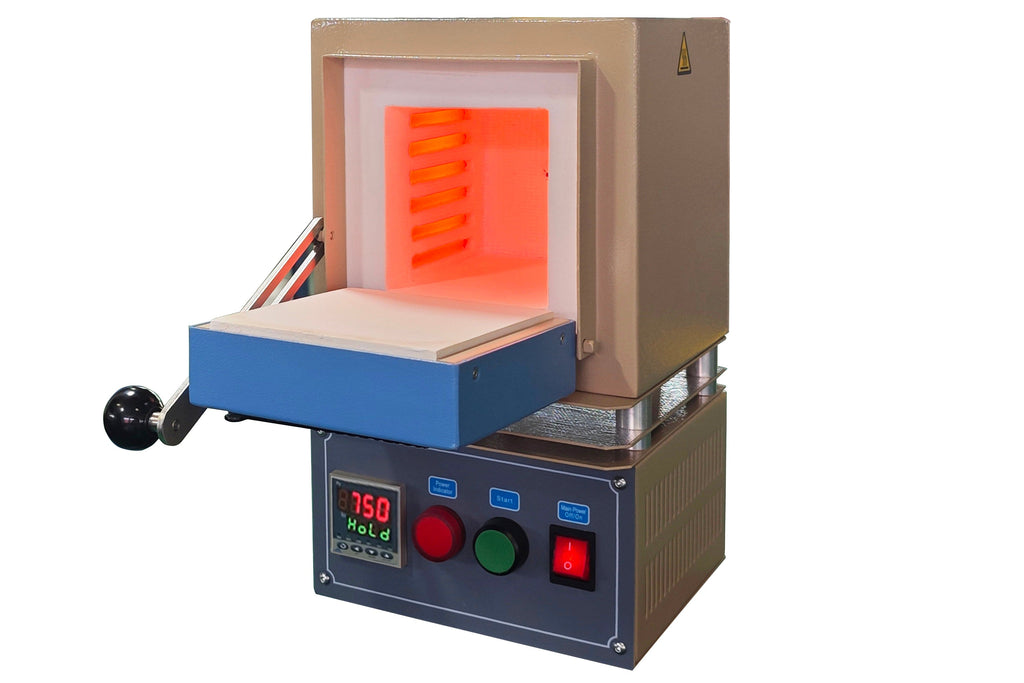

  • Drop-down design of the door for easy and safe sample loading with automatic power-off if the door is opened
  • (Optional) Two 8 mm diameter hose barb connectors (gas inlet and outlet) (see pic left) in the furnace back panel are available at extra cost ($99 for both connectors). Check the option box. Note: Self-installation is required.

Optionals
  • If the working temperature is> 800oC, suggest adding a protection cover as pic.. 1, at extra cost.
  • Optional Top Opening port is available at extra cost ( Click Pic. 2-3 to order)
  • Hybrid furnace ( Box & Tube) is available ( click Pic. 4 &5) to order

Sintered Mullite Plate
Pic.1     Pic.2

Power
  • 110V version: 950 W (15A Fuse) ( power cord is included. Plug: NEMA 5-15P)
  • 220V version: 1.2KW(10A Fuse) (power cord is included without a power plug.)

Operating Temperature
  • 200 °C - 1000°C max continuously
  • 1100°C max for an hour
  • Note: If you would like to use the furnace at 35 - 200 °C as a drying oven at extra cost, please let us know in advance to present another set of PID parameters.

Max. Heating Rate
  • 30 °C /min

Temperature Controller
  • PID automatic control and auto-tune function.
  • 30 programmable segments for precise control.
  • Built-in protection for the over-heating and broken thermocouple.
  • Large digital control panel (48 x 48 mm) for easy operation.

Temperature Accuracy

+/- 1 °C from 200 °C to 1100 °C

Heating Elements

Fe-Cr-Al Alloy doped by Mo

Thermocouple

K type

Compliance


  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.
  • A protective cover and a fan will be installed on the furnace with NRTL Certification, please click the picture on the left for more detail.




Application Notes
  • With its small footprint, low weight, and low power requirement, it can be easily accommodated in a glove box and heated under inert gas. Please click pic.1~4 to see the different applications of this muffle furnace.
  • Please click to order the Replacement Furnace Heating Chamber Module.

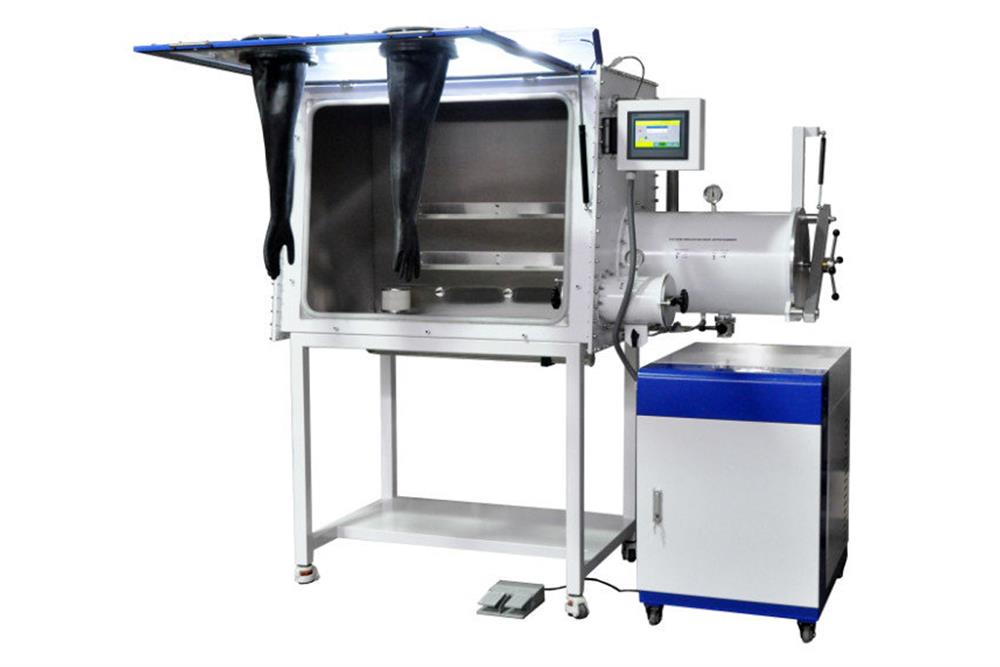

Pic.1  Glove Box with H2O & O2 Purification System and Hinged Front Window - VGB-6-LD Pic.2     Pic.3      Pic4

Warnings
  • Toxic or explosive gasses are not recommended for use with this furnace without necessary safety controls and supervision. Please put furnace into fume hood for better safety (Click Pic.1)
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
  • You shall place the sample into a crucible as below. Never place the sample on the chamber bottom directly.
  • 1760C (3200F) Hi-Purity Alumina Coating - EQ-634-AL-LD
