1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W
  • 1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W
  • 1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W
  • 1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W
  • 1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W
  • 1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W
  • 1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W
1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W

1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W

SKU: ksl-1700x-w

Price: RFQ

Specifications

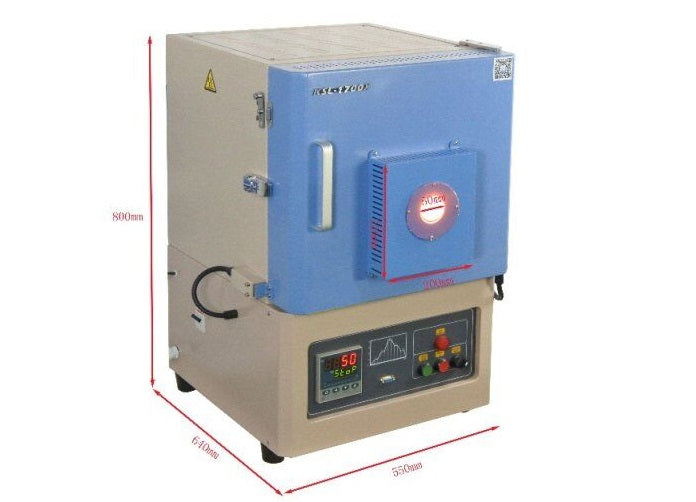

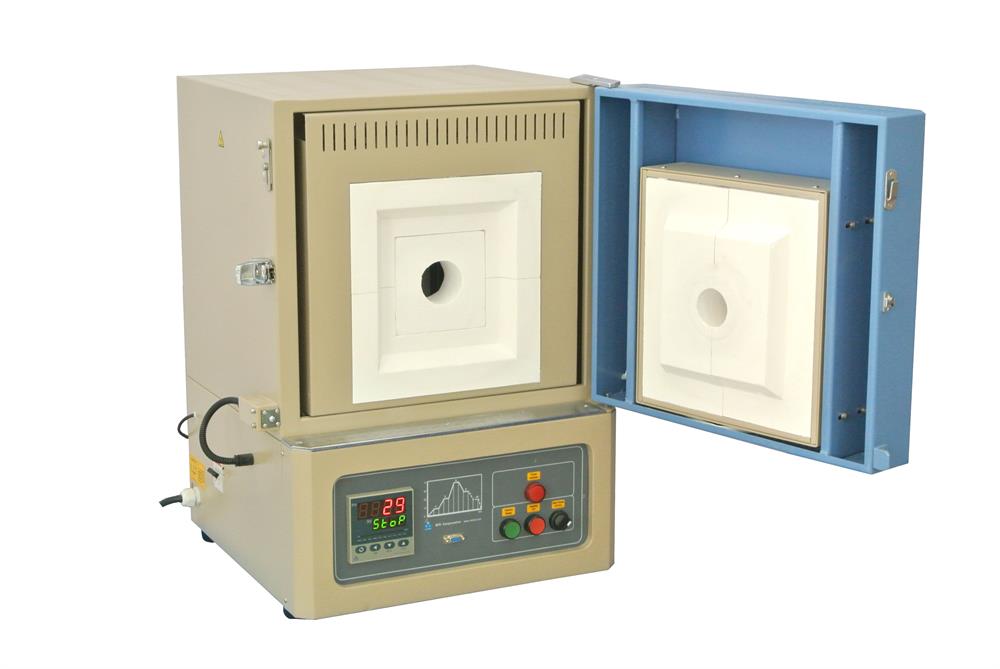

 KSL-1700X-W isbench-top 1700°C muffle furnace with 50 mm diameter quartz window, which is designed for observation sample during heating with IR camera or optical device. The furnace consists of high-quality alumina fiber insulation and SiC heating elements. It controlled by high precision SCR (Silicon Controlled Rectifier) and temperature controller with +/-1 °C accuracy and 30 programmable segments up to 1700 °C. SPECIFICATIONS Furnace Structure Double layer steel structure with air cooling fan to keep the case's temperature below 60°C High purity alumina fiber insulation for max. Energy saving High-quality MoSi2 heating elements 50 mm optical grade quartz window (8 mm thick) Inside Chamber Size 150 x 150 x 149mm (6" x 6" x 6"), 3.6L Standard Working Temperature 1600° C (continuous) Maximum Working Temperature 1700° C (< 1 hours) Heating Rate 0 ~20 °C/min ( ≤10°C/min recommended ) Temperature Accuracy +/- 1° C Temperature Controller FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port Temperature controller (optional) MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software kit. You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3504 temperature controller. Laptop, software & WiFi Control(Optional) Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Labview Based Temperature Control System ( MTS01 ) enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters operating range. Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information. Note: The software is only compatible with MTI’s Yudian Temperature Controller Thermaocouple B-type Heating Element MoSi2, 4 pcs Power AC 208V-240V single phase, 50/60 Hz (60A air breaker required) Note: Plug is not included. 30A plug is recommended (NEMA L6-30P). 6 KW intotal Compliance CE Certified NRTL or CSA certification is available upon request. Application Notes Please clicks here to learn how to DIY gas purging system. Attention Notes The temperature near by wider area is hot, must wear gloves during operation Must wear heavy-duty sun glass to watch the window

Furnace Structure

  • Double layer steel structure with air cooling fan to keep the case's temperature below 60°C
  • High purity alumina fiber insulation for max. Energy saving
  • High-quality MoSi2 heating elements
  • 50 mm optical grade quartz window (8 mm thick)
Inside Chamber Size 150 x 150 x 149mm (6" x 6" x 6"), 3.6L
Standard Working Temperature 1600° C (continuous)
Maximum Working Temperature 1700° C (< 1 hours)
Heating Rate 0 ~20 °C/min ( ≤10°C/min recommended )
Temperature Accuracy +/- 1° C
Temperature Controller
  • FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
Temperature controller (optional)
  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software kit.
  • You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3504 temperature controller.
Laptop, software & WiFi Control(Optional)
  • Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS01)enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters operating range.
  • Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.
  • Note: The software is only compatible with MTI’s Yudian Temperature Controller

Thermaocouple B-type
Heating Element MoSi2, 4 pcs
Power
  • AC 208V-240V single phase, 50/60 Hz (60A air breaker required)
  • Note: Plug is not included. 30A plug is recommended (NEMA L6-30P).
  • 6 KW intotal
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request.
Application Notes Please clicks here to learn how to DIY gas purging system.
Attention Notes

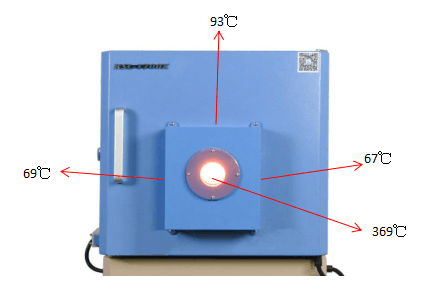

  • The temperature near by wider area is hot, must wear gloves during operation
  • Must wear heavy-duty sun glass to watch the window
