1700C Max. Oxygen & Inert Atmosphere Furnace (8x8x8" ) w/ PC Control- KSL-1700X-O2
  • 1700C Max. Oxygen & Inert Atmosphere Furnace (8x8x8" ) w/ PC Control- KSL-1700X-O2
  • 1700C Max. Oxygen & Inert Atmosphere Furnace (8x8x8" ) w/ PC Control- KSL-1700X-O2
  • 1700C Max. Oxygen & Inert Atmosphere Furnace (8x8x8" ) w/ PC Control- KSL-1700X-O2
1700C Max. Oxygen & Inert Atmosphere Furnace (8x8x8" ) w/ PC Control- KSL-1700X-O2

1700C Max. Oxygen & Inert Atmosphere Furnace (8x8x8" ) w/ PC Control- KSL-1700X-O2

SKU: ksl-1700x-o2

Price: RFQ

Specifications

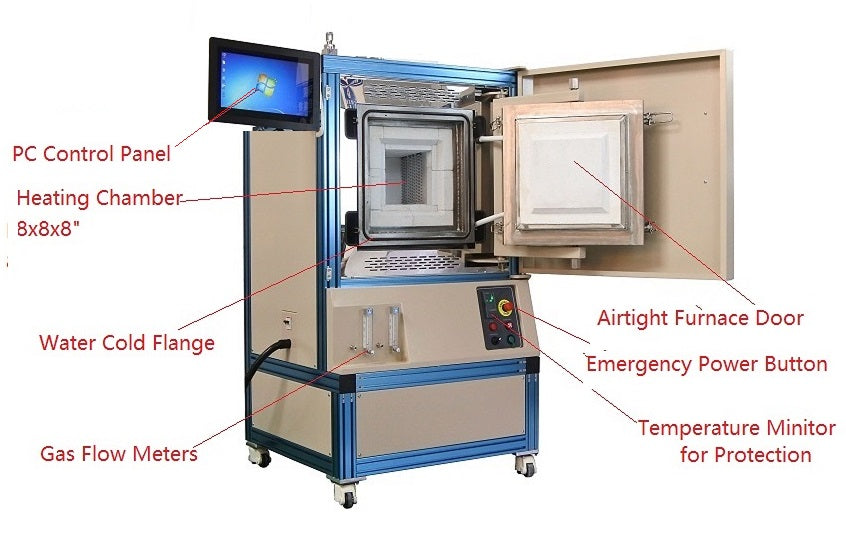

 KSL-1700X-O2 is an atmosphere-controlled box furnace, which is designed for sintering materials under high purity oxygen. The furnace consists of high-quality alumina fiber bricks and MoSi2 heating elements with a heating chamber of 8"x 8"x8". It is an ideal tool for preparing high purity oxide ceramic materials, especially for high Ni battery cathode materials. The furnace also can be used under inert gases up to 1600oC. SPECIFICATIONS Furnace structure MoSi2 heating elements with Ni coated copper capable connection Double-layer steel structure for maximum vacuum and safety. Water cooling front door and air cooling shell Built-in pressure gauge, vacuum valves, and two gas float meters Heating Chamber Heated chamber: 200x 200x 200 mm (8x8x8 inch), 8 Liter Energy-saving 1800 grade fibrous alumina insulation High purity Al2O3 coating Warning: One Al2O3 fibrous door block is included to block heat radiation. Max. Loading:   100 Kg Power AC 208 - 240V single phase (50/ 60 Hz) 30 Amp (50 Amp air breaker is required) 7.5 KW The power cable is included but no plug ( please inform us of your plug type, we can install for you upon request Heating Elements 6 sets of MoSi2 heating elements are built-in and replaceable Working temperature range: 1200oC - 1700oC in air or oxygen Note: the heating elements also can be used under inert gas at 1000oC - 1600 oC) The furnace is not a high vacuum furnace. The vacuum level is about 500 torr at high temperature Temperature Continuous 300 - 1600°C Max. 1700°C(<60min) Accuracy: +/- 0.1 ° C Heating Rate: 5°C / min Thermocouple: two B type T/C for control and monitor alarm separately Control Panel Built-in PC for controlling temperature and pressure Temperature Control: Eurotrem 3000 controllers inside for +/- 0.1oC accuracy connected to PC 24 segments programmable Protection for over-temperature and current, as well as the thermal couple, broke A secondary temperature controller is built-in for extra over-temperature protection. Pressure Control: The pressure sensor and pressure controller are installed to control the set pressure constant. The pressure control can be used to perform the following functions: Inert gas Purging via manually or an automatic mode Constand pressure during heating High and Low-pressure protection The pressure controllable range: -0.06 to 0.03Mpa. Safety Alarm System: Over-temperature protection Over-pressure and lower pressure alert Low water flow alert Data Collection Recording temperature profile Recording pressure profile All data is saved to the hard disc of the PC Local WIFI operation at a remote distance is available upon request Vacuum pump & Gas Flow Control Two large flow meters are installed on the front panel of the furnace for purging via inert gas and filling oxygen gases One vacuum pump is included to enhance purging and keep the chamber below 760 torr Low vacuum 10-1 torr due to fibrous alumina insulation material. Using 5% H2 + Ar will improve oxidation during heating. For oxygen-sensitive material, please use a hydrogen furnace Water Cooling A 58L/min recirculating water cooling is required to cool the furnace sealing flange and chamber case. If you don't have a water cooling system in your lab, you may click the pictures below to order: Compliance CE Certified NRTL or CSA certification is available upon request at extra cost. Application Notes Attention: A free course of safety operation training at MTI field is required to purchase this furnace. A customer's side training is also available upon request at extra cost. If the users believe that they have sufficient experience and knowledge to handle the furnace in a dangerous or emergent situation, a liability release agreement must be signed at the purchase. MTI Corp. is not responsible for any damages caused by misuse without safety operation training. Any damages caused by the corrosive and acidic gases are not under the coverage of the MTI One Year Limited Warranty.

Furnace structure
  • MoSi2 heating elements with Ni coated copper capable connection
  • Double-layer steel structure for maximum vacuum and safety.
  • Water cooling front door and air cooling shell
  • Built-in pressure gauge, vacuum valves, and two gas float meters
Heating Chamber
  • Heated chamber: 200x 200x 200 mm (8x8x8 inch), 8 Liter
  • Energy-saving 1800 grade fibrous alumina insulation
  • High purity Al2O3 coating
  • Warning: One Al2O3 fibrous door block is included to block heat radiation.
  • Max. Loading:   100 Kg

 Power
  • AC 208 - 240V single phase (50/ 60 Hz)
  • 30 Amp (50 Amp air breaker is required)
  • 7.5 KW
  • The power cable is included but no plug ( please inform us of your plug type, we can install for you upon request

Heating Elements
  • 6 sets of MoSi2 heating elements are built-in and replaceable
  • Working temperature range: 1200oC - 1700oC in air or oxygen
  • Note: the heating elements also can be used under inert gas at 1000oC - 1600 oC)
  • The furnace is not a high vacuum furnace. The vacuum level is about 500 torr at high temperature

Temperature
  • Continuous 300 - 1600°C
  • Max. 1700°C(<60min)
    Accuracy: +/- 0.1°C
  • Heating Rate: 5°C / min
  • Thermocouple: two B type T/C for control and monitor alarm separately

Control Panel
  • Built-in PC for controlling temperature and pressure
  • Temperature Control:
    • Eurotrem 3000 controllers inside for +/- 0.1oC accuracy connected to PC
    • 24 segments programmable
    • Protection for over-temperature and current, as well as the thermal couple, broke
    • A secondary temperature controller is built-in for extra over-temperature protection.
  • Pressure Control:
    • The pressure sensor and pressure controller are installed to control the set pressure constant.
    • The pressure control can be used to perform the following functions:
      •  Inert gas Purging via manually or an automatic mode
      • Constand pressure during heating
      • High and Low-pressure protection
      • The pressure controllable range: -0.06 to 0.03Mpa.
  • Safety Alarm System:
    • Over-temperature protection
    • Over-pressure and lower pressure alert
    • Low water flow alert
  • Data Collection
    • Recording temperature profile
    • Recording pressure profile
    • All data is saved to the hard disc of the PC
    • Local WIFI operation at a remote distance is available upon request
Vacuum pump & Gas Flow Control
  • Two large flow meters are installed on the front panel of the furnace for purging via inert gas and filling oxygen gases
  • One vacuum pump is included to enhance purging and keep the chamber below 760 torr
  • Low vacuum 10-1 torr due to fibrous alumina insulation material. Using 5% H2 + Ar will improve oxidation during heating. For oxygen-sensitive material, please use a hydrogen furnace
Water Cooling
 A 58L/min recirculating water cooling is required to cool the furnace sealing flange and chamber case.
If you don't have a water cooling system in your lab, you may click the pictures below to order:

Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at extra cost.

Application Notes
Attention: A free course of safety operation training at MTI field is required to purchase this furnace. A customer's side training is also available upon request at extra cost. If the users believe that they have sufficient experience and knowledge to handle the furnace in a dangerous or emergent situation, a liability release agreement must be signed at the purchase. MTI Corp. is not responsible for any damages caused by misuse without safety operation training. Any damages caused by the corrosive and acidic gases are not under the coverage of the MTI One Year Limited Warranty.
