1700 Compact Bottom Loading Furnace ( L4 x W4 x H6") For Fast Heating / Cooling - KSL-1700X-B-S
  • 1700 Compact Bottom Loading Furnace ( L4 x W4 x H6") For Fast Heating / Cooling - KSL-1700X-B-S
  • 1700 Compact Bottom Loading Furnace ( L4 x W4 x H6") For Fast Heating / Cooling - KSL-1700X-B-S
  • 1700 Compact Bottom Loading Furnace ( L4 x W4 x H6") For Fast Heating / Cooling - KSL-1700X-B-S
  • 1700 Compact Bottom Loading Furnace ( L4 x W4 x H6") For Fast Heating / Cooling - KSL-1700X-B-S
  • 1700 Compact Bottom Loading Furnace ( L4 x W4 x H6") For Fast Heating / Cooling - KSL-1700X-B-S
1700 Compact Bottom Loading Furnace ( L4 x W4 x H6") For Fast Heating / Cooling - KSL-1700X-B-S

1700 Compact Bottom Loading Furnace ( L4 x W4 x H6") For Fast Heating / Cooling - KSL-1700X-B-S

SKU: ksl-1700x-b-s

Price: RFQ

Specifications

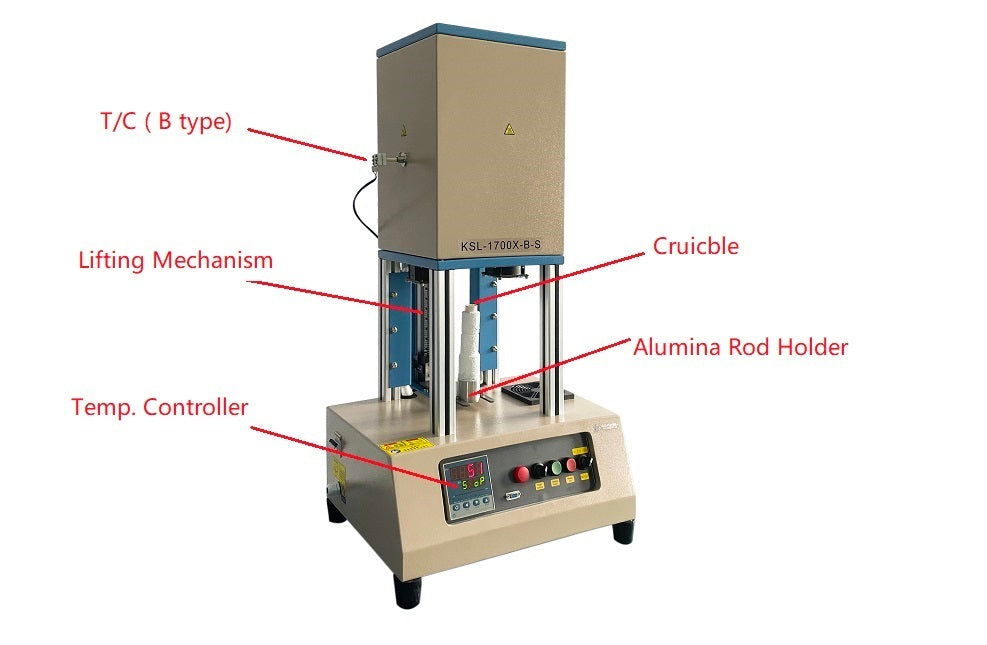

 KSL-1700X-B-S is a compact bottom-loading furnace driven by an electric motor that is used for rapid heating and rapid cooling small sample in the air up to 1700ºC. The furnace also can be used for cycling thermal impact test SPECIFICATIONS Furnace Features Two-layer casing with air cooling. The inner is made of alumina polycrystalline fiber.. Coated with high-temperature alumina to improve the reflectivity, the heating efficiency, and its service life. The bottom loading mechanism is built-in, which is driven by a DC motor for fast heating samples into the pre-heated chamber. Power 208 - 240 VAC, 50/60 Hz, single phase Max. Power: 2.5 kW A power cable is included, but no plug Working Temperature 1600 °C, continuously 1700 °C, < 30 minutes Heating Chamber L100 × W100 × H150 mm with 4 pieces of U-type MoSi2 heating element One 30 mm diameter hole is open on the bottom of the heating chamber One fibrous alumina rod is installed to insert an alumina crucible into the chamber via a lifting fixture Heating Rate 10/min (room temperature —1400) 5/min (1400-1600) 2/min (>1600) Thermocouple Type B Temperature Control FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port Compliance NRTL or CSA certification is available upon request at extra cost.


Furnace Features
  • Two-layer casing with air cooling.
  • The inner is made of alumina polycrystalline fiber..
  • Coated with high-temperature alumina to improve the reflectivity, the heating efficiency, and its service life.
  • The bottom loading mechanism is built-in, which is driven by a DC motor for fast heating samples into the pre-heated chamber.
Power
  • 208 - 240 VAC, 50/60 Hz, single phase
  • Max. Power: 2.5 kW
  • A power cable is included, but no plug
Working Temperature
  • 1600 °C, continuously
  • 1700 °C, < 30 minutes

Heating Chamber
  • L100 × W100 × H150 mm with 4 pieces of U-type MoSi2 heating element
  • One 30 mm diameter hole is open on the bottom of the heating chamber
  • One fibrous alumina rod is installed to insert an alumina crucible into the chamber via a lifting fixture

Heating Rate
  • 10/min (room temperature —1400)
  •  5/min (1400-1600)
  •  2/min (>1600)

Thermocouple
  • Type B

Temperature Control
  • FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port

Compliance
  • NRTL or CSA certification is available upon request at extra cost.
