1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA
  • 1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA
  • 1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA
  • 1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA
  • 1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA
1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA

1700 Max High temperature Muffle Furnace with TGA Function- KSL-1700X-A2-TGA

SKU: ksl-1700x-a2-tga

Price: RFQ

Specifications

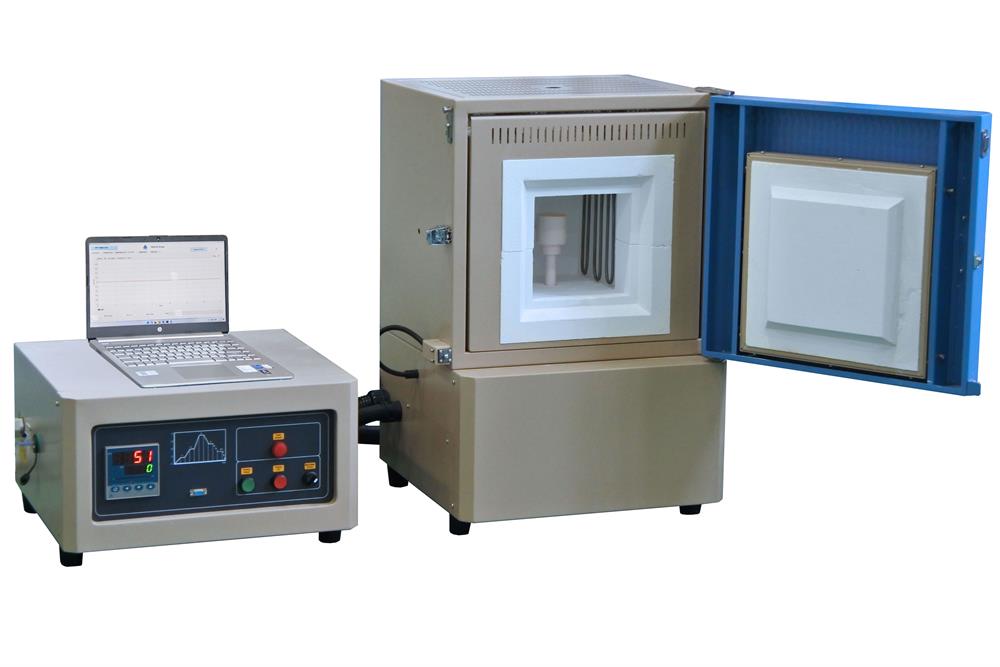

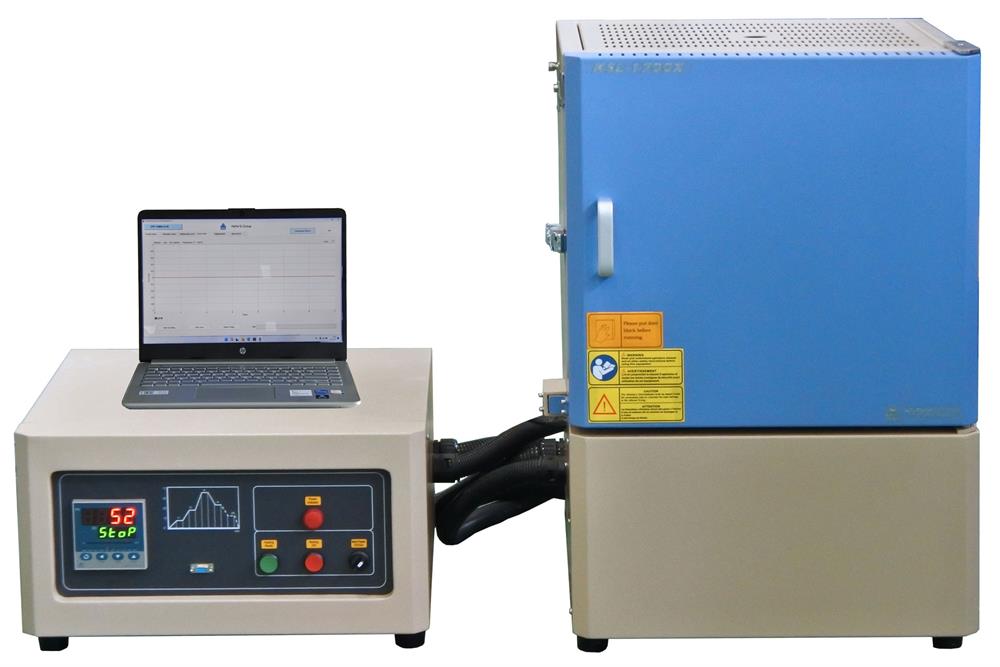

 KSL-1700X-A2-TGA is a desktop muffle furnace (8L) with a precision TGA (thermal gravimetric analysis) function.  It is a cost-effective tool to analyze the phase transition of various oxide compounds from 100 °C to 1700 °C  in large quantity samples (250g max) under air ambient conditions. SPECIFICATIONS Furnace Structure Three types of size heating chambers are selectable: 120x120x120mm ( 1.7L ) 150 x150 x150 mm ( 3.6L) 200 x 200 x 200mm ( 8L )  (Demonstrated sample) High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency. Heavy duty double layer structure with a cooling fan to keep furnace exteriors safe to touch. Double-layer steel case with forced-air cooling to ensure lower safer face temperature. One φ30mm venting port is built on top of the furnace One φ6mm air inlet is located at one side of the furnace. Temperature Maximum Temperature: 1700 (≤30min) Continuous Working Temperature: 1600 Recommend Heating Rate: ≤10/min Temperature accuracy: +/- 0.1ºC Heating element: silicon molybdenum rod Thermocouple: B Type Tem perature Controll er Eurotherm 3000 precision temperature controller with 24-segment programmable Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. B-type thermocouples Software is included and integrated with a force sensor One laptop is included as a control panel. Electronic Balance A precision electronic balance is located at bottom of the heating chamber with a 0.01 g resolution The alumina crucible is set on the balance via an alumina rod Sample amount: 10 g minimum;  250 g maximum. Force Sensor output data will connect to the laptop to show the weight change curve with the temperature RS485 port and operation software is included Crucibles One 120 ml alumina crucible is included.  Please click Pic. 1 to order more You may click Pic. 2 to choose ZrO2, BN, or Y2O3 crucible based on your application The customized crucible is available upon request Pic. 1 Pic. 2 Power 220V Single Phase, 50Hz 5200W Note: Power cable included but without a plug. Please install a plug on your own according to your country or your lab requirement. Warranty One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.) Compliance CE Certified NRTL or CSA certification is available upon request at extra cost.( please click the marks below to learn details Dimension 580*530*850mm ( Furnace ) 560*530*350mm ( Control Box ) Net Weight ~150kg Demo Video

 Furnace Structure
  • Three types of size heating chambers are selectable:
    • 120x120x120mm ( 1.7L )
    • 150 x150 x150 mm ( 3.6L)
    • 200 x 200 x 200mm (8L)  (Demonstrated sample)
  • High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
  • Heavy duty double layer structure with a cooling fan to keep furnace exteriors safe to touch.
  • Double-layer steel case with forced-air cooling to ensure lower safer face temperature.
  • One φ30mm venting port is built on top of the furnace
  • One φ6mm air inlet is located at one side of the furnace.
            Temperature
            • Maximum Temperature: 1700 (≤30min)
            • Continuous Working Temperature: 1600
            • Recommend Heating Rate: ≤10/min
            • Temperature accuracy: +/- 0.1ºC
            • Heating element: silicon molybdenum rod
            • Thermocouple: B Type
            Temperature Controller
            • Eurotherm 3000 precision temperature controller with 24-segment programmable
            • Over-temperature protection and alarm allow for operation without attendant(s).
            • +/- 1 ºC temperature accuracy.
            • B-type thermocouples
            • Software is included and integrated with a force sensor
            • One laptop is included as a control panel.
            Electronic Balance

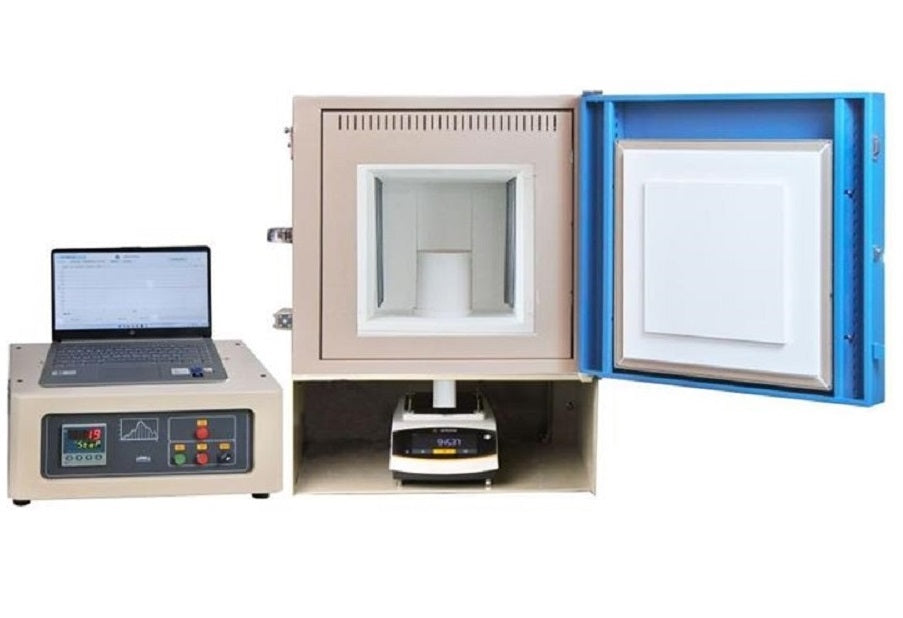

            • A precision electronic balance is located at bottom of the heating chamber with a 0.01 g resolution
            • The alumina crucible is set on the balance via an alumina rod
            • Sample amount: 10 g minimum;  250 g maximum.
            • Force Sensor output data will connect to the laptop to show the weight change curve with the temperature
            • RS485 port and operation software is included

            Crucibles
            • One 120 ml alumina crucible is included.  Please click Pic. 1 to order more
            • You may click Pic. 2 to choose ZrO2, BN, or Y2O3 crucible based on your application
            • The customized crucible is available upon request
            • Pic. 1     Pic. 2

            Power
            • 220V Single Phase, 50Hz
            • 5200W
            • Note: Power cable included but without a plug. Please install a plug on your own according to your country or your lab requirement.

             Warranty
            • One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

             Compliance
            • CE Certified
            • NRTL or CSA certification is available upon request at extra cost.(please click the marks below to learn details

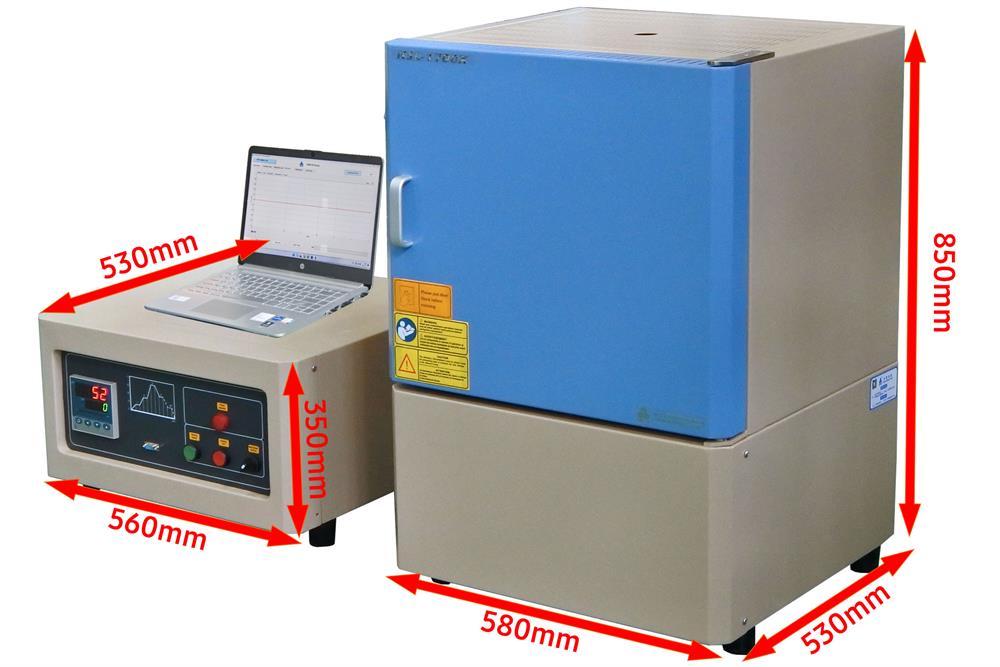

            Dimension
            580*530*850mm (Furnace)
            560*530*350mm (Control Box)

            Net Weight
            ~150kg
