1200 5-side Heating Muffle Furnace (20x20x20", 125L) w/ with Sliding Door for Rapid Cooling - KSL-1200X-MAX-T
  • 1200 5-side Heating Muffle Furnace (20x20x20", 125L) w/ with Sliding Door for Rapid Cooling - KSL-1200X-MAX-T
  • 1200 5-side Heating Muffle Furnace (20x20x20", 125L) w/ with Sliding Door for Rapid Cooling - KSL-1200X-MAX-T
  • 1200 5-side Heating Muffle Furnace (20x20x20", 125L) w/ with Sliding Door for Rapid Cooling - KSL-1200X-MAX-T
  • 1200 5-side Heating Muffle Furnace (20x20x20", 125L) w/ with Sliding Door for Rapid Cooling - KSL-1200X-MAX-T
1200 5-side Heating Muffle Furnace (20x20x20", 125L) w/ with Sliding Door for Rapid Cooling - KSL-1200X-MAX-T

1200 5-side Heating Muffle Furnace (20x20x20", 125L) w/ with Sliding Door for Rapid Cooling - KSL-1200X-MAX-T

SKU: ksl-1200x-max-t

Price: RFQ

Specifications

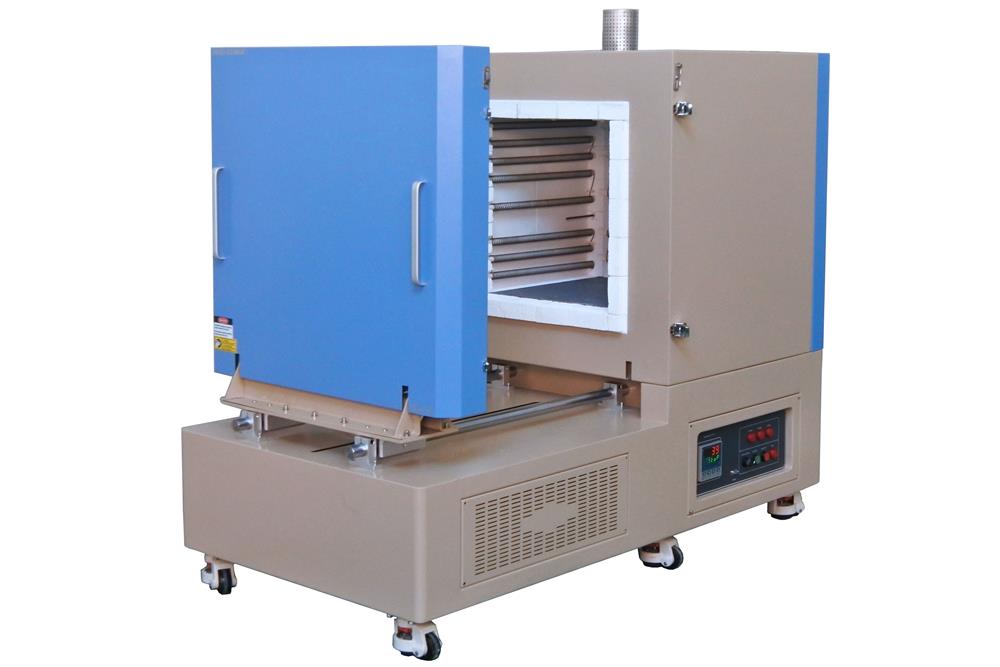

 KSL-1200X-MAX-T is a 5-side Heating Muffle Furnace (20x20x20", 125L) with a Sliding Door for Rapid Cooling, max working temperature is 1200℃. The 5-side heating chamber with freestanding heating elements provides better temperature uniformity, a higher heating rate, and reduces the downtime of heating element replacement. It is a perfect instrument for sintering and annealing large quantities of metals and ceramics. The sliding door allows rapid cooling much more conveniently when equipped with robot arms(extra cost). SPECIFICATIONS Power Power: 12 kW, three-phase, 380AC Other voltage ratings are available upon request. Thermocouple: K type Heating Chamber Size: 20" x 20" x 20" ( 500 x 500 x 500 mm) Capacity: 125 liters Uniform temperature zone: 200x200x200mm +/- 2ºC Double-sided alloy casing with cooling fans The surface temperature is less than 60°C （furnace temperature ≤1000°C) Equipped silicon carbide plates at the bottom, with a maximum load capacity of 100 kg Sliding door with a travel distance of 620 mm Working Temperature Working Temperature: 1200 ° C continuously without sample holding plate 1000°C continuously with sample holding plate Heating rate: 10°C/min (recommended) Stability: ±1 °C Temperature Controller Proportional–integral–derivative control (PID control) and auto-tune function 50 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port Compliance CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.

Power
  • Power: 12 kW, three-phase, 380AC
  • Other voltage ratings are available upon request.
Thermocouple:
  • K type

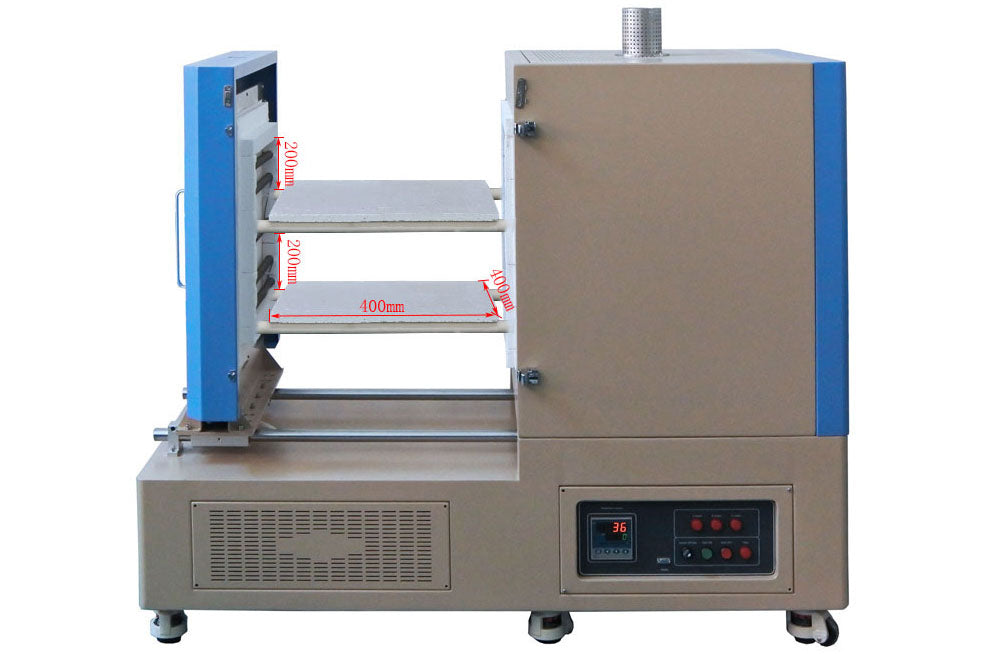

Heating Chamber
  • Size: 20" x 20" x 20" ( 500 x 500 x 500 mm)
  • Capacity: 125 liters
  • Uniform temperature zone: 200x200x200mm +/- 2ºC
  • Double-sided alloy casing with cooling fans
  • The surface temperature is less than 60°C （furnace temperature ≤1000°C)
  • Equipped silicon carbide plates at the bottom, with a maximum load capacity of 100 kg
  • Sliding door with a travel distance of 620 mm
Working Temperature
    •  Working Temperature:
      • 1200 °C continuously without sample holding plate
      • 1000°C continuously with sample holding plate
      Heating rate:    10°C/min (recommended)
      Stability:     ±1 °C
    Temperature Controller
    • Proportional–integral–derivative control (PID control) and auto-tune function
    • 50 segments programmed with ramping, cooling, and dwelling steps
    • Built-in over-temperature alarm and thermocouple failure alarm
    • +/- 1 ºC temperature control accuracy
    • Default DB9 PC communication port
    Compliance
    • CE Certified
    • NRTL (UL61010) or CSA certification is available upon request at extra cost.
    ,
     Working Temperature:
    • 1200 °C continuously without sample holding plate
    • 1000°C continuously with sample holding plate
    Heating rate:    10°C/min (recommended)
    Stability:     ±1 °C
