5-Side Heating Muffle Furnace (300x300x300mm, 27L, 1200 max) KSL-1200X-M5

5-Side Heating Muffle Furnace (300x300x300mm, 27L, 1200 max) KSL-1200X-M5

SKU: ksl-1200x-m5

Price: RFQ

Specifications

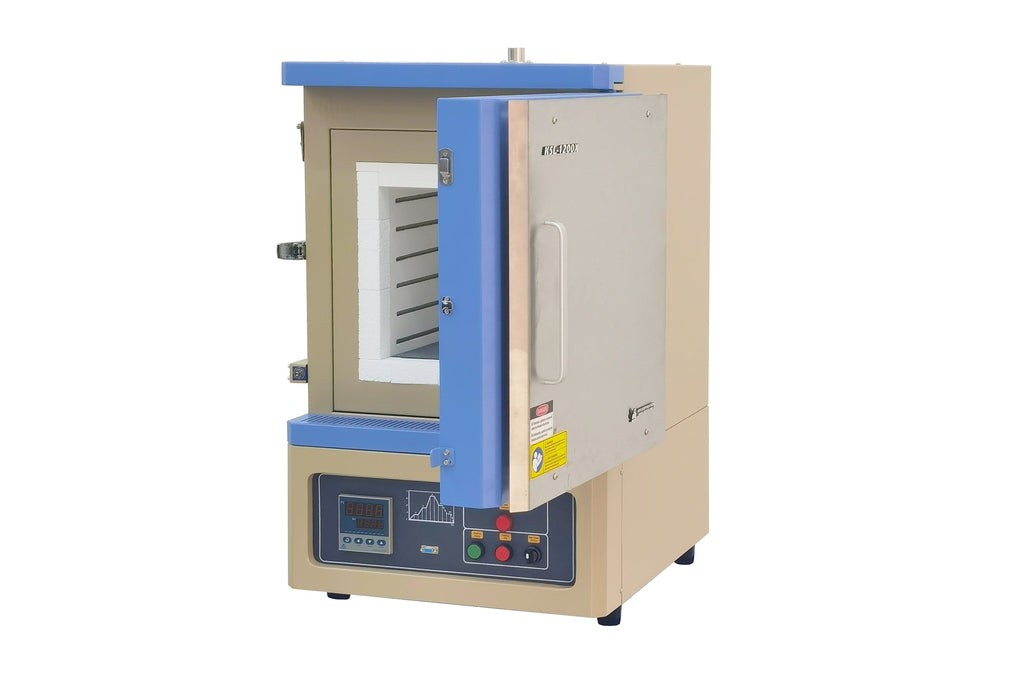

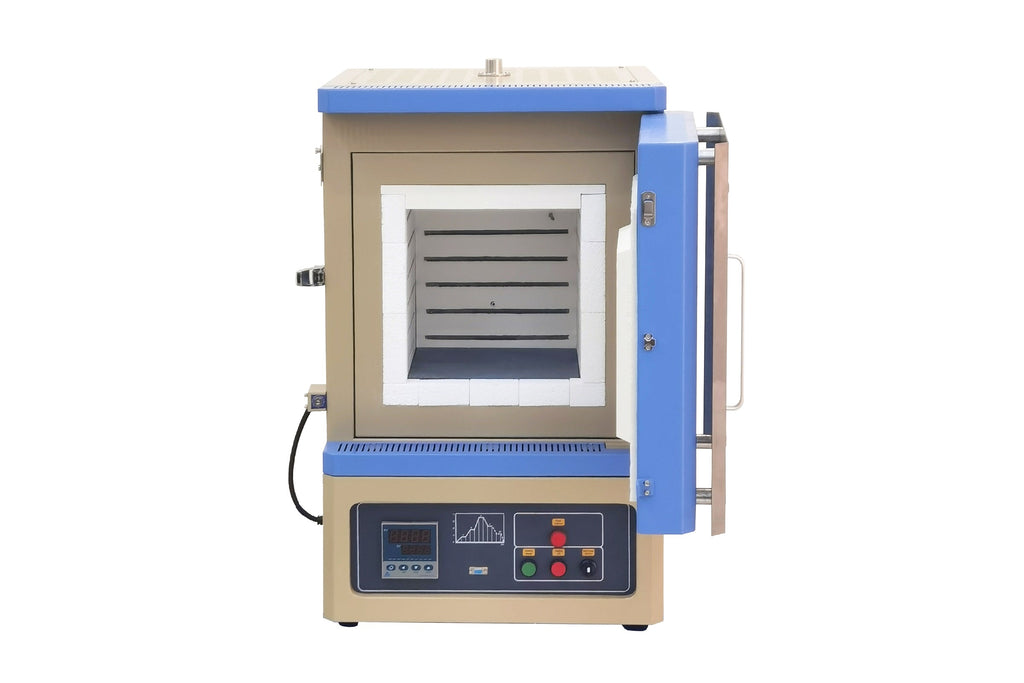

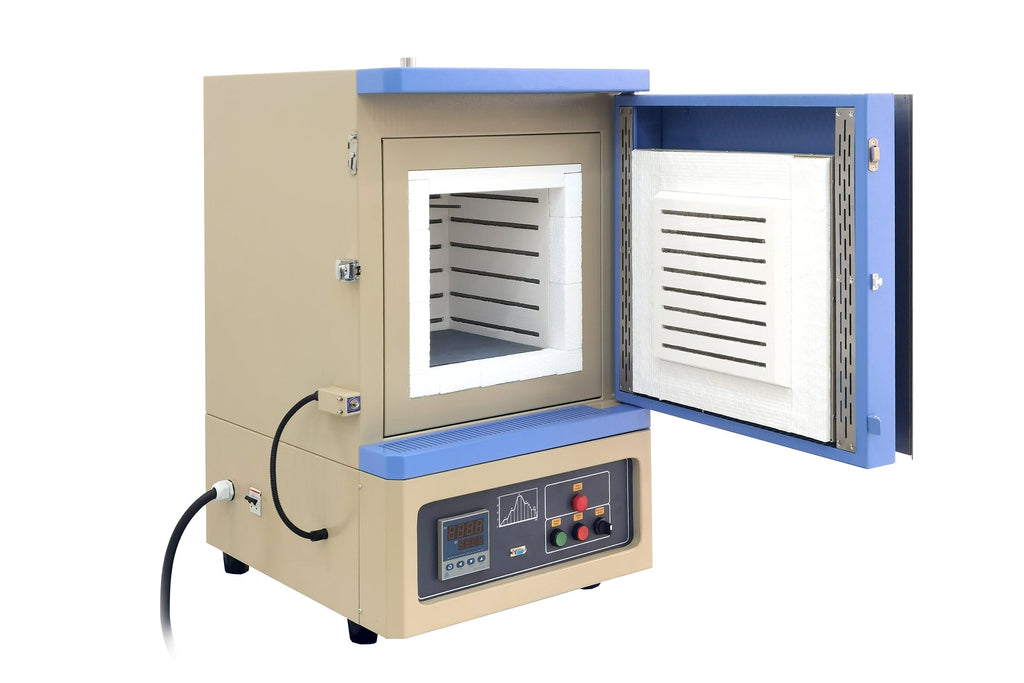

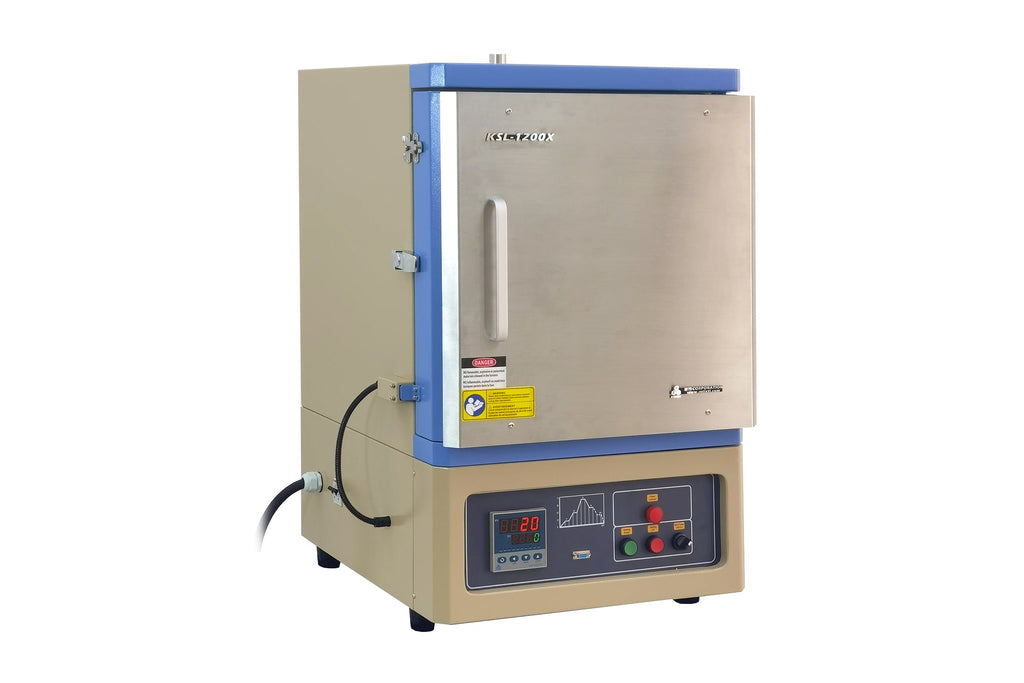

 KSL-1200X-M5 is a five-sided heating box furnace, providing good temperature field uniformity. The furnace chamber is made of high-purity alumina fiber material. The maximum temperature can reach 1200 degrees, with a temperature control accuracy of ±1 degree. This furnace has the advantages of uniform temperature field, low surface temperature, fast temperature rise and fall speed, and energy saving. It is an ideal product to do high-temperature sintering, metal annealing, and quality inspection. SPECIFICATIONS Power Supply AC220V/50HZ Power Consumption 6.5kW Thermocouple K-Type Max. Heating Rate 10°C/ min Max. Working Temperature 1200°C for ≤30min Continuous Working Temperature 1100°C Temperature Uniformity ±5 @ 1000°C in the center 250 x 250 x 250mm area Structure 5 sides heating with a fast heating rate and a uniform temperature field Uniformity of the temperature field: ±5 High-purity alumina fiber chamber material for minimize energy loss United States made alumina coating for the chamber surface to improve heating efficiency and lifespan Built-in air intake and exhaust ports to remove harmful pollutants and moisture to extend the lifespan of the heating elements and the furnace chamber. Overheating protection and thermocouple fail safe, also equipped with a door-opening power-off function Temperature Controller YD858P temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port Laptop, software & WiFi (Optional) Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Labview-Based Temperature Control System ( MTS01 ) enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range. The above features are available upon request at an extra cost (up to $1,000). Note: The software is only compatible with MTI’sTemperature Controller Gas Inlet and Outlet φ6mm Barbed Gas Inlet on the back of the furnace φ30mm Gas Outlet on the top of the furnace Application Notes This furnace is a vacuum-sealed furnace, toxic or explosive materials, and gasses are not recommended for use with this furnace without necessary safety controls and supervision. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. Optional click here to choose a crucible Heavy duty cart for carrying on the furnace

Power Supply AC220V/50HZ
Power Consumption 6.5kW
Thermocouple  K-Type
Max. Heating Rate 10°C/ min
Max. Working Temperature 1200°C for ≤30min
Continuous Working Temperature 1100°C
Temperature Uniformity ±5 @ 1000°C in the center 250 x 250 x 250mm area

Structure
  • 5 sides heating with a fast heating rate and a uniform temperature field
  • Uniformity of the temperature field: ±5

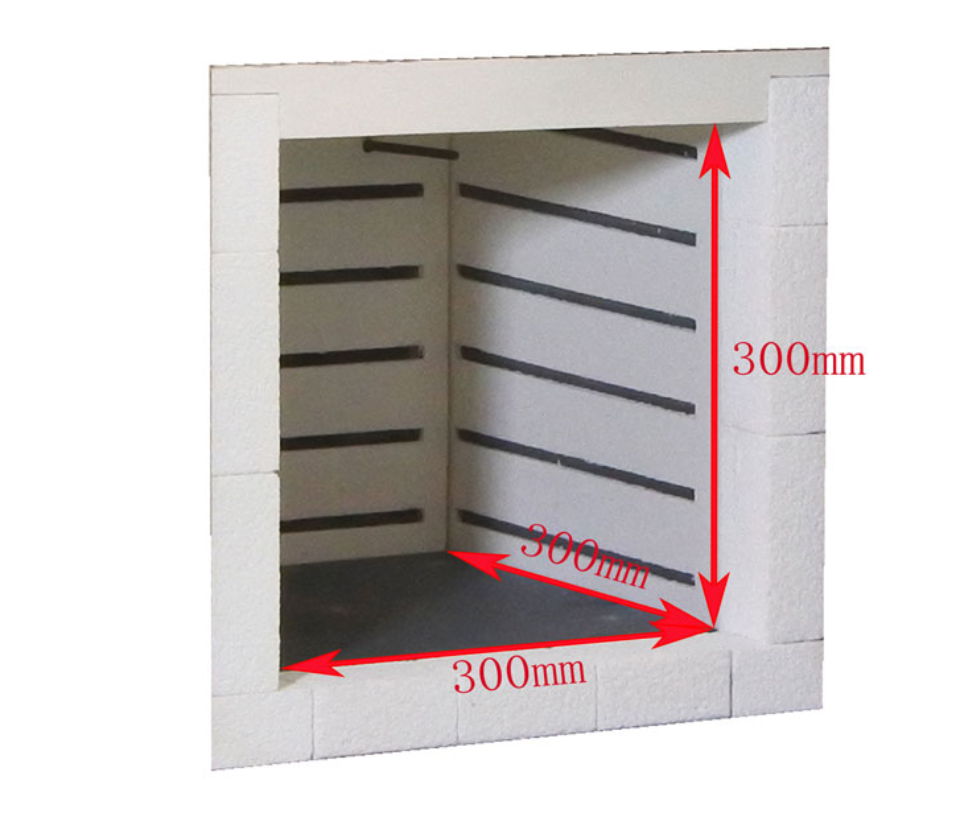

  • High-purity alumina fiber chamber material for minimize energy loss
  • United States made alumina coating for the chamber surface to improve heating efficiency and lifespan
  • Built-in air intake and exhaust ports to remove harmful pollutants and moisture to extend the lifespan of the heating elements and the furnace chamber.
  • Overheating protection and thermocouple fail safe, also equipped with a door-opening power-off function
Temperature Controller
  • YD858P temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
Laptop, software & WiFi (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview-Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • The above features are available upon request at an extra cost (up to $1,000).
  • Note: The software is only compatible with MTI’sTemperature Controller
Gas Inlet and Outlet
  • φ6mm Barbed Gas Inlet on the back of the furnace
    φ30mm Gas Outlet on the top of the furnace

Application Notes
  • This furnace is a vacuum-sealed furnace, toxic or explosive materials, and gasses are not recommended for use with this furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
  • Optional



click here to choose a crucible Heavy duty cart for carrying on the furnace
