SKU: ksl-1200x-l5-ul

Price: RFQ

Description

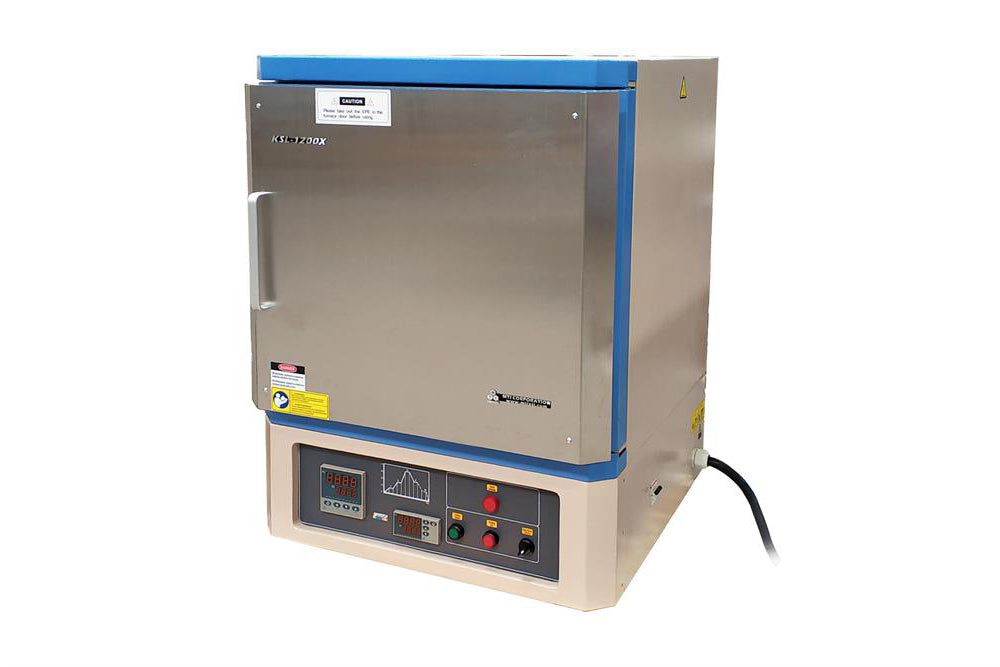

 KSL-1200X-L5 is a five-sided heating muffle furnace designed for annealing superalloys and precious metals with a more uniform temperature zone. A SiC sheet is installed on the bottom of the chamber, which can load heavy samples up to 100 kg. SPECIFICATIONS Structure Five sides heating ( left, right, front, back, and bottom ) to achieve a more uniform temperature zone. One SiC sheet is placed on the bottom of the chamber ( top of the heating element ) to support heavy sample load up to 100 kg. Double temperature controller to ensure the furnace never overshoots Thermally efficient ceramic (high-purity alumina fiber) insulation surrounding the chamber provides maximum energy efficiency. Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch. Built-in vent port removes undesirable contaminants and moisture; extends the life span of the heating elements and furnace. Power Voltage:  AC 208 - 240, three-phase, 50/60Hz 12KW Watts 50A breaker Note:  Power cable included, but without the plug. Please install a plug on your own Heating Chamber Chamber size: 16'x16"x16"   ( 400 x400x400 mm) Capacity:   2,25 cubic foot, ( ~64 L) Five sides heated by NiCrAl resistance coils with max temperature uniformity ( +/- 3oC at uniform temp zone) Max. loading: 100 Kg Operating Temp Range 100-1100°C-Max continuously 1200°C-Max under an hour Note: for using =>1000°C, the furnace block must be placed front chamber. Stability at 1000 o C +/- 1°C Uniformity at 1000 o C +/- 3°C @300°C and 1000°C in the center 300 × 300 × 300mm area Max. Heating Rate 20°C/ min Temperature Controller A digital temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1ºC temperature control accuracy The default DB9 PC communication port Optional +/- 0.1ºC Controller MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit. You may upgrade the temperature controller to the Eurotherm Temperature Controller , which is fully compatible with LabVIEW and provides +/- 0.1ºC accuracy. This package includes a Eurotherm programmer, a communication cable (RS485-USB), and a software CD. Click the pic below to view the full spec of the Eurotherm temperature controller. Laptop, software & WiFi (Optional) Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use. LabVIEW-Based Temperature Control System ( EQ-MTS01 ) enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. Gas Inlet and Outlet A 1/4'' Barbed Gas Inlet/Outlet is installed on the back of the furnace. Compliance CE Certified NRTL (UL61010) or CSA certification is available at extra cost. Application Notes This furnace is not vacuum-sealed; toxic or explosive materials and gases are not recommended for use with this furnace without the necessary safety controls and supervision. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence, and the cracks may be repaired with alumina coating . Optional click here to choose a crucible heavy-duty cart for carrying on the furnace

Structure

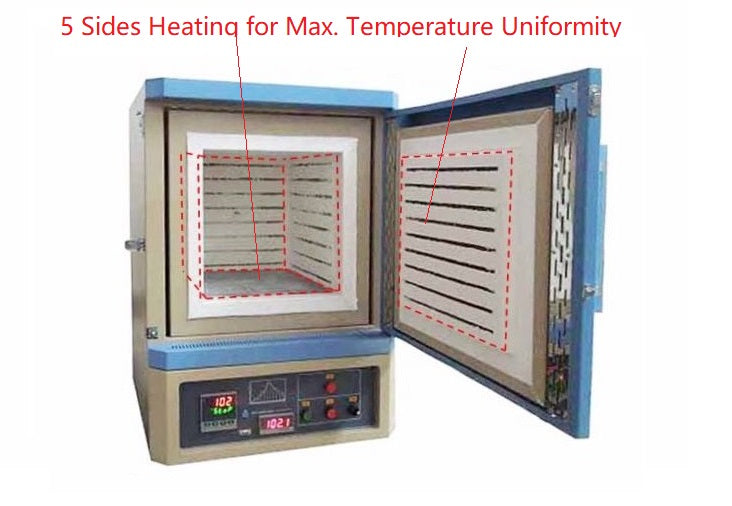

  • Five sides heating ( left, right, front, back, and bottom ) to achieve a more uniform temperature zone.
  • One SiC sheet is placed on the bottom of the chamber ( top of the heating element ) to support heavy sample load up to 100 kg.
  • Double temperature controller to ensure the furnace never overshoots
  • Thermally efficient ceramic (high-purity alumina fiber) insulation surrounding the chamber provides maximum energy efficiency.
  • Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch.
  • Built-in vent port removes undesirable contaminants and moisture; extends the life span of the heating elements and furnace.
Power
  • Voltage:  AC 208 - 240, three-phase, 50/60Hz
  • 12KW Watts
  • 50A breaker
  • Note:  Power cable included, but without the plug. Please install a plug on your own
 Heating Chamber
  • Chamber size: 16'x16"x16"   ( 400 x400x400 mm)
  • Capacity:   2,25 cubic foot, ( ~64 L)
  • Five sides heated by NiCrAl resistance coils with max temperature uniformity ( +/- 3oC at uniform temp zone)
  • Max. loading: 100 Kg
Operating Temp Range
  • 100-1100°C-Max continuously
  • 1200°C-Max under an hour
  • Note: for using =>1000°C, the furnace block must be placed front chamber.
Stability at 1000oC
  • +/- 1°C
Uniformity at 1000oC
  • +/- 3°C @300°C and 1000°C in the center 300 × 300 × 300mm area
Max. Heating Rate
  • 20°C/ min
Temperature Controller
  • A digital temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling, and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1ºC temperature control accuracy
  • The default DB9 PC communication port
Optional +/- 0.1ºC Controller

  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.
  • You may upgrade the temperature controller to the Eurotherm Temperature Controller, which is fully compatible with LabVIEW and provides +/- 0.1ºC accuracy. This package includes a Eurotherm programmer, a communication cable (RS485-USB), and a software CD. Click the pic below to view the full spec of the Eurotherm temperature controller.
Laptop, software & WiFi (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use.
  • LabVIEW-Based Temperature Control System (EQ-MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
Gas Inlet and Outlet
A 1/4'' Barbed Gas Inlet/Outlet is installed on the back of the furnace.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.
Application Notes
  • This furnace is not vacuum-sealed; toxic or explosive materials and gases are not recommended for use with this furnace without the necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence, and the cracks may be repaired with alumina coating.
  • Optional
click here to choose a crucible heavy-duty cart for carrying on the furnace
